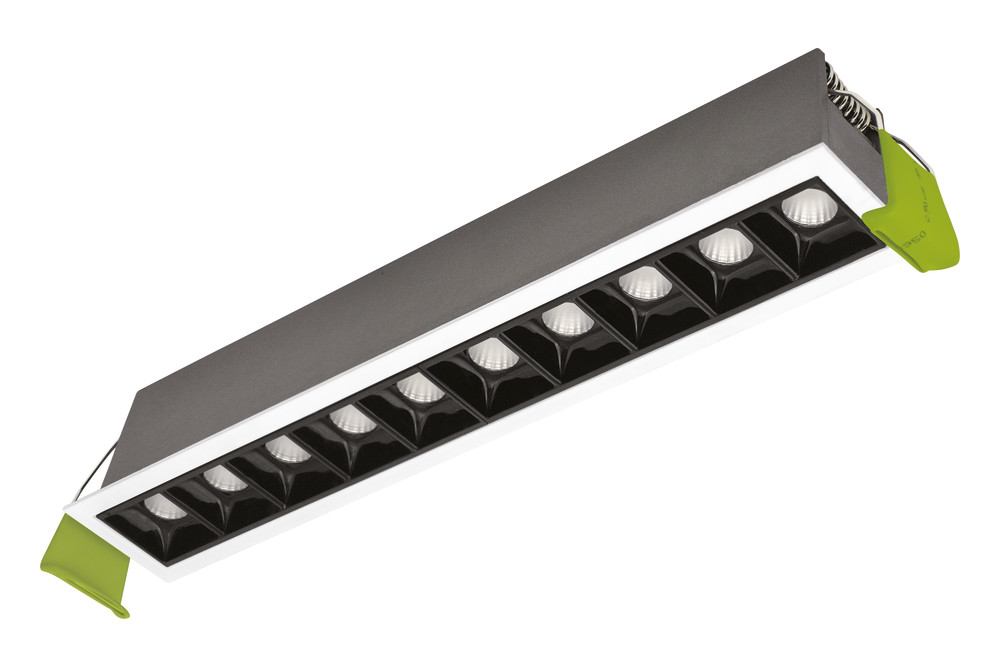

TRACELUX 20W 10 LIGHT 3000K 45MM WIDTH RECESSED LINEAR DOWNLIGHT LED 273MM BY 37MM CUTOUT CRI90 IP20 1520LM 30 DEG BEAM 76LM/W WHITE BEZEL WITHOUT OUTER COVER 30VDC 600MA WITHOUT DRIVER
Part Number:
ILDLTR002
Integral LED’s Tracelux family is a set of linear recessed downlights in various lengths that brings designer lighting at an affordable price, perfect for architectural spaces such as hotel foyers, boardrooms, high-end shops, museums, and galleries.
The lights contain heavily recessed LEDs and can be integrated into a UGR<19 lighting scheme to achieve very low glare, and feature CRI90 to make colours pop. The single die caste aluminium body dissipates heat super efficiently.
Tracelux can be paired with a variety of drivers such as non-dim, and dimmable DALI and 0-10V, as well as working with Integral LED’s emergency pack. To give the lighting designer even further ability to match the light to any installation, Integral LED offer a range of outer cover finishes. See related products for drivers and covers available. Please feel free to approach our sales team with any special customization requests
The lights contain heavily recessed LEDs and can be integrated into a UGR<19 lighting scheme to achieve very low glare, and feature CRI90 to make colours pop. The single die caste aluminium body dissipates heat super efficiently.
Tracelux can be paired with a variety of drivers such as non-dim, and dimmable DALI and 0-10V, as well as working with Integral LED’s emergency pack. To give the lighting designer even further ability to match the light to any installation, Integral LED offer a range of outer cover finishes. See related products for drivers and covers available. Please feel free to approach our sales team with any special customization requests
- Product Feature 1:
- Premium designer look
- Product Feature 2:
- Attractive low glare design
- Product Feature 3:
- High quality aluminium construction
- Product Feature 4:
- CRI90 real colour
- Product Feature 5:
- Interchangeable outer covers
- Product Feature 6:
- Light does not include driver or outer cover
- Availability:
-
50+
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Quick Order Code | 565526 |
|---|---|
| Barcode | 5055788274711 |
| Category | Downlights |
| Range Name | Tracelux |
| Product Body Finish | Matt white |
| Market Segment | Accent lighting |
| Fixed/Tiltable | Fixed |
| Warranty (Years) | 5 |
Physical Data
| Emergency Option | Optional Conversion Kit |
|---|---|
| Product Length (mm) | 280 |
| Product Depth (mm) | 49 |
| Product Width (mm) | 45 |
| Product Weight (g) | 417 |
| Optic | Clear Refractor |
| Construction | Die cast Aluminium heat-sink and body |
| Cut Out Length (mm) | 273 |
| Cut Out Width (mm) | 37 |
| Bulb or Luminaire Shape | Rectangle |
| Luminaire Fixing | Recess mounted |
| Placement / Application | Indoor, General Lighting |
| Spot Type | SMD |
Light Data
| Luminous Flux in Lumens (lm) | 1520 |
|---|---|
| Luminous efficacy (lm/W) | 76 |
| Correlated Colour Temperature (CCT) (K) | 3000 |
| Colour Temperature | 3000K - Warm White |
| Colour Temperature Name | Warm White |
| Beam Angle | 30 |
| Colour Rendering Index (CRI) | 90 |
| Integrated Light Source | Yes |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 50000 |
| Lumens in Emergency mode (lm) | 152 |
Electrical Data
| Power Consumption (W) | 20 |
|---|---|
| Amperage (mA) | 600 |
| Input Voltage (V) | 30 |
| Driver Included | No |
| Electric Current | DC |
| EN | Yes |
| LVD Certified | Yes |
Environmental
| EN | Yes |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 40 |
Packaging
| Package Weight (g) | 530 |
|---|---|
| Package Length (mm) | 308 |
| Package Width (mm) | 66 |
| Package Depth (mm) | 72 |
Safety Guide
ILDLTR002-20W-3000K
