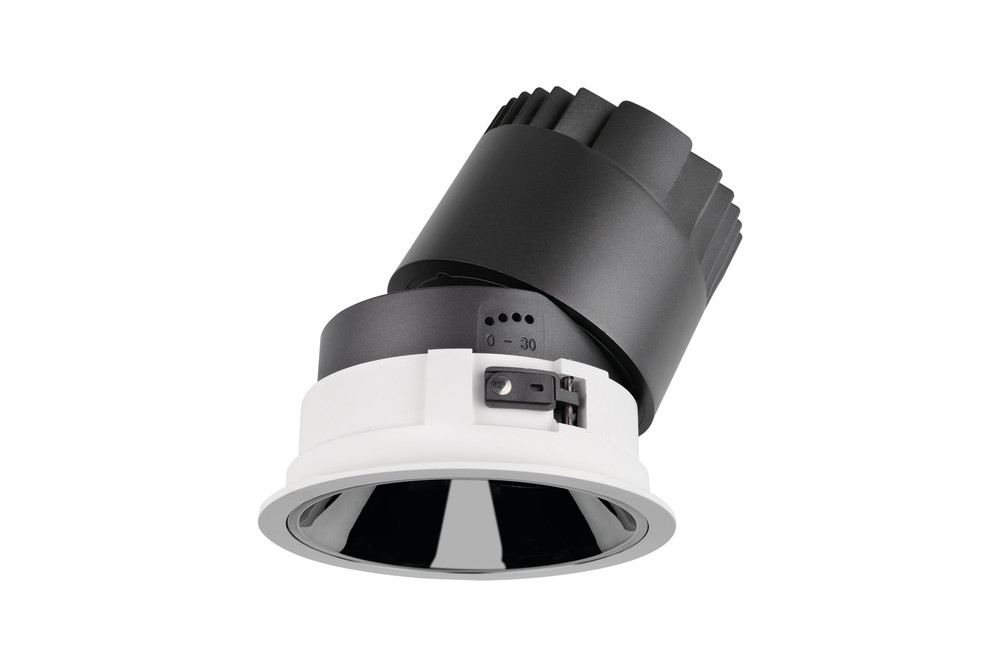

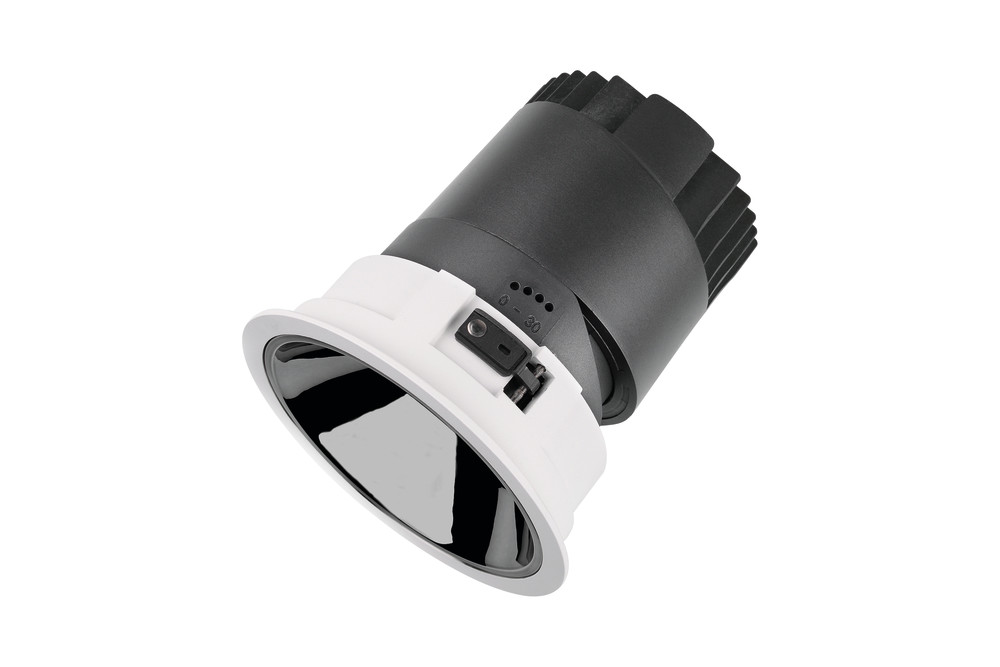

ACCENTPRO LED DOWNLIGHT 36 DEG BEAM ANGLE 120MM CUTOUT 30 DEG TILTABLE 355 DEG ROTATABLE 25W 1725LM 66LM/W 3000K CRI90 MIRROR SILVER ROUND 34VDC 600MA WITHOUT DRIVER
Part Number:
ILDL120P013
Integral’s AccentPro family offers a professional range of customizable accent downlights ideal for commercial, retail, display, and museum spaces. The recessed “Darklight” technology means the fittings blend seamlessly into architectural lighting projects, and a variety of drivers (sold separately) offers solutions for all the popular dimming and control systems on the market.
Each size of AccentPro has a choice of coloured reflector and trimless plaster in mount accessories (see suggested products below) to produce the perfect desired look. Note: Warranty increased to 5 years on 27/03/2025
- Product Feature 1:
- Driver Not included
- Product Feature 2:
- 36 degree beam angle
- Product Feature 3:
- Low glare from deep recessed design
- Product Feature 4:
- Focussed light direction (30° tiltable, 355° rotatable)
- Product Feature 5:
- Customised premium look with multiple reflector options
- Product Feature 6:
- Plaster in mounting accessory available
- Product Feature 7:
- Optional drivers for non-dim, DALI, 0-10V, push dim and Casambi app enabled (on request)
- Product Feature 8:
- Special orders welcomed
- Availability:
-
100+
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Barcode | 5055788269120 |
|---|---|
| Quick Order Code | 954741 |
| Category | Downlights |
| Range Name | AccentPro |
| Product Body Finish | Matt white |
| Market Segment | Accent lighting |
| Fixed/Tiltable | Tiltable |
| Warranty (Years) | 5 |
Physical Data
| Emergency Option | No |
|---|---|
| Product Length (mm) | 155 |
| Product Depth (mm) | 132 |
| Product Width (mm) | 132 |
| Product Weight (g) | 1110 |
| Optic | PC |
| Material | Aluminium |
| Overall diameter (mm) | 132 |
| Construction | extruded Aluminium |
| Cut Out Diameter (mm) | 120 |
| Bulb or Luminaire Shape | Round |
| Luminaire Fixing | Recess mounted |
| Placement / Application | Indoor, General Lighting |
| Spot Type | COB |
Light Data
| Energy Efficiency Label (Image) | ILDL120P013_EU_label |
|---|---|
| Luminous Flux in Lumens (lm) | 1725 |
| Luminous efficacy (lm/W) | 69 |
| Correlated Colour Temperature (CCT) (K) | 3000 |
| Colour Temperature | 3000K - Warm White |
| Colour Temperature Name | Warm White |
| Beam Angle | 36 |
| Colour Rendering Index (CRI) | 90 |
| Instant on (Less than 1 second) | Yes |
| Integrated Light Source | Yes |
| LED Type | Chip on board (COB) |
| Lifetime (hours) | 50000 |
Electrical Data
| Power Consumption (W) | 25 |
|---|---|
| Amperage (mA) | 600 |
| Input Voltage (V) | 34 |
| Driver Included | No |
| Electric Current | DC |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| New Energy Rating | G |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -10 |
| Maximum Operating Temperature (°C) | 35 |
Packaging
| Barcode | 5055788269120 |
|---|---|
| Single box qty | 1 |
| Package Weight (g) | 1150 |
| Package Length (mm) | 145 |
| Package Width (mm) | 150 |
| Package Depth (mm) | 111 |
| Outer Carton Barcode | 5055788269687 |
| Qty per Outer Carton | 18 |
