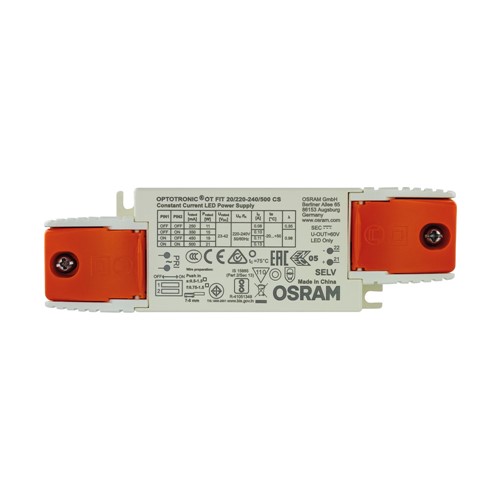

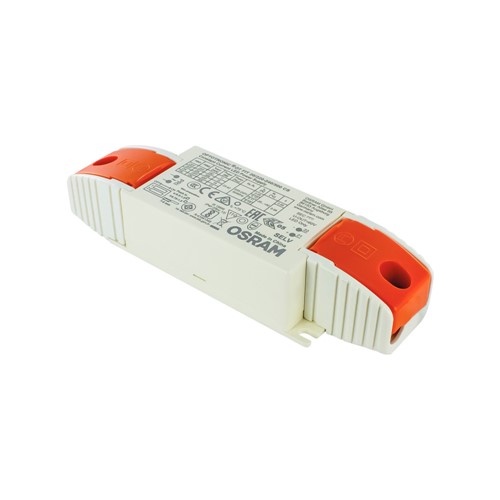

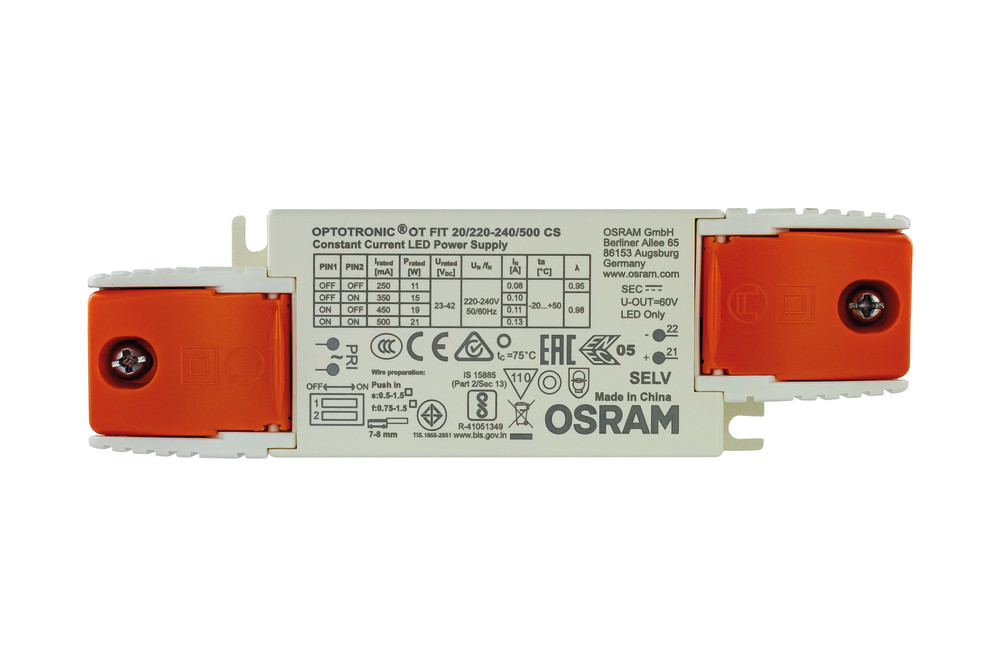

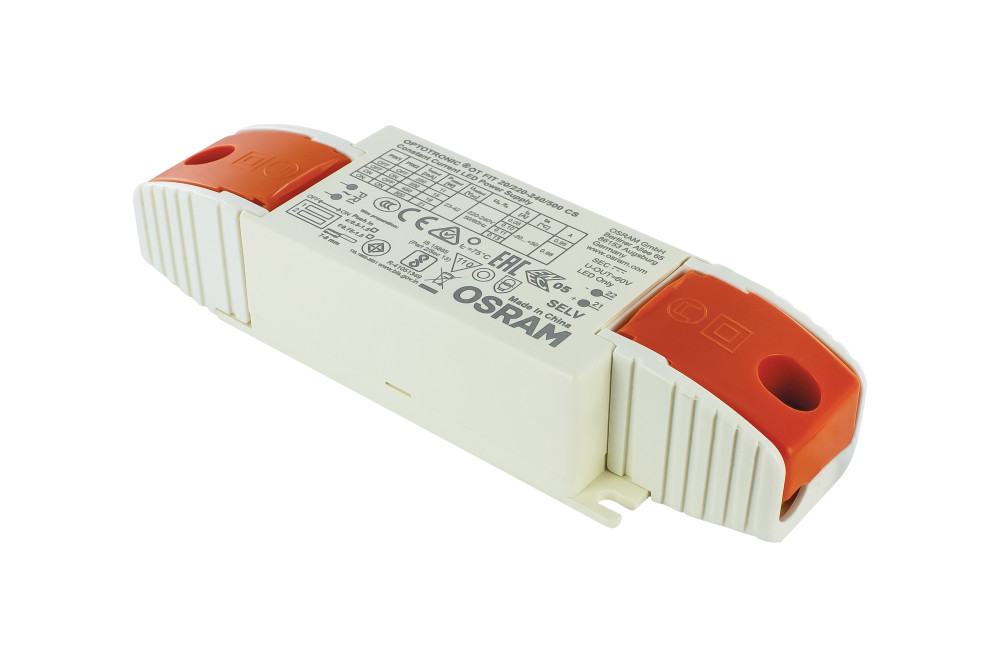

ADJUSTABLE CONSTANT CURRENT DRIVER 11-21W 250-500MA IP20 NON-DIM 23-42V OUTPUT INTEGRAL
Part Number:
ILDRCCA075A
Integral LED Constant Current Drivers are designed and built using highly reliable components to deliver the best performance for commercial and residential lighting applications.
- Product Feature 1:
- Input Voltage: 220-240VAC
- Product Feature 2:
- Output Power range 11-21W
- Product Feature 3:
- Adjustable output current range 250-500mA
- Product Feature 4:
- Output voltage range 23-42V
- Availability:
-
75
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Quick Order Code | 782859 |
|---|---|
| Barcode | 5055788269519 |
| Category | Drivers |
| Range Name | Non-Dimmable |
| Product Type | Constant Current |
| Market Segment | Commercial indoor, Residential indoor |
| Warranty (Years) | 3 |
Physical Data
| Product Length (mm) | 300 |
|---|---|
| Product Depth (mm) | 50 |
| Product Width (mm) | 20 |
| Product Weight (g) | 800 |
| Placement / Application | Indoor LED Lighting |
Light Data
| Frequency Range (Hz) | 50/60 |
|---|
Electrical Data
| Power Consumption (W) | 20 |
|---|---|
| Power Factor | 0.9 |
| Voltage (V) | 23-42 |
| Voltage Range (v) | 220-240 |
| Input Current (A) | 0.095 |
| Input Voltage (V) | 220-240VAC |
| Output Current (mA) | 500 |
| Dimming | Non-Dimmable |
| Protection Function | Short Circuit Protection, Overload Protection, Overheat Protection |
| EN | EN60598, EN62081, EN62471, EN60598, EN62779 |
| LVD Certified | Yes |
Environmental
| EN | EN60598, EN62081, EN62471, EN60598, EN62779 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -10 |
| Maximum Operating Temperature (°C) | 35 |
