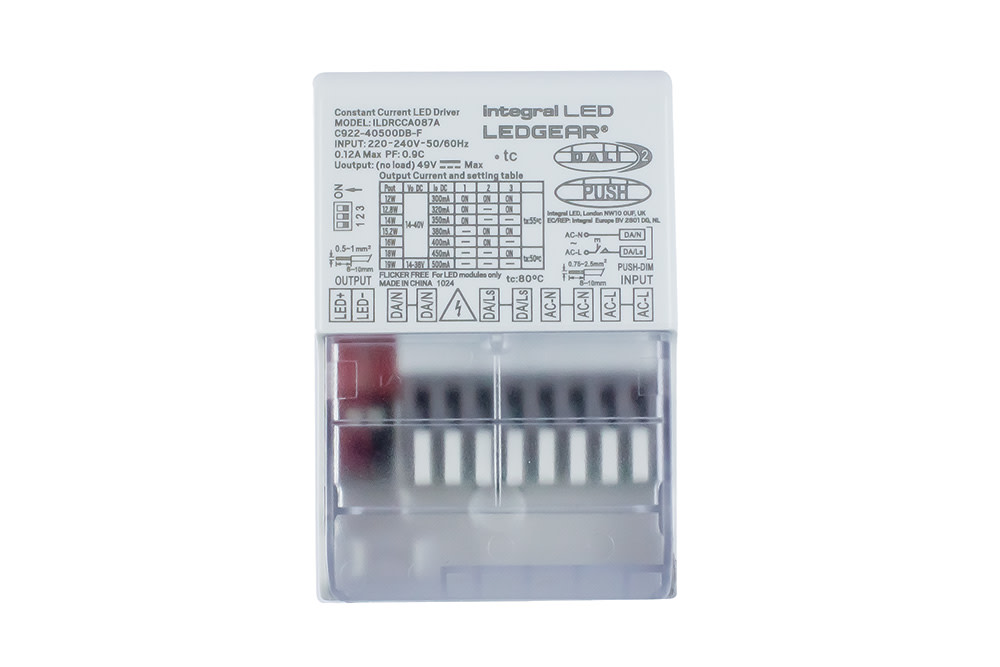

CONSTANT CURRENT COMPACT DRIVER ADJUSTABLE OUTPUT 12-19W 300-500MA IP20 DALI- DALI2 - PUSH-DIMM 14-40V OUTPUT INTEGRAL
Part Number:
ILDRCCA087A
Integral LED Constant Current Drivers are designed and built using highly reliable components to deliver the best performance for commercial and residential lighting applications.
- Product Feature 1:
- Input Voltage: 220-240VAC
- Product Feature 2:
- Output Power range: 12-19W
- Product Feature 3:
- Adjustable output current range 300-500mA
- Product Feature 4:
- Output voltage range 14-40V
- Product Feature 5:
- ENEC
- Availability:
-
91
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Quick Order Code | 967117 |
|---|---|
| Barcode | 5055788298229 |
| Category | Drivers |
| Range Name | Dali/Dali2/0-10V/Push-Dim |
| Product Type | Costant Current |
| Product Body Finish | Matt white |
| Market Segment | Commercial indoor |
| Warranty (Years) | 3 |
Physical Data
| Product Length (mm) | 87.5 |
|---|---|
| Product Depth (mm) | 27.5 |
| Product Width (mm) | 60 |
| Product Weight (g) | 0.12 |
| Material | Polycarbonate |
| Placement / Application | Indoor, LED Lighting |
Light Data
| Frequency Range (Hz) | 50/60 |
|---|
Electrical Data
| Power (W) | 12-19 |
|---|---|
| Power Consumption (W) | 12 to 19W |
| Power Factor | 0.9 |
| Voltage (V) | 14-40 |
| Voltage Range (v) | 220-240 |
| Input Current (A) | Adjustable 14-40V |
| Input Voltage (V) | 220-240VAC |
| Output Current (mA) | Adjustable |
| Output Voltage (V) | 14-40V |
| Dimming | DALI, DALI2, PUSH-DIMM and 0-10V |
| Electric Current | AC |
| Protection Function | Short Circuit protection, Overload protection, Thermal protection |
| EN | EN61347-1, EN61347-2-13, EN55015, EN61547, EN61000-3-2, EN61000-3-3 |
Environmental
| EN | EN61347-1, EN61347-2-13, EN55015, EN61547, EN61000-3-2, EN61000-3-3 |
|---|---|
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Back/Recessed side) | IP20 |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 45 |
Packaging
| Package Weight (g) | 137 |
|---|---|
| Package Length (mm) | 87.5 |
| Package Width (mm) | 60 |
| Package Depth (mm) | 27.5 |
