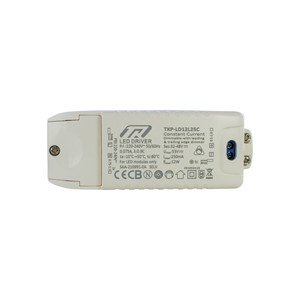

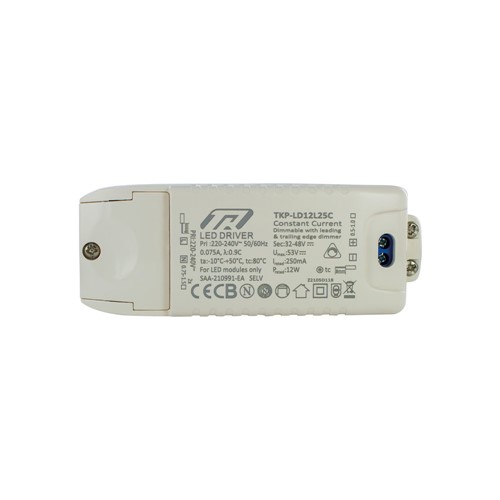

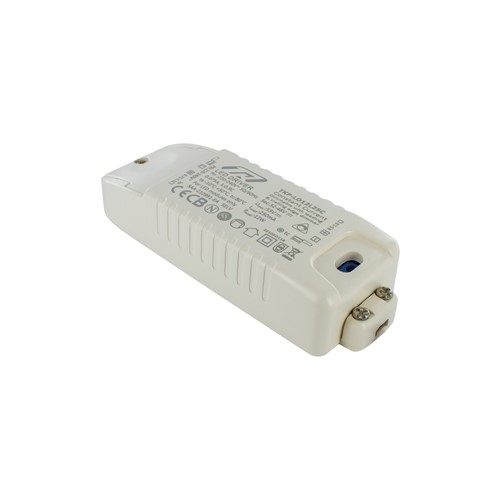

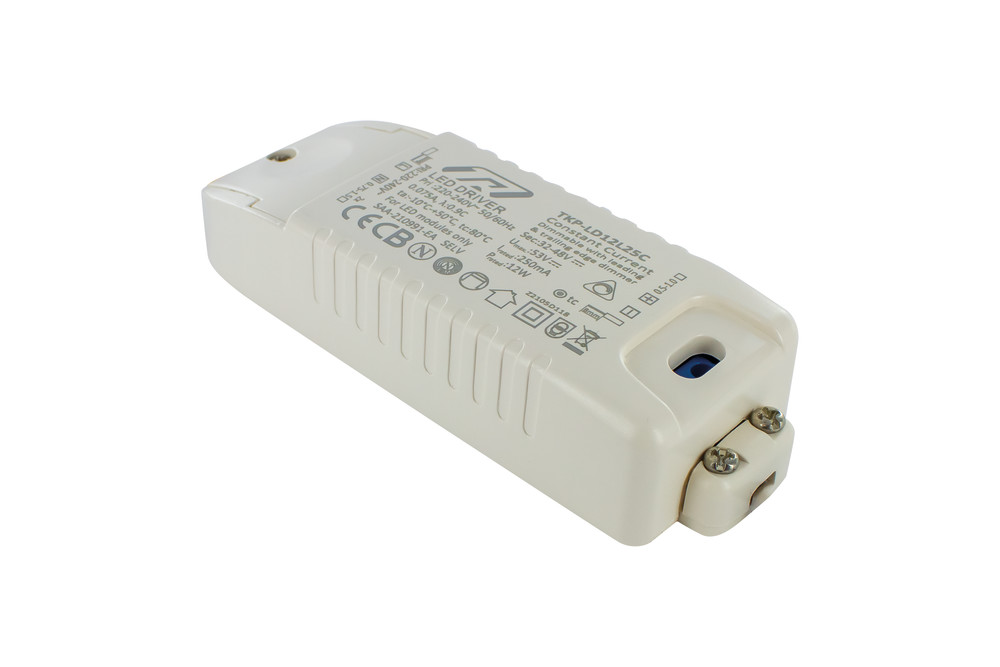

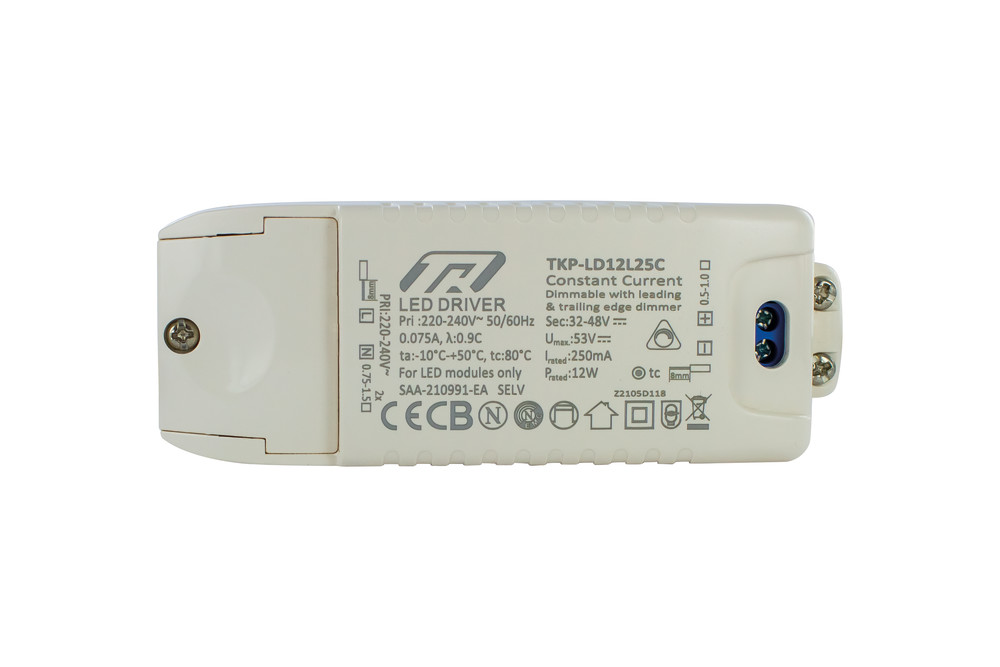

CONSTANT CURRENT DRIVER 10.5W 250MA IP20 TRIAC DIMMABLE 32-45V OUTPUT INTEGRAL
Part Number:
ILDRCCA073A
10.5W non-dimmable constant current LED driver.
Integral LED Constant Current Drivers are designed and built using highly reliable components to deliver the best performance for commercial and residential lighting applications.
- Product Feature 1:
- Input Voltage: 220-240VAC
- Product Feature 2:
- Output: 10.5W
- Product Feature 3:
- 250mA
- Product Feature 4:
- Constant current
- Product Feature 5:
- Class II
- Availability:
-
100+
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Barcode | 5055788268468 |
|---|---|
| Quick Order Code | 560144 |
| Category | Drivers |
| Range Name | TRIAC |
| Product Type | Constant Current |
| Market Segment | Commercial indoor, Residential indoor |
| Warranty (Years) | 3 |
Physical Data
| Product Length (mm) | 100 |
|---|---|
| Product Depth (mm) | 20 |
| Product Width (mm) | 40 |
| Product Weight (g) | 59 |
| Placement / Application | Indoor, General Lighting |
Light Data
| Frequency Range (Hz) | 50/60 |
|---|
Electrical Data
| Power Consumption (W) | 10.5 |
|---|---|
| Power Factor | 0.9 |
| Voltage (V) | 32-45 |
| Voltage Range (v) | 220-240 |
| Input Current (A) | 0.1 |
| Input Voltage (V) | 220-240VAC |
| Output Current (mA) | 250 |
| Dimming | Mains dim |
| Electric Current | AC |
| Protection Function | Short Circuit Protection, Overload Protection, Overheat Protection |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -25 |
| Maximum Operating Temperature (°C) | 85 |
Packaging
| Barcode | 5055788268468 |
|---|---|
| Single box qty | 1 |
| Outer Carton Barcode | 05055788268697 |
| Qty per Outer Carton | 200 |
| Outer Carton Length (mm) | 475 |
| Outer Carton Width (mm) | 330 |
| Outer Carton Depth (mm) | 165 |
