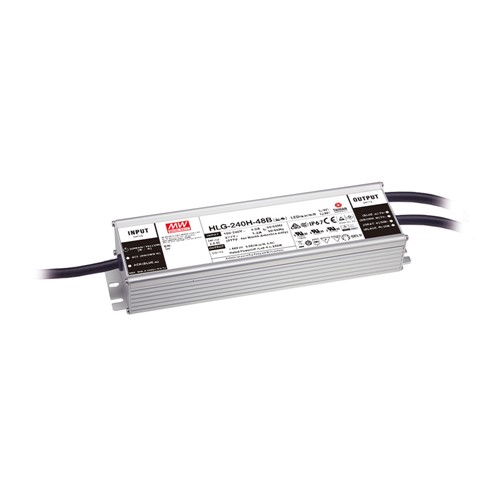

CONSTANT VOLTAGE DRIVER 240W 48VDC IP67 3 in 1 DIMMING 1-10V 10V PWM SIGNAL AND RESISTANCE 90-305V INPUT 20W MIN LOAD

Part Number:

HLG-240H-48B

This dimmable 240W constant voltage LED driver operates 90-305VAC input range. The LED driver provides 48V constant voltage for applications such as 48V LED strip lighting.

Product Feature 1:
Input Voltage: 90-305VAC
Product Feature 2:
Output Power: 240W
Product Feature 3:
Output: 48VDC Constant Voltage
Product Feature 4:
Built-in 3 in 1 dimming function: 1-10VDC / PWM signal / resistance
Product Feature 5:
Short Circuit / Over Load / Over Heat Protection
Availability:
18

Call us on 0208 451 8700 to check the next availability

Quick Order Code 468758
Barcode 5055788257875
Category Drivers
Range Name 1-10VDC / PWM signal / resistance
Product Type Constant Voltage
Market Segment Commercial indoor
Warranty (Years) 5
Product Length (mm) 244.2
Product Depth (mm) 38.8
Product Width (mm) 68
Product Weight (g) 1000
Placement / Application Indoor LED Lighting
Frequency Range (Hz) 50/60
Power Consumption (W) 240
Power Factor 0.95
Voltage (V) 48
Voltage Range (v) 90-305
Input Current (A) 2
Input Voltage (V) 90-305VAC
Output Current (mA) 5000
Dimming 1-10VDC / PWM signal / resistance
Protection Function Short Circuit Protection, Overload Protection, Overheat Protection
EN EN61347-1, EN61347-2-13, EN55015, EN6100-3-3, EN6100-3-2, EN61547
LVD Certified Yes
EN EN61347-1, EN61347-2-13, EN55015, EN6100-3-3, EN6100-3-2, EN61547
LVD Certified Yes
CE RoHS Yes
Hg 0% (Mercury Free) Yes
IP Rating (Ingress Protection) 67
Lowest Operating Temperature (°C) -40
Maximum Operating Temperature (°C) 50
Package Weight (g) 1300
Package Length (mm) 310
Package Width (mm) 95
Package Depth (mm) 45
