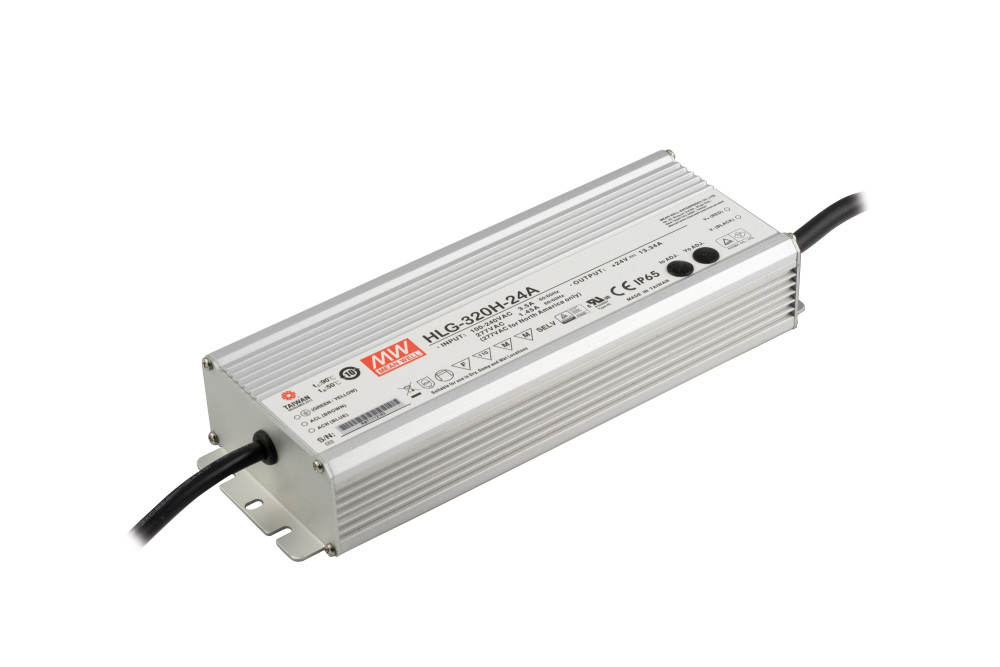

CONSTANT VOLTAGE DRIVER 320W 24VDC IP65 NON-DIMM 90-305V INPUT MEANWELL
Part Number:
HLG-320H-24A
This non-dimmable 320W constant voltage LED driver operates 115-277VAC input range. The LED driver provides 24V constant voltage for applications such as 24V LED strip lighting.
- Product Feature 1:
- Input Voltage: 115-277VAC
- Product Feature 2:
- Output Power: 320W
- Product Feature 3:
- Output: 24VDC Constant Voltage
- Product Feature 4:
- Short Circuit / Over Load / Over Heat Protection
- Availability:
-
0
More stock due in on 23/12/2024
Details
| Quick Order Code | 166747 |
|---|---|
| Barcode | 5055788229155 |
| Category | Drivers |
| Range Name | Non-Dimmable |
| Product Type | Constant Voltage |
| Market Segment | Commercial indoor, Residential indoor, Commercial outdoor, Residential outdoor |
| Warranty (Years) | 5 |
Physical Data
| Product Length (mm) | 252 |
|---|---|
| Product Depth (mm) | 44 |
| Product Width (mm) | 90 |
| Product Weight (g) | 1795 |
| Placement / Application | Indoor LED Lighting, Outdoor LED Light |
Light Data
| Frequency Range (Hz) | 50/60 |
|---|
Electrical Data
| Power (W) | 320 |
|---|---|
| Power Consumption (W) | 320 |
| Power Factor | 0.9 |
| Voltage (V) | 24 |
| Input Voltage (V) | 115-277 |
| Output Current (mA) | 13340 |
| Dimming | Non-Dimmable |
| Protection Function | Short Circuit Protection, Overload Protection, Overheat Protection |
| EN | EN61347-1, EN61347-2-13, EN55015, EN6100-3-3, EN6100-3-2, EN61547 |
| LVD Certified | Yes |
Environmental
| EN | EN61347-1, EN61347-2-13, EN55015, EN6100-3-3, EN6100-3-2, EN61547 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Back/Recessed side) | IP20 |
| IP Rating (Ingress Protection) | IP65 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 45 |
Packaging
| Package Weight (g) | 1935 |
|---|---|
| Package Length (mm) | 335 |
| Package Width (mm) | 125 |
| Package Depth (mm) | 60 |
