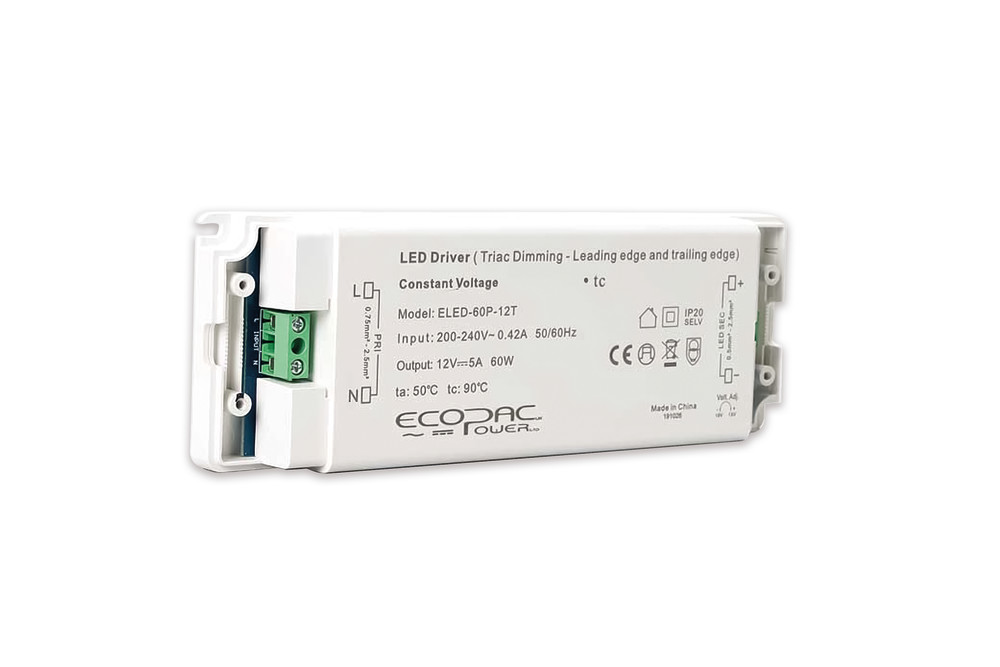

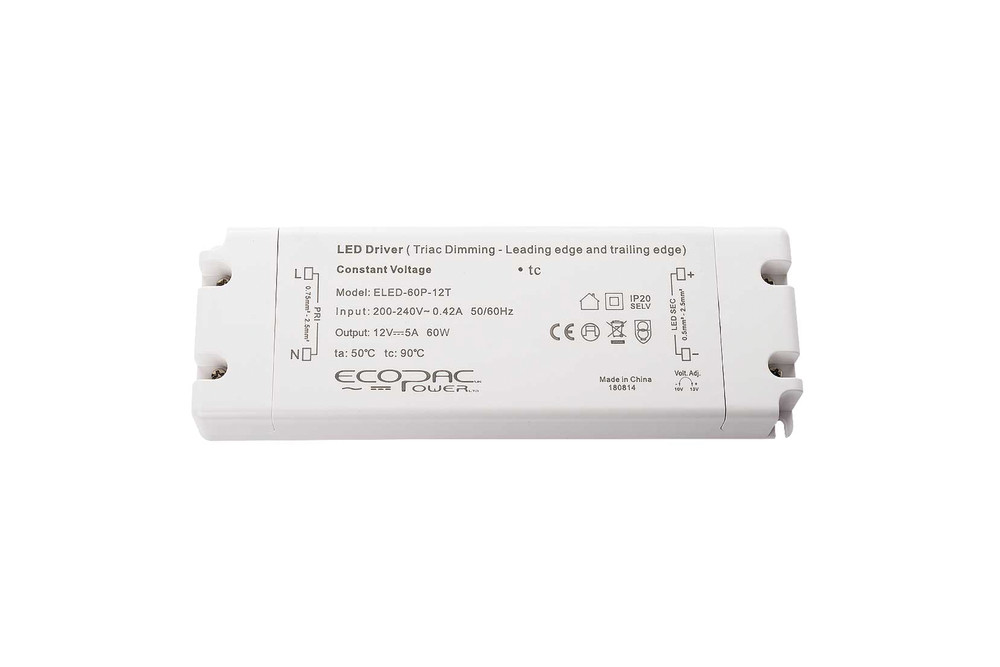

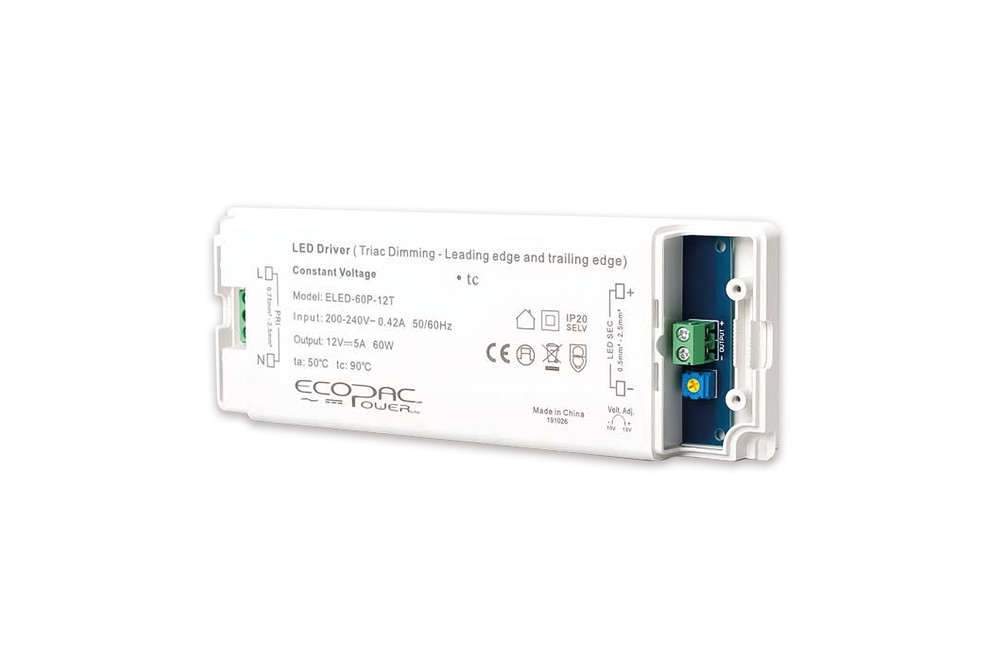

CONSTANT VOLTAGE DRIVER 60W 12VDC IP20 TRIAC DIMMABLE 200-240V INPUT 6W MIN LOAD ECOPAC POWER
Part Number:
ELED-60P-12T
This 60W constant voltage LED driver operates 200-240VAC input range. The LED driver provides 12V constant voltage and is TRIAC dimmable suitable for both leading edge dimmers and trailing edge dimmers
- Product Feature 1:
- Input Voltage: 200-240VAC
- Product Feature 2:
- Output Power: 60W
- Product Feature 3:
- Output: 12VDC Constant Voltage
- Product Feature 4:
- Short Circuit / Over Load / Over Heat Protection
- Availability:
-
53
Call us on 0208 451 8700 to check the next availability
Details
| Quick Order Code | 637718 |
|---|---|
| Barcode | 5055788265979 |
| Category | Drivers |
| Range Name | TRIAC |
| Product Type | Constant Voltage |
| Market Segment | Commercial indoor, Residential indoor |
| Warranty (Years) | 2 |
Physical Data
| Product Length (mm) | 178 |
|---|---|
| Product Depth (mm) | 24 |
| Product Width (mm) | 61 |
| Product Weight (g) | 320 |
| Placement / Application | Indoor LED Lighting |
Light Data
| Frequency Range (Hz) | 50/60 |
|---|
Electrical Data
| Power Consumption (W) | 60 |
|---|---|
| Power Factor | 0.98 |
| Voltage (V) | 12 |
| Voltage Range (v) | 200-240 |
| Input Current (A) | 0.38 |
| Input Voltage (V) | 200-240VAC |
| Output Current (mA) | 5000 |
| Dimming | Triac Dimmable using leading and trailing edge dimmers |
| Protection Function | Short Circuit Protection, Overload Protection, Overheat Protection |
| EN | EN61347-1, EN61347-2-13, EN55015, EN6100-3-3, EN6100-3-2, EN61547 |
| LVD Certified | Yes |
Environmental
| EN | EN61347-1, EN61347-2-13, EN55015, EN6100-3-3, EN6100-3-2, EN61547 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 60 |
Packaging
| Package Weight (g) | 350 |
|---|---|
| Package Length (mm) | 185 |
| Package Width (mm) | 65 |
| Package Depth (mm) | 28 |
