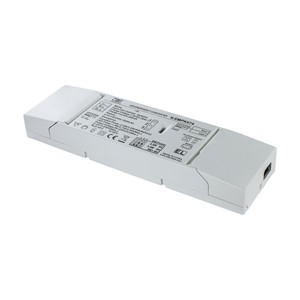

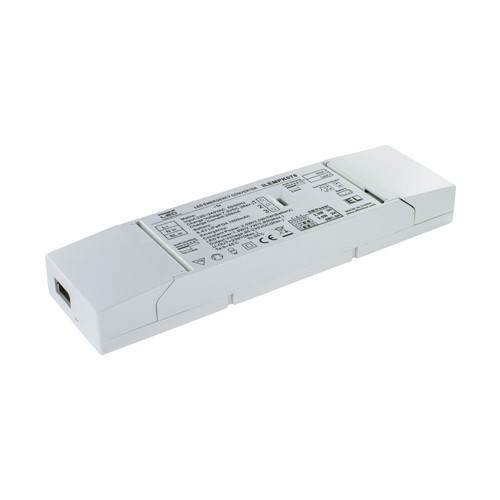

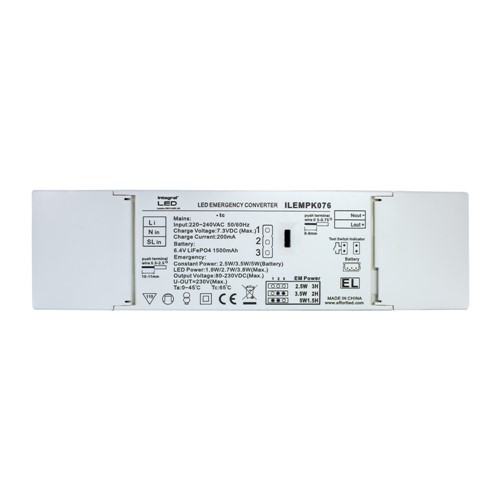

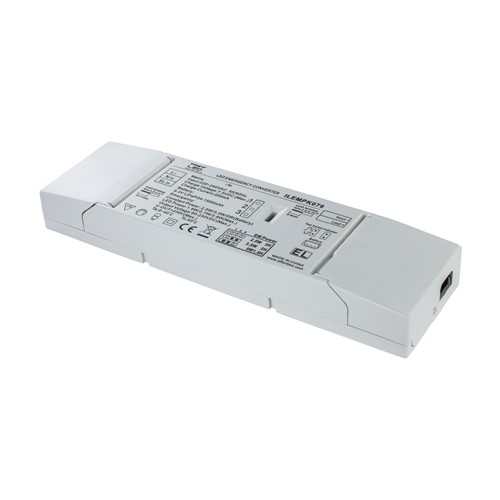

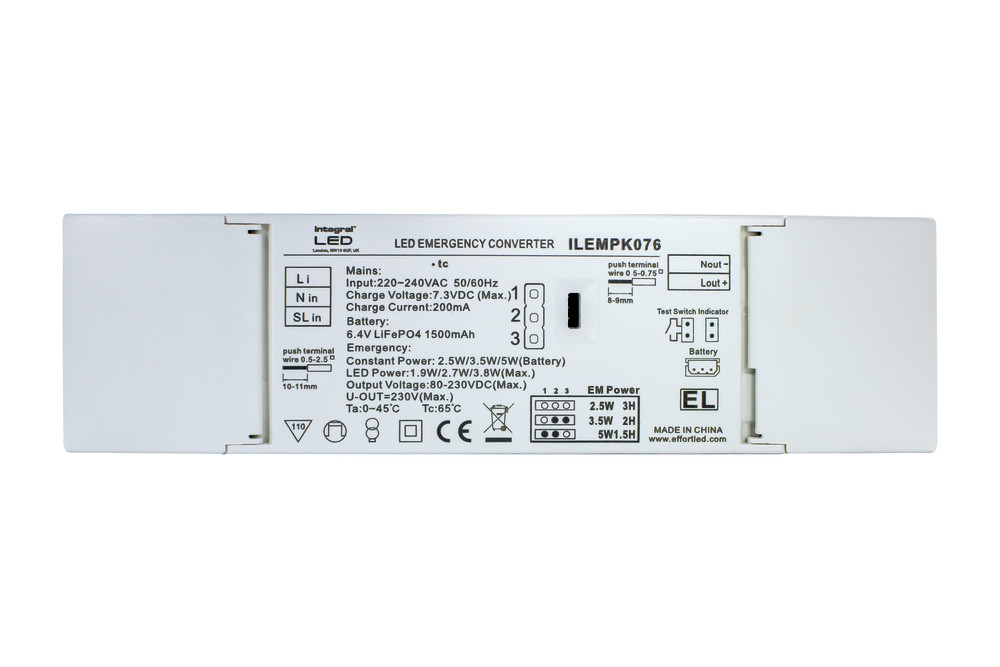

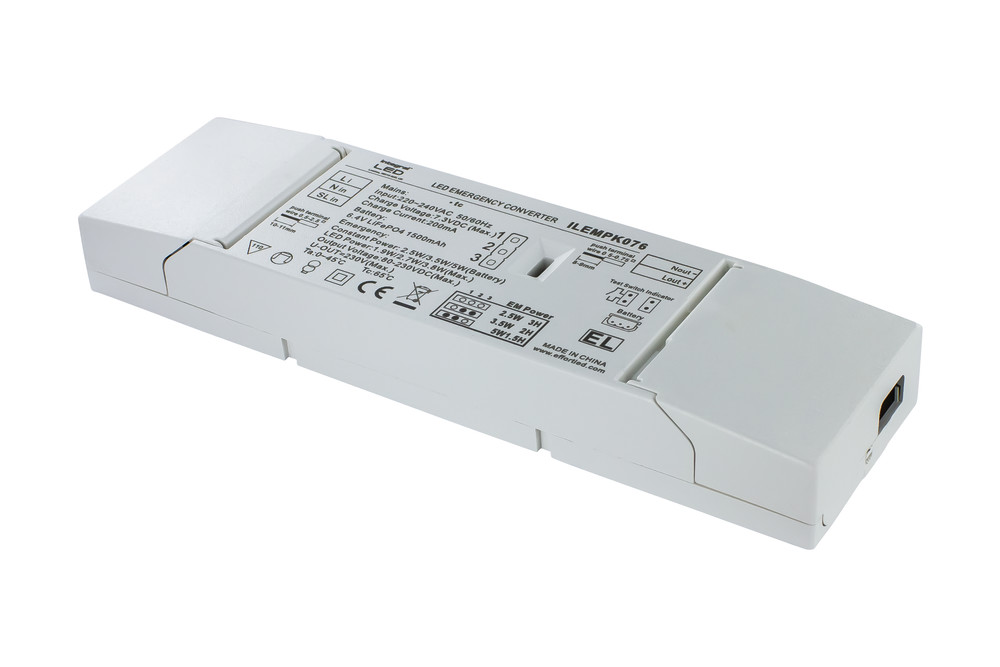

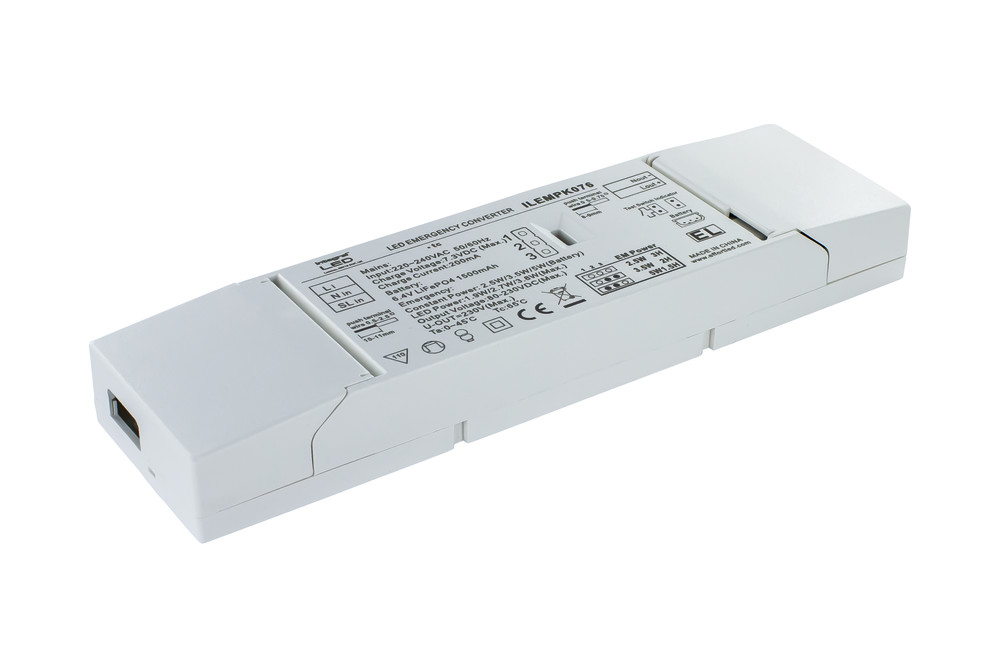

EMERGENCY CONVERSION KIT 6.4V 1.5Ah LIFePO4 3.5W 250V MAX. 3HR FOR 240V MAINS VOLTAGE LUMINAIRES
Part Number:
ILEMPK076
This Emergency Conversion Kit will convert compatible panels and downlights (up to 25W) into emergency luminaires. It will provide emergency lighting for 3 hours.
- Product Feature 1:
- Converts LED panels or downlights (up to 25W) into 3 hour emergency luminaires
- Product Feature 2:
- Long-lasting external Lithium Phosphate battery
- Product Feature 3:
- 3 Year Warranty (1 year for battery)
- Product Feature 4:
- See Related Products below for compatible products
- Availability:
-
100+
More stock due in on 10/05/2025
Suggested products
Details
| Quick Order Code | 139083 |
|---|---|
| Barcode | 5055788253624 |
| Product Body Finish | Matt white |
| Warranty (Years) | 1 |
Physical Data
| Emergency Option | Optional Conversion Kit |
|---|---|
| Emergency Category | Emergency Kit |
| Product Length (mm) | 199 |
| Product Depth (mm) | 24 |
| Product Width (mm) | 55 |
| Product Weight (g) | 1.22 |
| Bulb or Luminaire Shape | Linear |
| Luminaire Fixing | In Ceiling |
Light Data
| Frequency Range (Hz) | 50/60 Hz |
|---|---|
| Instant on (Less than 1 second) | Yes |
| LED Type | Per Luminaire |
| Lifetime (hours) | 50000 |
Electrical Data
| Power Consumption (W) | 3.5 |
|---|---|
| Voltage Range (v) | 220-240 |
| Input Voltage (V) | 220-240 |
| Battery Configuration | 6.4V 1.5Ah LIFePO4 3.5W |
| Dimming | Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| EN | EN-62560 |
| LVD Certified | Yes |
Environmental
| EN | EN-62560 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| IK Rating (Impact Protection) | IK04 |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -5 |
| Maximum Operating Temperature (°C) | 45 |
Packaging
| Package Weight (g) | 270 |
|---|---|
| Package Length (mm) | 199 |
| Package Width (mm) | 55 |
| Package Depth (mm) | 24 |
