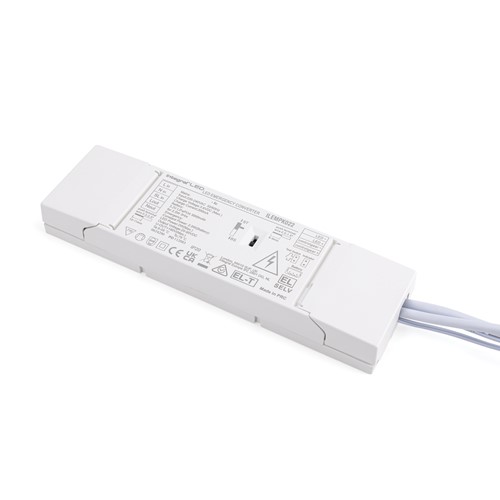

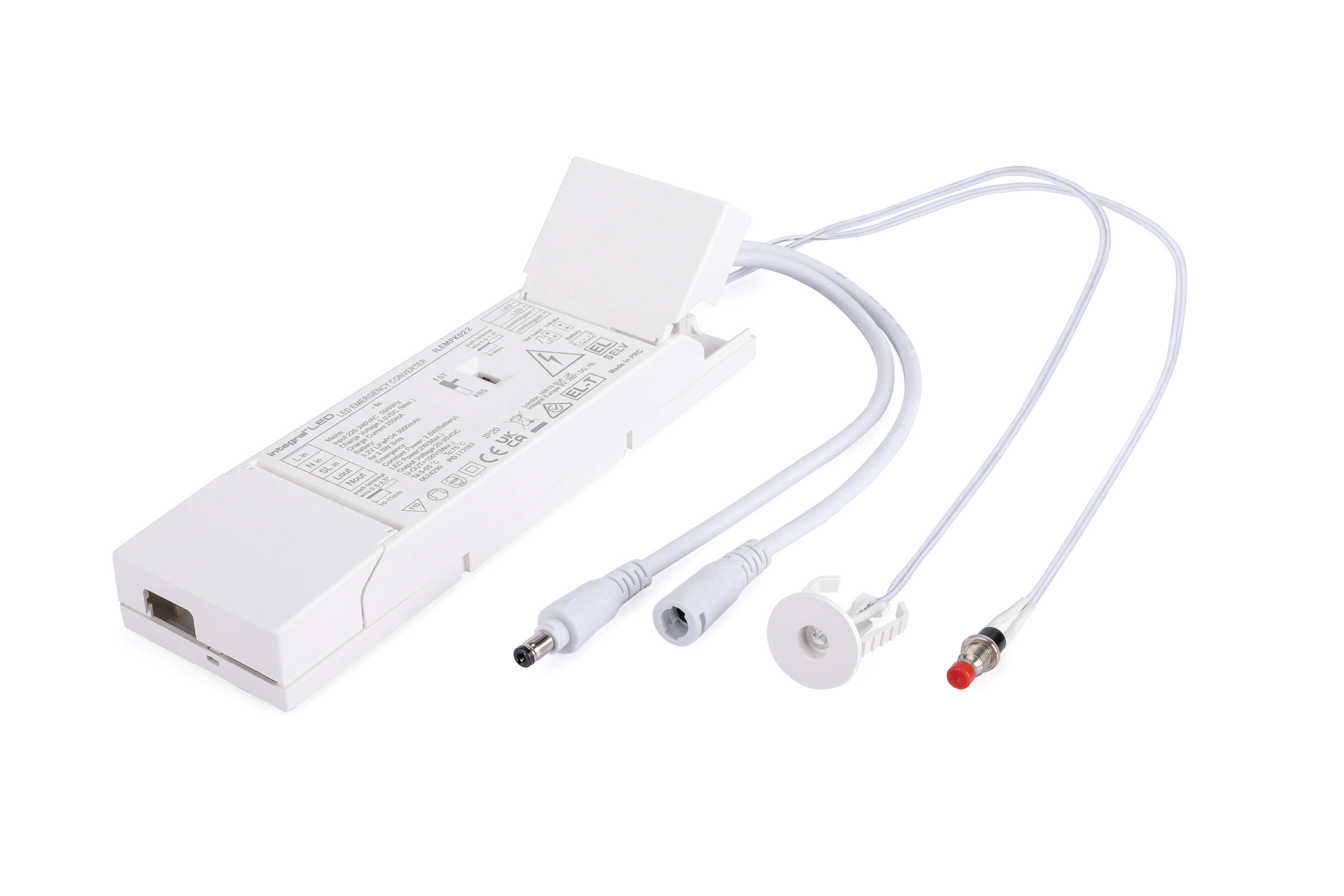

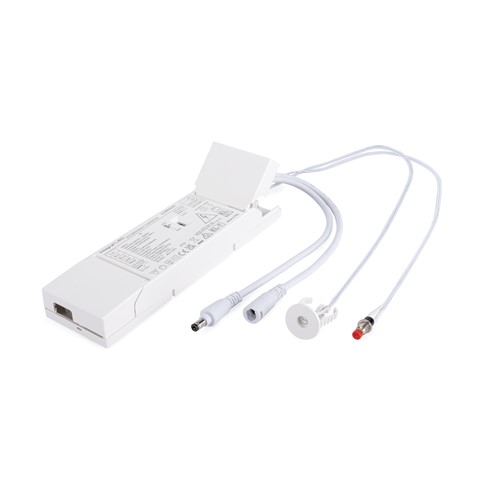

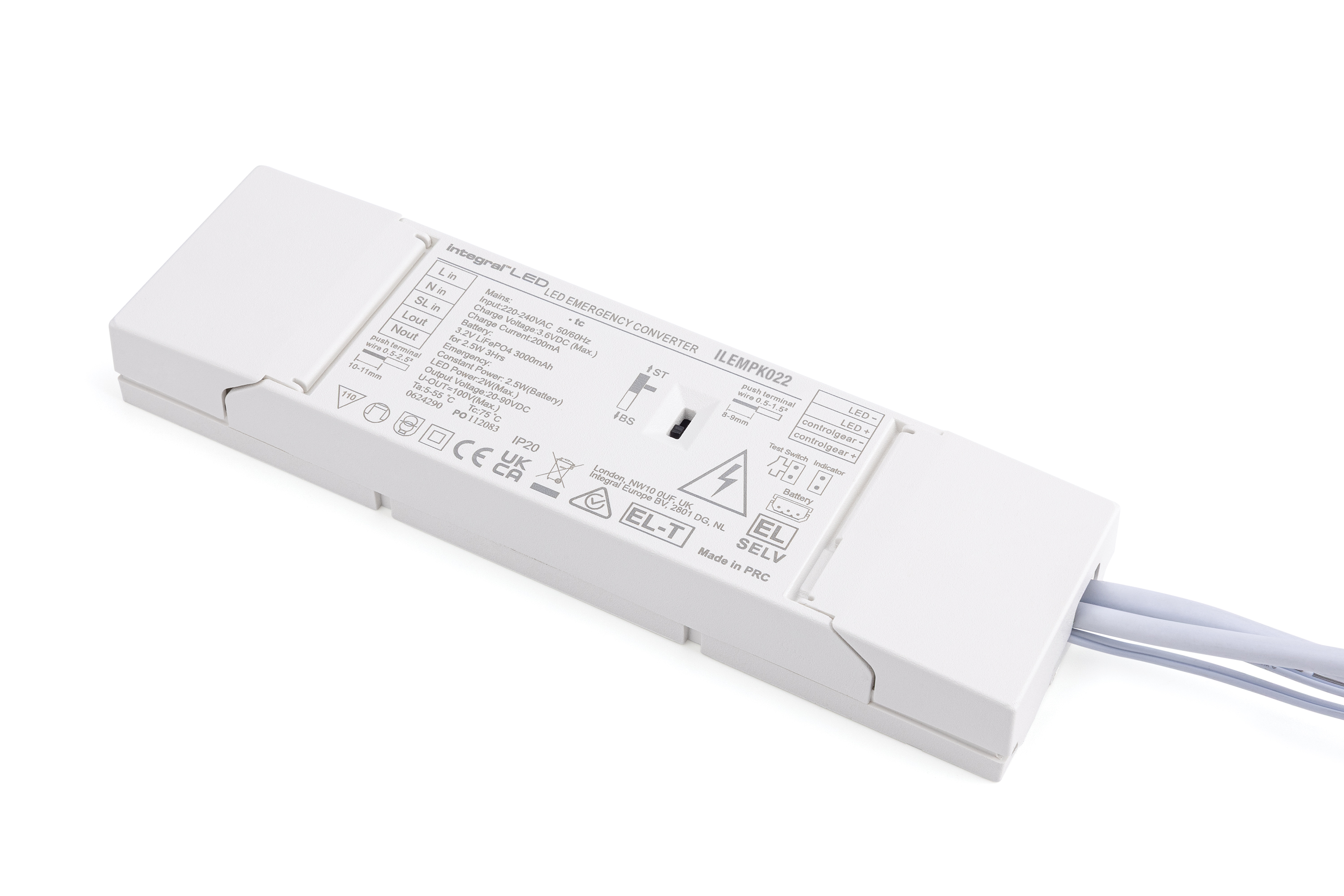

QUICK FIT DALI EMERGENCY CONVERSION KIT 2.5W 10-90VDC LIFePO4 BATTERY 3HR WITH REMOTE LED INDICATOR 5 YEAR WARRANTY
Part Number:
ILEMPK022
- Product Feature 1:
- 2.5-5W
- Product Feature 2:
- Lithium Phosphate battery
- Product Feature 5:
- 5 Year Warranty
- Product Feature 6:
- 3 Hour Emergency Operation
- Availability:
-
0
Details
| Barcode | 5056884607861 |
|---|---|
| Quick Order Code | 310150 |
| Category | Emergency |
| Range Name | Conversion Kit |
| Product Type | Emergency Conversion Kit |
| Product Body Finish | White |
| Market Segment | Commercial indoor |
| Warranty (Years) | 5 |
Physical Data
| Emergency Category | Emergency Kit |
|---|---|
| Product Length (mm) | 199 |
| Product Depth (mm) | 24.5 |
| Product Width (mm) | 55.2 |
| Product Weight (g) | 220 |
| Material | Polycarbonate |
| Placement / Application | Indoor, Emergency Lighting |
Light Data
| Frequency Range (Hz) | 50/60 |
|---|
Electrical Data
| Power (W) | 2.5 |
|---|---|
| Power Consumption (W) | 2.5 |
| Input Voltage (V) | 220-240 |
| Output Voltage (V) | 20-90 |
| Battery Configuration | LiFePo4 |
| Driver Included | Yes |
| Electric Current | AC |
Environmental
| CE RoHS | Yes |
|---|---|
| IK Rating (Impact Protection) | IK04 |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | 5 |
| Maximum Operating Temperature (°C) | 45 |
Packaging
| Barcode | 5056884607861 |
|---|---|
| Single box qty | 1 |
| Package Weight (g) | 0.215 |
| Package Length (mm) | 240 |
| Package Width (mm) | 58 |
| Package Depth (mm) | 25 |
| Inner Carton Barcode | 5056884607878 |
