MULTI-FIT DOWNLIGHT 65-160MM CUTOUT 960LM 12W 3000K NON-DIMM 80LM/W WHITE INTEGRAL
Part Number:
ILDL160-65G005

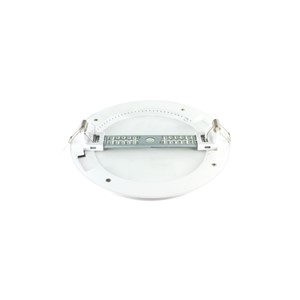

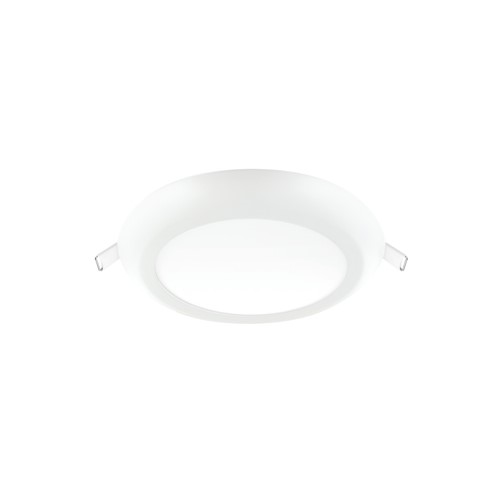

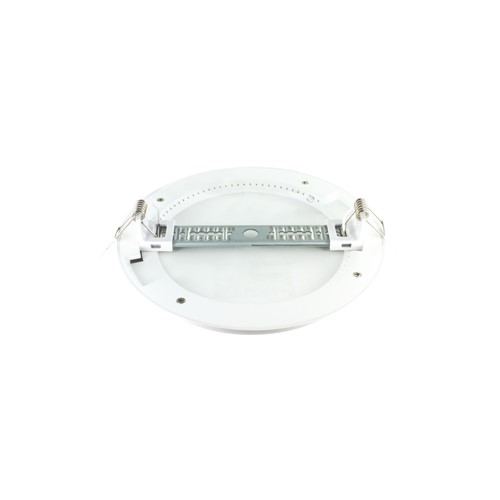

This ultra-thin (15.5mm) downlight is supplied with configurable brackets and clips allowing for installation in a cut-out from 65-160mm as well as having a surface mount installation option. Visible flicker is eliminated with the integrated driver and a frosted diffuser provides uniform light.
- Product Feature 1:
- Warm white
- Product Feature 2:
- 840lm
- Product Feature 3:
- 80lm/W
For this product to qualify as an Emergency product, it requires an Emergency Conversion Kit that can be purchased separately.
Please see Suggested products below for more information
- Availability:
-
80
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Barcode | 5055788241164 |
|---|---|
| Quick Order Code | 608669 |
| Category | Downlights |
| Range Name | Multi-Fit |
| Product Type | LED Downlights |
| Product Body Finish | Matt white |
| Market Segment | Commercial indoor |
| Warranty (Years) | 3 |
Physical Data
| Emergency Option | Optional Conversion Kit |
|---|---|
| Emergency Category | Downlights |
| Product Depth (mm) | 15.5 |
| Product Weight (g) | 230 |
| Diameter (mm) | 180 |
| Optic | Opal diffuser |
| Material | Aluminium, PS |
| Overall diameter (mm) | 180 |
| Construction | Die cast Aluminium body, PS sheet diffuser |
| Cut Out Diameter (mm) | 65-160 |
| Luminaire Fixing | Recess or surface mounted |
| Placement / Application | Indoor, General Lighting |
Light Data
| Energy Efficiency Label (Image) | ILDL160-65G005_EU_label |
|---|---|
| Luminous Flux in Lumens (lm) | 960 |
| Luminous efficacy (lm/W) | 80 |
| Correlated Colour Temperature (CCT) (K) | 3000 |
| Colour Temperature | 3000K - Warm White |
| Colour Temperature Name | Warm White |
| Beam Angle | 120 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 30000 |
| Switching Cycles | 15000 |
Electrical Data
| Power (W) | 12 |
|---|---|
| Power Consumption (W) | 12 |
| Power Factor | 0.5 |
| Voltage Range (v) | 220-240 |
| Wattage equivalent (W) | 18 |
| Dimming | Non-Dimmable |
| Driver Included | Integrated |
| Electric Current | AC |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| New Energy Rating | F |
| EU Luminaire | L |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 40 |
Packaging
| Barcode | 5055788241164 |
|---|---|
| Single box qty | 1 |
| Package Weight (g) | 300 |
| Package Length (mm) | 225 |
| Package Width (mm) | 189 |
| Package Depth (mm) | 30 |
| Outer Carton Barcode | 05055788241171 |
| Qty per Outer Carton | 20 |
| Outer Carton Length (mm) | 398 |
| Outer Carton Width (mm) | 320 |
| Outer Carton Depth (mm) | 255 |
Safety Guide
ILDL160-65G005
