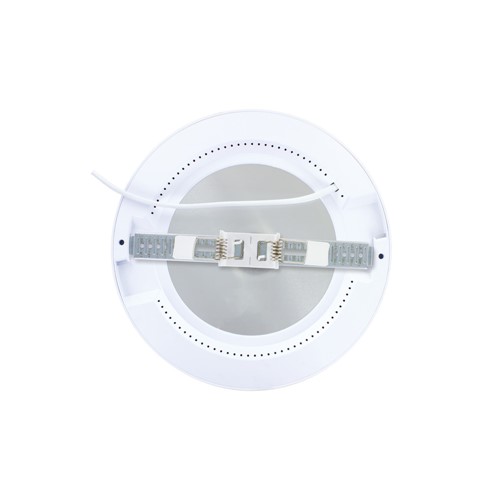

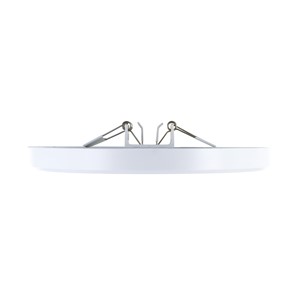

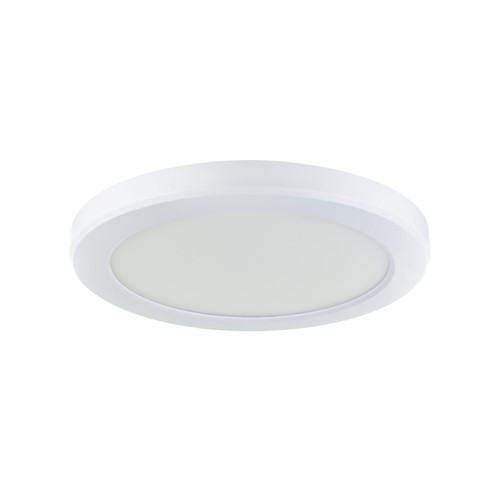

MULTI-FIT EDGE DOWNLIGHT 65-205MM CUTOUT 950LM 10W - 1300lm 15W - 1500lm 18W 4000K NON-DIMM 83LM/W WHITE

Part Number:


The Multi-Fit Edge Downlight- Wattage Variable - provides a solution for commercial and home use with the adaptability to provide a suitable fitting and a high-quality lumen adjustable light to match your space.

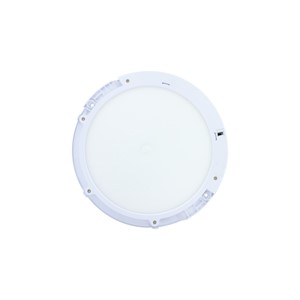

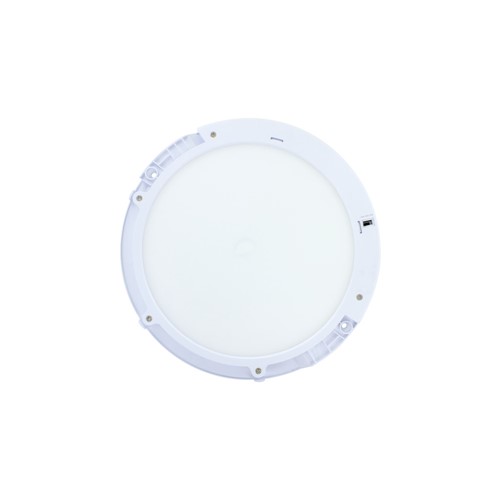

The Wattage (Light Output) can be adjusted to three-levels; 950lm, 1300lm or 1500lm (Switches are located behind the removable bezel).

A configurable cut-out size from 65 to 205mm with a surface mount option provides installation flexibility. The integrated driver eliminates visible flicker, and a frosted diffuser delivers a uniform light.

Product Feature 1:
Wattage (Light Output) Variable
Product Feature 2:
Adjustable cut-out 65-205mm
Product Feature 3:
Surface mountable
Product Feature 4:
Frosted polycarbonate (TPb) diffuser

For this product to qualify as an Emergency product, it requires an Emergency Conversion Kit that can be purchased separately.
Please see Suggested products below for more information


Call us on 0208 451 8700 to check the next availability

Suggested products

Quick Order Code 737743
Barcode 5055788253068
Category Downlights
Range Name Multi-Fit Edge
Product Type LED Downlights
Product Body Finish Matt white
Market Segment Commercial indoor
Warranty (Years) 3
Emergency Option Optional Conversion Kit
Emergency Category Downlights
Product Depth (mm) 18
Product Weight (g) 430
Diameter (mm) 220
Optic TP(b) rated Opal diffuser
Material Aluminium, PS, PC
Overall diameter (mm) 220
Construction Die cast Aluminium body, PS sheet diffuser
Cut Out Diameter (mm) 65-205
Luminaire Fixing Recess or surface mounted
Placement / Application Indoor, General Lighting
Energy Efficiency Label (Image) ILDL205-65M001_EU_label
Luminous Flux in Lumens (lm) 950-1500
Luminous efficacy (lm/W) 94-110
Correlated Colour Temperature (CCT) (K) 4000
Colour Temperature 4000K - Cool White
Colour Temperature Name Cool White
Beam Angle 110
Colour Rendering Index (CRI) 80
Frequency Range (Hz) 50/60
LED Type Surface mounted device (SMD)
Lifetime (hours) 30000
Switching Cycles 15000
Power Consumption (W) 10 to 18
Power Factor 0.5
Voltage Range (v) 220-240
Wattage equivalent (W) 26
Dimming Non-Dimmable
Driver Included Integrated
Electric Current AC
EN EN-60598
LVD Certified Yes
EN EN-60598
LVD Certified Yes
New Energy Rating F
Hg 0% (Mercury Free) Yes
IP Rating (Ingress Protection) IP20
Lowest Operating Temperature (°C) -10
Maximum Operating Temperature (°C) 40
