EMERGENCY EXIT MULTIFIT SIGN 1W 50LM 3HR MAINTAINED 30M VIEWING INCLUDING UP DOWN LEFT RIGHT LEGENDS DALI INTEGRAL LED
Part Number:
ILEMES061

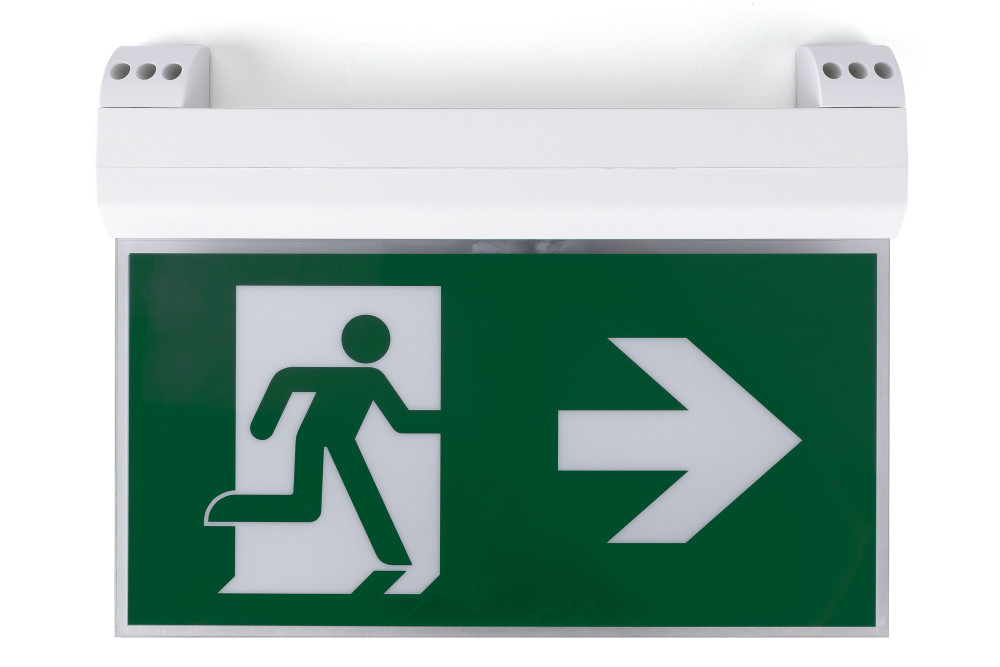

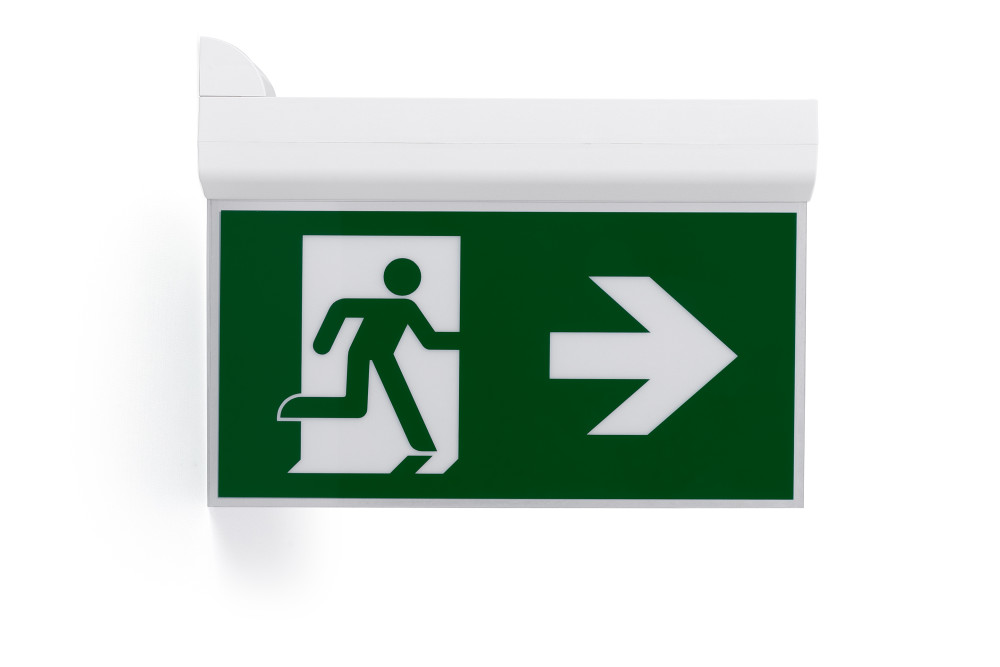

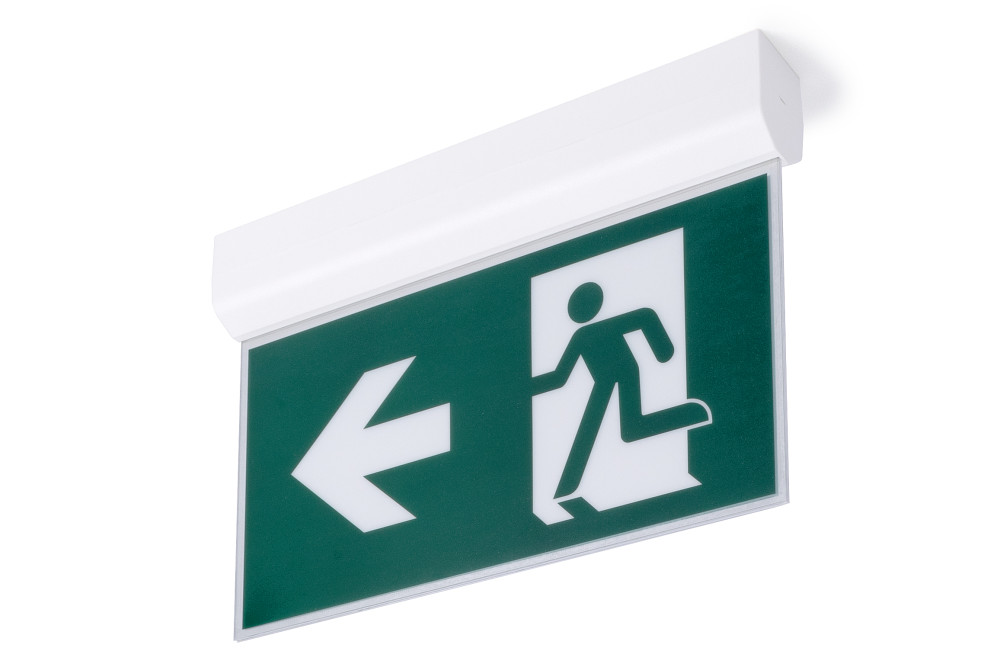

The DALI-enabled Emergency Exit Multi-Fit Sign offers a 25-metre viewing range, ideal for guiding occupants during an emergency within commercial buildings and public spaces. The sign operates in maintained mode to provide 3 hours of operation during a power outage. With included legends for directional guidance (up, down, left, and right) and featuring DALI compatibility for seamless integration into modern lighting systems, this bulkhead is ideal for emergency lighting in both commercial and industrial settings.Note: Warranty increased to 5 years on 27/03/2025
- Product Feature 1:
- Maintained
- Product Feature 2:
- Multiple Fitting Option
- Product Feature 3:
- 5 Year Warranty
- Availability:
-
100+
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Barcode | 5055788300540 |
|---|---|
| Application | Corridor & Open Area |
| Quick Order Code | 589787 |
| Category | Emergency |
| Range Name | Multi-Fit |
| Product Type | Exit Signs |
| Product Body Finish | Matt white |
| Market Segment | Commercial indoor |
| Finish | Matt White |
| Warranty (Years) | 5 |
Physical Data
| Emergency Option | Integrated |
|---|---|
| Emergency Category | Exit Signs |
| Product Length (mm) | 315 |
| Product Depth (mm) | 210.2 |
| Product Width (mm) | 36.2 |
| Product Weight (g) | 240 |
| Material | Polycarbonate |
| Construction | Polycarbonate |
| Bulb or Luminaire Shape | Rectangle |
| Luminaire Fixing | Ceiling, Wall |
| Placement / Application | Indoor, Emergency Lighting |
| Spot Type | SMD |
Light Data
| Luminous Flux in Lumens (lm) | 50 |
|---|---|
| Luminous efficacy (lm/W) | 50 |
| Correlated Colour Temperature (CCT) (K) | 6000 |
| Colour Temperature | 6000K - Cool Daylight |
| Colour Temperature Name | Cool Daylight |
| Colour Rendering Index (CRI) | 70 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 50000 |
| Switching Cycles | 10000 |
| Useful Lumens (lm) | 50 |
Electrical Data
| Power Consumption (W) | 1 |
|---|---|
| Voltage Range (v) | 220-240 |
| Input Voltage (V) | 220-240 |
| Battery Configuration | LiFePo4 |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| Emergency Battery Life (years) | 5 |
| Emergency Lumens (lm) | 50 |
| Emergency Type | Maintained |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IK Rating (Impact Protection) | IK04 |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | 5 |
| Maximum Operating Temperature (°C) | 45 |
Packaging
| Barcode | 5055788300540 |
|---|---|
| Package Weight (g) | 335 |
| Package Length (mm) | 330 |
| Package Width (mm) | 177 |
| Package Depth (mm) | 45 |
