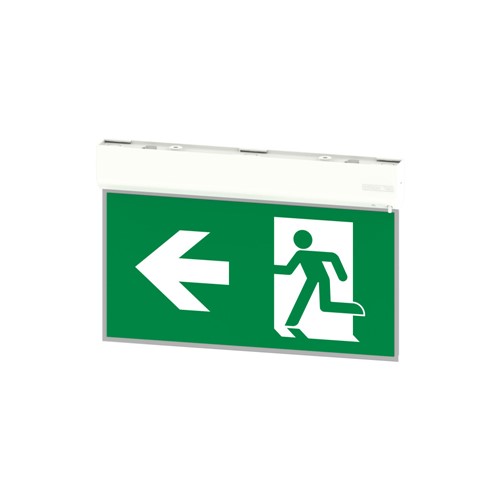

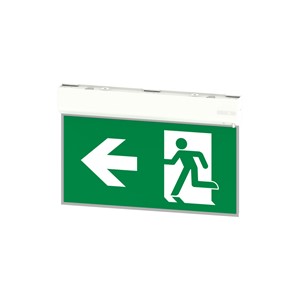

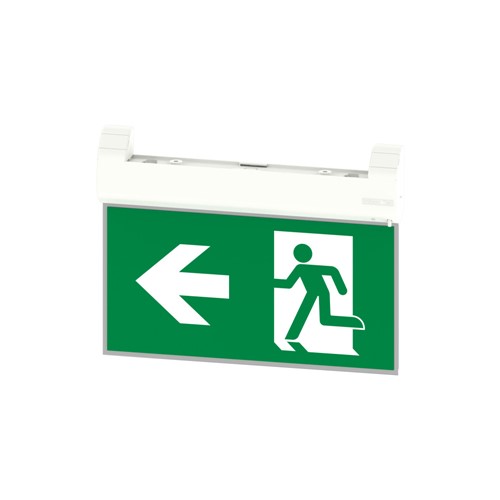

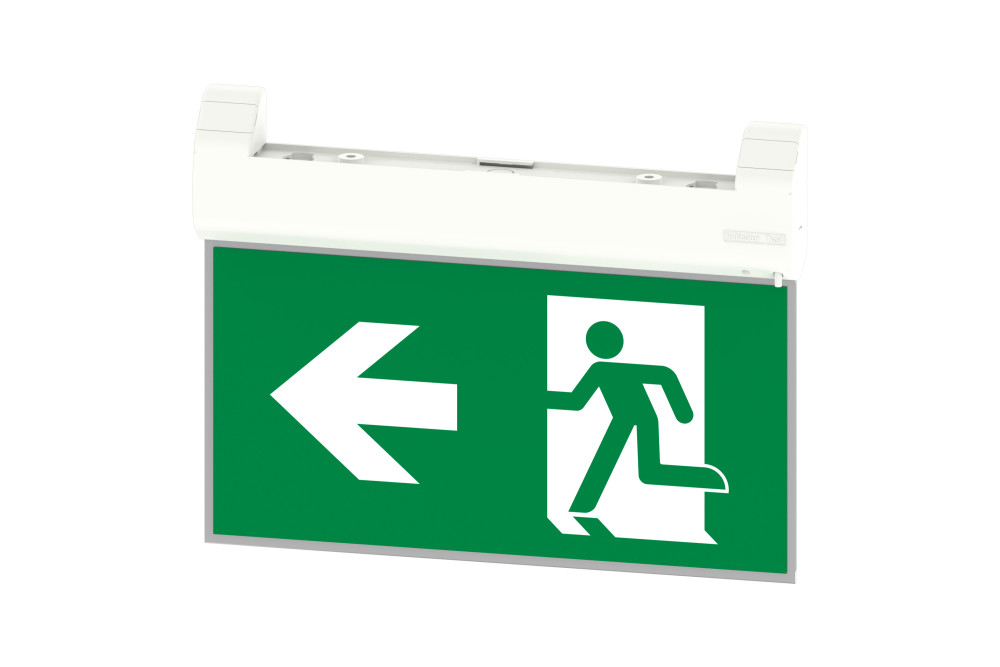

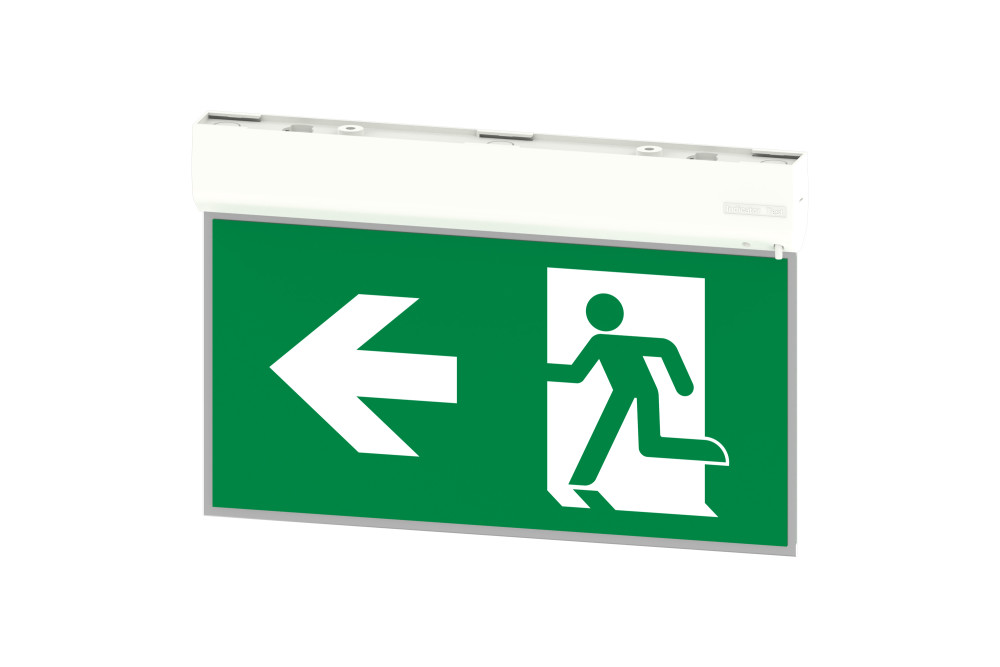

EMERGENCY EXIT MULTIFIT SIGN 1W 50LM 3HR MAINTAINED OR NON MAINTAINED 25M VIEWING INCLUDING UP DOWN LEFT RIGHT LEGENDS MANUAL TEST INTEGRAL LED
Part Number:
ILEMES057
- Product Feature 1:
- Maintained
- Product Feature 2:
- Multiple Fitting Option
- Availability:
-
100+
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Application | Both Included |
|---|---|
| Quick Order Code | 107184 |
| Barcode | 5055788288794 |
| Category | Emergency |
| Range Name | Multi-Fit |
| Product Type | Exit Signs |
| Product Body Finish | Matt white |
| Market Segment | Commercial indoor |
| Finish | Matt White |
| Warranty (Years) | 3 |
Physical Data
| Emergency Option | Integrated |
|---|---|
| Emergency Category | Exit Signs |
| Linkable | No |
| Product Length (mm) | 262 |
| Product Depth (mm) | 26 |
| Product Width (mm) | 173 |
| Product Weight (g) | 274 |
| Material | Polycarbonate |
| Construction | Polycarbonate |
| Bulb or Luminaire Shape | Rectangle |
| Luminaire Fixing | Ceiling, Wall |
| Placement / Application | Indoor, Emergency Lighting |
Light Data
| Luminous Flux in Lumens (lm) | 50 |
|---|---|
| Correlated Colour Temperature (CCT) (K) | 6000 |
| Colour Temperature | 6000K - Cool Daylight |
| Colour Temperature Name | Daylight |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Size (mm) | 4014 |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 50000 |
| Lumens in Emergency mode (lm) | 50 |
| Switching Cycles | 15000 |
| Useful Lumens (lm) | 50 |
Electrical Data
| Power Consumption (W) | 1 |
|---|---|
| Power Factor | 0.5 |
| Voltage Range (v) | 220-240 |
| Amperage (mA) | 110 |
| Input Voltage (V) | 220-240 |
| Battery Configuration | LiFePo4 |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| Emergency Battery Life (years) | 3 |
| Emergency Lumens (lm) | 50 |
| Emergency Type | Maintained |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| EU Luminaire | L |
| Hg 0% (Mercury Free) | Yes |
| IK Rating (Impact Protection) | IK04 |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | 5 |
| Maximum Operating Temperature (°C) | 45 |
Packaging
| Package Weight (g) | 350 |
|---|---|
| Package Length (mm) | 277 |
| Package Width (mm) | 152 |
| Package Depth (mm) | 35 |
