TOUGH SHELL+ BULKHEAD EMERGENCY 3HR AND MICROWAVE SENSOR 308MM DIA IP66 1400LM 15W 4000K IK10 110 BEAM NON-DIMM BLACK 93LM/W INTEGRAL
Part Number:
ILBHA063

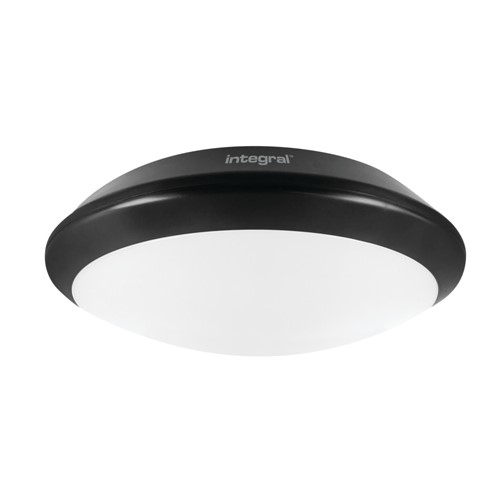

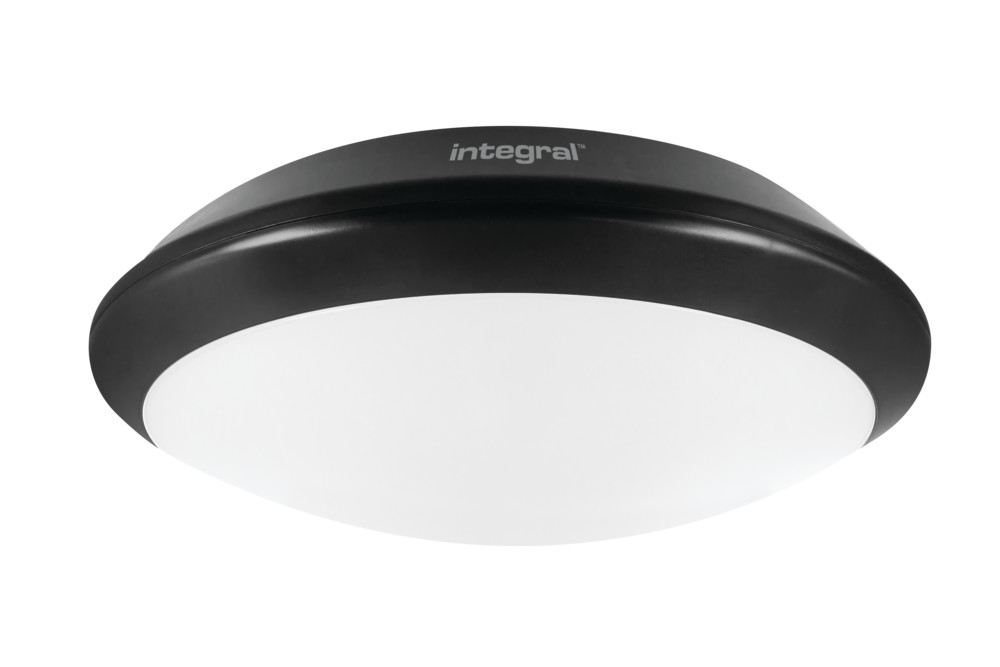

The Integral LED 15W low-energy Tough-Shell+ IP66 Bulkhead has a back-lit LED design that provides a 110 degree beam angle and an even light distribution, available in a black and white finish.
This luminaire is suitable for outdoor and indoor installation. Engineered from a super-tough IK10 rated polycarbonate body, it is ideal for external walls in homes, industrial estates and car parks. Indoor uses include walls and ceilings in hallways, stairways and even bathrooms (Zone 1, 2 and 3). This bulkhead delivers 1500 lumens and 4000K white colour temperature. Long life expectancy of 35,000 hours based on normal usage. Each unit is supplied with an easy-to-follow installation guide.
This model features side conduit entries and BESA fixing points for added convenience when installing.
- Product Feature 1:
- Side conduit entry and BESA fixing points
- Product Feature 2:
- Tough casing (IK10)
- Product Feature 3:
- 1400 Lumen (Emergency 200 Lumens)
- Product Feature 4:
- High efficiency 93lm per watt
- Product Feature 5:
- Integrated 3hr emergency and adjustable microwave sensor
- Availability:
-
4
Call us on 0208 451 8700 to check the next availability
Details
| Quick Order Code | 942065 |
|---|---|
| Barcode | 5055788247586 |
| Category | Luminaires |
| Range Name | Tough-Shell |
| Product Type | Bulkheads-Ceiling-Wall Lights |
| Product Body Finish | Matt Black |
| Market Segment | Indoor and Outdoor Commercial, Industrial, Residential |
| Features | Adjustable Microwave Sensor, Emergency Function |
| Warranty (Years) | 3 |
Physical Data
| Emergency Option | Integrated |
|---|---|
| Emergency Category | Bulkheads |
| Product Depth (mm) | 100 |
| Product Weight (g) | 1240 |
| Optic | Polycarbonate diffuser |
| Material | Polycarbonate |
| Overall diameter (mm) | 308 |
| Construction | Polycarbonate casing and diffuser |
| Bulb or Luminaire Shape | Round |
| Luminaire Fixing | Ceiling, Wall |
| Placement / Application | Indoor, Outdoor, General Lighting |
| Wiring / Mounting Options | Side conduit entry and BESA BOX fixing point |
Light Data
| Energy Efficiency Label (Image) | ILBHA063_EU_label |
|---|---|
| Luminous Flux in Lumens (lm) | 1400 |
| Luminous efficacy (lm/W) | 93 |
| Correlated Colour Temperature (CCT) (K) | 4000 |
| Colour Temperature Name | Cool White |
| Beam Angle | 110 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Size (mm) | 2835 |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 35000 |
| Lumens in Emergency mode (lm) | 200 |
| Sensor / Overide | Yes with sensor |
| Switching Cycles | 17500 |
Electrical Data
| Power (W) | 15 |
|---|---|
| Power Consumption (W) | 15 |
| Power Factor | 0.65 |
| Voltage Range (v) | 220-240 |
| Amperage (mA) | 300 |
| Battery Configuration | Ni-Cd 1500mAh |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| Emergency Battery Life (years) | 3 |
| Emergency Lumens (lm) | 200 |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IK Rating (Impact Protection) | IK10 |
| IP Rating (Ingress Protection) | IP66 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 45 |
Packaging
| Package Weight (g) | 1520 |
|---|---|
| Package Length (mm) | 314 |
| Package Width (mm) | 105 |
| Package Depth (mm) | 314 |
| Qty per euro pallet | 20 |
