TOUGHSHELL BATTEN TWIN EMERGENCY 3HR IP65 63W 7500LM 4000K 120BEAM ANGLE 120LM/W 5FT NON-DIMM NON-LINKABLE
Part Number:
ILBTD046
THIS ITEM IS NOW UPGRADED OR DISCONTINUED. CONTACT US TO FIND A REPLACEMENT PRODUCT.

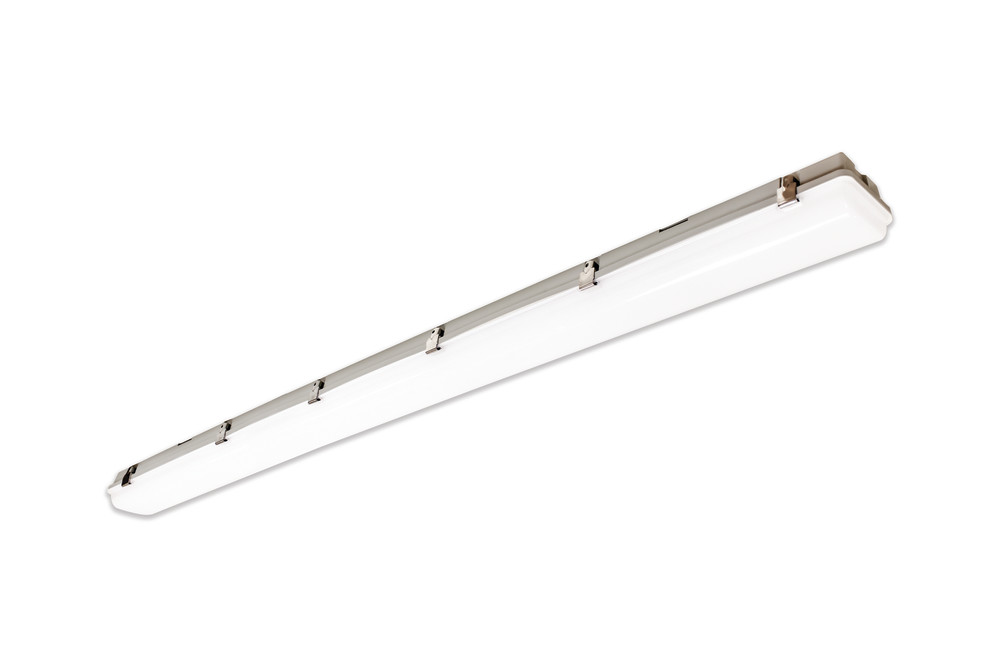

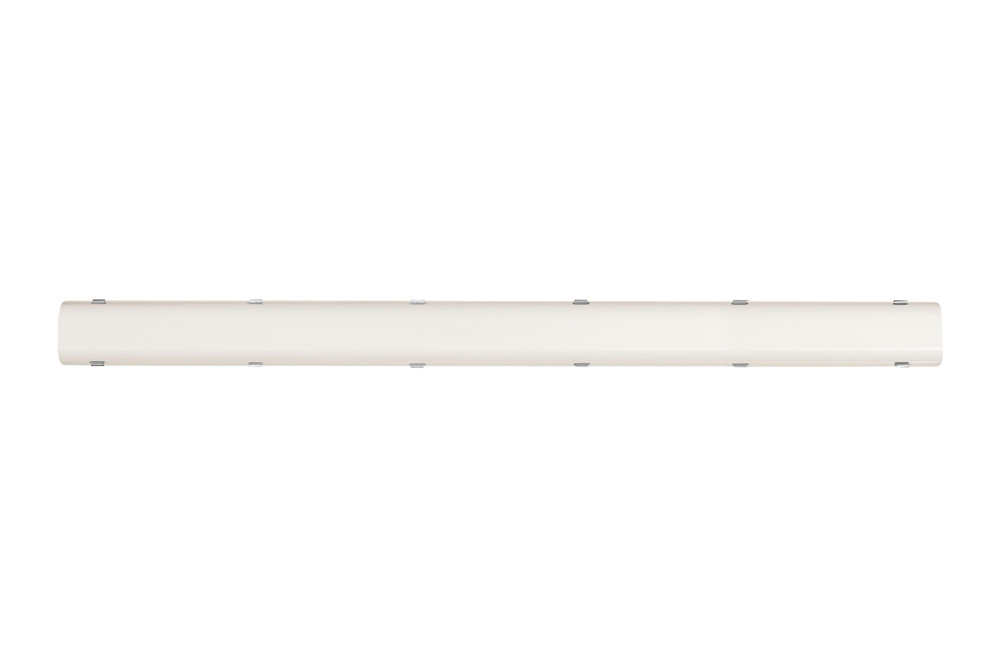

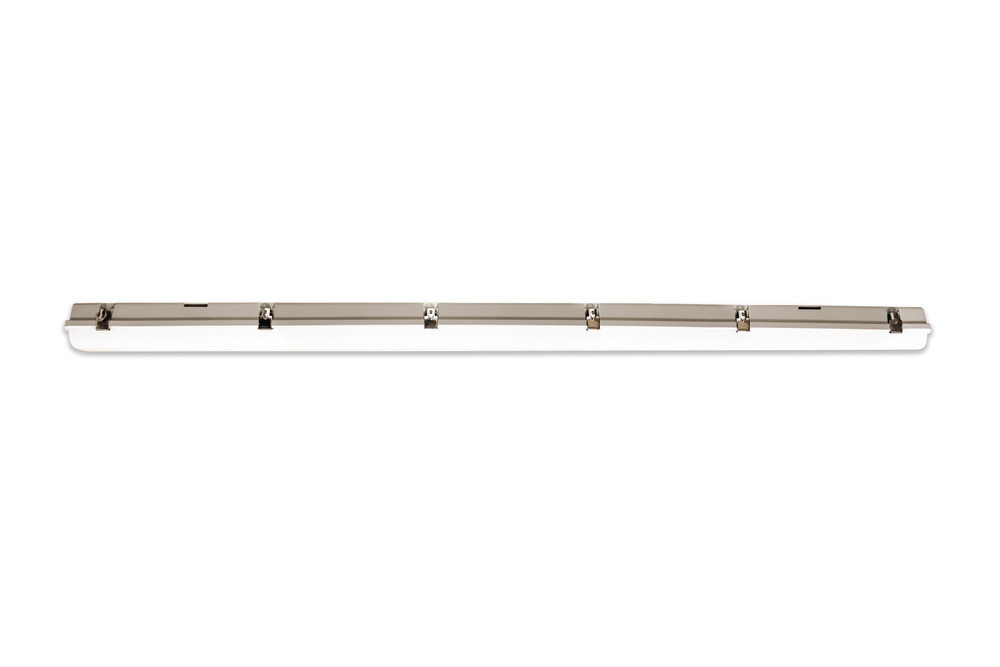

The Tough-Shell Batten features a tough IK08 and IP65 dust and waterproof polycarbonate casing with secure clips. The frosted diffuser provides even light distribution. Ideal for demanding environments such as warehouses, factories, car parks and more.
This model features an integrated Emergency Function to provide three hours of illumination in the event of a power cut.
- Product Feature 1:
- Integrated Emergency Function
- Product Feature 2:
- IK08 for high impact resistance
- Product Feature 3:
- IP65 body protects against dust and moisture ingress
- Product Feature 4:
- Long 30000 hour lifetime
- Product Feature 5:
- Highly efficient - 119lm/W
- Product Feature 6:
- 3 year warranty
- Availability:
-
0
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Barcode | 5055788239925 |
|---|---|
| Quick Order Code | 910400 |
| Product Type | Battens |
| Category | Luminaires |
| Range Name | Tough-Shell |
| Finish | Matt White |
| Product Body Finish | Matt white |
| Features | Emergency Function |
| Type | Twin |
| Market Segment | Indoor commercial, Industrial, residential |
| Placement / Application | Indoor, General Lighting |
| Warranty (Years) | 3 |
Physical Data
| Bulb or Luminaire Shape | Linear |
|---|---|
| Product Length (mm) | 1550 |
| Product Width (mm) | 123 |
| Product Depth (mm) | 83 |
| Product Weight (g) | 2660 |
| Material | Polycarbonate |
| Construction | Injection moulding |
| Luminaire Fixing | Wall/Ceiling mounted |
| Emergency Option | Integrated |
| Emergency Category | Battens |
| Linkable | No |
| Optic | Polycarbonate diffuser with Stainless Steel Clips |
| Mounting Type | Rear & Side Cable Entry |
Light Data
| Luminous Flux in Lumens (lm) | 7500 |
|---|---|
| Luminous efficacy (lm/W) | 119 |
| Correlated Colour Temperature (CCT) (K) | 4000 |
| Beam Angle | 120 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Size (mm) | 2835 |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 30000 |
| Lumens in Emergency mode (lm) | 296 |
| Switching Cycles | 50000 |
| Useful Lumens (lm) | 7500 |
| Light Source | Non-replaceable |
Electrical Data
| Power (W) | 63 |
|---|---|
| Power Consumption (W) | 63 |
| Power Factor | 0.9 |
| Voltage Range (v) | 220-240 |
| Input Voltage (V) | 220-240 |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| Emergency Type | Non-Maintained |
Environmental
| IP Rating (Ingress Protection) | IP65 |
|---|---|
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 40 |
| EN | EN-60598 |
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IK Rating (Impact Protection) | IK08 |
| New Energy Rating | E |
| EU Luminaire | L |
Packaging
| Single box qty | 1 |
|---|---|
| Barcode | 5055788239925 |
| Package Weight (g) | 2940 |
| Package Length (mm) | 1551 |
| Package Width (mm) | 123 |
| Package Depth (mm) | 83 |
| Outer Carton Barcode | 5055788239932 |
| Qty per Outer Carton | 6 |
| Outer Carton Length (mm) | 1570 |
| Outer Carton Width (mm) | 390 |
| Outer Carton Depth (mm) | 190 |
Safety Guide
