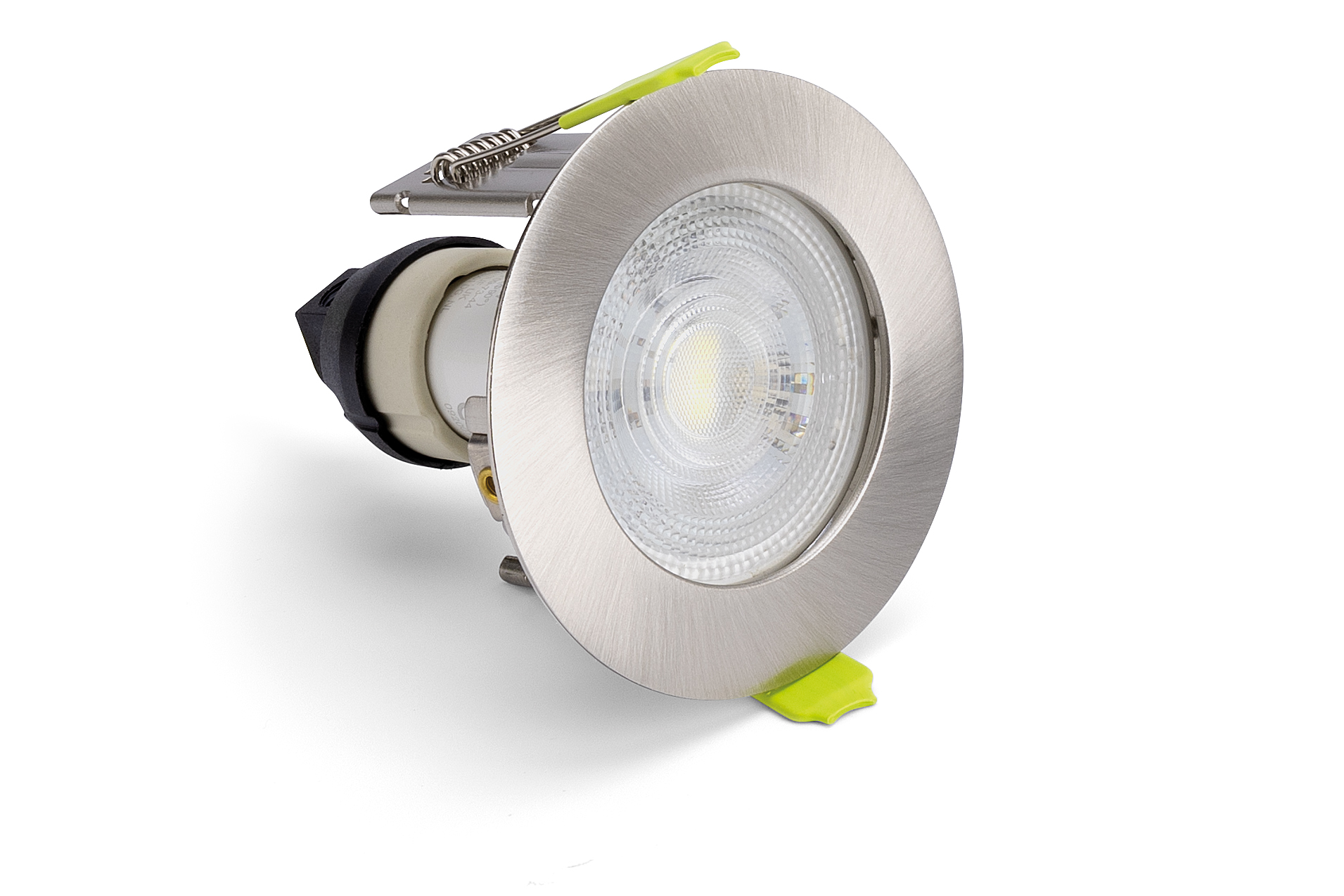

EVOFIRE MICRO BEZEL FIRE RATED DOWNLIGHT 60MM CUTOUT 72MM DIAMETER IP65 SATIN NICKEL ROUND +GU10 HOLDER
Part Number:
ILDLFR60D105
Upgrade your downlights with the latest innovation in fire-rated lighting. The Integral LED Evofire’s unique patented design foregoes the traditional canned construction, favouring an open configuration which improves heat dissipation and lamp reliability and longevity. Lamps installed in an Evofire run at up to 10°C cooler than in a typical can-style fire-rated downlight - extending the lifetime of your lamps.
The 1mm thick "blend-in" bezel is even more understated in the Micro Bezel edition, which shrinks the bezel's diameter to a modest 12mm, enabling a virtually seamless integration into any ceiling.
Featuring IP65 ingress protection, this fire-rated downlight is ideal for bathrooms and kitchens where there is a risk of moisture in the air.
Certified for fire resistance at 30, 60, and 90 minutes for Solid Timber Joist and, 30 and 60 minutes for i-Joist ceiling constructions, compliant with BS 476 Part 21, the Integral LED Evofire ensures peace of mind wherever fire protection is needed. Air Tightness compliant with Part C and Part L and Resistance to Sound compliant with Part E. See installation guide for full details.
- Product Feature 1:
- Evolutionary Fire Rated fitting designed by Integral LED
- Product Feature 2:
- Developed in the UK - Patent GB2557957
- Product Feature 3:
- Fire Rating 30/60/90 minutes
- Product Feature 4:
- Ultra-thin 1mm 'blend-in' bezel with a premium finish for an attractive look in any room
- Product Feature 5:
- Easy to install Loop-in/Loop-out piano-key style terminal block
- Product Feature 6:
- Supplied with GU10 holders
- Product Feature 7:
- Optional clip-in insulation guard sold separately
- Availability:
-
84
More stock due in on 30/08/2024
Suggested products
Details
Quick Order Code | 920111 |
---|---|
Barcode | 5055788296249 |
Category | Downlights |
Range Name | Evofire 72 |
Product Type | Fire Rated |
Product Body Finish | Satin Nickel |
Market Segment | Commercial indoor, Residential indoor |
Finish | Satin Nickel |
Features | Without Insulation Guard |
Fixed/Tiltable | Fixed |
Warranty (Years) | 3 |
Physical Data
Emergency Option | No |
---|---|
Product Length (mm) | 72 |
Product Depth (mm) | 48.5 |
Product Width (mm) | 72 |
Product Weight (g) | 120 |
Material | Steel, Glass |
Overall diameter (mm) | 72 |
Construction | Pressed Steel, Glass |
Cut Out Diameter (mm) | 60 |
Luminaire Fixing | Recess mounted |
Placement / Application | Indoor, General Lighting |
Light Data
Fire Rating (mins) | 30, 60, 90 |
---|
Electrical Data
Insulation Guard | Optional clip-in insulation guard available |
---|---|
EN | EN-60598 |
LVD Certified | Yes |
Environmental
EN | EN-60598 |
---|---|
LVD Certified | Yes |
CE RoHS | Yes |
Hg 0% (Mercury Free) | Yes |
IP Rating (Back/Recessed side) | IP20 |
IP Rating (Ingress Protection) | IP65 |
Lowest Operating Temperature (°C) | -20 |
Maximum Operating Temperature (°C) | 45 |
Packaging
Package Weight (g) | 140 |
---|---|
Package Length (mm) | 95 |
Package Width (mm) | 90 |
Package Depth (mm) | 60 |
