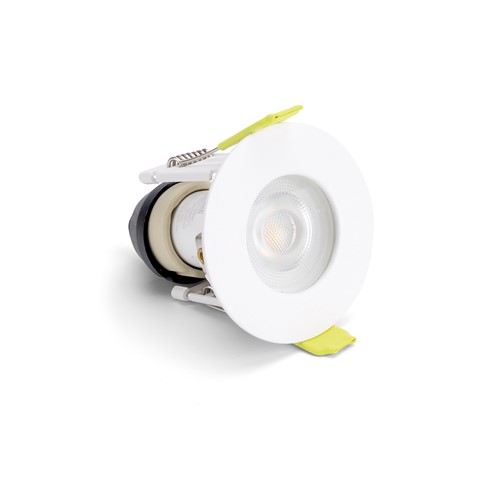

EVOFIRE MINI MICRO BEZEL FIRE RATED DOWNLIGHT 43MM CUTOUT 55MM DIAMETER IP65 WHITE ROUND +GU10 HOLDER
Part Number:
ILDLFR43D060
Upgrade your downlights with the latest innovation in fire-rated lighting. The Integral LED Evofire’s unique patented design foregoes the traditional canned construction, favouring an open configuration which improves heat dissipation and lamp reliability and longevity. Lamps installed in an Evofire run at up to 10°C cooler than in a typical can-style fire-rated downlight - extending the lifetime of your lamps.
A remarkably compact and understated lighting solution, the Evofire Mini has an overall visible diameter of just 55mm. The 1mm thick "blend-in" bezel is even more understated in the Micro Bezel edition, which shrinks the bezel's diameter to a modest 12mm, enabling a virtually seamless integration into any ceiling.
Featuring IP65 ingress protection, this fire-rated downlight is ideal for bathrooms and kitchens where there is a risk of moisture in the air.
Certified for fire resistance at 30, 60, and 90 minutes for Solid Timber Joist and, 30 and 60 minutes for i-Joist ceiling constructions, compliant with BS 476 Part 21, the Integral LED Evofire ensures peace of mind wherever fire protection is needed. Air Tightness compliant with Part C and Part L and Resistance to Sound compliant with Part E. See installation guide for full details.
- Product Feature 1:
- For MR11 12V GU4 or MR11 240V GU10 lamps
- Product Feature 2:
- Evolutionary Fire Rated fitting designed by Integral LED
- Product Feature 3:
- Developed in the UK - Patent GB2557957
- Product Feature 4:
- Fire Rating 30/60/90 minutes
- Product Feature 5:
- Ultra-thin 1mm 'blend-in' bezel with a premium finish for an attractive look in any room
- Product Feature 6:
- Easy to install Loop-in/Loop-out piano-key style terminal block
- Product Feature 7:
- Supplied with GU10 holders
- Product Feature 8:
- Optional clip-in insulation guard sold separately
- Availability:
-
308
More stock due in on 30/08/2024
Suggested products
Details
| Quick Order Code | 246236 |
|---|---|
| Barcode | 5055788296508 |
| Category | Downlights |
| Range Name | Evofire mini 55 |
| Product Type | Fire Rated |
| Product Body Finish | White |
| Market Segment | Commercial indoor, Residential indoor |
| Finish | White |
| Features | Without Insulation Guard |
| Fixed/Tiltable | Fixed |
| Warranty (Years) | 3 |
Physical Data
| Emergency Option | No |
|---|---|
| Product Length (mm) | 55 |
| Product Depth (mm) | 48.5 |
| Product Width (mm) | 55 |
| Product Weight (g) | 90 |
| Material | Steel, Glass |
| Overall diameter (mm) | 55 |
| Construction | Pressed Steel, Glass |
| Cut Out Diameter (mm) | 43 |
| Luminaire Fixing | Recess mounted |
| Placement / Application | Indoor, General Lighting |
Light Data
| Fire Rating (mins) | 30, 60, 90 |
|---|
Electrical Data
| Insulation Guard | Optional clip-in insulation guard available |
|---|---|
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Back/Recessed side) | IP20 |
| IP Rating (Ingress Protection) | IP65 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 45 |
Packaging
| Package Weight (g) | 110 |
|---|---|
| Package Length (mm) | 90 |
| Package Width (mm) | 75 |
| Package Depth (mm) | 55 |
