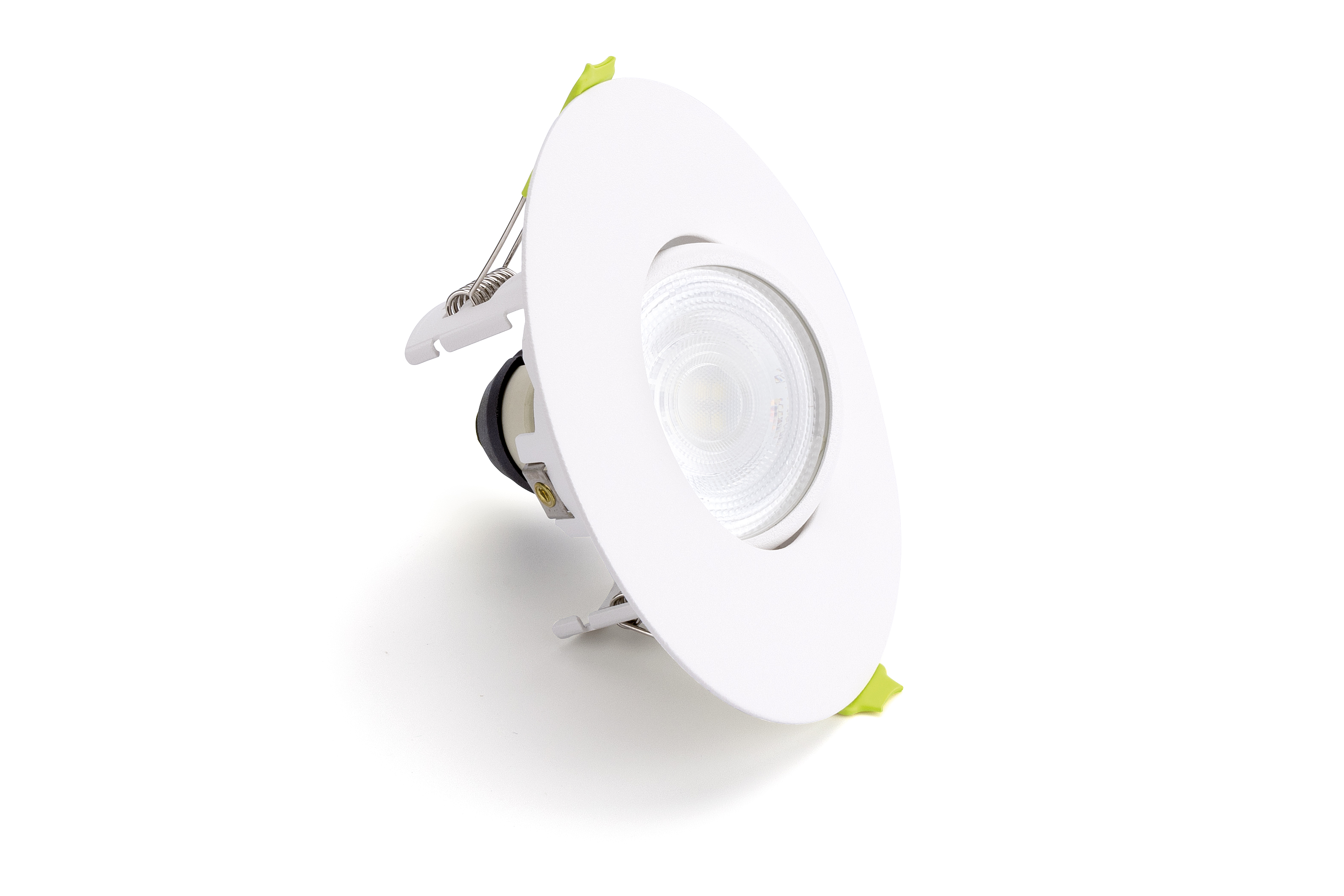

EVOFIRE TILTABLE FIRE RATED DOWNLIGHT IP20 70-100MM CUTOUT 110MM DIA WHITE ROUND INTEGRAL
Part Number:
ILDLFR70K182
Showcasing a design-led approach to fire-rated downlighting, the Evofire features a bezel with a thickness of only 1mm, up to 10 times thinner than other fire-rated downlights on the market providing a virtually seamless integration into any ceiling.
Manufactured from fire-rated steel and tempered glass, the sophisticated engineering and assembly ensure that its build calibre and aesthetics suit both high-end architectural spaces and residential and commercial settings. Revolutionising fire-rated downlight construction, the Evofire’s unique patented design foregoes the traditional canned configuration, favouring an open structure which improves heat dissipation, lamp reliability and longevity. Lamps installed in an Evofire run up to 10°C cooler than in a typical can-style fire-rated downlight - extending the lifetime of your lamps.

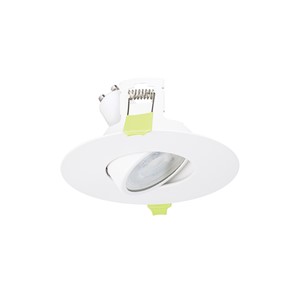

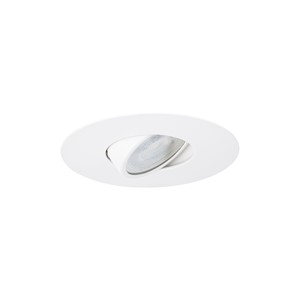

Tilting through 20°, this downlight promotes flexible lighting, allowing light to be directed exactly where needed, highlighting focal points and creating dynamic visual effects to enhance any space.
Certified for fire resistance at 30, 60, and 90 minutes for Solid Timber Joist and, 30 and 60 minutes for i-Joist ceiling constructions, compliant with BS 476 Part 21, the Evofire ensures peace of mind wherever fire protection is needed. Air Tightness compliant with Part C and Part L and Resistance to Sound compliant with Part E. See installation guide for full details.
- Product Feature 1:
- Evolutionary Fire Rated fitting designed by Integral LED
- Product Feature 2:
- Tiltable
- Product Feature 3:
- Developed in the UK - Patent GB2557957
- Product Feature 4:
- Fire Rating 30/60/90 minutes
- Product Feature 5:
- Ultra-thin 1mm 'blend-in' bezel with a premium finish for an attractive look in any room
- Product Feature 6:
- Easy to install Loop-in/Loop-out piano-key style terminal block
- Product Feature 7:
- Supplied with GU10 holders
- Product Feature 8:
- Optional clip-in insulation guard sold separately
- Availability:
-
0
More stock due in on 23/12/2024
Suggested products
Details
| Quick Order Code | 895198 |
|---|---|
| Barcode | 5055788296430 |
| Category | Downlights |
| Range Name | Evofire Tiltable |
| Product Type | Fire Rated |
| Product Body Finish | White |
| Market Segment | Commercial indoor, Residential indoor |
| Finish | White |
| Features | Without Insulation Guard |
| Fixed/Tiltable | Tiltable |
| Warranty (Years) | 3 |
Physical Data
| Emergency Option | No |
|---|---|
| Product Length (mm) | 110 |
| Product Depth (mm) | 48.5 |
| Product Width (mm) | 85 |
| Product Weight (g) | 180 |
| Material | Steel, Glass |
| Overall diameter (mm) | 85 |
| Construction | Pressed Steel, Glass |
| Cut Out Diameter (mm) | 70 to 100 |
| Luminaire Fixing | Recess mounted |
| Placement / Application | Indoor, General Lighting |
Light Data
| Fire Rating (mins) | 30, 60, 90 |
|---|
Electrical Data
| Insulation Guard | Optional clip-in insulation guard available |
|---|---|
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Back/Recessed side) | IP20 |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 45 |
Packaging
| Package Weight (g) | 200 |
|---|---|
| Package Length (mm) | 115 |
| Package Width (mm) | 115 |
| Package Depth (mm) | 55 |
