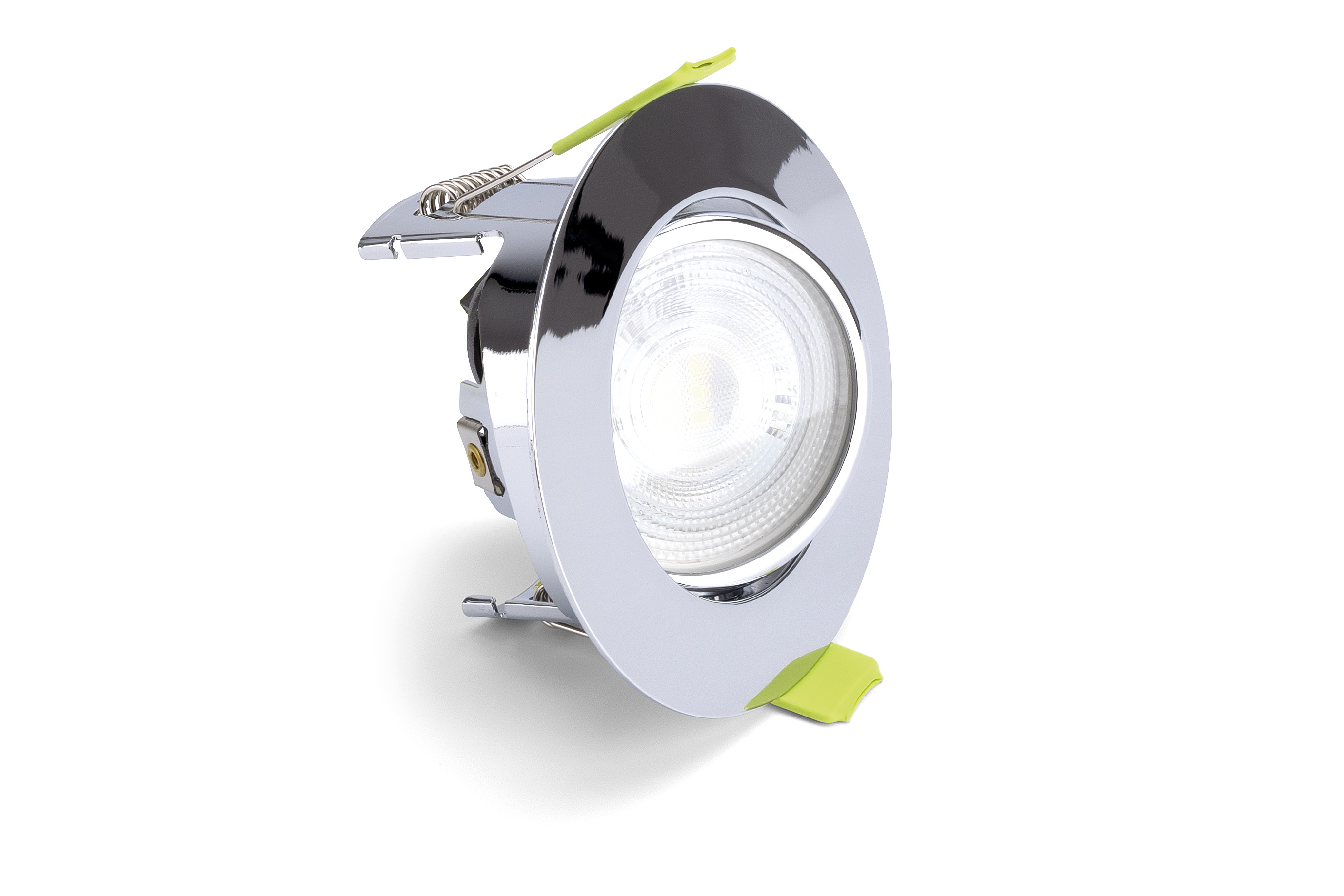

EVOFIRE FIRE RATED TILTABLE DOWNLIGHT 70MM CUTOUT 85MM DIAMETER IP20 POLISHED CHROME ROUND +GU10 HOLDER
Part Number:
ILDLFR70K170
Upgrade your downlights with the latest innovation in fire-rated lighting. The Integral LED Evofire’s unique patented design foregoes the traditional canned construction, favouring an open configuration which improves heat dissipation and lamp reliability and longevity. Lamps installed in an Evofire run at up to 10°C cooler than in a typical can-style fire-rated downlight - extending the lifetime of your lamps.
At only 1mm, the Evofire bezel is up to 10 times thinner than bezels found on other fire-rated downlights. Fitting flush to the ceiling and available in a range of colourways the luminaire is discreet and can blend seamlessly with any décor. Tilting through 20° in both directions, this downlight promotes flexible lighting allowing light to be directed exactly where needed.
Certified for fire resistance at 30, 60, and 90 minutes for Solid Timber Joist and, 30 and 60 minutes for i-Joist ceiling constructions, compliant with BS 476 Part 21, the Integral LED Evofire ensures peace of mind wherever fire protection is needed. Air Tightness compliant with Part C and Part L and Resistance to Sound compliant with Part E. See installation guide for full details.
- Product Feature 1:
- Evolutionary Fire Rated fitting designed by Integral LED
- Product Feature 2:
- Tiltable
- Product Feature 3:
- Developed in the UK - Patent GB2557957
- Product Feature 4:
- Fire Rating 30/60/90 minutes
- Product Feature 5:
- Ultra-thin 1mm 'blend-in' bezel with a premium finish for an attractive look in any room
- Product Feature 6:
- Easy to install Loop-in/Loop-out piano-key style terminal block
- Product Feature 7:
- Supplied with GU10 holders
- Product Feature 8:
- Optional clip-in insulation guard sold separately
- Availability:
-
0
More stock due in on 30/08/2024
Suggested products
Details
| Quick Order Code | 404323 |
|---|---|
| Barcode | 5055788296386 |
| Category | Downlights |
| Range Name | Evofire Tiltable |
| Product Type | Fire Rated |
| Product Body Finish | Polished Chrome |
| Market Segment | Commercial indoor, Residential indoor |
| Finish | Polished Chrome |
| Features | Without Insulation Guard |
| Fixed/Tiltable | Tiltable |
| Warranty (Years) | 3 |
Physical Data
| Emergency Option | No |
|---|---|
| Product Length (mm) | 85 |
| Product Depth (mm) | 48.5 |
| Product Width (mm) | 85 |
| Product Weight (g) | 160 |
| Material | Steel, Glass |
| Overall diameter (mm) | 85 |
| Construction | Pressed Steel, Glass |
| Cut Out Diameter (mm) | 70 |
| Luminaire Fixing | Recess mounted |
| Placement / Application | Indoor, General Lighting |
Light Data
| Fire Rating (mins) | 30, 60, 90 |
|---|
Electrical Data
| Insulation Guard | Optional clip-in insulation guard available |
|---|---|
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Back/Recessed side) | IP20 |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 45 |
Packaging
| Package Weight (g) | 180 |
|---|---|
| Package Length (mm) | 105 |
| Package Width (mm) | 90 |
| Package Depth (mm) | 60 |
