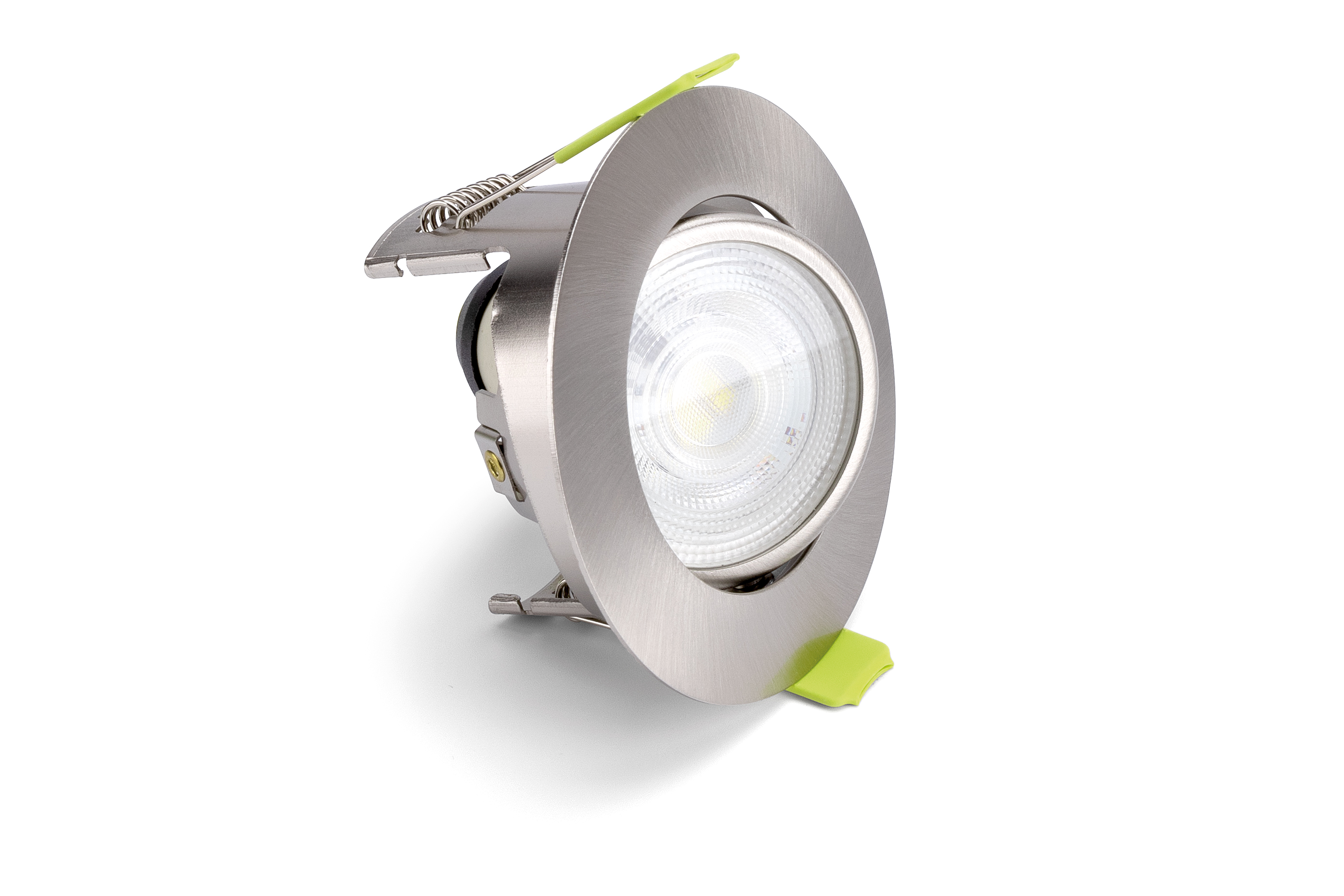

EVOFIRE FIRE RATED TILTABLE DOWNLIGHT 70MM CUTOUT 85MM DIAMETER IP20 SATIN NICKEL ROUND +GU10 HOLDER

Part Number:

ILDLFR70K169

Showcasing a design-led approach to fire-rated downlighting, the Evofire Micro Bezel edition shrinks the bezel size by 40% making it incredibly discreet. Coupled with a thickness of only 1mm, up to 10 times thinner than other fire-rated downlights on the market, the bezel provides a virtually seamless integration into any ceiling.

Manufactured from fire-rated steel and tempered glass, the sophisticated engineering and assembly ensure that its build calibre and aesthetics suit both high-end architectural spaces and residential and commercial settings. Revolutionising fire-rated downlight construction, the Evofire’s unique patented design foregoes the traditional canned configuration, favouring an open structure which improves heat dissipation, lamp reliability and longevity. Lamps installed in an Evofire run up to 10°C cooler than in a typical can-style fire-rated downlight - extending the lifetime of your lamps.

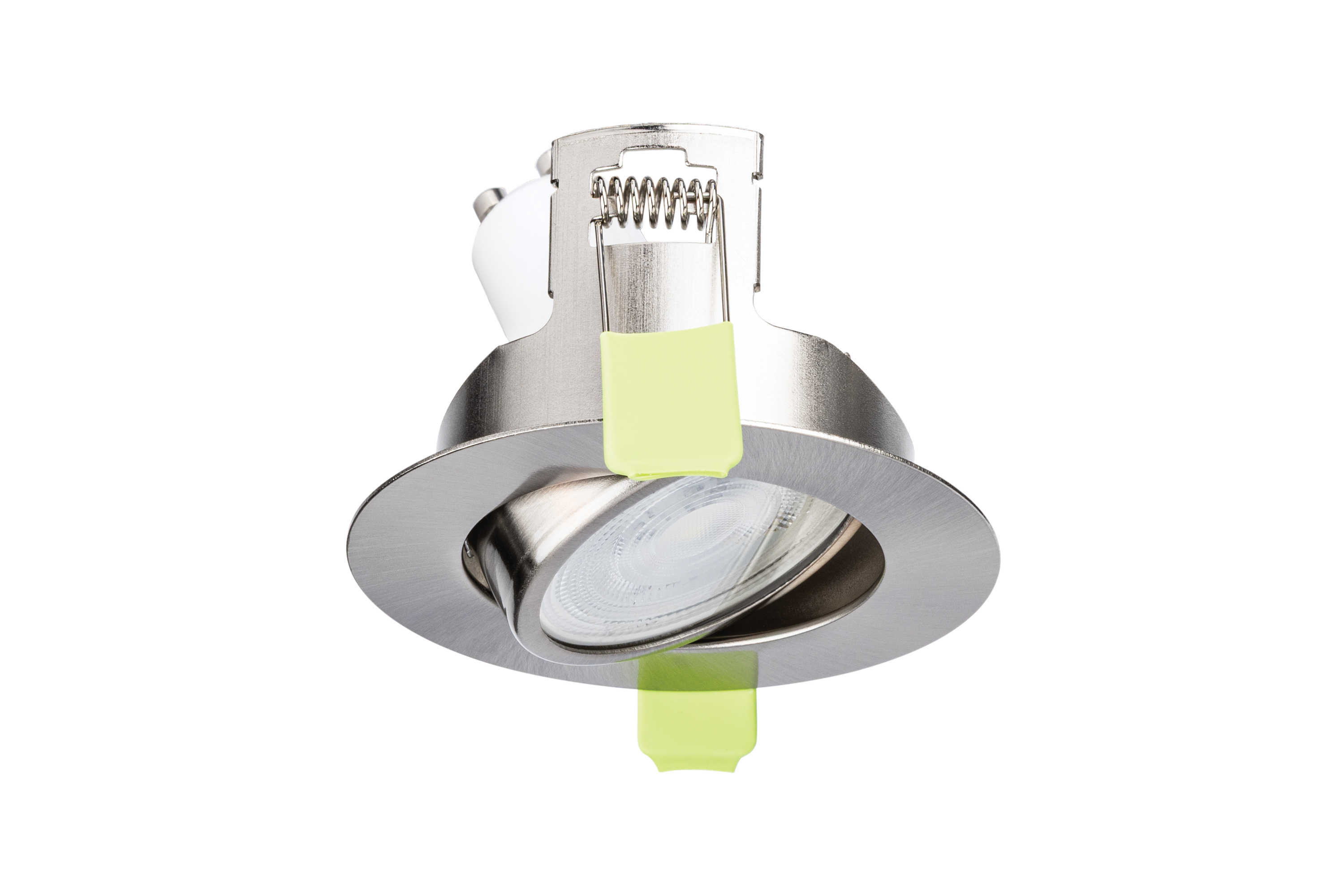

Tilting through 20°, this downlight promotes flexible lighting, allowing light to be directed exactly where needed, highlighting focal points and creating dynamic visual effects to enhance any space.

Certified for fire resistance at 30, 60, and 90 minutes for Solid Timber Joist and, 30 and 60 minutes for i-Joist ceiling constructions, compliant with BS 476 Part 21, the Evofire ensures peace of mind wherever fire protection is needed. Air Tightness compliant with Part C and Part L and Resistance to Sound compliant with Part E. See installation guide for full details.

Product Feature 1:
Evolutionary Fire Rated fitting designed by Integral LED
Product Feature 2:
Tiltable
Product Feature 3:
Developed in the UK - Patent GB2557957
Product Feature 4:
Fire Rating 30/60/90 minutes
Product Feature 5:
Ultra-thin 1mm 'blend-in' bezel with a premium finish for an attractive look in any room
Product Feature 6:
Easy to install Loop-in/Loop-out piano-key style terminal block
Product Feature 7:
Supplied with GU10 holders
Product Feature 8:
Optional clip-in insulation guard sold separately
Availability:
1000+

More stock due in on 22/11/2024

Suggested products

Quick Order Code 102670
Barcode 5055788296379
Category Downlights
Range Name Evofire Tiltable
Product Type Fire Rated
Product Body Finish Satin Nickel
Market Segment Commercial indoor, Residential indoor
Finish Satin Nickel
Features Without Insulation Guard
Fixed/Tiltable Tiltable
Warranty (Years) 3
Emergency Option No
Product Length (mm) 85
Product Depth (mm) 48.5
Product Width (mm) 85
Product Weight (g) 160
Material Steel, Glass
Overall diameter (mm) 85
Construction Pressed Steel, Glass
Cut Out Diameter (mm) 70
Luminaire Fixing Recess mounted
Placement / Application Indoor, General Lighting
Fire Rating (mins) 30, 60, 90
Insulation Guard Optional clip-in insulation guard available
EN EN-60598
LVD Certified Yes
EN EN-60598
LVD Certified Yes
CE RoHS Yes
Hg 0% (Mercury Free) Yes
IP Rating (Back/Recessed side) IP20
IP Rating (Ingress Protection) IP20
Lowest Operating Temperature (°C) -20
Maximum Operating Temperature (°C) 45
Package Weight (g) 180
Package Length (mm) 105
Package Width (mm) 90
Package Depth (mm) 60
