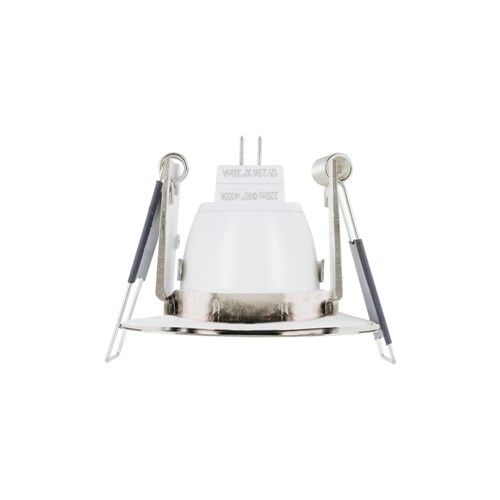

EVOFIRE MINI FIRE RATED DOWNLIGHT 45MM CUTOUT IP65 SATIN NICKEL ROUND INTEGRAL
Ideal for new builds - Only a 45mm cut-out (for MR11 12V GU4 or MR11 240V GU10 lamps).
Great for tight spaces - 38.5mm super-low profile.
Aesthetic - Ultra-thin 1mm blend-in bezel with a premium finish.
Easy wiring - with a Fast-Fit, loop-in/loop-out, junction box for tool free assembly.
Easy to install and remove - Durable steel assembly.
Extended lamp life - Open design allows airflow to extend lamp life compared to traditional designs.
45mm Cut-Out, 64mm Diameter, IP65.
This downlight is fire rated to 30, 60 and 90 minutes in compliance with BS476 Part 21:1987, Air Tightness compliant with Part C and Part L and Resistance to Sound compliant with Part E. See installation guide for full details.
- Product Feature 1:
- For MR11 12V GU4 or MR11 240V GU10 lamps
- Product Feature 2:
- Evolutionary Fire Rated fitting designed by Integral LED
- Product Feature 3:
- Developed in the UK - Patent GB2557957
- Product Feature 4:
- Fire Rating 30/60/90 minutes
- Product Feature 5:
- Ultra-thin 1mm 'blend-in' bezel with a premium finish for an attractive look in any room
- Product Feature 6:
- Easy to install Loop-in/Loop-out piano-key style terminal block
- Product Feature 7:
- Lamp and holder not included
More stock due in on 28/02/2023
|Quick Order Code||305723|
|Range Name||Evofire mini|
|Product Body Finish||Satin Nickel|
|Market Segment||Commercial indoor, Residential indoor|
|Product Depth (mm)||38.5|
|Product Weight (g)||10|
|Overall diameter (mm)||64|
|Construction||Pressed Steel, Glass|
|Cut Out Diameter (mm)||45|
|Luminaire Fixing||Recess mounted|
|Placement / Application||Indoor, General Lighting|
|Fire Rating (mins)||30, 60, 90|
|IP Rating (Back/Recessed side)||IP20|
|IP Rating (Ingress Protection)||IP65|
|Package Weight (g)||13|
|Package Length (mm)||70|
|Package Width (mm)||70|
|Package Depth (mm)||65|
|Qty per euro pallet||1632|
