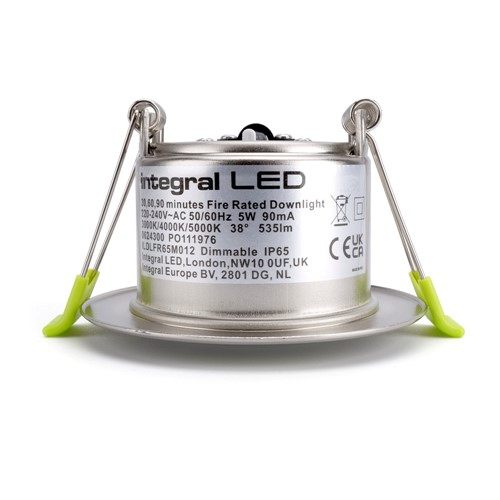

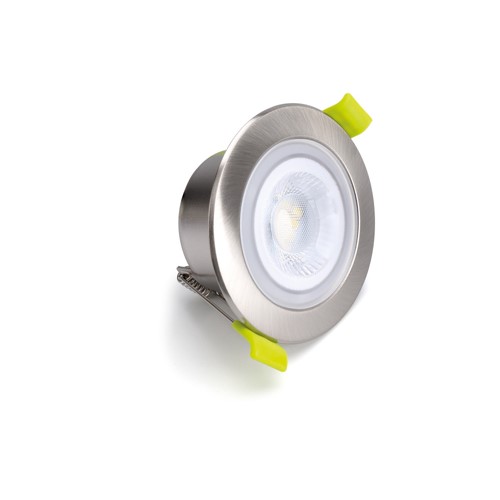

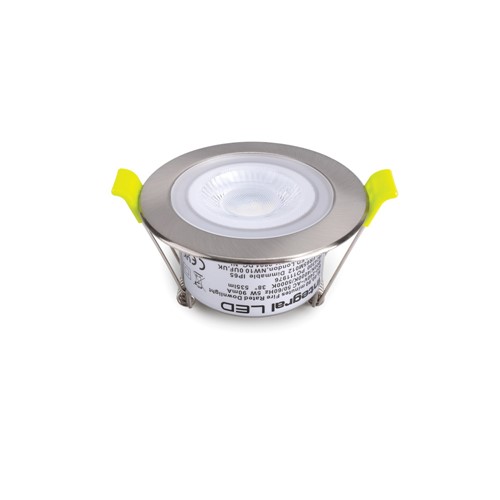

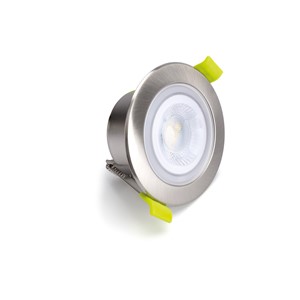

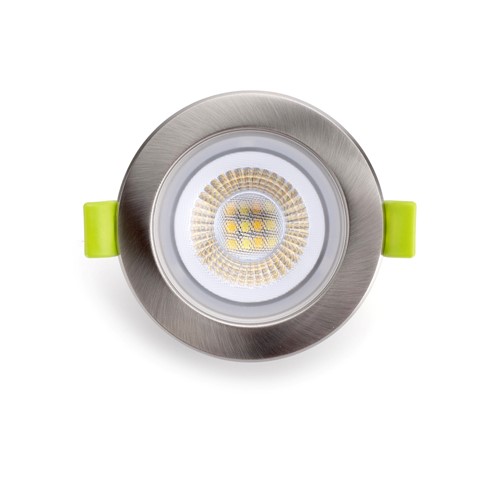

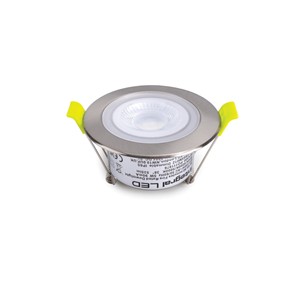

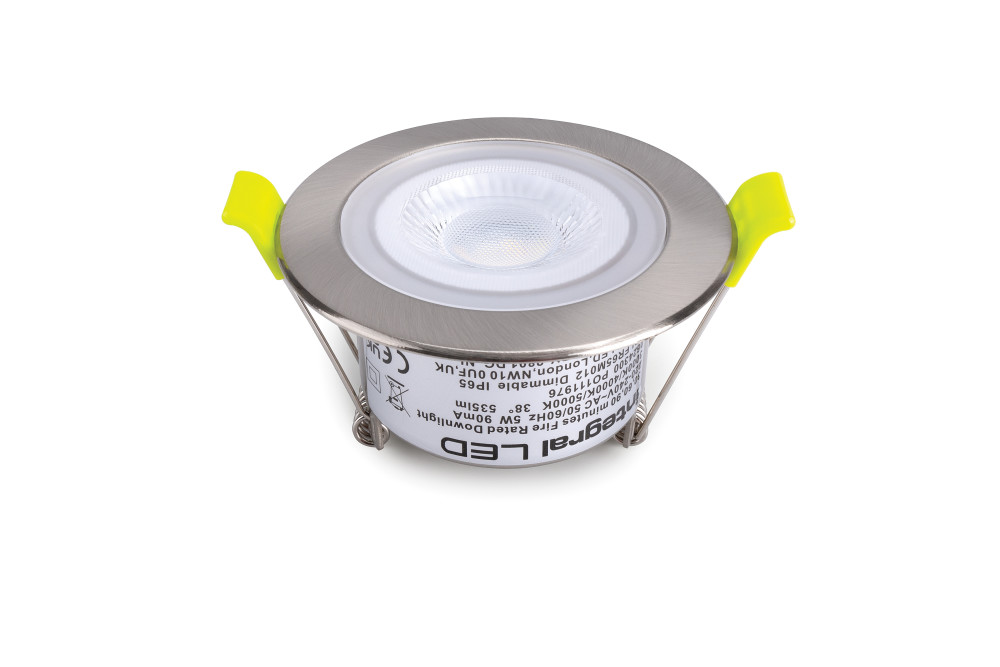

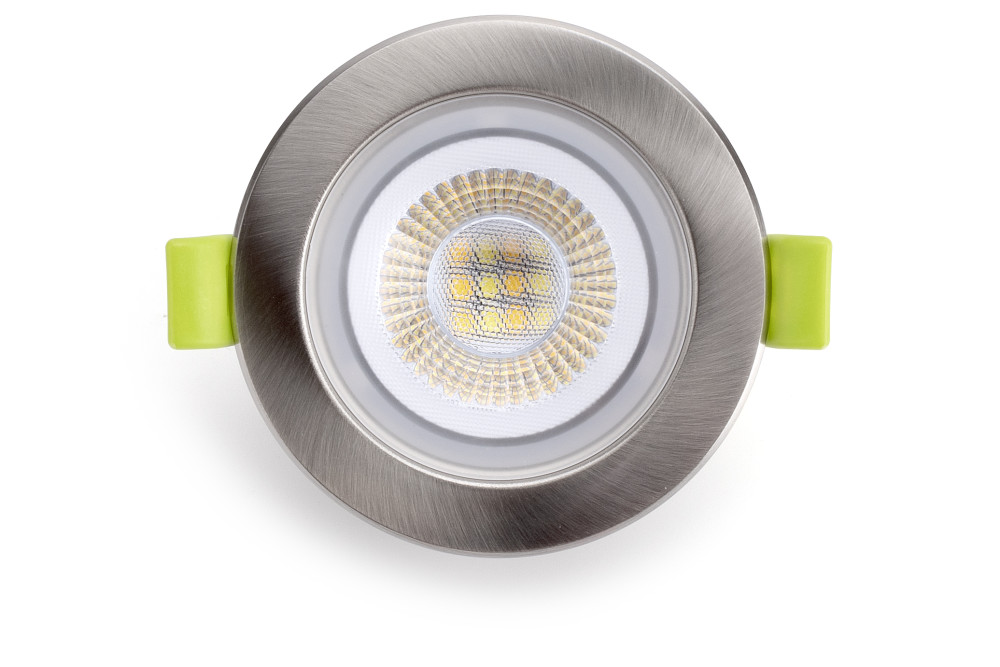

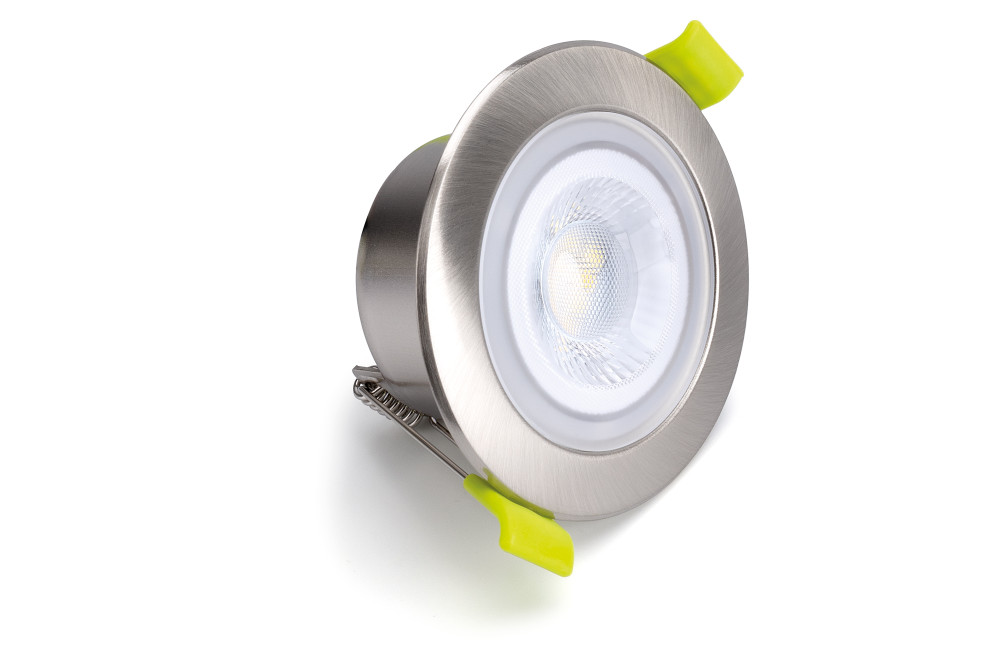

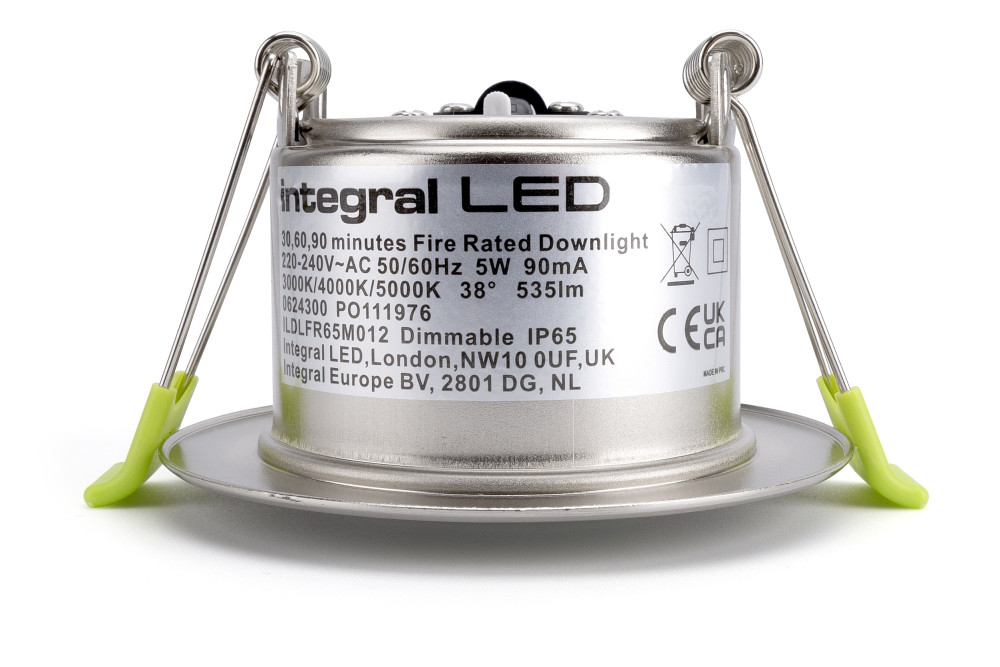

ECOGUARD FIRE RATED DOWNLIGHT 65MM CUTOUT IP65 600LM 5W 3000/4000/5000K 38 BEAM DIMMABLE 120LM/W SATIN NICKEL INTEGRAL
Part Number:
ILDLFR65M012
The EcoGuard range offers premium protection and reliability with exceptional value and efficacy (120lm/W). Complete with an in-built dimmable driver and offering IP65 water and dust resistance, the EcoGuard is ideal for commercial and residential applications, especially in kitchens and bathrooms. Featuring three colour temperature settings, selectable on fitting, the EcoGuard CCT switchable model offers 3000K warm white, 4000K cool white and 5000K daylight options. Installation is quick and easy, even in shallow ceiling voids, thanks to the low-profile design and tool-free Fast Connect loop-in, loop-out junction box, whilst the fully enclosed design makes it suitable for overlaying with insulation without posing a risk to safety or product longevity. Fire rated to 30, 60 and 90 minutes (Solid Timber Joist) and to 30 and 60 (i-Joist) to EN 1365-2, and in compliance with BS 476 Part 21, the EcoGuard provides peace of mind wherever fire protection is required. Insulation coverable.
Note: Warranty increased to 5 years on 19/12/2024
Note: Warranty increased to 5 years on 27/03/2025
- Product Feature 1:
- High efficacy 120lm/W
- Product Feature 2:
- Dimmable
- Product Feature 3:

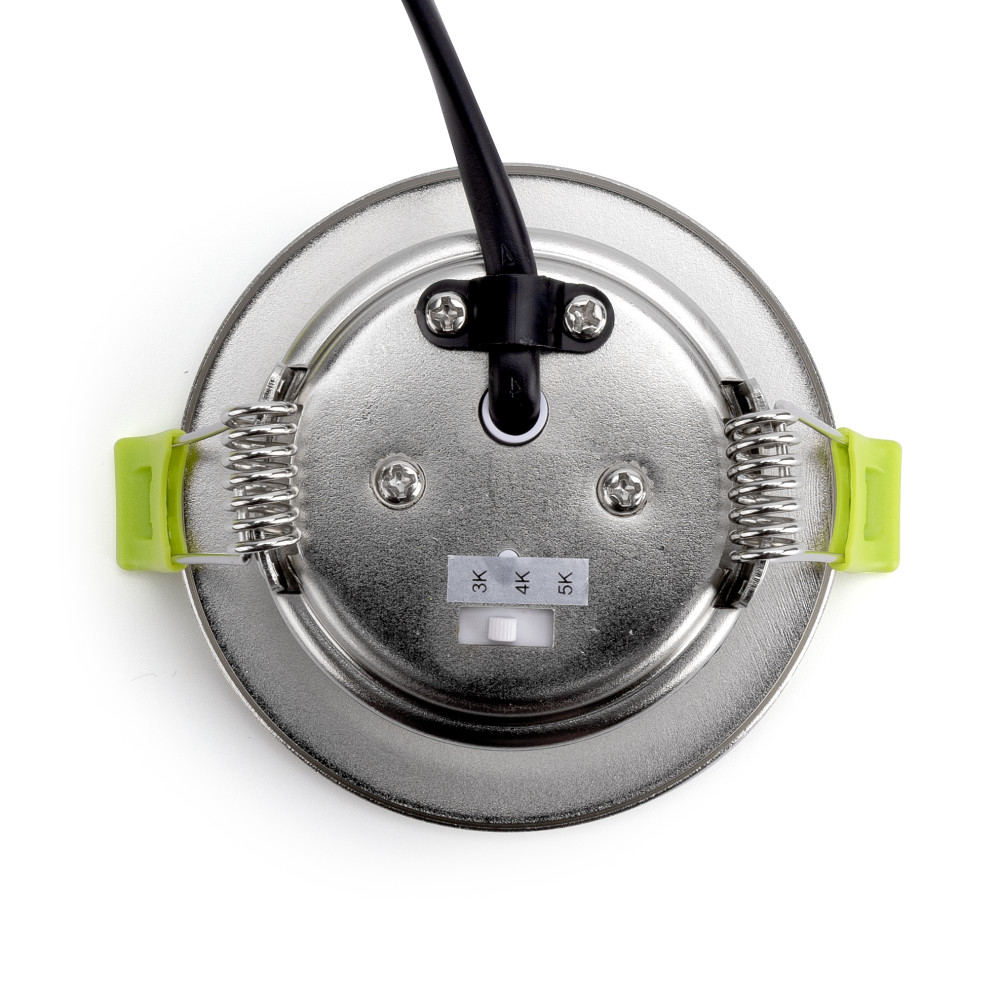

- CCT Switching 3000K/4000K/5000K
- Product Feature 4:
- IP65
- Product Feature 5:
- Satin nickel finish
- Product Feature 6:

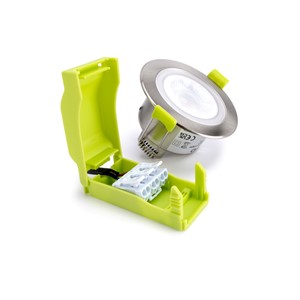

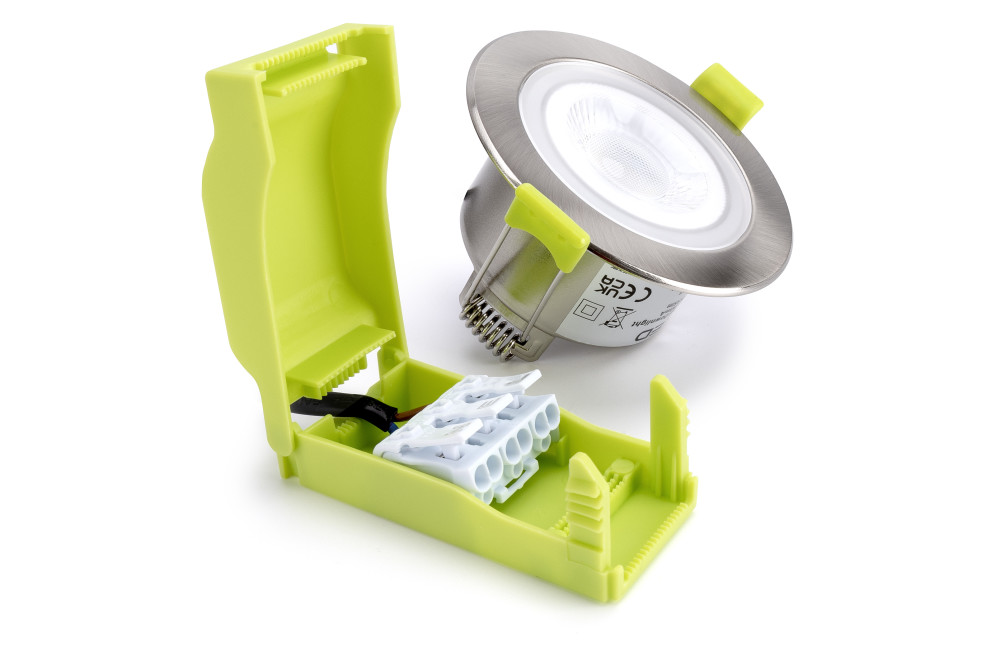

- Easy install push connector junction box
- Availability:
-
500+
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Barcode | 5055788299226 |
|---|---|
| Quick Order Code | 669380 |
| Product Type | Fire Rated |
| Category | Downlights |
| Range Name | EcoGuard |
| Fixed/Tiltable | Fixed |
| Product Body Finish | Satin Nickel |
| Features | CCT Switchable |
| Market Segment | Commercial indoor, Residential indoor |
| Placement / Application | Indoor, General Lighting |
| Warranty (Years) | 5 |
Physical Data
| Bulb or Luminaire Shape | Round |
|---|---|
| Cut Out Diameter (mm) | 65 |
| Overall diameter (mm) | 85 |
| Product Length (mm) | 85 |
| Product Width (mm) | 85 |
| Product Depth (mm) | 52 |
| Product Weight (g) | 180 |
| Material | Steel, Aluminium, PC, Glass |
| Construction | Pressed Steel, Glass |
| Luminaire Fixing | Recess mounted |
| Emergency Option | No |
| Spot Type | SMD |
| Control Gear | Non-replaceable |
Light Data
| Luminous Flux in Lumens (lm) | 600 |
|---|---|
| Luminous efficacy (lm/W) | 120 |
| Correlated Colour Temperature (CCT) (K) | 3000 / 4000 / 5000 (CCT Switchable) |
| Colour Temperature | 3000/4000/5000 - Warm White / Cool White / Daylight |
| Colour Temperature Name | Warm White, Cool White, Daylight |
| Beam Angle | 38 |
| Colour Rendering Index (CRI) | 80 |
| Compatible Dimmers | Varilight JQP401W |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 25000 |
| Switching Cycles | 10000 |
| Useful Lumens (lm) | 535 |
| Light Source | Non-replaceable |
Electrical Data
| Power (W) | 5 |
|---|---|
| Power Consumption (W) | 5 |
| Power Factor | 0.8 |
| Voltage Range (v) | 220-240 |
| Amperage (mA) | 75 |
| Dimming | Mains dim |
| Driver Included | Yes |
| Electric Current | AC |
Environmental
| Fire Rating (mins) | 30, 60, 90 |
|---|---|
| IP Rating (Back/Recessed side) | IP20 |
| IP Rating (Ingress Protection) | IP65 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 45 |
| EN | EN-60598 |
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| New Energy Rating | D |
Packaging
| Barcode | 5055788299226 |
|---|---|
| Package Weight (g) | 210 |
| Package Length (mm) | 105 |
| Package Width (mm) | 95 |
| Package Depth (mm) | 65 |
Safety Guide
ILDLFR65M012-5W-3000K
