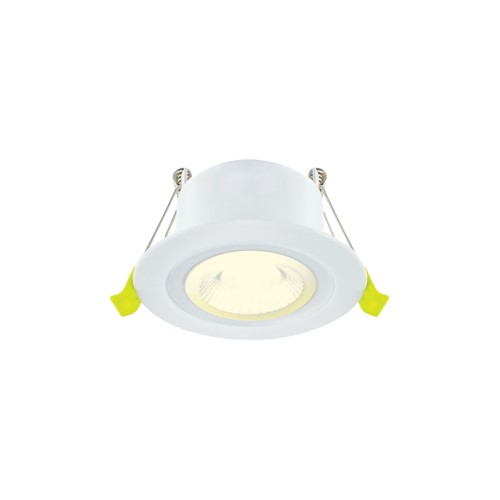

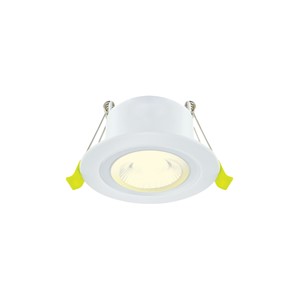

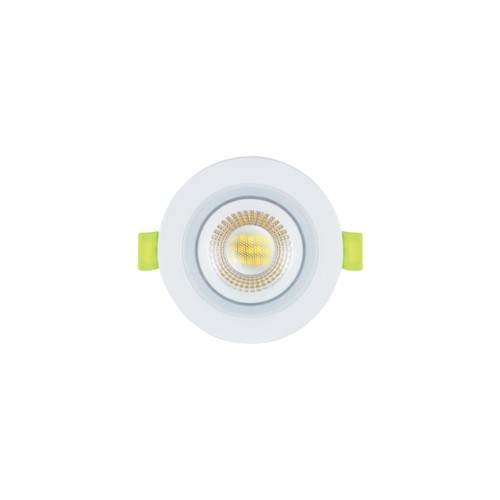

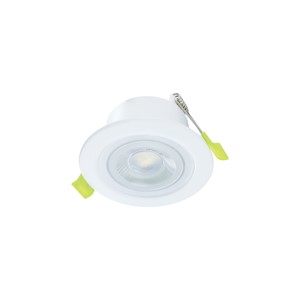

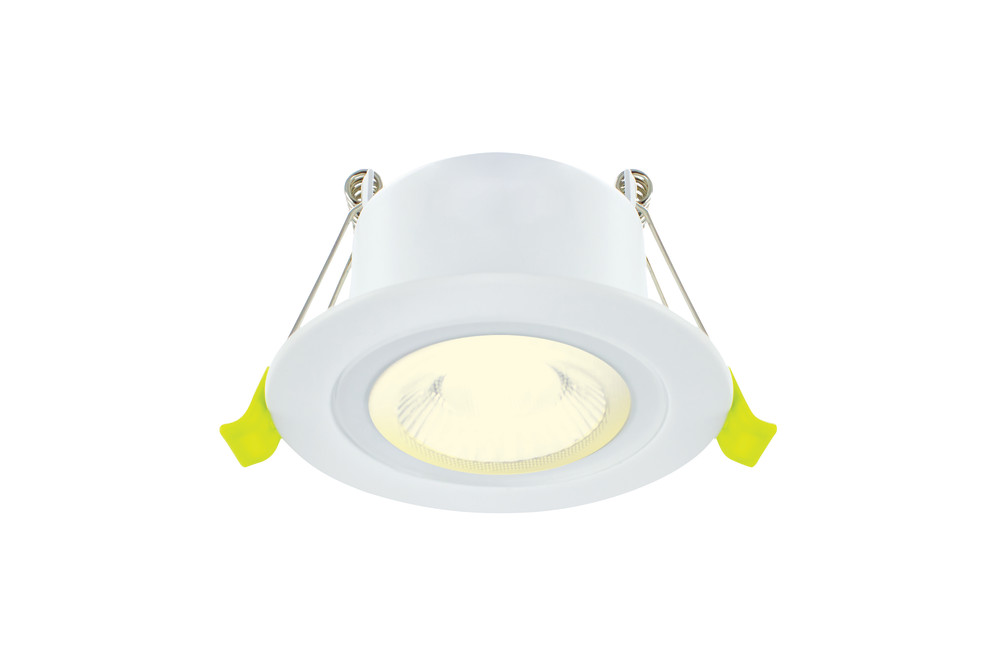

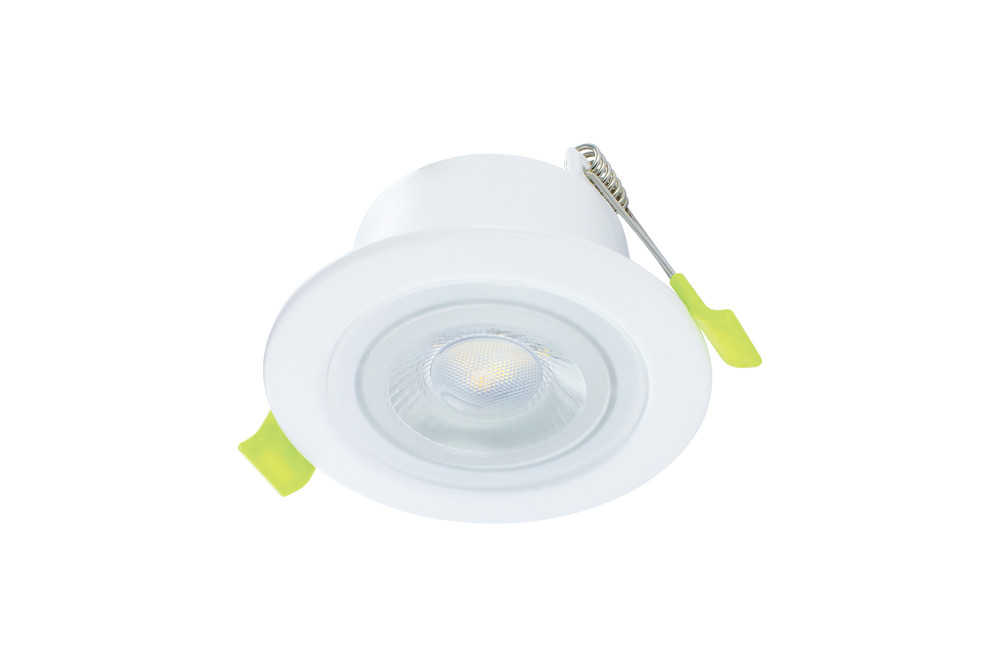

ECOGUARD FIRE RATED DOWNLIGHT 65MM CUTOUT IP65 600LM 5W 4000K 38 BEAM DIMMABLE 120LM/W WHITE INTEGRAL
Part Number:
ILDLFR65M002
The EcoGuard range offers premium protection and reliability with exceptional value and efficacy (120lm/W). Complete with in-built dimmable driver and offering IP65 water and dust resistance, the EcoGuard is ideal for commercial and residential applications especially in kitchens and bathrooms.

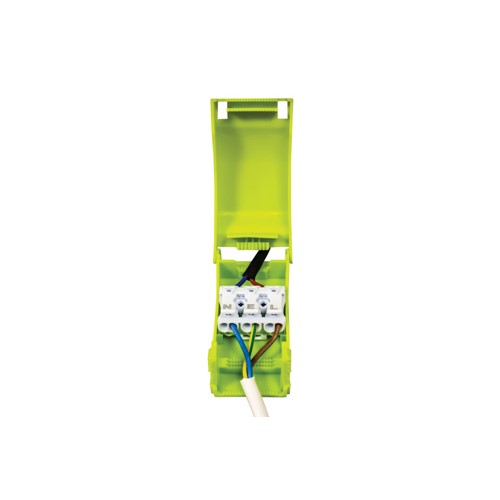

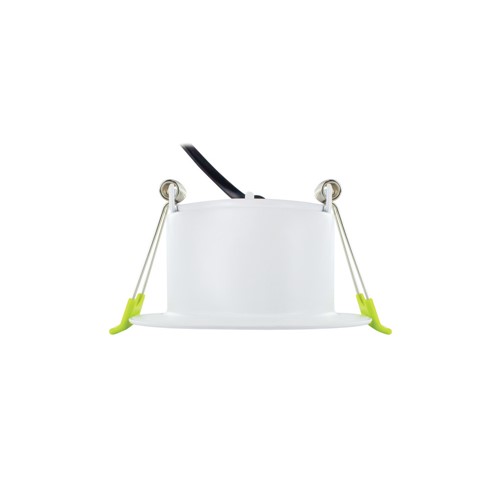

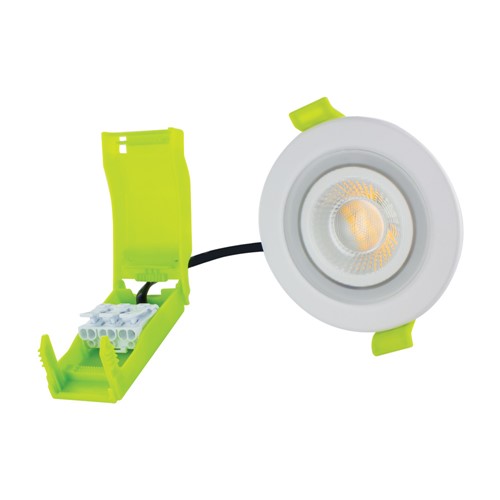

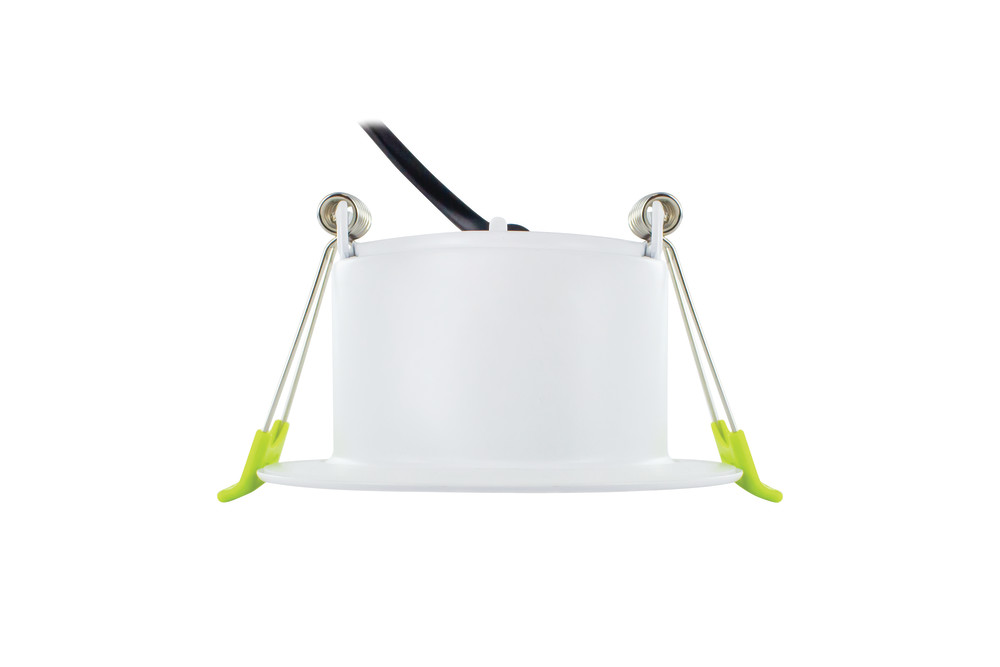

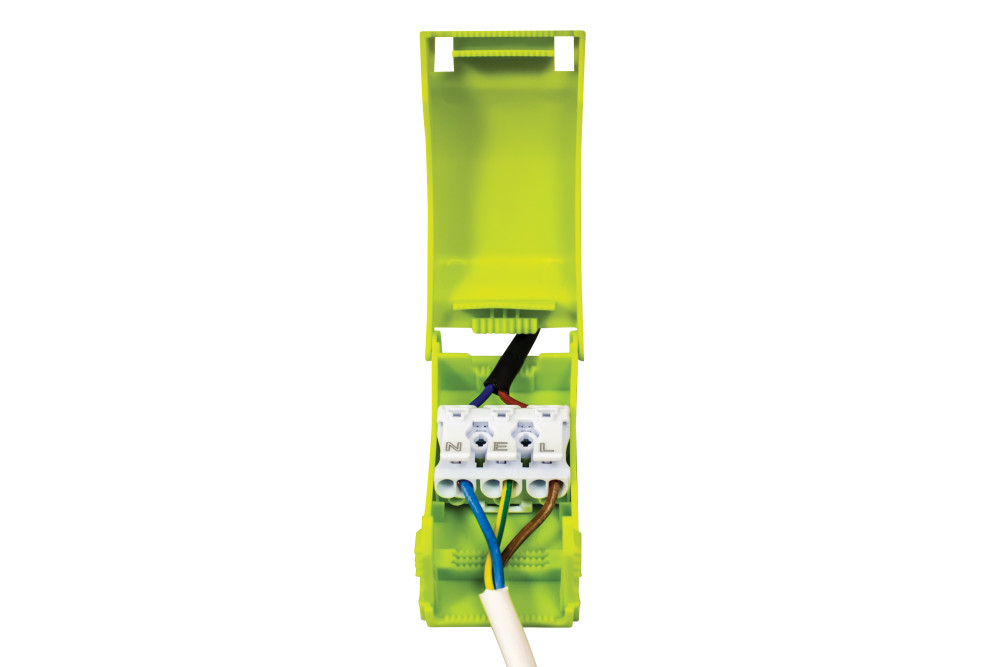

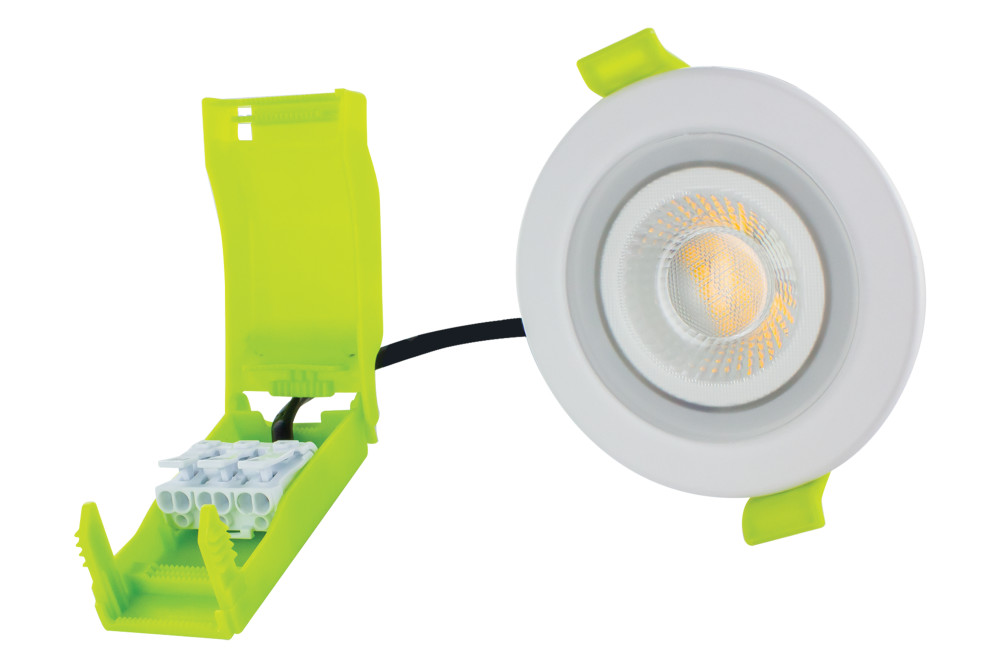

Installation is quick and easy, even in shallow ceiling voids, thanks to the low-profile design and tool-free loop-in, loop-out junction box, whilst the fully enclosed design makes it suitable for overlaying with insulation without posing a risk to safety or product longevity.
Fire rated to 30, 60 and 90 minutes (Solid Timber Joist) and to 30 and 60 (i-Joist) to EN 1365-2, and in compliance with BS 476 Part 21, the EcoGuard provides peace of mind wherever fire protection is required.
- Product Feature 1:
- 120lm/W
- Product Feature 2:
- Dimmable
- Product Feature 3:
- Cool White
- Product Feature 4:
- 4000K
- Product Feature 5:
- IP65
- Product Feature 6:
- Matt White Finish
- Availability:
-
500+
More stock due in on 11/02/2025
Suggested products
Details
| Quick Order Code | 103592 |
|---|---|
| Barcode | 5055788286875 |
| Category | Downlights |
| Range Name | EcoGuard |
| Product Type | Fire Rated |
| Product Body Finish | Matt white |
| Market Segment | Commercial indoor, Residential indoor |
| Fixed/Tiltable | Fixed |
| Warranty (Years) | 3 |
Physical Data
| Emergency Option | No |
|---|---|
| Product Depth (mm) | 52 |
| Product Width (mm) | 85 |
| Product Weight (g) | 180 |
| Diameter (mm) | 85 |
| Material | Steel, Glass |
| Overall diameter (mm) | 85 |
| Construction | Pressed Steel, Glass |
| Cut Out Diameter (mm) | 65 |
| Bulb or Luminaire Shape | Round |
| Luminaire Fixing | Recess mounted |
| Placement / Application | Indoor, General Lighting |
| Spot Type | SMD |
Light Data
| Lumen output | 600 |
|---|---|
| Luminous Flux in Lumens (lm) | 600 |
| Luminous efficacy (lm/W) | 120 |
| Correlated Colour Temperature (CCT) (K) | 4000 |
| Colour Temperature | 4000K - Cool White |
| Colour Temperature Name | Cool White |
| Beam Angle | 38 |
| Colour Rendering Index (CRI) | 80 |
| Compatible Dimmers | Varilight JQP401W |
| Fire Rating (mins) | 30, 60, 90, 30-60 I-JOIST |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| Integrated Light Source | Yes |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 25000 |
| Switching Cycles | 12500 |
| Useful Lumens (lm) | 585 |
Electrical Data
| Power (W) | 5 |
|---|---|
| Power Consumption (W) | 5 |
| Power Factor | 0.8 |
| Voltage Range (v) | 220-240 |
| Wattage equivalent (W) | 50 |
| Amperage (mA) | 14 |
| Dimming | Dimmable with compatible dimmers |
| Driver Included | Yes |
| Electric Current | AC |
| EN | Yes |
| LVD Certified | Yes |
Environmental
| EN | Yes |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Back/Recessed side) | IP20 |
| IP Rating (Ingress Protection) | IP65 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 45 |
Packaging
| Package Weight (g) | 210 |
|---|---|
| Package Length (mm) | 105 |
| Package Width (mm) | 95 |
| Package Depth (mm) | 65 |
Safety Guide
ILDLFR65M002-5W-4000K
