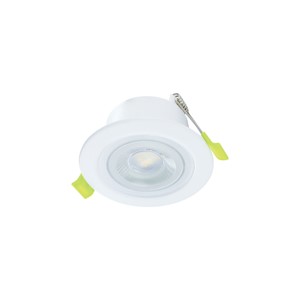

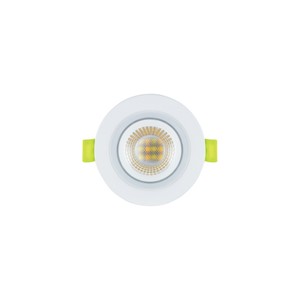

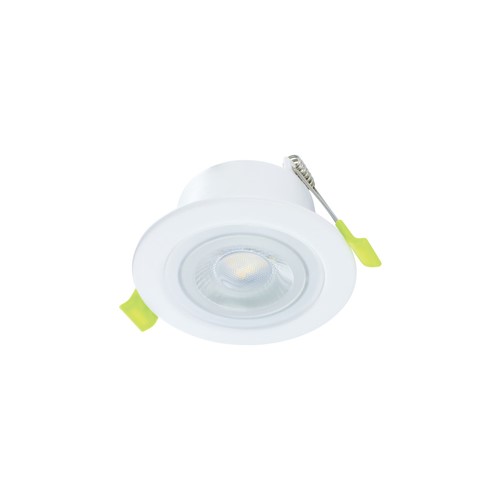

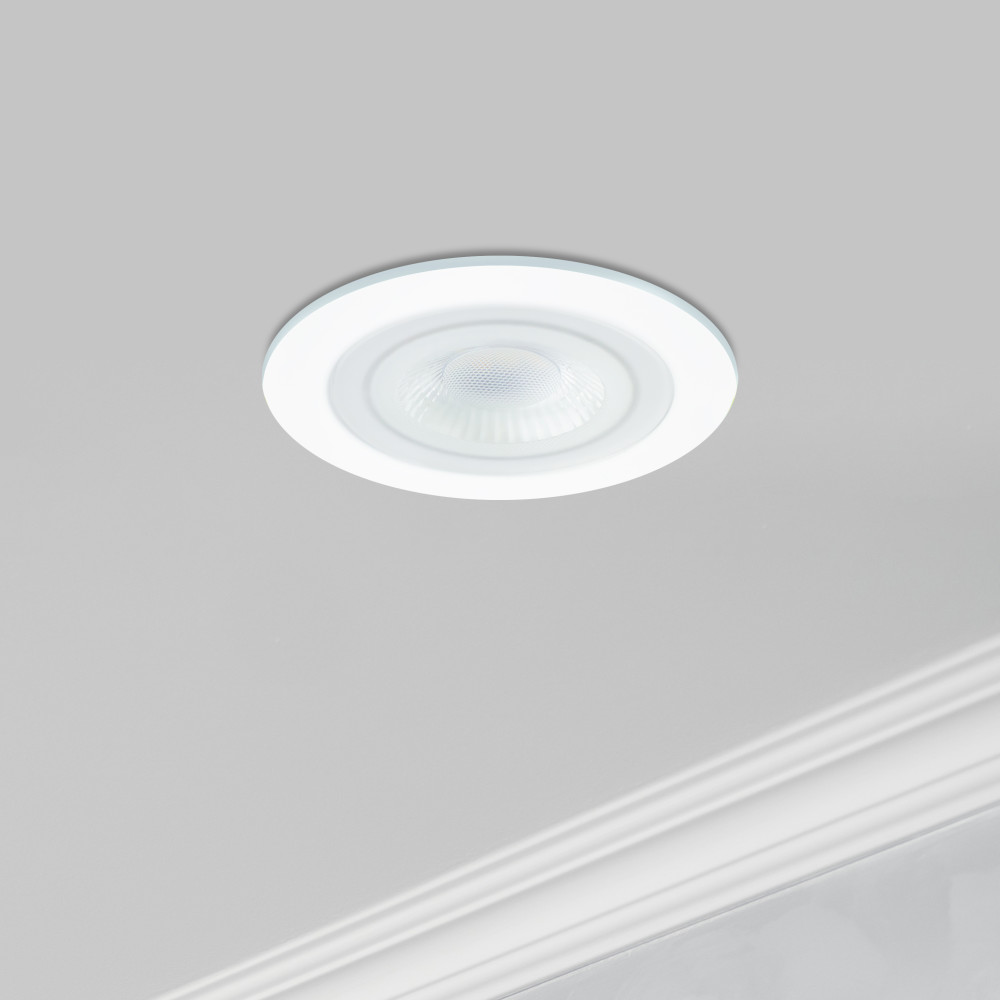

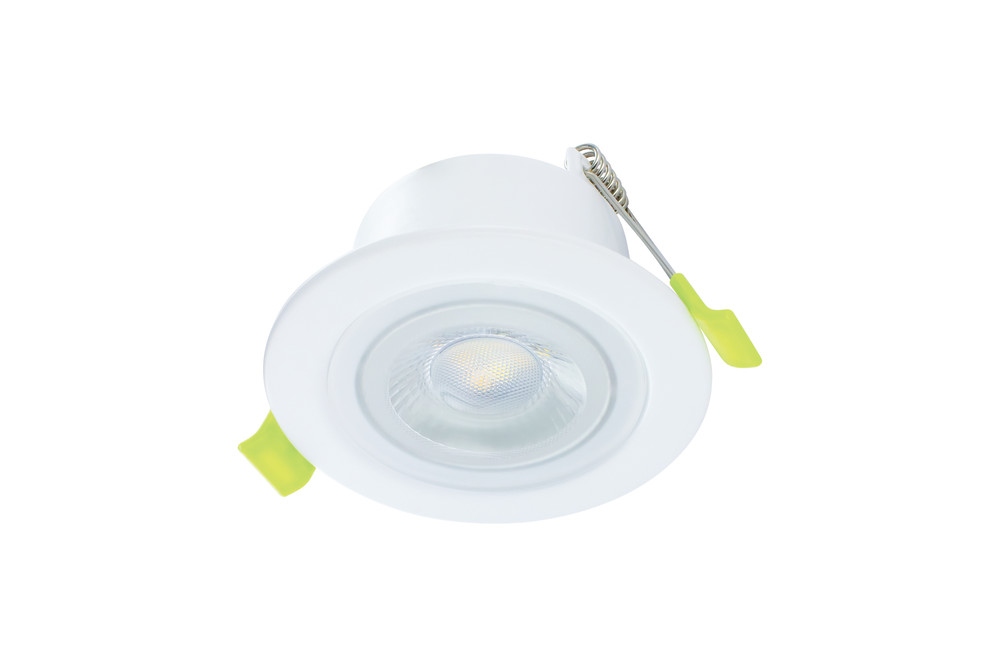

ECOGUARD FIRE RATED DOWNLIGHT FAST CONNECT 65MM CUTOUT IP65 600LM 5W 3000/4000/5000K 38 BEAM DIMMABLE 120LM/W WHITE INTEGRAL
Part Number:
ILDLFR65M003

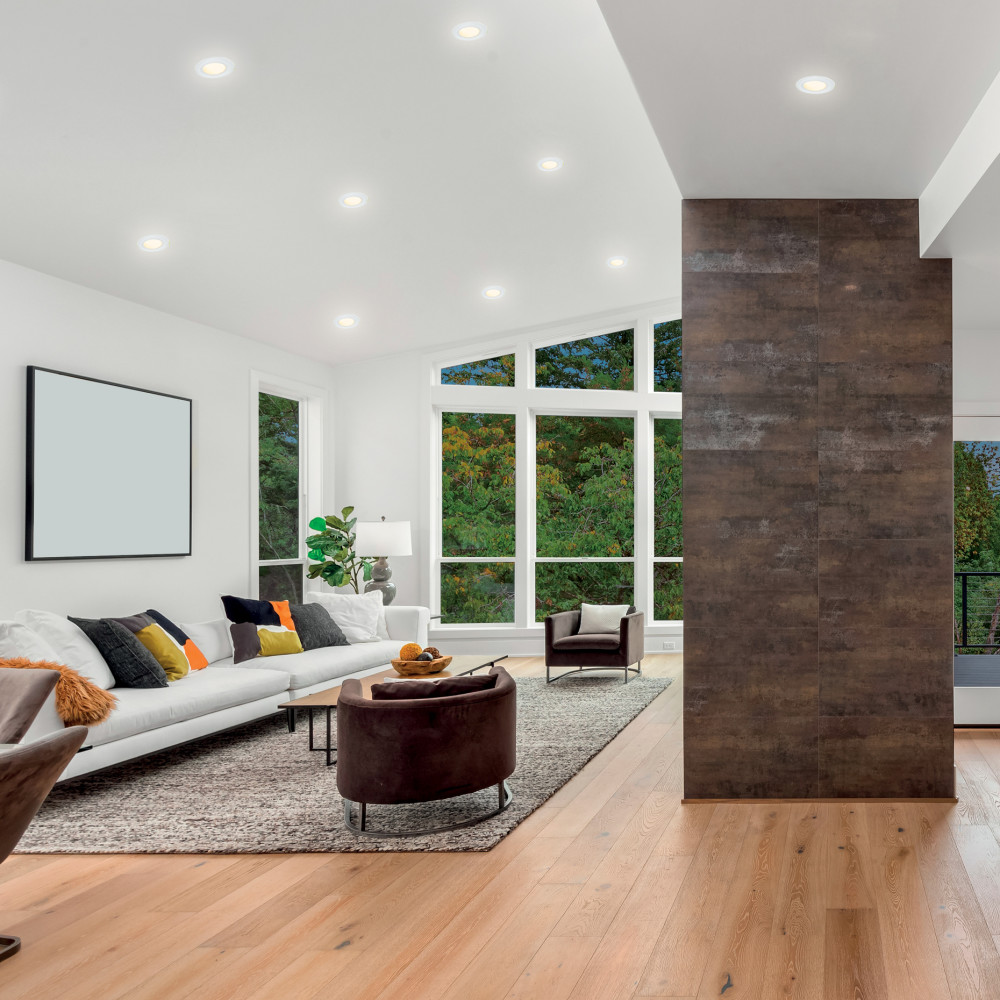

The EcoGuard range offers premium protection and reliability with exceptional value and efficacy (120lm/W). Complete with in-built dimmable driver and offering IP65 water and dust resistance, the EcoGuard is ideal for commercial and residential applications especially in kitchens and bathrooms.

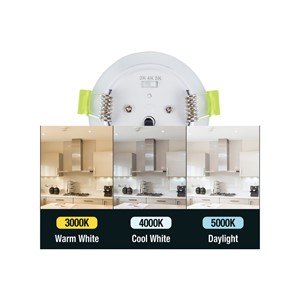

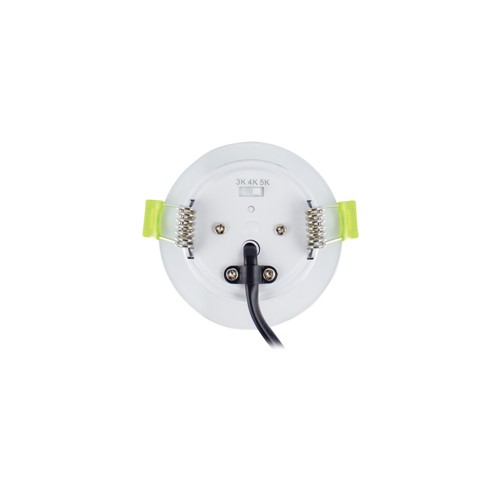

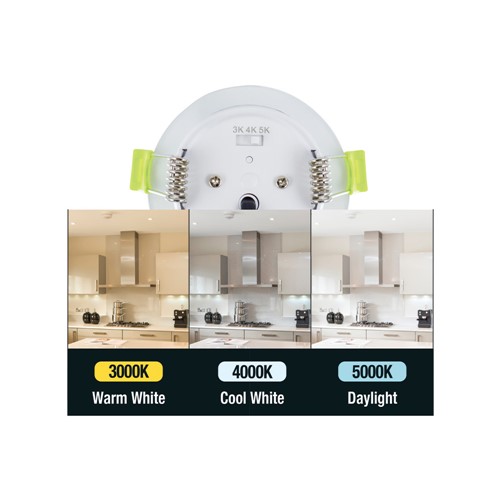

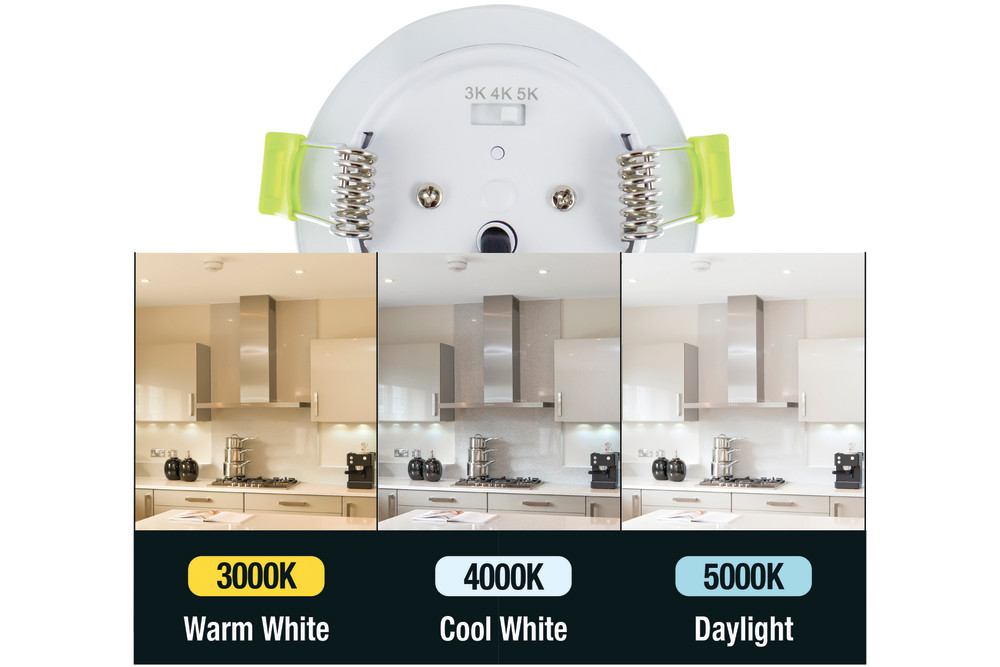

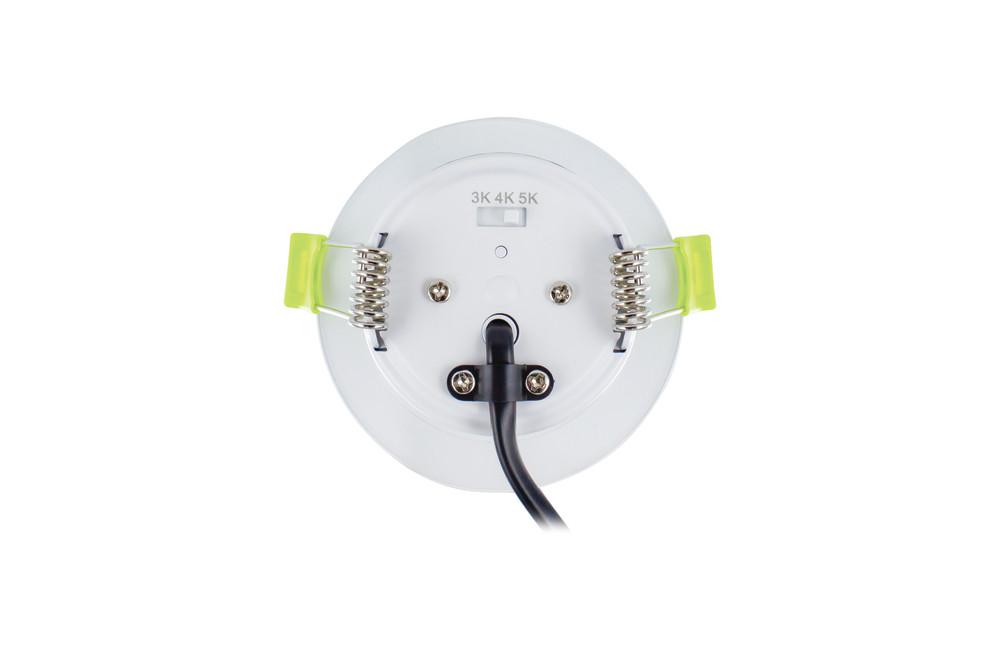

Featuring three colour temperature settings, selectable on fitting, the EcoGuard CCT switchable model offers 3000K warm white, 4000K cool white and 5000K daylight options.

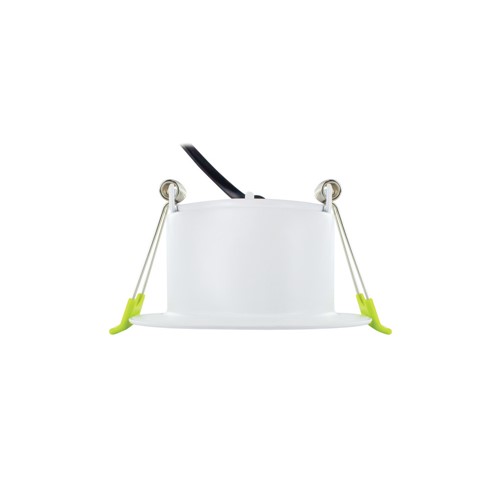

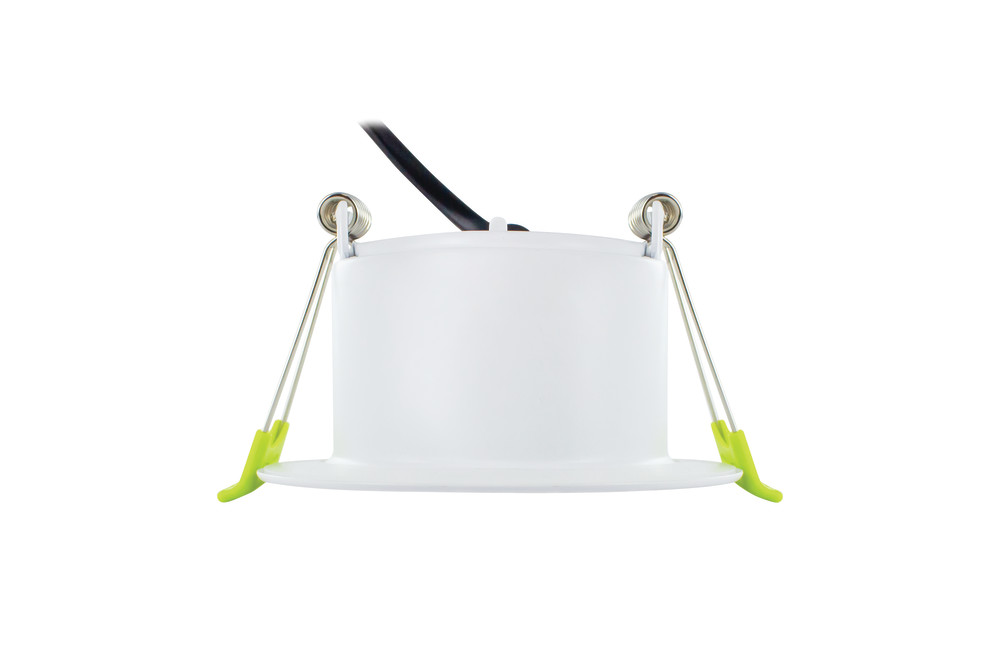

Installation is quick and easy, even in shallow ceiling voids, thanks to the low-profile design and tool-free Fast Connect loop-in, loop-out junction box, whilst the fully enclosed design makes it suitable for overlaying with insulation without posing a risk to safety or product longevity.

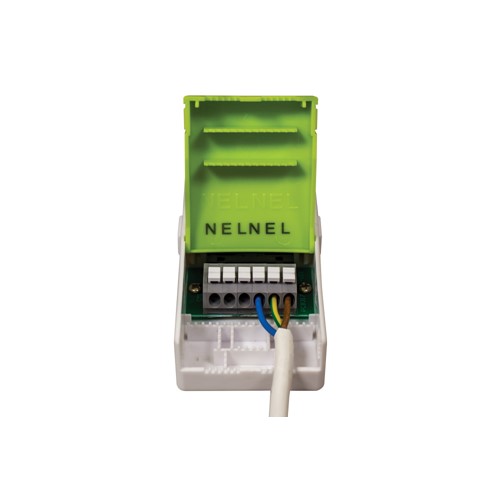

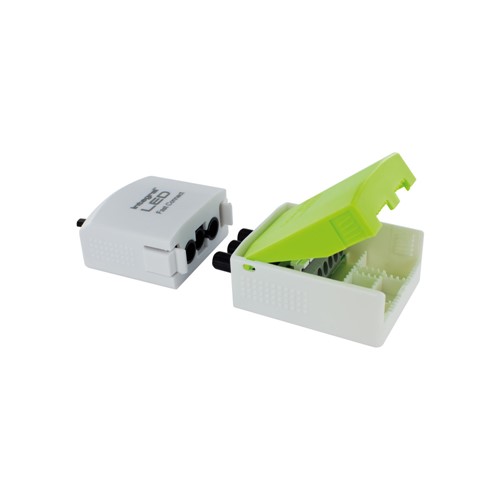

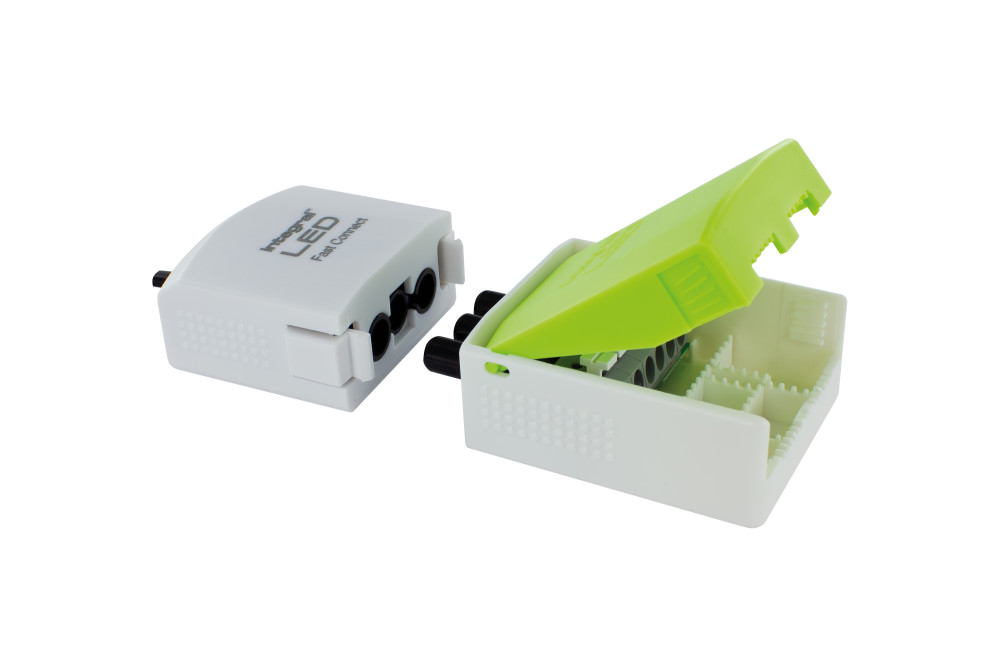

Integral LED’s Fast Connect junction box can be separated allowing wiring to be finalised and concealed until decoration is complete. When ready, the Fast Connect junction box can be clicked together and the EcoGuard downlight installed. Future maintenance is simple and painless as the luminaire can be easily unplugged and removed.
Fire rated to 30, 60 and 90 minutes (Solid Timber Joist) and to 30 and 60 (i-Joist) to EN 1365-2, and in compliance with BS 476 Part 21, the EcoGuard provides peace of mind wherever fire protection is required. Insulation coverable.Note: Warranty increased to 5 years on 27/03/2025
- Product Feature 1:
- High efficacy 120lm/W
- Product Feature 2:
- Dimmable
- Product Feature 3:
- CCT Switching 3000K/4000K/5000K
- Product Feature 4:
- IP65
- Product Feature 5:
- Matt white finish
- Availability:
-
500+
More stock due in on 29/09/2026
Suggested products
Details
| Barcode | 5055788286882 |
|---|---|
| Quick Order Code | 655716 |
| Product Type | Fire Rated |
| Category | Downlights |
| Range Name | EcoGuard |
| Fixed/Tiltable | Fixed |
| Product Body Finish | Matt white |
| Market Segment | Commercial indoor, Residential indoor |
| Placement / Application | Indoor, General Lighting |
| Warranty (Years) | 5 |
Physical Data
| Bulb or Luminaire Shape | Round |
|---|---|
| Cut Out Diameter (mm) | 65 |
| Diameter (mm) | 85 |
| Overall diameter (mm) | 85 |
| Product Width (mm) | 85 |
| Product Depth (mm) | 52 |
| Product Weight (g) | 210 |
| Material | Steel, Glass |
| Construction | Pressed Steel, Glass |
| Luminaire Fixing | Recess mounted |
| Emergency Option | No |
| Spot Type | SMD |
| Control Gear | Non-replaceable |
Light Data
| Lumen output | 600 |
|---|---|
| Luminous Flux in Lumens (lm) | 600 |
| Luminous efficacy (lm/W) | 120 |
| Correlated Colour Temperature (CCT) (K) | 3000 / 4000 / 5000 (CCT Switchable) |
| Colour Temperature | 3000/4000/5000 - Warm White / Cool White / Daylight |
| Colour Temperature Name | Warm White, Cool White, Cool Daylight |
| Beam Angle | 38 |
| Colour Rendering Index (CRI) | 80 |
| Compatible Dimmers | Varilight JQP401W |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| Integrated Light Source | Yes |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 25000 |
| Switching Cycles | 12500 |
| Useful Lumens (lm) | 535 |
| Light Source | Non-replaceable |
Electrical Data
| Power (W) | 5 |
|---|---|
| Power Consumption (W) | 5 |
| Power Factor | 0.8 |
| Voltage Range (v) | 220-240 |
| Wattage equivalent (W) | 50 |
| Amperage (mA) | 90 |
| Dimming | Mains dim |
| Driver Included | Yes |
| Electric Current | AC |
Environmental
| Fire Rating (mins) | 30, 60, 90, 30-60 I-JOIST |
|---|---|
| IP Rating (Back/Recessed side) | IP20 |
| IP Rating (Ingress Protection) | IP65 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 45 |
| EN | Yes |
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| New Energy Rating | D |
Packaging
| Barcode | 5055788286882 |
|---|---|
| Package Weight (g) | 250 |
| Package Length (mm) | 105 |
| Package Width (mm) | 105 |
| Package Depth (mm) | 65 |
