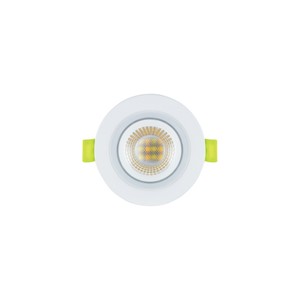

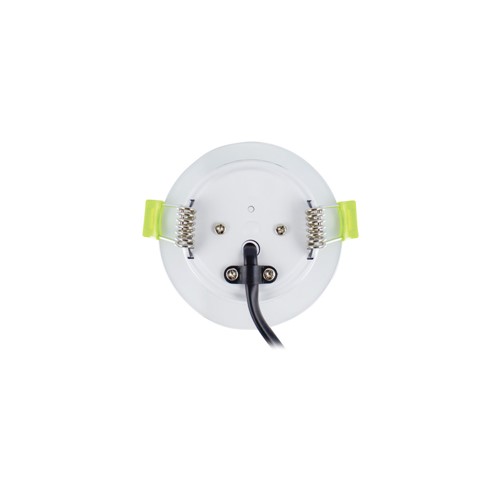

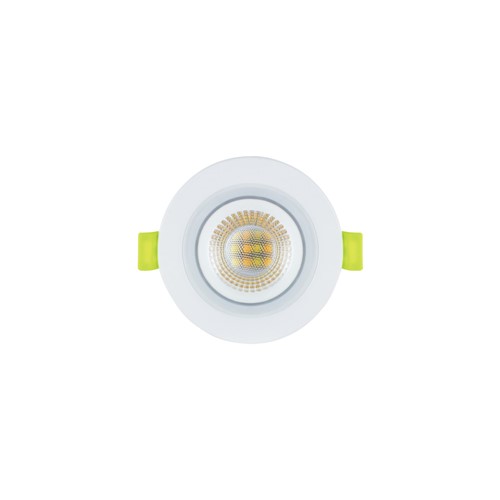

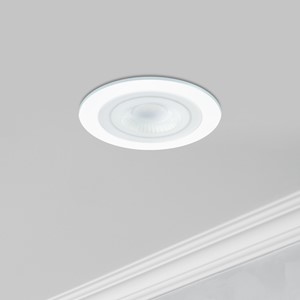

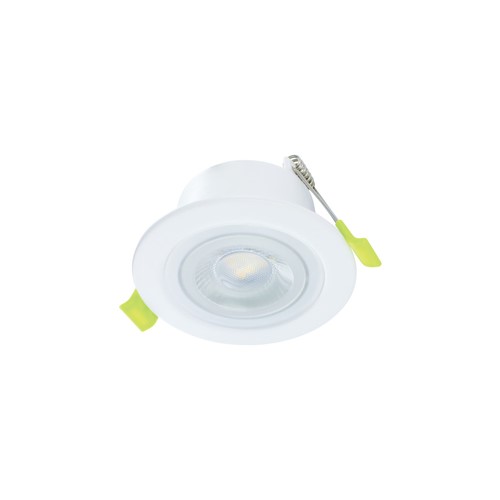

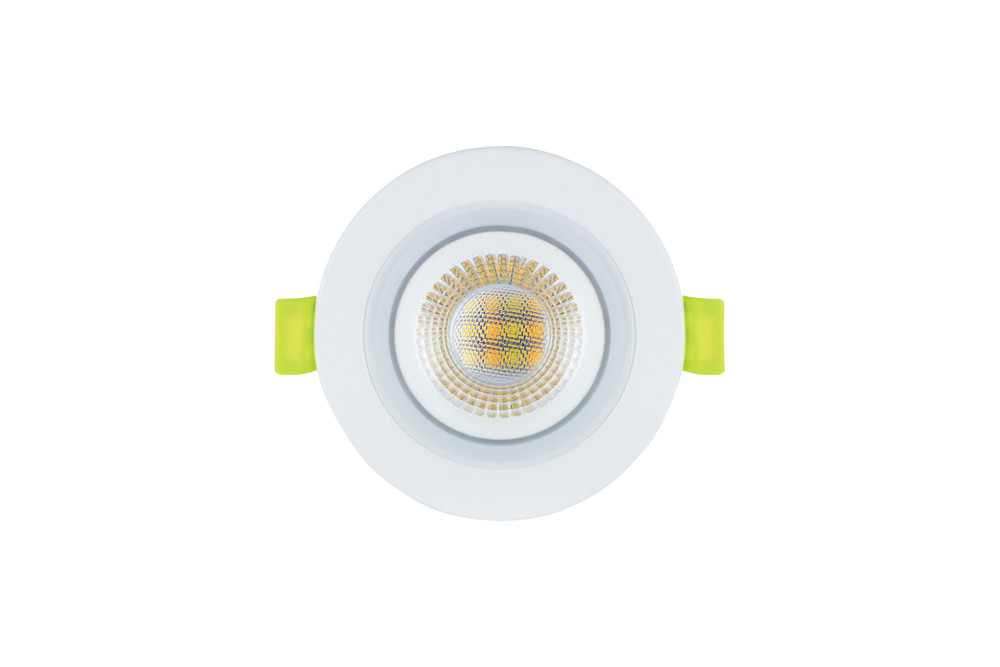

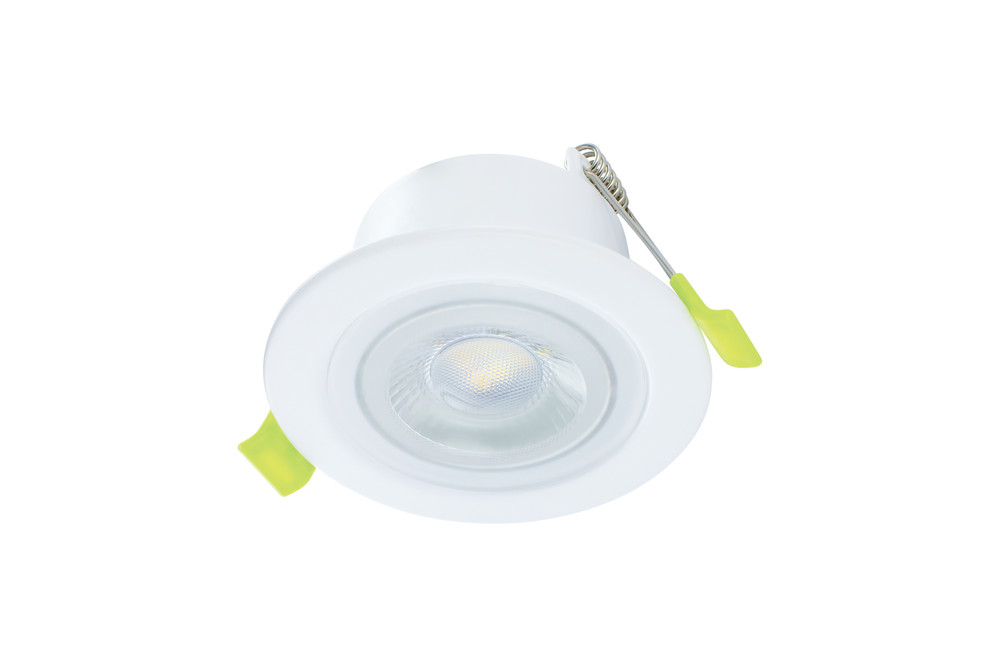

ECOGUARD SMART FIRE RATED DOWNLIGHT 65MM CUTOUT IP65 600LM 5W RGBW 2700K TO 6500K TUYA CONTROL 38 BEAM DIMMABLE 120LM/W WHITE INTEGRAL
Part Number:
ILDLFR65M004

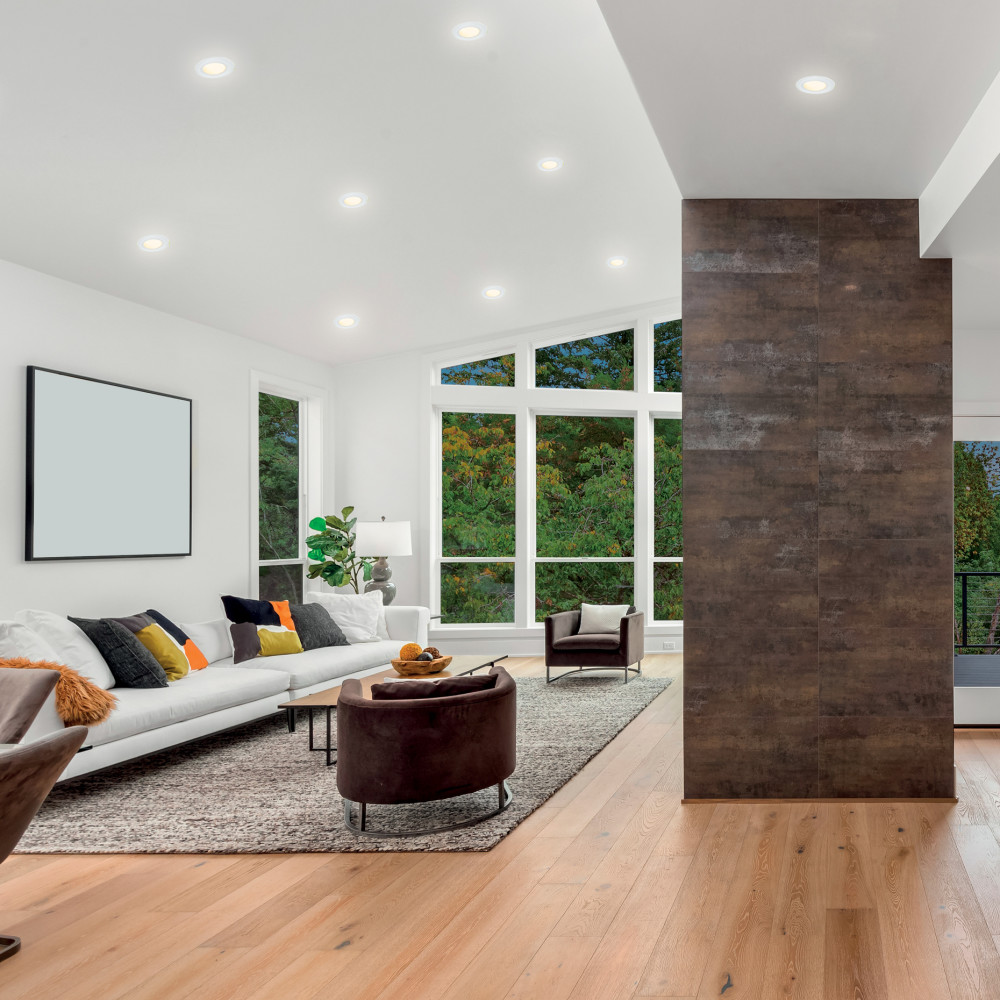

The EcoGuard range offers premium protection and reliability with exceptional value and efficacy (120lm/W). Offering IP65 water and dust resistance, the EcoGuard is ideal for commercial and residential applications especially in kitchens and bathrooms.

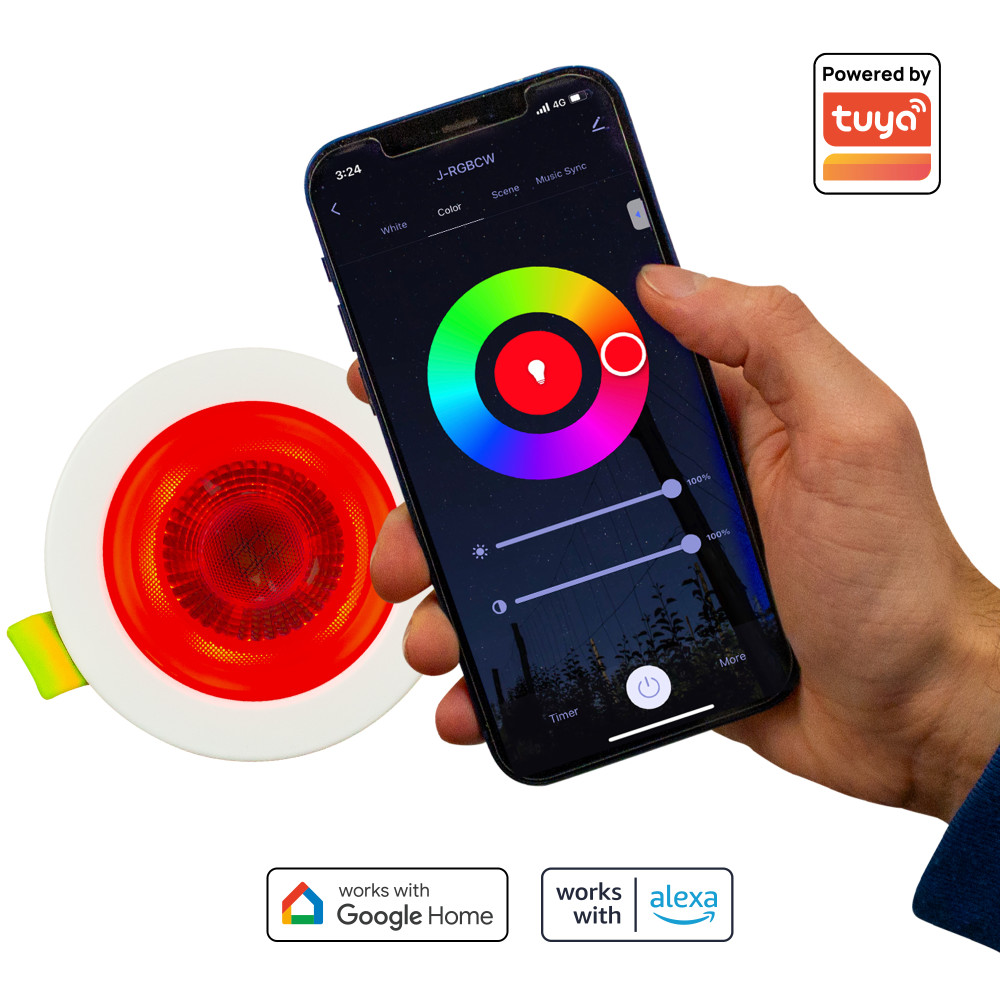

Complete with in-built Tuya functionality, the EcoGuard Smart model offers dimmable, tuneable, white and full RGB colour changing, all controlled through the convenient and intuitive Tuya smartphone app. Tuya allows management of individual light sources as well as groups of lights, along with scene setting, voice activation with Amazon Alexa and Google Home devices and more.

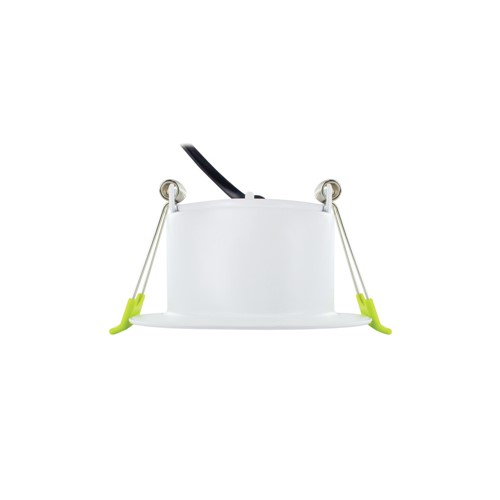

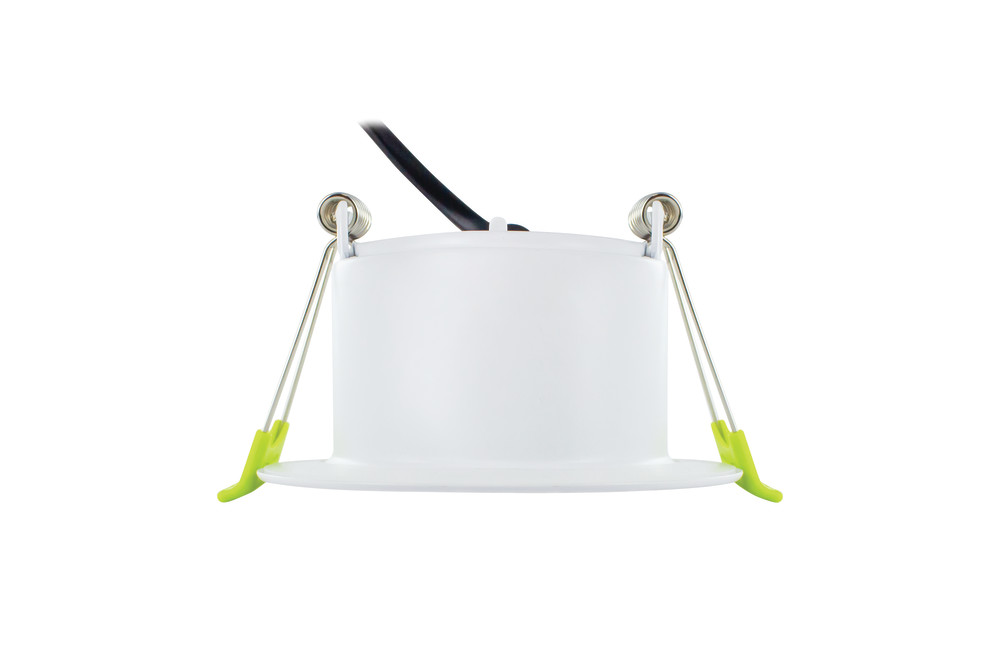

Installation is quick and easy, even in shallow ceiling voids, thanks to the low-profile design and tool-free Fast Connect loop-in, loop-out junction box, whilst the fully enclosed design makes it suitable for overlaying with insulation without posing a risk to safety or product longevity.

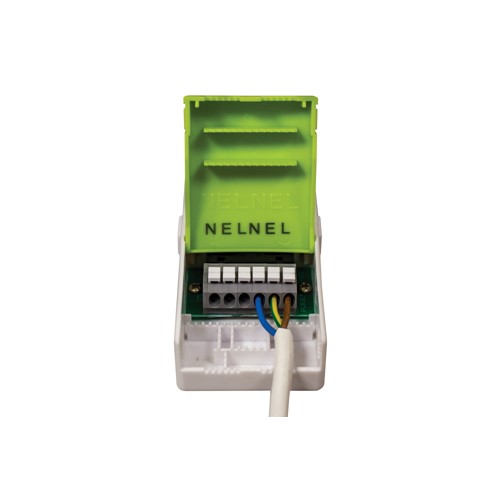

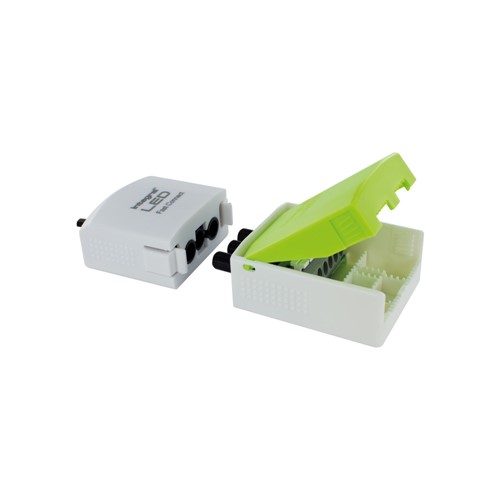

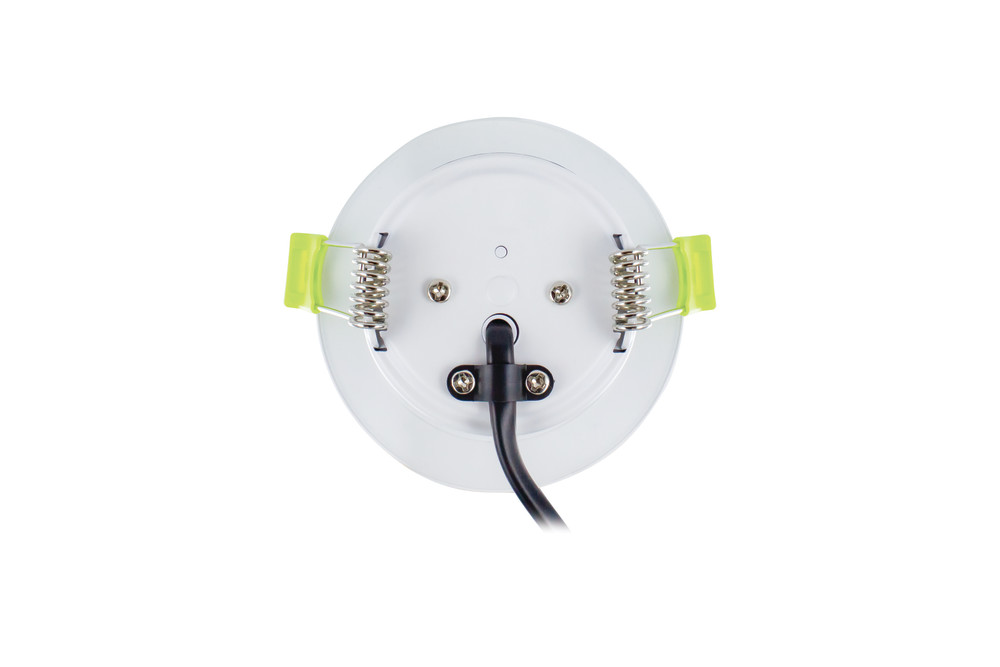

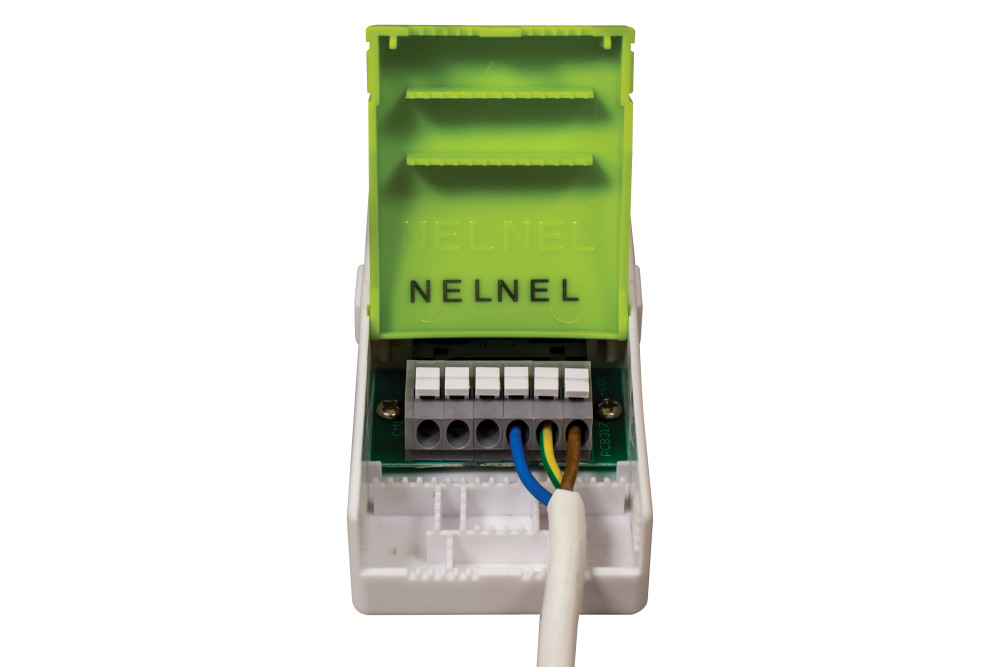

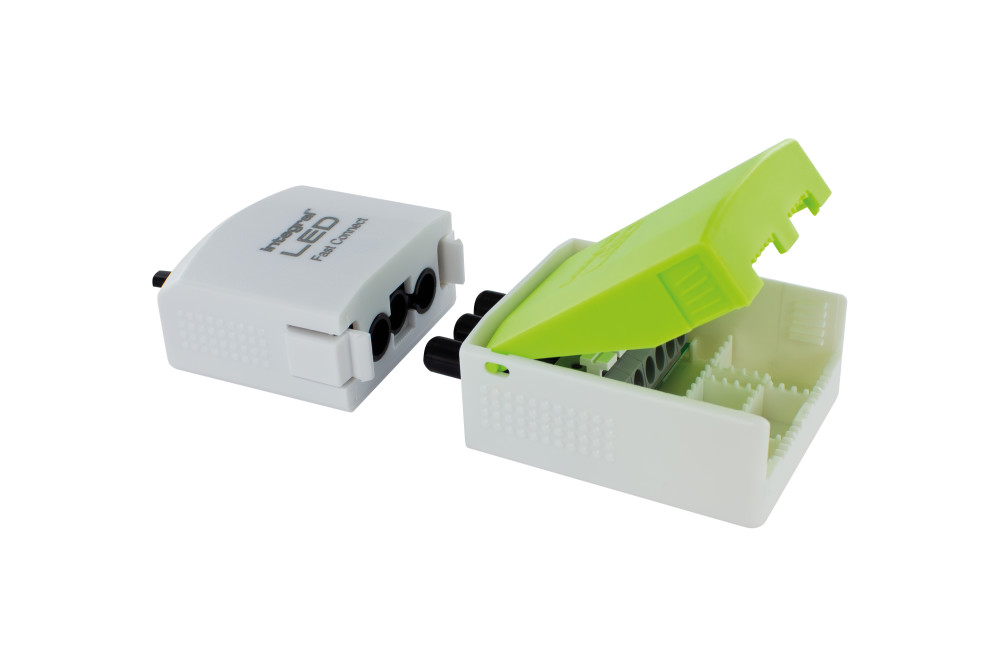

Integral LED’s Fast Connect junction box can be separated allowing wiring to be finalised and concealed until decoration is complete. When ready, the Fast Connect junction box can be clicked together and the EcoGuard downlight installed. Future maintenance is simple and painless as the luminaire can be easily unplugged and removed.
Fire rated to 30, 60 and 90 minutes (Solid Timber Joist) and to 30 and 60 (i-Joist) to EN 1365-2, and in compliance with BS 476 Part 21, the EcoGuard provides peace of mind wherever fire protection is required.
- Product Feature 1:
- 120lm/W
- Product Feature 2:
- Dimmable
- Product Feature 3:
- Tuya Smart RGBW
- Product Feature 4:
- IP65
- Product Feature 5:
- Matt white finish
- Availability:
-
500+
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Quick Order Code | 528059 |
|---|---|
| Barcode | 5055788286899 |
| Category | Downlights |
| Range Name | EcoGuard |
| Product Type | Fire Rated |
| Product Body Finish | Matt white |
| Market Segment | Commercial indoor, Residential indoor |
| Fixed/Tiltable | Fixed |
| Warranty (Years) | 3 |
Physical Data
| Emergency Option | No |
|---|---|
| Product Depth (mm) | 52 |
| Product Width (mm) | 85 |
| Product Weight (g) | 210 |
| Diameter (mm) | 85 |
| Material | Steel, Glass |
| Overall diameter (mm) | 85 |
| Construction | Pressed Steel, Glass |
| Cut Out Diameter (mm) | 65 |
| Bulb or Luminaire Shape | Round |
| Luminaire Fixing | Recess mounted |
| Placement / Application | Indoor, General Lighting |
| Spot Type | SMD |
Light Data
| Lumen output | 600 |
|---|---|
| Luminous Flux in Lumens (lm) | 600 |
| Luminous efficacy (lm/W) | 120 |
| Correlated Colour Temperature (CCT) (K) | RGBW |
| Colour Temperature Name | RGBW |
| Beam Angle | 38 |
| Colour Rendering Index (CRI) | 80 |
| Compatible Dimmers | TUYA Dimming |
| Fire Rating (mins) | 30, 60, 90, 30-60 I-JOIST |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| Integrated Light Source | Yes |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 25000 |
| Switching Cycles | 12500 |
| Useful Lumens (lm) | 560 |
Electrical Data
| Power (W) | 5 |
|---|---|
| Power Consumption (W) | 5 |
| Power Factor | 0.7 |
| Voltage Range (v) | 220-240 |
| Wattage equivalent (W) | 50 |
| Amperage (mA) | 14 |
| Dimming | TUYA Dimming |
| Driver Included | Yes |
| Electric Current | AC |
| EN | Yes |
| LVD Certified | Yes |
Environmental
| EN | Yes |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Back/Recessed side) | IP20 |
| IP Rating (Ingress Protection) | IP65 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 45 |
Packaging
| Package Weight (g) | 250 |
|---|---|
| Package Length (mm) | 105 |
| Package Width (mm) | 105 |
| Package Depth (mm) | 65 |
