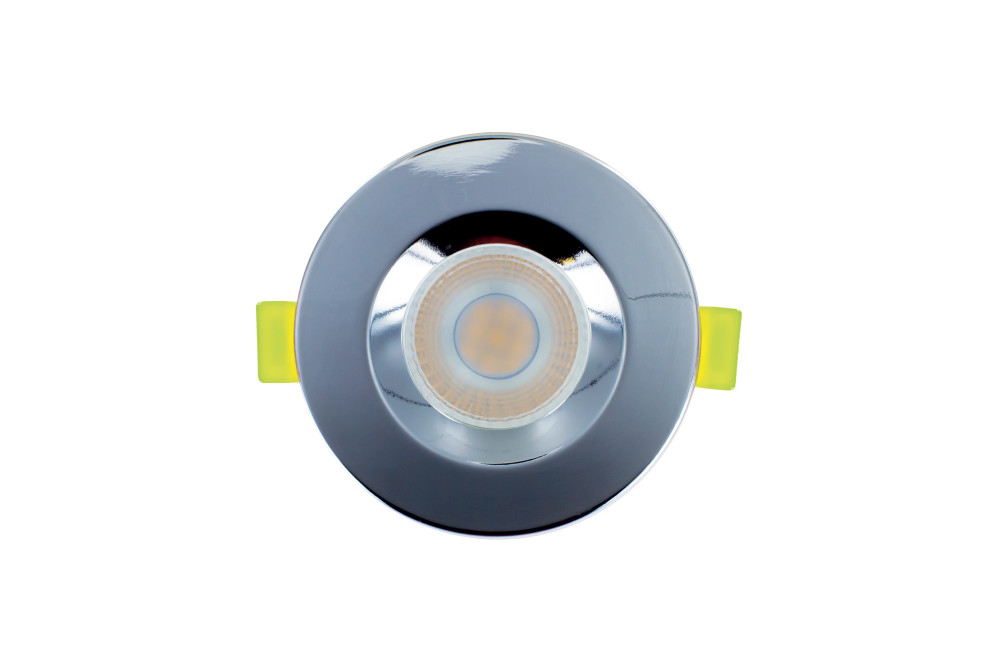

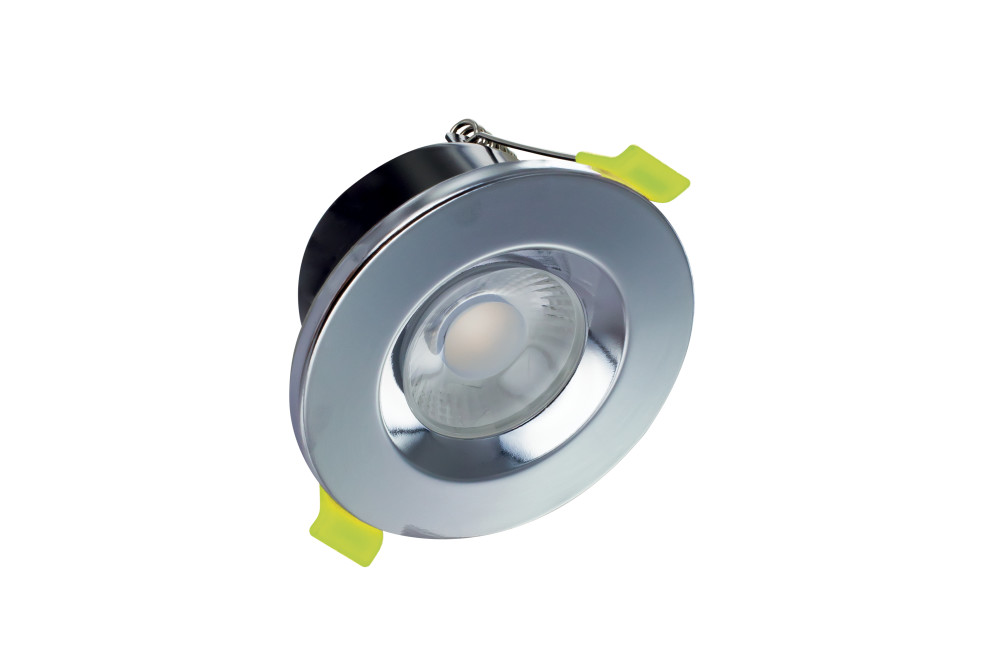

J-SERIES LOW-PROFILE FIRE RATED DOWNLIGHT 68MM CUTOUT IP65 800LM 8W 3000K 55 BEAM DIMMABLE 100LM/W POLISHED CHROME INTEGRAL
Part Number:
ILDLFR68J009
J-Series is a new range of low-profile, high-quality fire-rated downlights with an attractive appearance that offers excellent value and efficiency (100 lm/W). Complete with an easy to install dimmable driver. Ideal for tight spaces in commercial and domestic areas.
Easy to install loop-in/loop-out dimmable driver.
IP65 – water-resistant – ideal for bathrooms and kitchens.
Air Tightness Compliant with Part C, and Part L, Resistance to Sound Compliant with Part E.
- Product Feature 1:
- 100lm/W
- Product Feature 2:
- 630 Useful Lumens (800 Total Lumens)
- Product Feature 3:
- Low profile - 47mm
- Product Feature 4:
- Dimmable
- Product Feature 5:
- Warm White
- Product Feature 6:
- 3000K
- Product Feature 7:
- IP65
- Product Feature 8:
- Polished Chrome Finish
- Availability:
-
167
Call us on 0208 451 8700 to check the next availability
Details
| Quick Order Code | 263543 |
|---|---|
| Barcode | 5055788256168 |
| Category | Downlights |
| Range Name | J-Series |
| Product Body Finish | Polished Chrome |
| Market Segment | Commercial indoor, Residential indoor |
| Fixed/Tiltable | Fixed |
| Warranty (Years) | 3 |
Physical Data
| Emergency Option | No |
|---|---|
| Product Depth (mm) | 47 |
| Product Width (mm) | 85 |
| Product Weight (g) | 170 |
| Diameter (mm) | 85 |
| Material | Steel, Glass |
| Overall diameter (mm) | 85 |
| Construction | Pressed Steel, Glass |
| Cut Out Diameter (mm) | 68 |
| Bulb or Luminaire Shape | Round |
| Luminaire Fixing | Recess mounted |
| Placement / Application | Indoor, General Lighting |
| Spot Type | SMD |
Light Data
| Lumen output | 800 |
|---|---|
| Energy Efficiency Label (Image) | ILDLFR68J009_EU_label |
| Luminous Flux in Lumens (lm) | 800 |
| Luminous efficacy (lm/W) | 100 |
| Correlated Colour Temperature (CCT) (K) | 3000 |
| Colour Temperature | 3000K - Warm White |
| Colour Temperature Name | Warm White |
| Beam Angle | 55 |
| Colour Rendering Index (CRI) | 80 |
| Compatible Dimmers | Varilight JQP401W |
| Fire Rating (mins) | 30, 60, 90 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| Integrated Light Source | Yes |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 25000 |
| Switching Cycles | 12500 |
| Useful Lumens (lm) | 630 |
Electrical Data
| Power Consumption (W) | 8 |
|---|---|
| Voltage Range (v) | 220-240 |
| Amperage (mA) | 85 |
| Dimming | Dimmable with compatible dimmers |
| Driver Included | Yes |
| Electric Current | AC |
| Insulation Guard | No |
| EN | Yes |
| LVD Certified | Yes |
Environmental
| EN | Yes |
|---|---|
| LVD Certified | Yes |
| New Energy Rating | F |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Back/Recessed side) | 20 |
| IP Rating (Ingress Protection) | IP65 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 45 |
Packaging
| Package Weight (g) | 287 |
|---|---|
| Package Length (mm) | 120 |
| Package Width (mm) | 110 |
| Package Depth (mm) | 70 |
| Qty per euro pallet | 1600 |
Safety Guide
ILDLFR68J009
