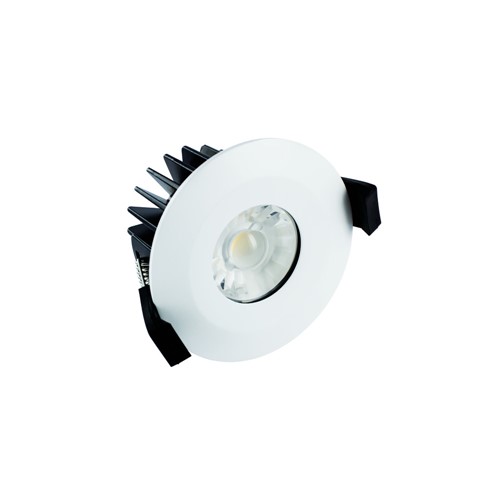

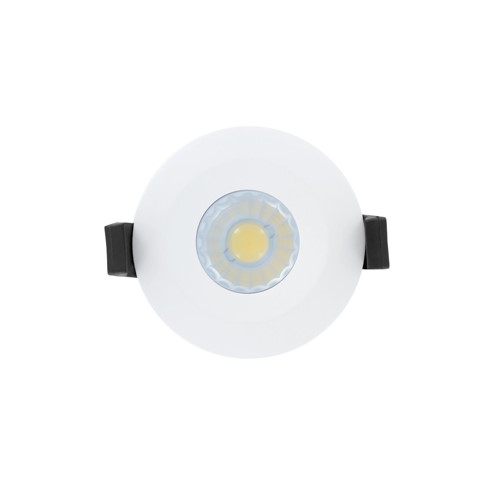

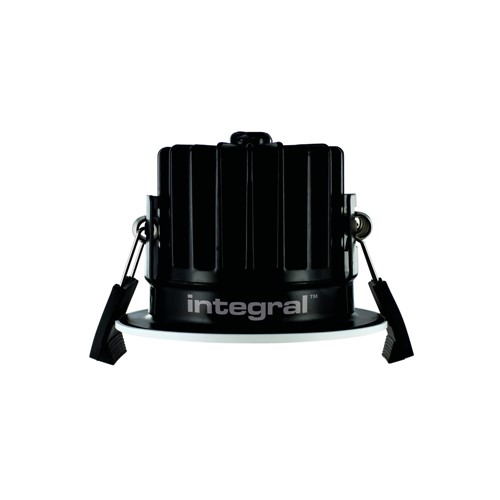

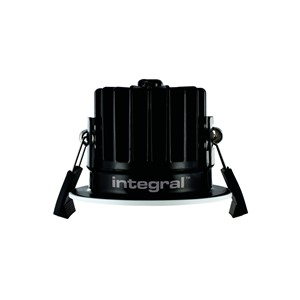

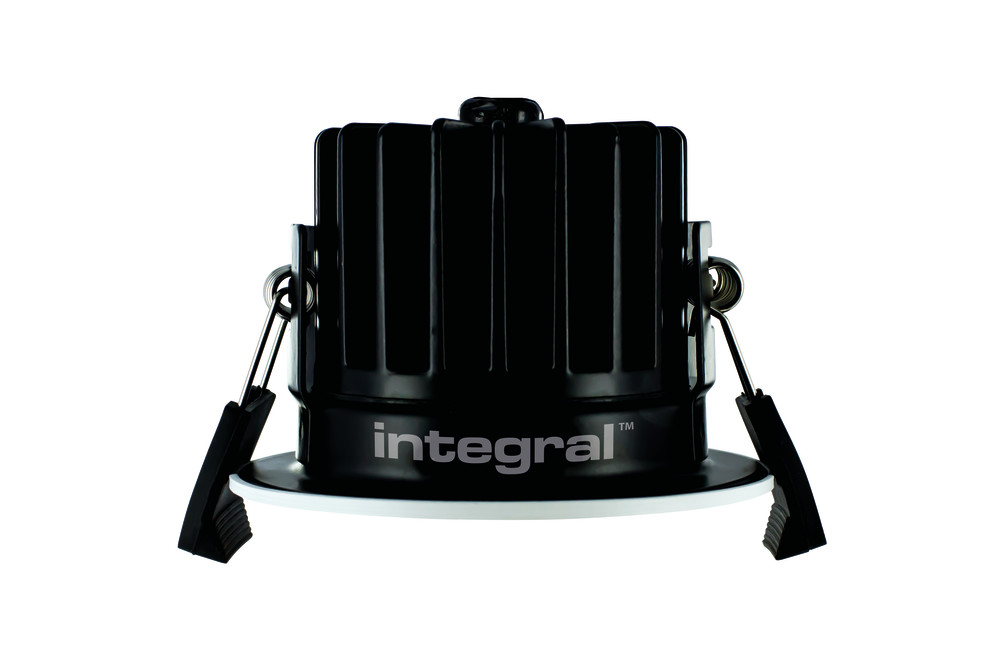

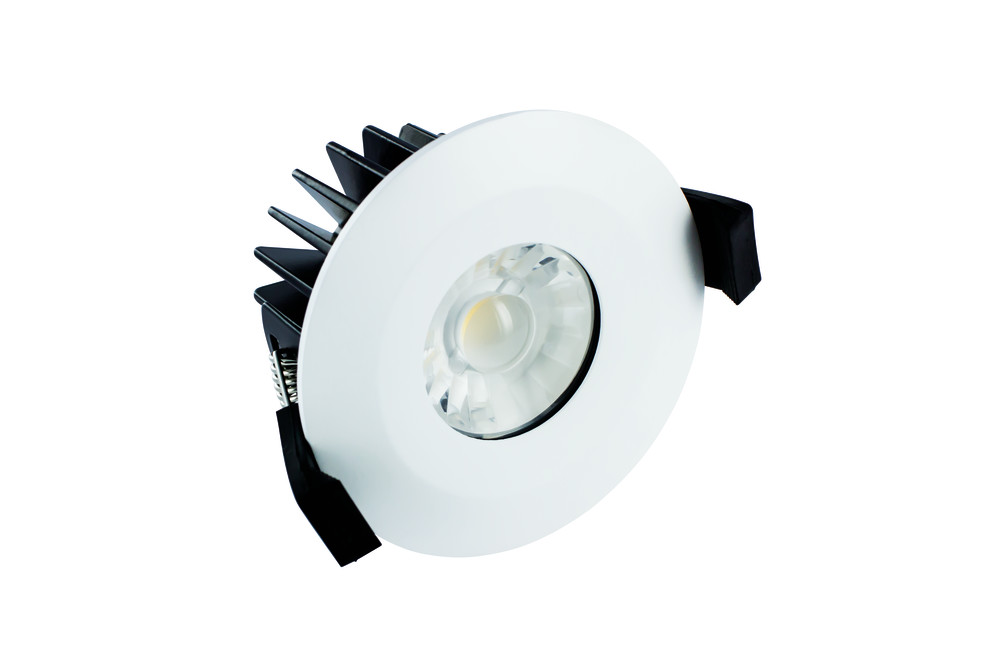

LOW-PROFILE FIRE RATED DOWNLIGHT 70-75MM CUTOUT IP65 900LM 10W 3000K 60 BEAM DIMMABLE 90LM/W WHITE INTEGRAL
Part Number:
ILDLFR70B012
These low-profile lamps are fire rated to 30, 60 and 90 minutes, Air Tightness compliant with Part C and Part L and Resistance to Sound compliant with Part E. Warm White and Cool White colour temperature options and dimmable or non-dimmable options are available. Importantly, these lamps are IP65 rated and designed to offer the safety and quality of other Fire Rated Downlights but with a lower price-tag.
- Product Feature 1:
- Warm white
- Product Feature 2:
- 900 Lumens
- Product Feature 3:
- Dimmable
- Product Feature 4:
- Low-profile body
- Product Feature 5:
- Matt white finish
- Availability:
-
500+
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Barcode | 5055788225256 |
|---|---|
| Quick Order Code | 746092 |
| Category | Downlights |
| Range Name | Low-profile |
| Product Type | Fire Rated |
| Product Body Finish | Matt white |
| Market Segment | Commercial indoor, Residential indoor |
| Warranty (Years) | 3 |
Physical Data
| Product Length (mm) | 58 |
|---|---|
| Product Weight (g) | 280 |
| Diameter (mm) | 85 |
| Optic | Clear Refractor |
| Material | Aluminium alloy, Iron, Steel |
| Overall diameter (mm) | 85 |
| Construction | Extruded Aluminium heat-sink, Iron body, Steel springs and mounting plate |
| Cut Out Diameter (mm) | 70-75 |
| Luminaire Fixing | Recess mounted |
| Placement / Application | Indoor, General Lighting |
| Spot Type | COB |
Light Data
| Energy Efficiency Label (Image) | ILDLFR70B012_EU_label |
|---|---|
| Luminous Flux in Lumens (lm) | 900 |
| Luminous efficacy (lm/W) | 90 |
| Correlated Colour Temperature (CCT) (K) | 3000 |
| Colour Temperature Name | Warm White |
| Beam Angle | 60 |
| Colour Rendering Index (CRI) | 80 |
| Compatible Dimmers | Varilight JQP401W |
| Fire Rating (mins) | 30, 60, 90 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Type | Chip on board (COB) |
| Lifetime (hours) | 25000 |
| Switching Cycles | 12500 |
Electrical Data
| Power Consumption (W) | 10 |
|---|---|
| Power Factor | 0.9 |
| Voltage Range (v) | 220-240 |
| Wattage equivalent (W) | 61 |
| Amperage (mA) | 240 |
| Dimming | Mains dim |
| Driver Included | Yes |
| Electric Current | AC |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| New Energy Rating | F |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP65 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 45 |
Packaging
| Barcode | 5055788225256 |
|---|---|
| Single box qty | 1 |
| Package Weight (g) | 450 |
| Package Length (mm) | 110 |
| Package Width (mm) | 108 |
| Package Depth (mm) | 82 |
| Inner Carton Barcode | 05055788225263 |
| Qty per Inner Carton | 5 |
| Inner Carton Length (mm) | 620 |
| Inner Carton Width (mm) | 140 |
| Inner Carton Depth (mm) | 90 |
| Outer Carton Barcode | 05055788225270 |
| Qty per Outer Carton | 20 |
| Outer Carton Length (mm) | 635 |
| Outer Carton Width (mm) | 295 |
| Outer Carton Depth (mm) | 205 |
| Qty per euro pallet | 840 |
Safety Guide
