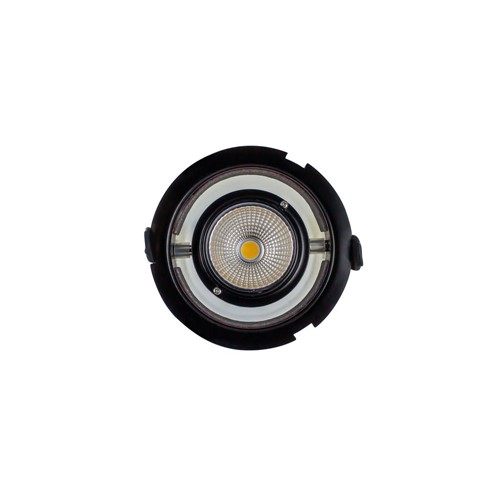

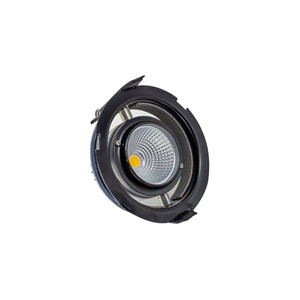

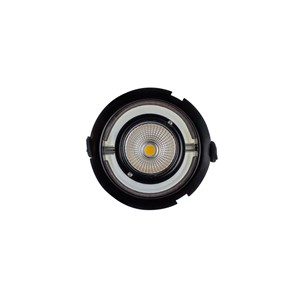

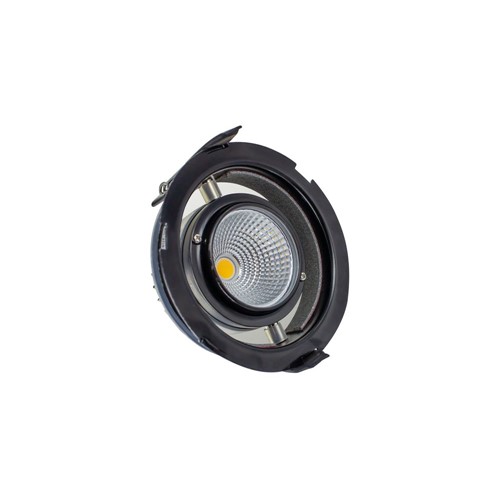

LUXFIRE FIRE RATED TILTABLE DOWNLIGHT 92MM CUTOUT IP65 450LM 6W 4000K 36 BEAM DIMMABLE 75LM/W NO BEZEL INTEGRAL
Part Number:
ILDLFR92C023
Style, safety and flexibility - Integral LED Lux Fire Tiltable downlights not only conform to 30, 60 and 90mins fire rating specifications but are also rated to IP65, so they can be used safely in bathrooms. Lux Fire Tiltable fire-rated downlights have been tailored to deliver a premium finish to any home or business with their low-glare, high-quality light and contemporary design that looks impressive in any setting. This adjustable fitting can be tilted to illuminate specific areas or features in a room.
Lux Fire downlights are built using a deep recessed COB LED light source, providing a beam that has softened edges for a luxurious effect. Complete with Loop-in / Loop-out driver. IP65 and Air tightness compliant with Part C and Part L. Resistance to Sound compliant with Part E.
This product is supplied without bezel. For a choice of different bezel finishes please see the suggested products section below.
- Product Feature 1:
- Tiltable
- Product Feature 2:
- Cool White
- Product Feature 3:
- 450 Lumens
- Product Feature 4:
- Dimmable
- Product Feature 5:
- 30 degree tilt range
- Availability:
-
293
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Quick Order Code | 281370 |
|---|---|
| Barcode | 5055788254690 |
| Category | Downlights |
| Range Name | Lux Fire |
| Market Segment | Commercial indoor, Residential indoor |
| Features | Tiltable |
| Warranty (Years) | 3 |
Physical Data
| Product Length (mm) | 64 |
|---|---|
| Product Weight (g) | 420 |
| Diameter (mm) | 100 |
| Optic | Clear Refractor |
| Material | Aluminium alloy, Acrylic, Iron |
| Overall diameter (mm) | 100 |
| Construction | Extruded Aluminium alloy heat-sink, Iron body, Steel springs and mounting plate, Acrylic diffuser |
| Cut Out Diameter (mm) | 92 |
| Luminaire Fixing | Recess mounted |
| Placement / Application | Indoor, General Lighting |
| Spot Type | COB |
Light Data
| Energy Efficiency Label (Image) | ILDLFR92C023_EU_label |
|---|---|
| Luminous Flux in Lumens (lm) | 450 |
| Luminous efficacy (lm/W) | 75 |
| Correlated Colour Temperature (CCT) (K) | 4000 |
| Colour Temperature | 4000K - Cool White |
| Colour Temperature Name | Cool White |
| Beam Angle | 36 |
| Colour Rendering Index (CRI) | 80 |
| Compatible Dimmers | Varilight JQP401W |
| Fire Rating (mins) | 30, 60, 90 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Type | Chip on board (COB) |
| Lifetime (hours) | 35000 |
| Switching Cycles | 17500 |
Electrical Data
| Power Consumption (W) | 6 |
|---|---|
| Power Factor | 0.89 |
| Voltage Range (v) | 220-240 |
| Wattage equivalent (W) | 41 |
| Amperage (mA) | 500 |
| Dimming | Dimmable with compatible dimmers |
| Driver Included | Yes |
| Electric Current | AC |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| New Energy Rating | F |
| EU Luminaire | L |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP65 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 45 |
Packaging
| Package Weight (g) | 440 |
|---|---|
| Package Length (mm) | 110 |
| Package Width (mm) | 110 |
| Package Depth (mm) | 85 |
