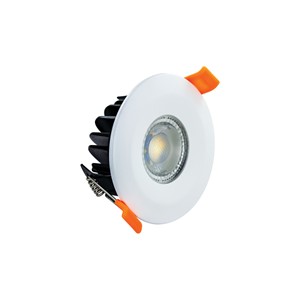

WARMTONE FIRE RATED DOWNLIGHT 70MM CUTOUT 450LM 6W 2200-3000k 38 BEAM DIMMABLE 75LM/W WHITE INTEGRAL
Part Number:
ILDLFR70G001
Bring safety and a cozy ambience to any home, hospitality or retail environment with the WarmTone Fire Rated Downlight. The WarmTone dimming technology makes the colour temperature of the light warmer as it dims, going from 3000K (Warm White) to 1800K (Ultra Warm). This low-profile downlight is fire rated to 30, 60 and 90 minutes (Solid Timber Joist) and to 30 and 60 minutes (i-Joist) in compliance with BS476 Part 21:1987, Air Tightness compliant with Part C and Part L and Resistance to Sound compliant with Part E. See installation guide for full details.
- Product Feature 1:
- Warm White to Ultra Warm light
- Product Feature 2:
- 450lm
- Product Feature 3:
- Dimmable
- Product Feature 4:
- 38 Degree Beam Angle
- Product Feature 5:
- White finish
For this product to qualify as an Emergency product, it requires an Emergency Conversion Kit that can be purchased separately.
Please see Suggested products below for more information
- Availability:
-
500+
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Quick Order Code | 234860 |
|---|---|
| Barcode | 5055788240877 |
| Category | Downlights |
| Range Name | WarmTone |
| Product Type | Fire Rated |
| Product Body Finish | Matt white |
| Market Segment | Commercial indoor, Residential indoor |
| Finish | Matt White |
| Features | Dim-to-Warm |
| Fixed/Tiltable | Fixed |
| Warranty (Years) | 3 |
Physical Data
| Emergency Option | Optional Conversion Kit |
|---|---|
| Emergency Category | Downlights |
| Product Length (mm) | 50 |
| Product Weight (g) | 280 |
| Diameter (mm) | 90 |
| Optic | Clear Refractor |
| Material | Aluminium, Iron, Steel |
| Overall diameter (mm) | 90 |
| Construction | Extruded Aluminium heat-sink, Iron body, Steel springs and mounting plate |
| Cut Out Diameter (mm) | 70 |
| Bulb Fixing | Downlight |
| Bulb or Luminaire Shape | Round |
| Placement / Application | Indoor, General Lighting |
| Spot Type | COB |
Light Data
| Energy Efficiency Label (Image) | ILDLFR70G001_EU_label |
|---|---|
| Luminous Flux in Lumens (lm) | 450 |
| Luminous efficacy (lm/W) | 75 |
| Correlated Colour Temperature (CCT) (K) | 2200-3000 |
| Colour Temperature | CCT Tunable |
| Colour Temperature Name | Ultra Warm to Warm White |
| Beam Angle | 38 |
| Colour Rendering Index (CRI) | 80 |
| Compatible Dimmers | Varilight JQP401W |
| Fire Rating (mins) | 30, 60, 90 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 25000 |
| Switching Cycles | 12500 |
Electrical Data
| Power (W) | 6 |
|---|---|
| Power Consumption (W) | 6 |
| Power Factor | 0.9 |
| Voltage Range (v) | 220-240 |
| Wattage equivalent (W) | 41 |
| Amperage (mA) | 140 |
| Dimming | Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| EN | EN-60598 |
Environmental
| EN | EN-60598 |
|---|---|
| CE RoHS | Yes |
| New Energy Rating | G |
| EU Luminaire | L |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP65 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 45 |
Packaging
| Package Weight (g) | 280 |
|---|---|
| Package Length (mm) | 110 |
| Package Width (mm) | 108 |
| Package Depth (mm) | 82 |
