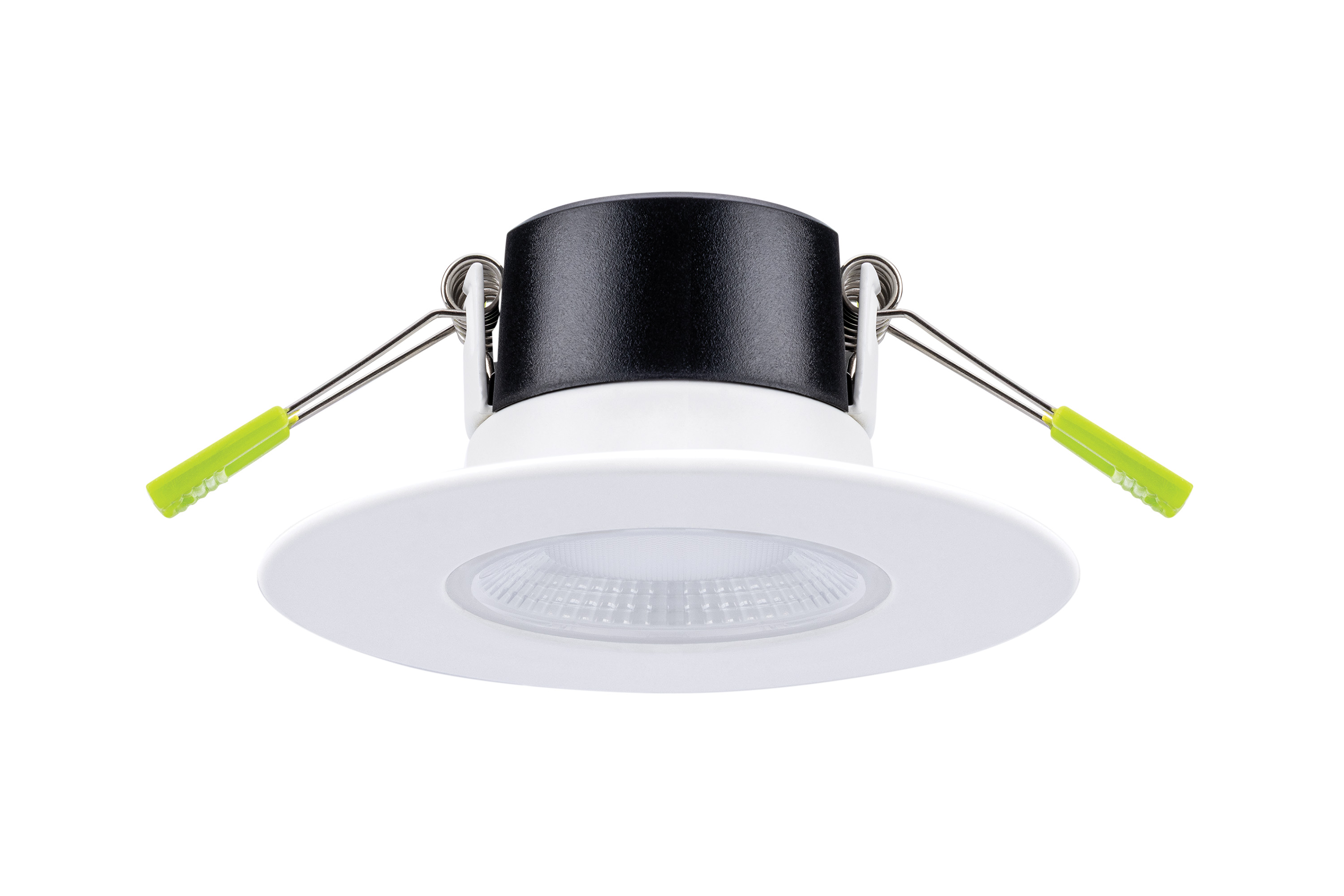

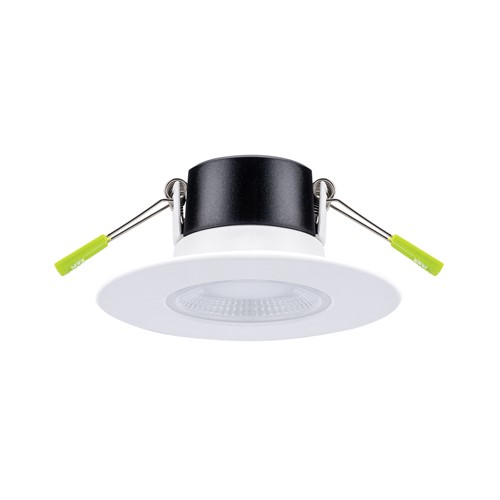

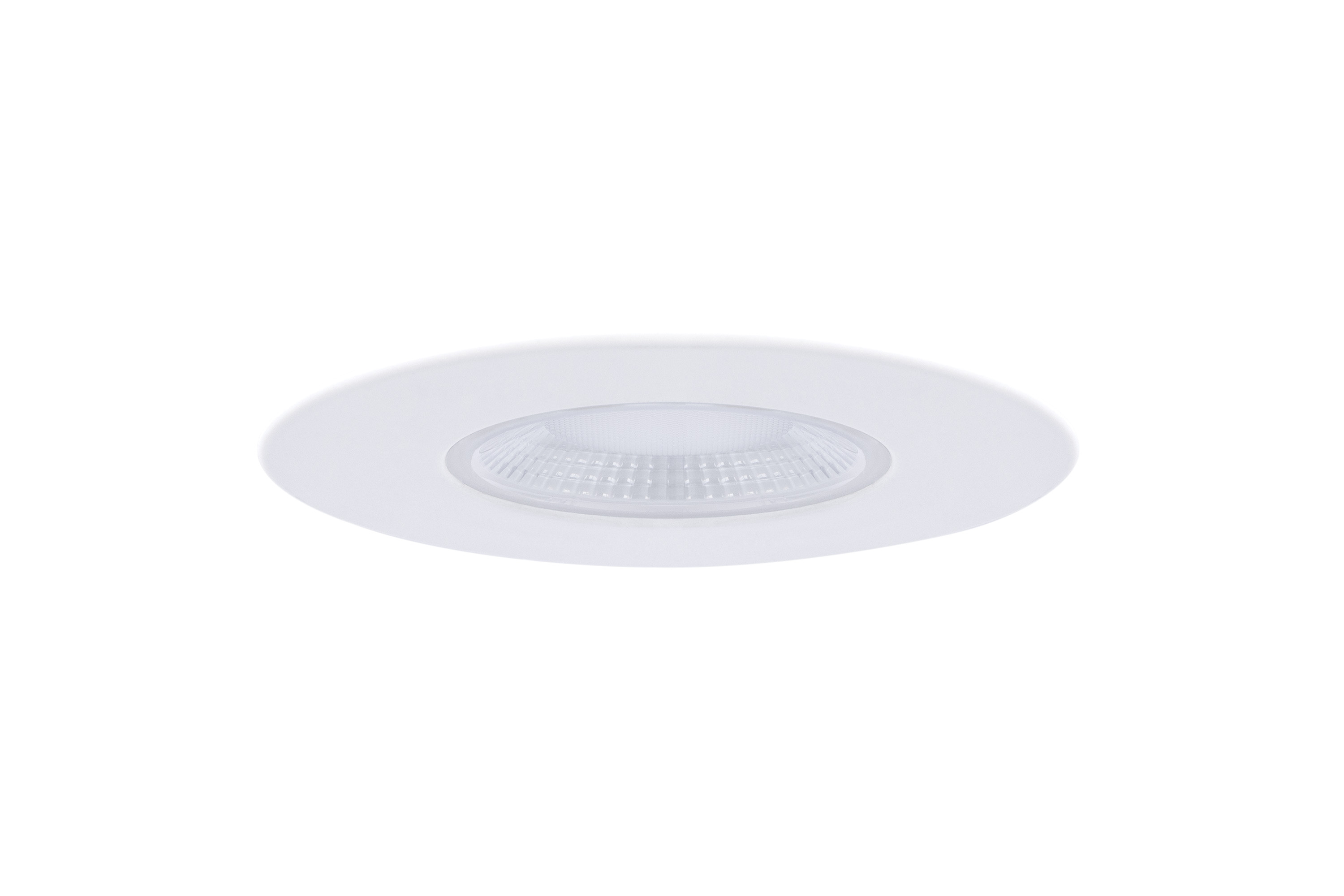

XFIRE CORE MAXI 3000/4000/6000K CCT SWITCHABLE 6W 130LM/W 780LM 70-90MM CUTOUT 96MM BEZEL FIRE-RATED DOWNLIGHT 60° BEAM IP65 DIMMABLE INC WHITE BEZEL
Part Number:
ILDLFR70S005
- Product Feature 1:
- Great value with a wide bezel for retrofit installations
- Product Feature 2:
- High efficacy – 130lm/W [6W / 780lm]
- Product Feature 3:
- CCT Switchable: 3000K / 4000K / 6000K
- Product Feature 4:
- Simple installation with loop-in/loop-out push connector (piano-key terminal block)
- Product Feature 5:
- Ø70–90mm cut-out, Ø96mm bezel
- Availability:
-
0
Details
| Barcode | 5056884605683 |
|---|---|
| Quick Order Code | 312817 |
| Category | Downlights |
| Range Name | Xfire Core |
| Product Type | Fire Rated |
| Product Body Finish | White |
| Market Segment | Commercial indoor, Residential indoor |
| Fixed/Tiltable | Fixed |
| Warranty (Years) | 6 |
Physical Data
| Emergency Option | No |
|---|---|
| Product Depth (mm) | 45 |
| Product Width (mm) | 85 |
| Product Weight (g) | 160 |
| Diameter (mm) | 85 |
| Material | Steel, Polycarbonate |
| Overall diameter (mm) | 85 |
| Construction | SPCC steel, Polycarbonate |
| Cut Out Diameter (mm) | 60-70 |
| Bulb or Luminaire Shape | Round |
| Luminaire Fixing | Recess mounted |
| Placement / Application | Indoor, General Lighting |
| Spot Type | SMD |
| Control Gear | Non-replaceable |
Light Data
| Luminous Flux in Lumens (lm) | 780 |
|---|---|
| Luminous efficacy (lm/W) | 130 |
| Correlated Colour Temperature (CCT) (K) | 3000 / 4000 / 6000 (CCT Switchable) |
| Colour Temperature | 3000/4000/6000 - Warm White / Cool White / Daylight |
| Colour Temperature Name | Warm White, Cool White, Daylight |
| Beam Angle | 60 |
| Colour Rendering Index (CRI) | 80 |
| Compatible Dimmers | Varilight JQP401W |
| Fire Rating (mins) | 30, 60, 90 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| Integrated Light Source | Yes |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 50000 |
| Switching Cycles | 25000 |
| Light Source | Non-replaceable |
Electrical Data
| Power (W) | 6 |
|---|---|
| Power Consumption (W) | 6 |
| Power Factor | 0.8 |
| Voltage Range (v) | 220-240 |
| Amperage (mA) | 75 |
| Dimming | Mains dim |
| Driver Included | Yes |
| Electric Current | AC |
| EN | Yes |
| LVD Certified | Yes |
Environmental
| EN | Yes |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Back/Recessed side) | IP20 |
| IP Rating (Ingress Protection) | IP65 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 90 |
Packaging
| Barcode | 5056884605683 |
|---|---|
| Single box qty | 1 |
| Package Weight (g) | 220 |
| Package Length (mm) | 100 |
| Package Width (mm) | 100 |
| Package Depth (mm) | 65 |
| Inner Carton Barcode | 5056884605683 |
| Outer Carton Barcode | 05056884605690 |
| Qty per Outer Carton | 48 |
| Outer Carton Length (mm) | 420 |
| Outer Carton Width (mm) | 315 |
| Outer Carton Depth (mm) | 285 |
