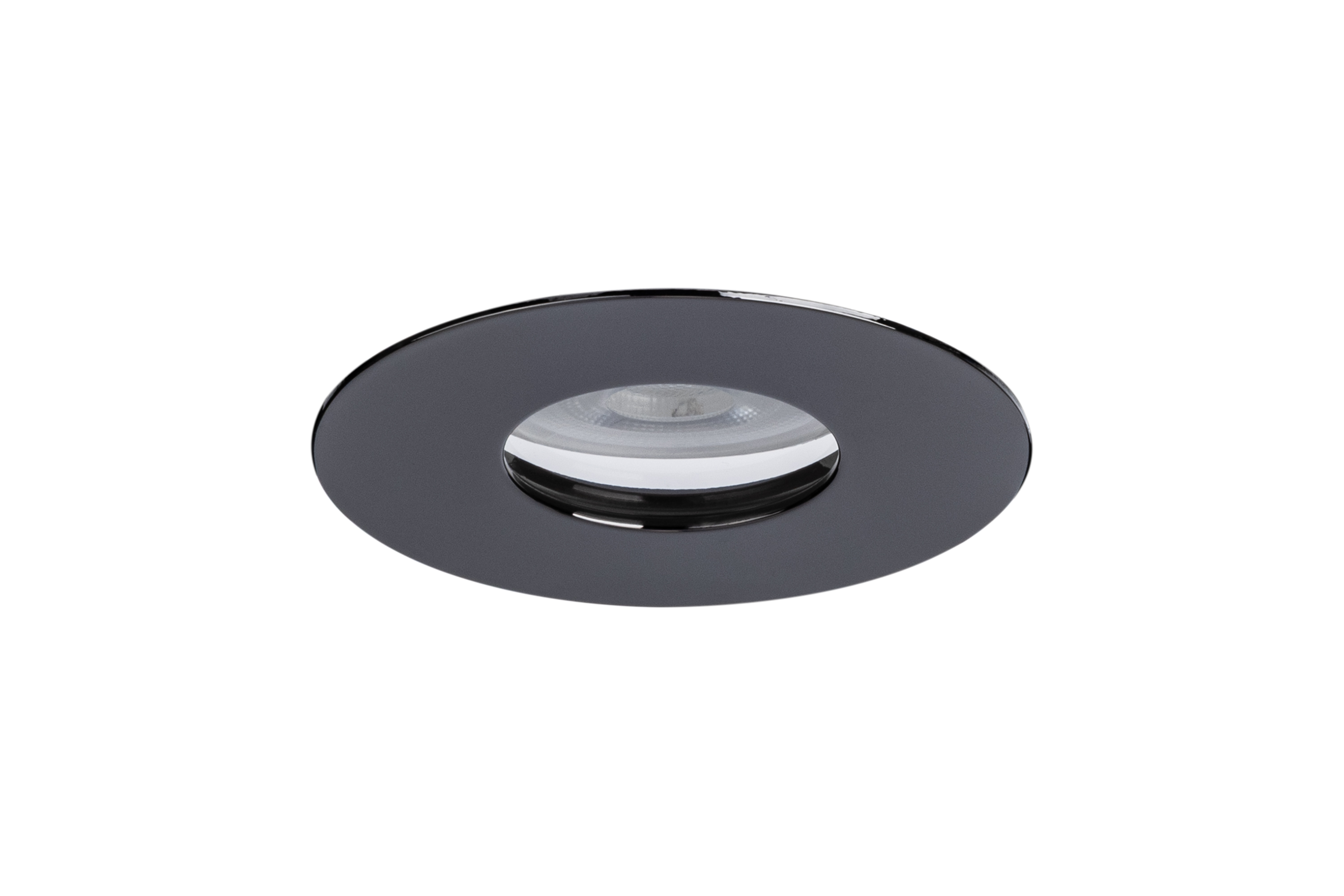

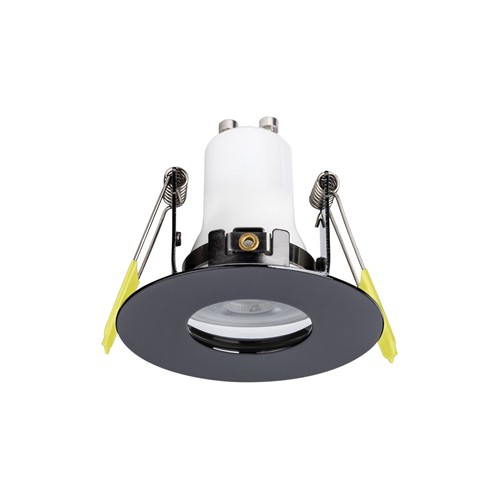

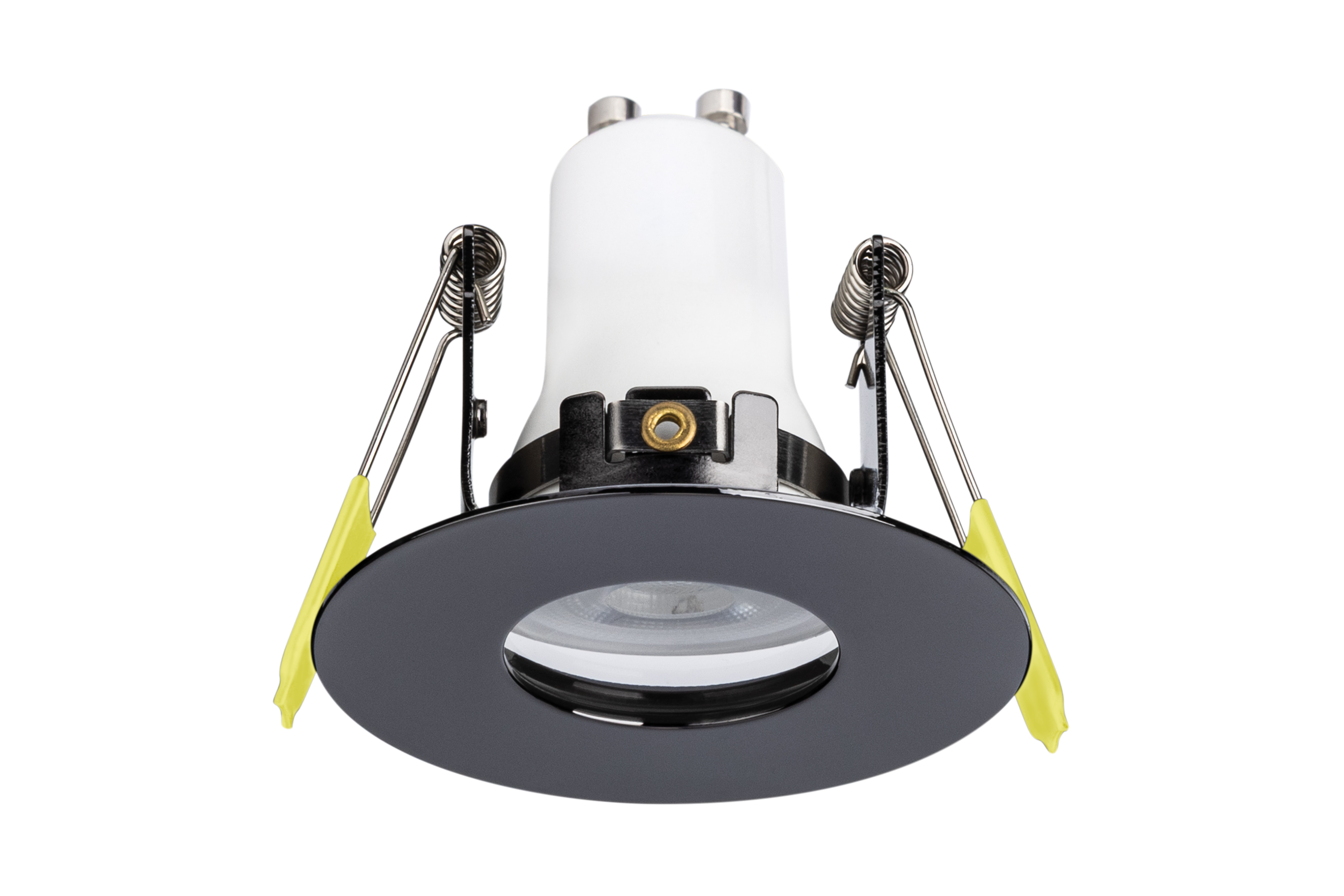

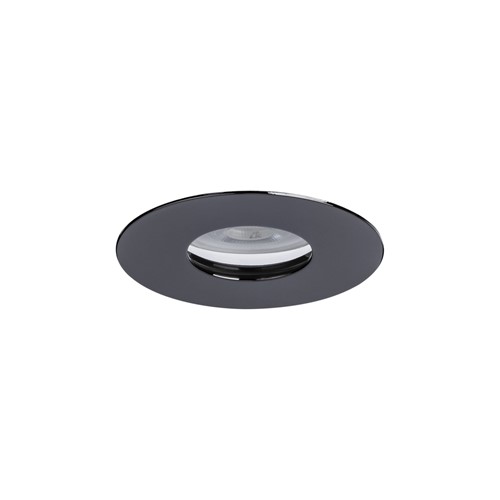

EVOFIRE MINI FIRE RATED DOWNLIGHT 45MM CUTOUT IP65 BLACK CHROME ROUND INTEGRAL
Part Number:
ILDLFR45D051
Ideal for new builds - Only a 45mm cut-out (for MR11 12V GU4 or MR11 240V GU10 lamps).Great for tight spaces - 38.5mm super-low profile.Aesthetic - Ultra-thin 1mm blend-in bezel with a premium finish.Easy wiring - with a Fast-Fit, loop-in/loop-out, junction box for tool free assembly.Easy to install and remove - Durable steel assembly.Extended lamp life - Open design allows airflow to extend lamp life compared to traditional designs.45mm Cut-Out, 64mm Diameter, IP65.This downlight is fire rated to 30, 60 and 90 minutes in compliance with BS476 Part 21:1987, Air Tightness compliant with Part C and Part L and Resistance to Sound compliant with Part E. See installation guide for full details.
- Product Feature 1:
- For MR11 12V GU4 or MR11 240V GU10 lamps
- Product Feature 2:
- Evolutionary Fire Rated fitting designed by Integral LED
- Product Feature 3:
- Developed in the UK - Patent GB2557957
- Product Feature 4:
- Fire Rating 30/60/90 minutes
- Product Feature 5:
- Ultra-thin 1mm 'blend-in' bezel with a premium finish for an attractive look in any room
- Product Feature 6:
- Easy to install Loop-in/Loop-out piano-key style terminal block
- Product Feature 7:
- Lamp and holder not included
- Availability:
-
290
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Quick Order Code | 490819 |
|---|---|
| Barcode | 5055788275602 |
| Category | Downlights |
| Range Name | Evofire mini |
| Product Body Finish | Black Chrome |
| Market Segment | Commercial indoor, Residential indoor |
| Finish | Black Chrome |
| Warranty (Years) | 3 |
Physical Data
| Product Depth (mm) | 38.5 |
|---|---|
| Product Weight (g) | 10 |
| Diameter (mm) | 64 |
| Material | Steel, Glass |
| Overall diameter (mm) | 64 |
| Construction | Pressed Steel, Glass |
| Cut Out Diameter (mm) | 45 |
| Luminaire Fixing | Recess mounted |
| Placement / Application | Indoor, General Lighting |
Light Data
| Fire Rating (mins) | 30, 60, 90 |
|---|
Electrical Data
Environmental
| CE RoHS | Yes |
|---|---|
| IP Rating (Back/Recessed side) | IP20 |
| IP Rating (Ingress Protection) | IP65 |
Packaging
| Package Weight (g) | 13 |
|---|---|
| Package Length (mm) | 70 |
| Package Width (mm) | 70 |
| Package Depth (mm) | 65 |
| Qty per euro pallet | 1632 |
Safety Guide
