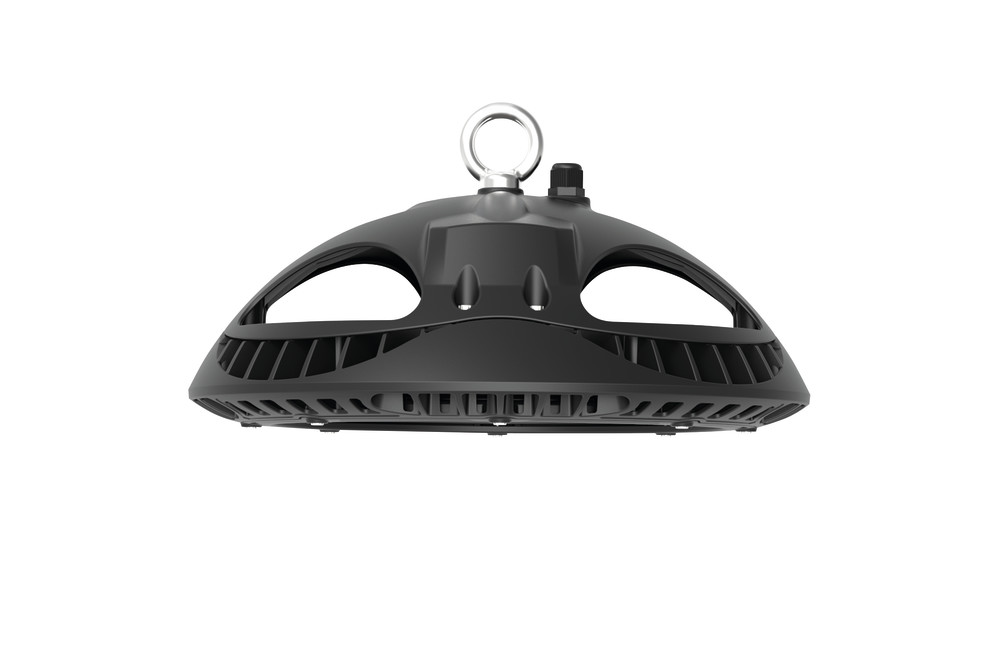

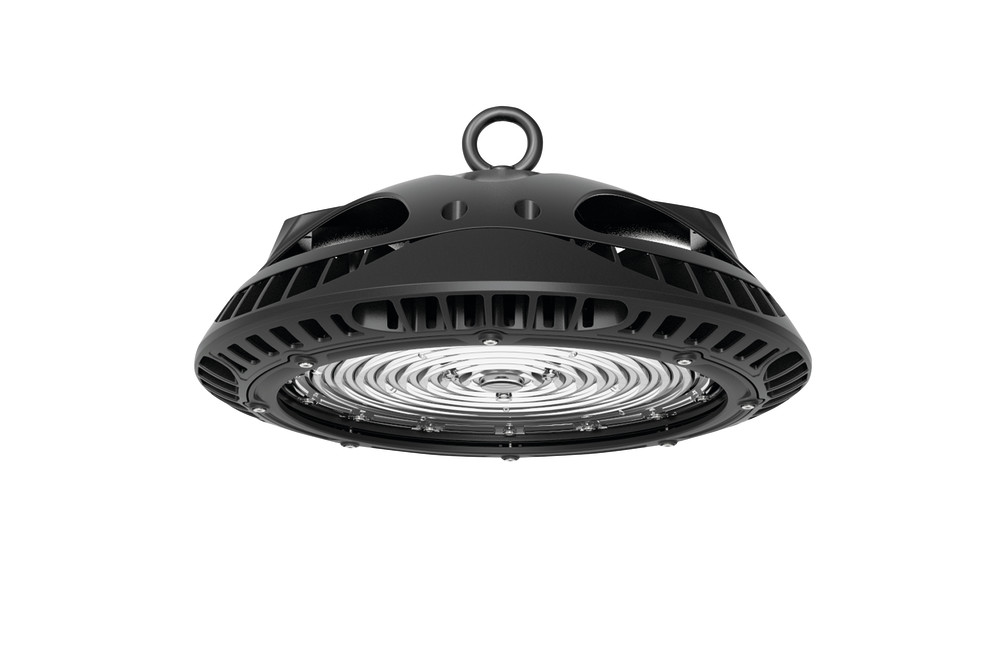

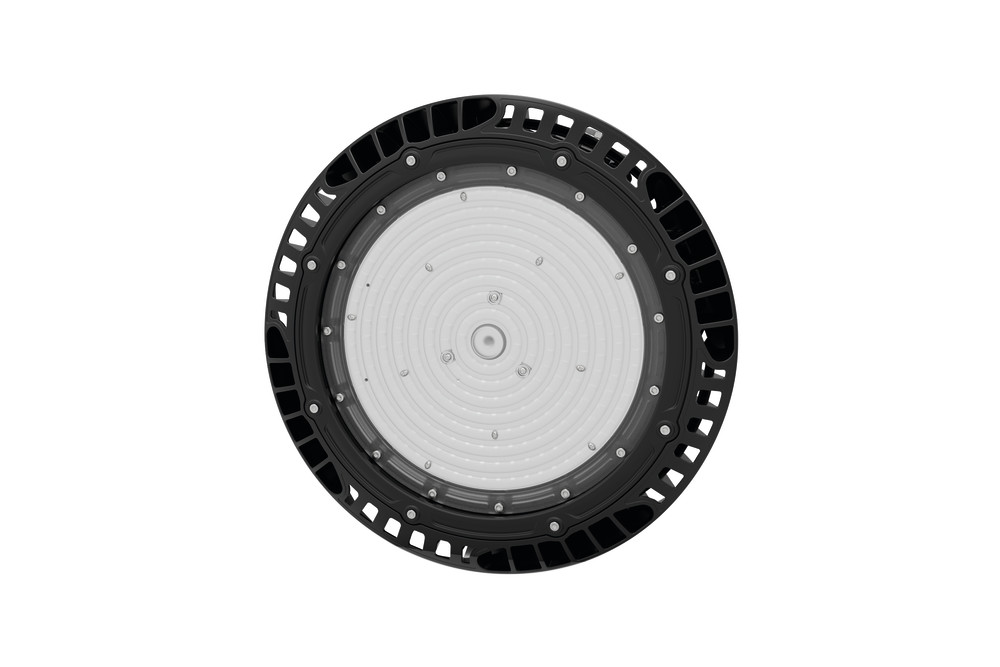

TOUGHSHELL CIRCULAR HIGH BAY 1PK IP65 19500LM 150W 4000K 60 BEAM NON-DIMM INTEGRAL

Part Number:

ILHBC124

The Tough-Shell Circular High Bay is a rugged, attractive and highly efficient solution for lighting large indoor facilities such as warehouses, production facilities and indoor sports halls. Running at an efficacy of 130lm/W, the Tough-Shell provides up to 19,500lm and thanks to its skilfully engineered aluminium body it effectively dissipates heat while maintaining IK10 impact resistance.

Product Feature 1:
60 degree beam angle
Product Feature 2:
130lm/W
Product Feature 3:
Cool White
Product Feature 4:
Non-Dimmable
Product Feature 5:
5 Year Warranty
Availability:
0

Call us on 0208 451 8700 to check the next availability

Suggested products

Barcode 5055788239277
Category Luminaires
Range Name Tough-Shell
Type Circular
Product Type Circular High Bay
Product Body Finish Matt Black
Market Segment Commercial indoor and outdoor, Industrial indoor and outdoor
Finish Matt Black
Warranty (Years) 5
Emergency Option No
Product Length (mm) 139
Product Weight (g) 5600
Diameter (mm) 360
Optic Polycarbonate diffuser
Material Aluminium, Polycarbonate
Construction Aluminium heat-sink, PC injection moulded driver case
Bulb or Luminaire Shape Round
Luminaire Fixing Suspended
Mounting Type Rear Cable Entry
Placement / Application Indoor, Outdoor, General Lighting
Typical Mounting Height 4M+
Energy Efficiency Label (Image) ILHBC124_EU_label
Luminous Flux in Lumens (lm) 19500
Luminous efficacy (lm/W) 130
Correlated Colour Temperature (CCT) (K) 4000
Colour Temperature Name Cool White
Beam Angle 60
Colour Rendering Index (CRI) 70
Frequency Range (Hz) 50/60
Instant on (Less than 1 second) Yes
LED Type Surface mounted device (SMD)
Lifetime (hours) 50000
Switching Cycles 25000
Useful Lumens (lm) 19500
Power Consumption (w) 150
Power Factor 0.95
Input Voltage (V) 220-240
Dimming Non-Dimmable
Driver Included Yes
Electric Current AC
EN EN-60598, EN61000, EN61547, EN55015, IEC62321
LVD Certified Yes
EN EN-60598, EN61000, EN61547, EN55015, IEC62321
LVD Certified Yes
CE RoHS Yes
EU Luminaire L
Hg 0% (Mercury Free) Yes
IK Rating (Impact Protection) IK10
IP Rating (Ingress Protection) IP65
Lowest Operating Temperature (°C) -30
Maximum Operating Temperature (°C) 45
Metal Halide Equivalent 250
Package Weight (g) 6600
Package Length (mm) 445
Package Width (mm) 225
Package Depth (mm) 445

Product Specification Sheet

LDT Files

Installation Guides
