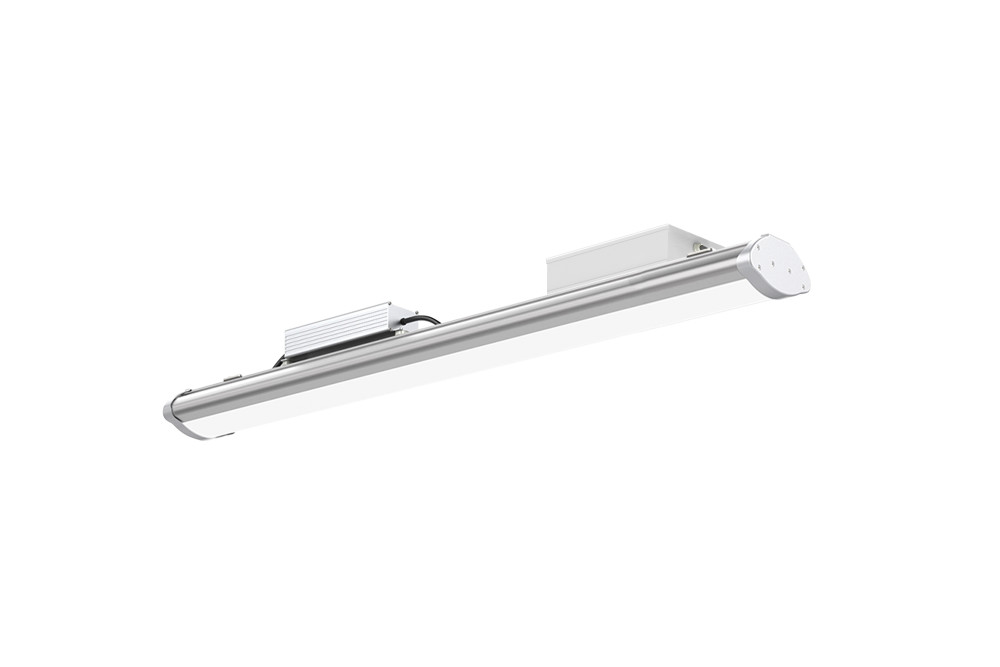

SLIMLINE LINEAR HIGH BAY IP65 19500LM 150W 4000K 130LM/W 120 BEAM DIMMABLE EMERGENCY INTEGRAL
Part Number:
ILHBL202E
Discreet and attractive, the Slimline Linear High Bay is a functional and aesthetic choice for large showrooms and retail premises as well as industrial environments. This High Bay offers 19,500 lumen output at a super-efficient 130lm/W, which will make huge savings to energy costs compared to legacy lighting technology. The IP65 rating makes it water, steam and dust resistant, ensuring that it is suitable for demanding industrial workplaces.
This Emergency model will provide 3 hours of light at 2,600lm in the event of a power cut.
- Product Feature 1:
- 19500lm
- Product Feature 2:
- 4000K
- Product Feature 3:
- 130lm/W
- Product Feature 4:
- Class I
- Product Feature 5:
- 5 Year Warranty
- Product Feature 6:
- Emergency
- Availability:
-
38
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Quick Order Code | 488742 |
|---|---|
| Barcode | 5055788246619 |
| Category | Luminaires |
| Range Name | Slimline |
| Type | Linear |
| Product Type | Linear High Bay |
| Product Body Finish | Natural Aluminium |
| Market Segment | Commercial indoor, Industrial indoor |
| Finish | Natural Aluminium |
| Features | Emergency Function |
| Warranty (Years) | 5 |
Physical Data
| Emergency Option | Integrated |
|---|---|
| Emergency Category | High Bays |
| Linkable | No |
| Product Length (mm) | 905 |
| Product Depth (mm) | 72 |
| Product Width (mm) | 135 |
| Product Weight (g) | 6500 |
| Optic | Polycarbonate diffuser |
| Material | PC |
| Construction | PC extrusion |
| Bulb or Luminaire Shape | Linear |
| Luminaire Fixing | Suspended |
| Mounting Type | Rear Cable Entry |
| Placement / Application | Indoor, Outdoor, General Lighting |
Light Data
| Energy Efficiency Label (Image) | ILHBL202E_EU_label |
|---|---|
| Luminous Flux in Lumens (lm) | 19500 |
| Luminous efficacy (lm/W) | 130 |
| Correlated Colour Temperature (CCT) (K) | 4000 |
| Colour Temperature Name | Cool White |
| Beam Angle | 120 |
| Colour Rendering Index (CRI) | 70 |
| Frequency Range (Hz) | 50/60 Hz |
| Instant on (Less than 1 second) | Yes |
| LED Size (mm) | 3030 |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 50000 |
| Switching Cycles | 100000 |
| Useful Lumens (lm) | 19500 |
Electrical Data
| Power Consumption (W) | 150 |
|---|---|
| Power Factor | 0.95 |
| Voltage Range (v) | 100-240 |
| Input Voltage (V) | 220-240 |
| Dimming | Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| Emergency Type | Non-Maintained |
| Protection Function | Short Circuit, overload and overheating protection on driver |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| New Energy Rating | D |
| EU Luminaire | L |
| Hg 0% (Mercury Free) | Yes |
| IK Rating (Impact Protection) | IK10 |
| IP Rating (Ingress Protection) | IP65 |
| Lowest Operating Temperature (°C) | 0 |
| Maximum Operating Temperature (°C) | 50 |
Packaging
| Package Weight (g) | 7700 |
|---|---|
| Package Length (mm) | 960 |
| Package Width (mm) | 180 |
| Package Depth (mm) | 90 |
Safety Guide
ILHBL202E
