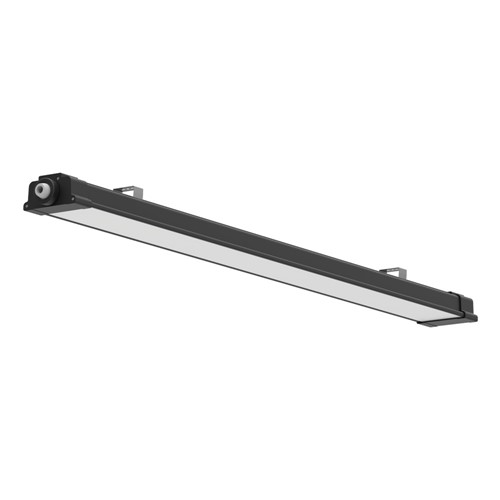

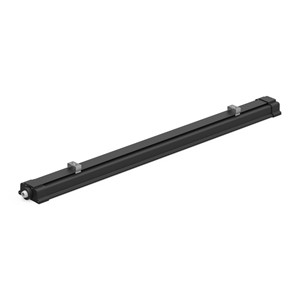

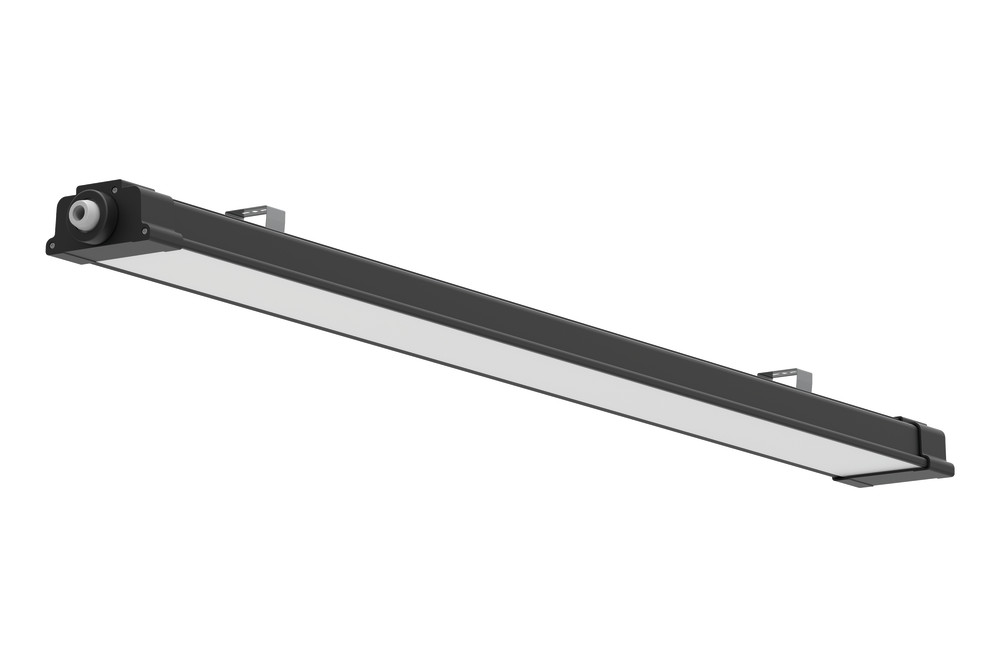

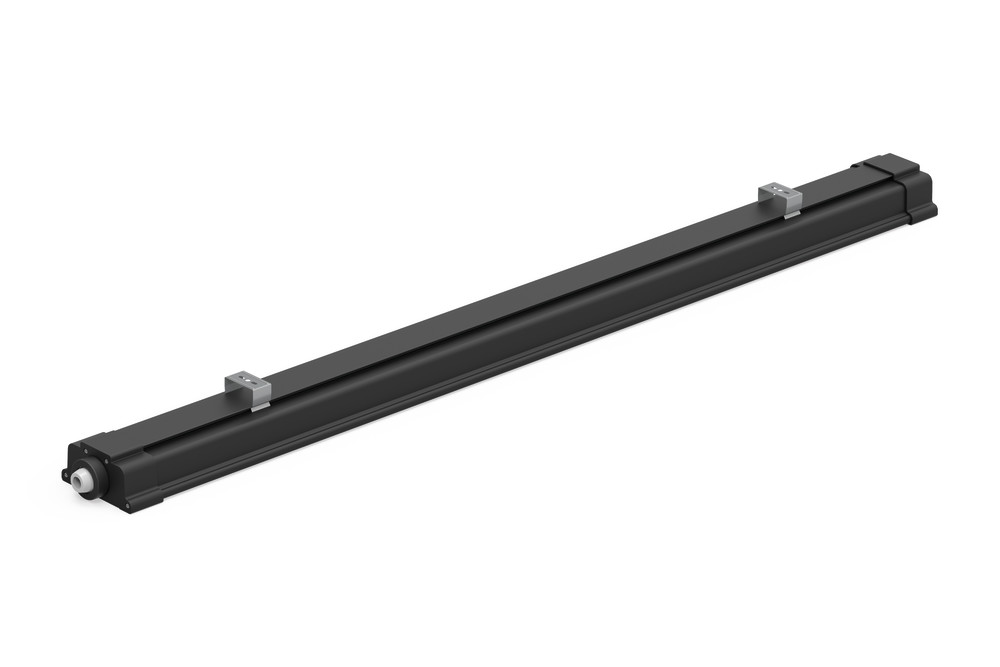

COMPACT ECO LINEAR 120W 18600LM 5000K 155LM/W 120 BEAM NON-DIMM INTEGRAL
Part Number:
ILHBL091
- Product Feature 1:
- 18600lm
- Product Feature 2:
- Daylight
- Product Feature 3:
- 155lm/W
- Product Feature 4:
- Class II
- Product Feature 5:
- 3 Year Warranty
- Availability:
-
100+
Call us on 0208 451 8700 to check the next availability
Details
| Quick Order Code | 208742 |
|---|---|
| Barcode | 5055788261025 |
| Category | Luminaires |
| Range Name | Compact Eco |
| Type | Linear |
| Market Segment | Commercial indoor, Industrial indoor |
| Warranty (Years) | 3 |
Physical Data
| Emergency Option | No |
|---|---|
| Product Length (mm) | 1220 |
| Product Weight (g) | 4000 |
| Optic | Polycarbonate |
| Material | Aluminium, Polycarbonate |
| Construction | Aluminium heat-sink and driver case |
| Bulb or Luminaire Shape | Linear |
| Luminaire Fixing | Surface or Suspended |
| Mounting Type | Surface or Suspended |
| Placement / Application | Indoor, Commercial and Industrial |
Light Data
| Energy Efficiency Label (Image) | ILHBL091_EU_label |
|---|---|
| Luminous Flux in Lumens (lm) | 18600 |
| Luminous efficacy (lm/W) | 155 |
| Correlated Colour Temperature (CCT) (K) | 5000 |
| Colour Temperature Name | Daylight |
| Beam Angle | 120 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Size (mm) | 2835 |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 50000 |
| Switching Cycles | 15000 |
Electrical Data
| Power Consumption (W) | 120 |
|---|---|
| Power Factor | 0.9 |
| Voltage Range (v) | 220-240 |
| Wattage equivalent (W) | 186 |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| EN | EN-60598, EN61000, EN61547, EN55015, IEC62321 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598, EN61000, EN61547, EN55015, IEC62321 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| New Energy Rating | D |
| EU Luminaire | L |
| Hg 0% (Mercury Free) | Yes |
| IK Rating (Impact Protection) | IK08 |
| IP Rating (Ingress Protection) | IP65 |
| Lowest Operating Temperature (°C) | -10 |
| Maximum Operating Temperature (°C) | 40 |
Packaging
| Package Weight (g) | 4400 |
|---|---|
| Package Length (mm) | 1270 |
| Package Width (mm) | 130 |
| Package Depth (mm) | 66 |
Safety Guide
ILHBL091
