COMPACT TOUGH LINEAR HIGH BAY IP65 6500LM 50W 4000K 130LM/W 120 BEAM DIMMABLE INTEGRAL
Part Number:
ILHBL100
THIS ITEM IS NOW UPGRADED OR DISCONTINUED. CONTACT US TO FIND A REPLACEMENT PRODUCT.

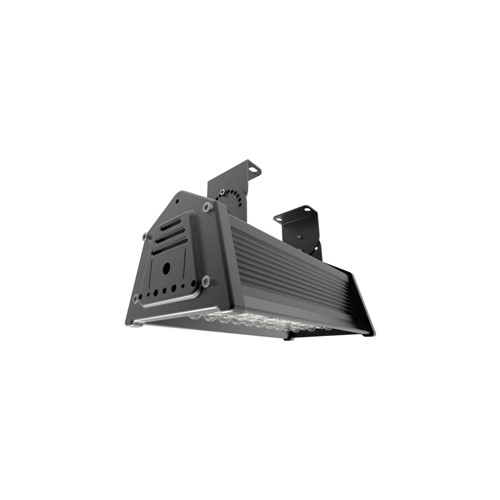

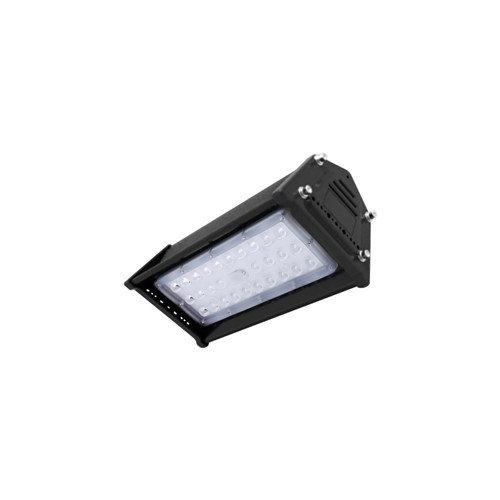

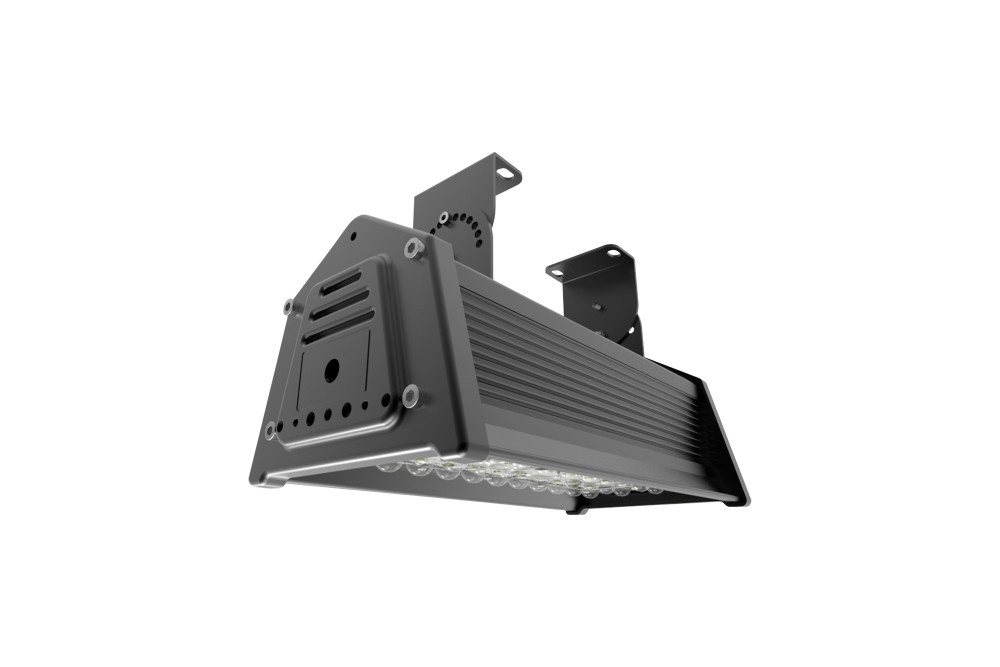

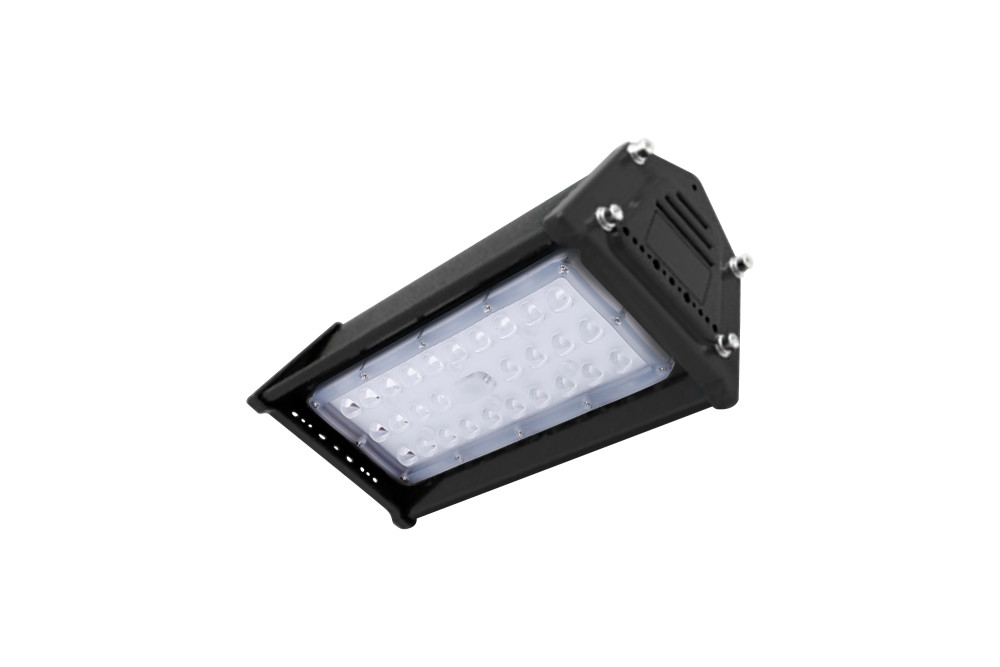

Compact, powerful and efficient - The Compact Tough Linear High Bay is built to last in the most rigourous industrial workplace. Offering a high lumen output for its size at an incredibly efficient 130lm/W, the Compact Tough is IP65 dust-proof and IK10 shock-resistant, making it ideal for warehouses, production facilities, factories and many other industrial environments.
This model has a light output of 6500lm and a 30x70 assymetrical degree beam angle.

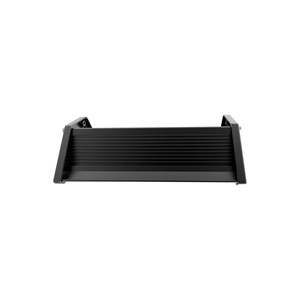

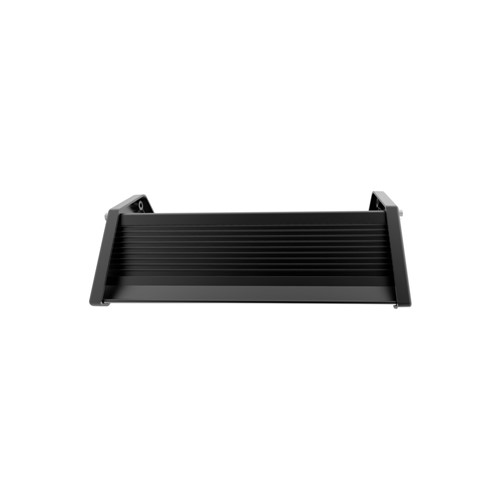

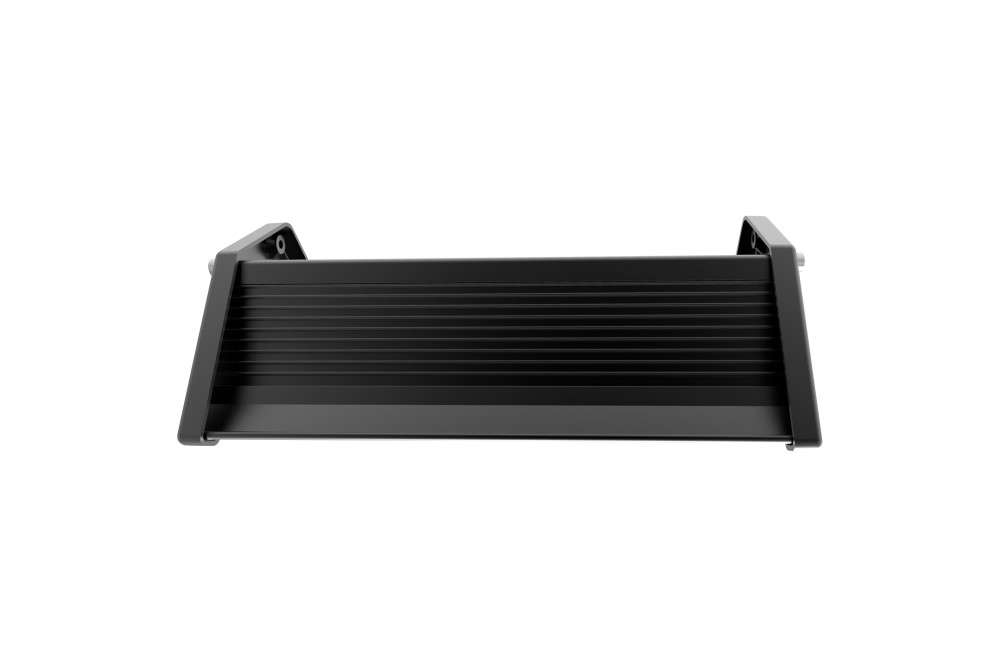

Surface mounting brackets sold separately ILHBLAR154
Compact, powerful and efficient - The Compact Tough Linear High Bay is built to last in the most rigourous industrial workplace. Offering a high lumen output for its size at an incredibly efficient 130lm/W, the Compact Tough is IP65 dust-proof and IK10 shock-resistant, making it ideal for warehouses, production facilities, factories and many other industrial environments.
This model has a light output of 6500lm and a 30x70 assymetrical degree beam angle.
Surface mounting brackets sold separately ILHBLAR154
- Product Feature 1:
- 6500lm
- Product Feature 2:
- 4000K
- Product Feature 3:
- 130lm/W
- Product Feature 4:
- Class I
- Product Feature 5:
- 5 Year Warranty
- Availability:
-
0
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Barcode | 5055788246299 |
|---|---|
| Quick Order Code | 235990 |
| Category | Luminaires |
| Range Name | Compact Tough |
| Type | Linear |
| Product Type | Linear High Bay |
| Product Body Finish | Matt Black |
| Market Segment | Commercial indoor, Industrial indoor |
| Finish | Matt Black |
| Warranty (Years) | 5 |
Physical Data
| Emergency Option | No |
|---|---|
| Linkable | No |
| Product Length (mm) | 283.6 |
| Product Depth (mm) | 115.6 |
| Product Width (mm) | 137.7 |
| Product Weight (g) | 2500 |
| Optic | Polycarbonate diffuser |
| Material | PC |
| Construction | PC injection moulding |
| Bulb or Luminaire Shape | Linear |
| Luminaire Fixing | Suspended / ceiling mounted / wall mounted |
| Mounting Type | Rear Cable Entry |
| Placement / Application | Indoor, Outdoor, General Lighting |
| Typical Mounting Height | 4M |
Light Data
| Energy Efficiency Label (Image) | ILHBL100_EU_label |
|---|---|
| Luminous Flux in Lumens (lm) | 6500 |
| Luminous efficacy (lm/W) | 130 |
| Colour Temperature Name | Cool White |
| Beam Angle | 120 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Size (mm) | 3030 |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 50000 |
| Switching Cycles | 100000 |
| Useful Lumens (lm) | 6500 |
Electrical Data
| Power Consumption (W) | 50 |
|---|---|
| Power Factor | 0.95 |
| Voltage Range (v) | 100-240 |
| Input Voltage (V) | 220-240 |
| Dimming | Mains dim |
| Driver Included | Yes |
| Electric Current | AC |
| Protection Function | Short Circuit, overload and overheating protection on driver |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| New Energy Rating | E |
| EU Luminaire | L |
| Hg 0% (Mercury Free) | Yes |
| IK Rating (Impact Protection) | IK10 |
| IP Rating (Ingress Protection) | IP65 |
| Lowest Operating Temperature (°C) | -30 |
| Maximum Operating Temperature (°C) | 50 |
Packaging
| Barcode | 5055788246299 |
|---|---|
| Single box qty | 1 |
| Package Weight (g) | 2500 |
| Package Length (mm) | 330 |
| Package Width (mm) | 170 |
| Package Depth (mm) | 160 |
Safety Guide
ILHBL100
