COMPACT TOUGH LINEAR HIGH BAY IP65 6500LM 50W 4000K 130LM/W 30x70 BEAM DIMMABLE INTEGRAL

Part Number:

ILHBL102

Compact, powerful and efficient - The Compact Tough Linear High Bay is built to last in the most rigourous industrial workplace. Offering a high lumen output for its size at an incredibly efficient 130lm/W, the Compact Tough is IP65 dust-proof and IK10 shock-resistant, making it ideal for warehouses, production facilities, factories and many other industrial environments.

This model has a light output of 13000lm and a 60x90 assymetrical degree beam angle.

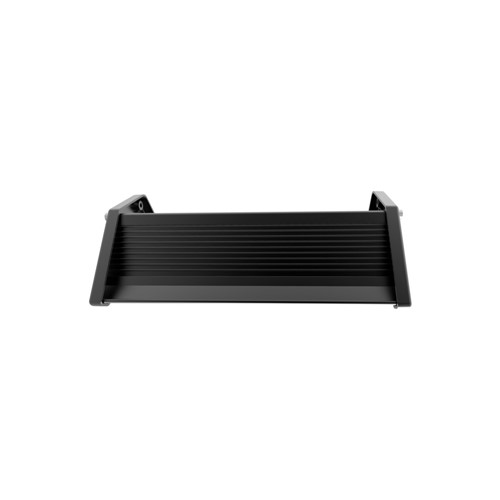

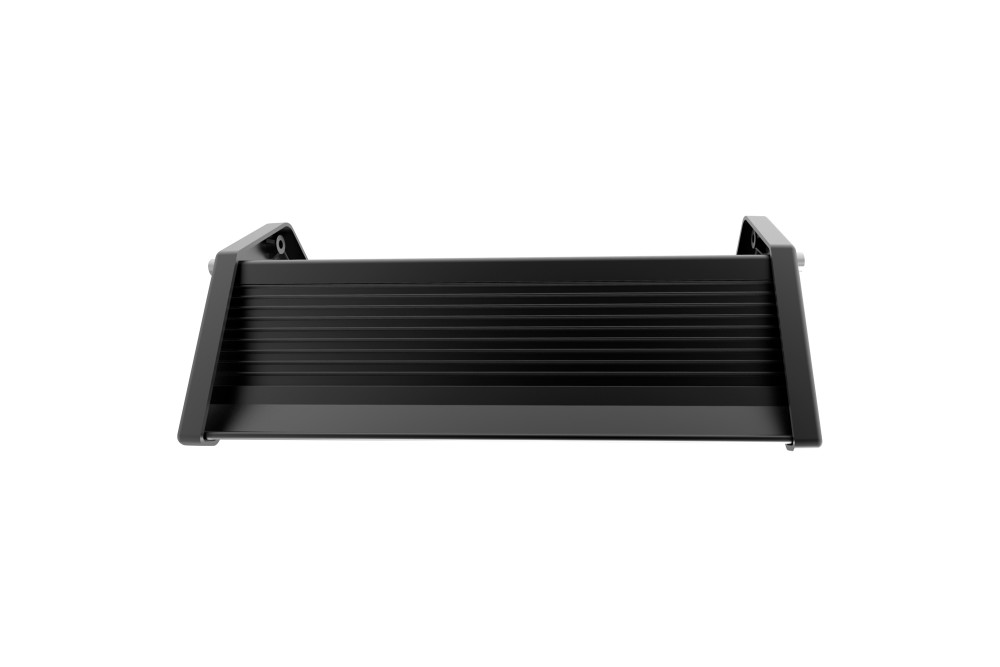

Surface mounting brackets sold separately ILHBLAR154
Product Feature 1:
6500lm
Product Feature 2:
4000K
Product Feature 3:
130lm/W
Product Feature 4:
Class I
Product Feature 5:
5 Year Warranty
Availability:
100+

Call us on 0208 451 8700 to check the next availability

Suggested products

Quick Order Code 757424
Barcode 5055788246312
Category Luminaires
Range Name Compact Tough
Type Linear
Product Type Linear High Bay
Product Body Finish Matt Black
Market Segment Commercial indoor, Industrial indoor
Finish Matt Black
Warranty (Years) 5
Emergency Option No
Linkable No
Product Length (mm) 283.6
Product Depth (mm) 115.6
Product Width (mm) 137.7
Product Weight (g) 2500
Optic Polycarbonate diffuser
Material PC
Construction PC injection moulding
Bulb or Luminaire Shape Linear
Luminaire Fixing Suspended / ceiling mounted / wall mounted
Mounting Type Rear Cable Entry
Placement / Application Indoor, Outdoor, General Lighting
Typical Mounting Height 4M
Energy Efficiency Label (Image) ILHBL102_EU_label
Luminous Flux in Lumens (lm) 6500
Luminous efficacy (lm/W) 130
Correlated Colour Temperature (CCT) (K) 4000
Colour Temperature Name Cool White
Beam Angle 30x70
Colour Rendering Index (CRI) 80
Frequency Range (Hz) 50/60 Hz
Instant on (Less than 1 second) Yes
LED Size (mm) 3030
LED Type Surface mounted device (SMD)
Lifetime (hours) 50000
Switching Cycles 100000
Useful Lumens (lm) 6500
Power Consumption (W) 50
Power Factor 0.95
Voltage Range (v) 100-240
Input Voltage (V) 220-240
Dimming Dimmable
Driver Included Yes
Electric Current AC
Protection Function Short Circuit, overload and overheating protection on driver
EN EN-60598
LVD Certified Yes
EN EN-60598
LVD Certified Yes
CE RoHS Yes
New Energy Rating E
EU Luminaire L
Hg 0% (Mercury Free) Yes
IK Rating (Impact Protection) IK10
IP Rating (Ingress Protection) IP65
Lowest Operating Temperature (°C) -30
Maximum Operating Temperature (°C) 50
Package Weight (g) 2500
Package Length (mm) 330
Package Width (mm) 170
Package Depth (mm) 160

Product Specification Sheet

Safety Guides

LDT Files

Installation Guides
