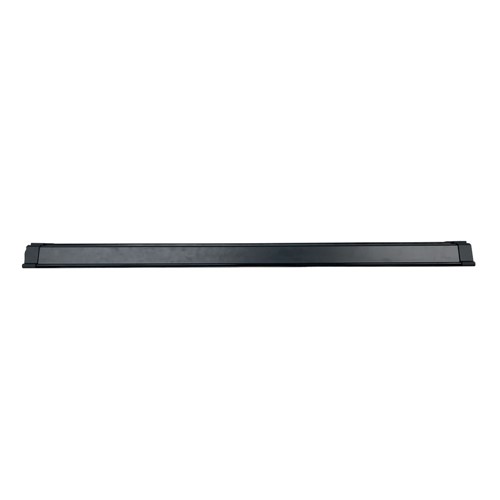

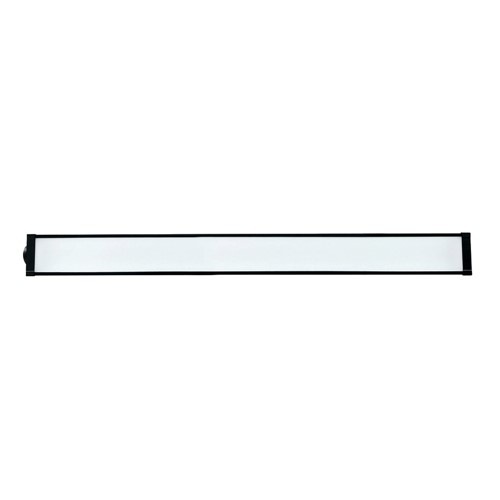

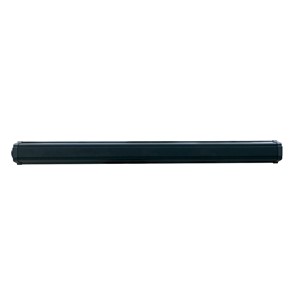

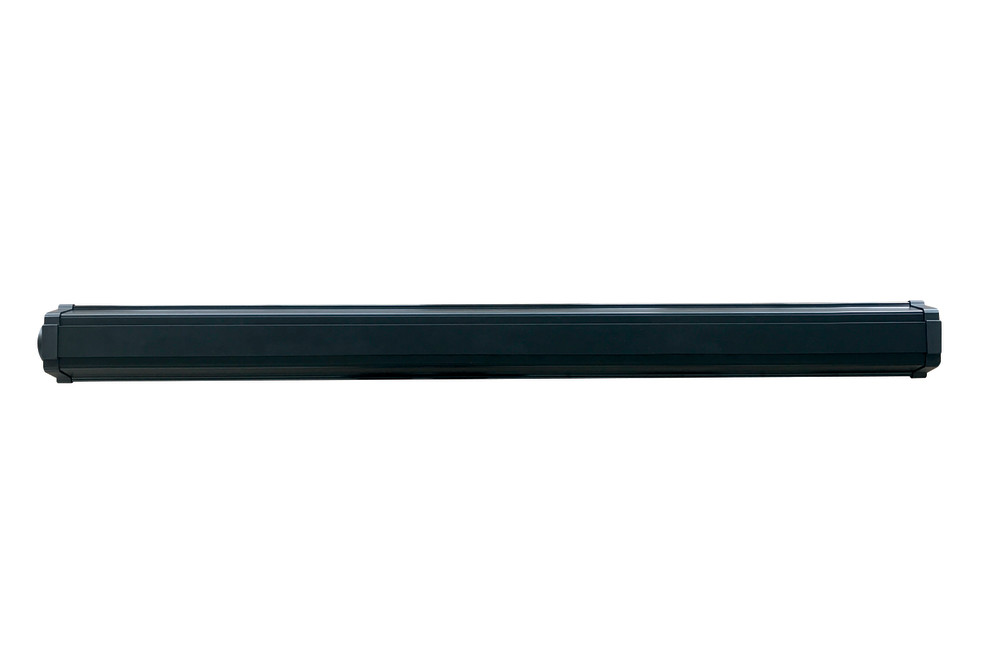

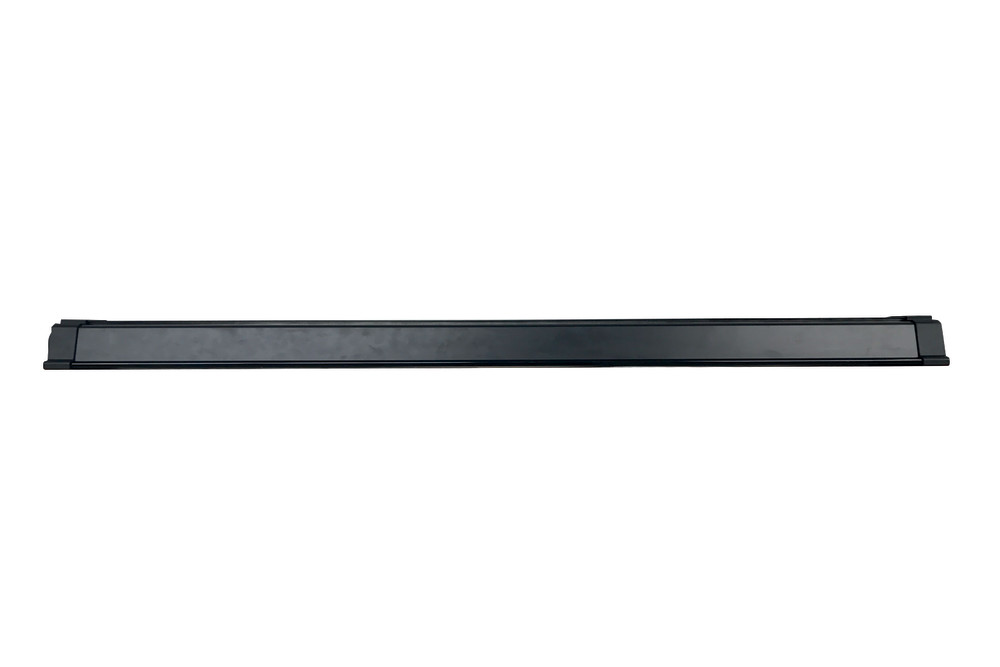

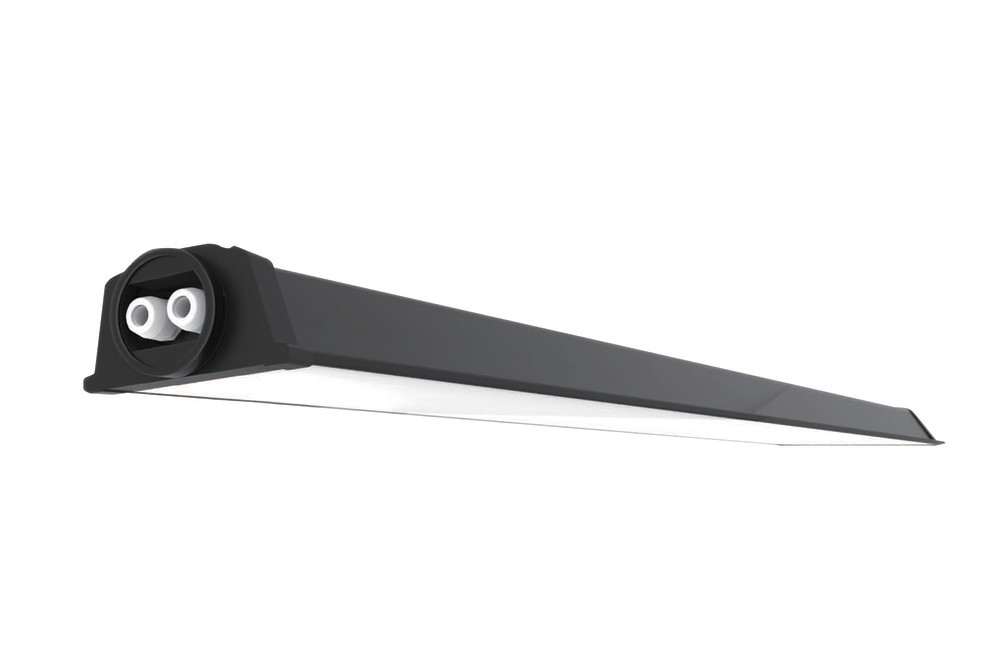

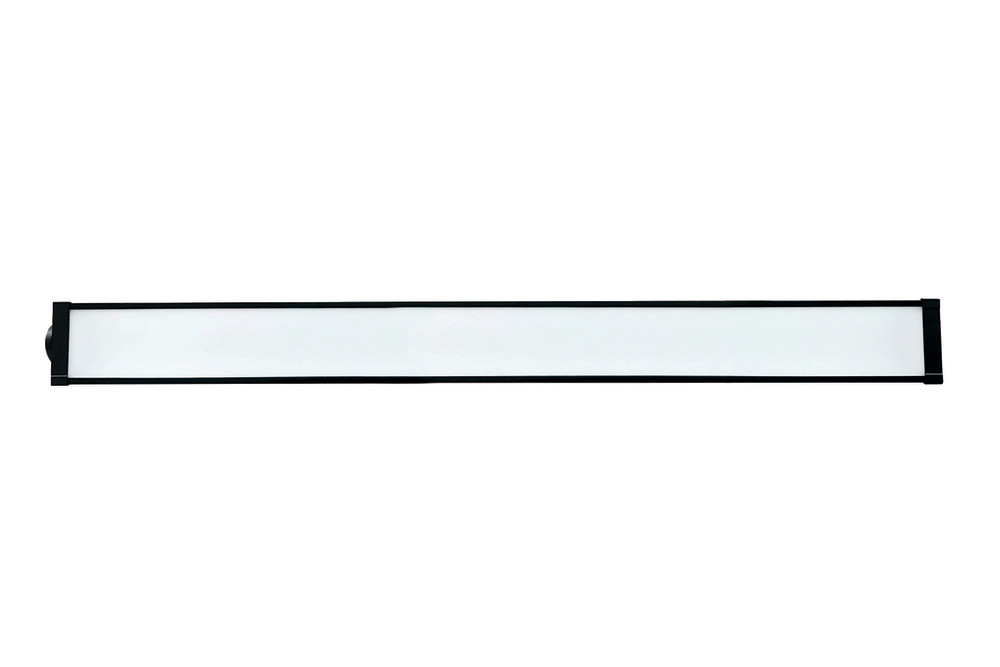

LINEAR HIGH BAY 1PK IP65 23400LM 180W 4000K 130LM/W 110 BEAM INTEGRAL
Part Number:
ILHBL048
Integral LED's Linear Low Bay luminaire is a highly efficient retrofit replacement for fluorescent tube fittings. The high lm/W efficacy and Daylight output make them ideal for warehouses, assembly plants, showrooms and more.
- Product Feature 1:
- 23400lm
- Product Feature 2:
- Cool White
- Product Feature 3:
- 130lm/W
- Product Feature 4:
- Class II
- Product Feature 5:
- 3 Year Warranty
- Availability:
-
1
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Barcode | 5055788239154 |
|---|---|
| Quick Order Code | 244220 |
| Category | Luminaires |
| Range Name | Linear Low Bay |
| Type | Linear |
| Product Type | Linear High Bay |
| Product Body Finish | Matt Black |
| Market Segment | Commercial indoor, Industrial indoor |
| Finish | Matt Black |
| Warranty (Years) | 3 |
Physical Data
| Emergency Option | No |
|---|---|
| Linkable | No |
| Product Length (mm) | 1224 |
| Product Depth (mm) | 106 |
| Product Width (mm) | 150 |
| Product Weight (g) | 3000 |
| Optic | Polycarbonate diffuser |
| Material | PC/ABS |
| Construction | PC extrusion and injection moulding |
| Bulb or Luminaire Shape | Linear |
| Luminaire Fixing | Suspended/ceiling mounted |
| Mounting Type | Rear Cable Entry |
| Placement / Application | Indoor, Outdoor, General Lighting |
| Typical Mounting Height | 5M |
Light Data
| Energy Efficiency Label (Image) | ILHBL048_EU_label |
|---|---|
| Luminous Flux in Lumens (lm) | 23400 |
| Luminous efficacy (lm/W) | 130 |
| Correlated Colour Temperature (CCT) (K) | 4000 |
| Colour Temperature Name | Cool White |
| Beam Angle | 110 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50 |
| Instant on (Less than 1 second) | Yes |
| LED Size (mm) | 2835 |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 50000 |
| Switching Cycles | 100000 |
| Useful Lumens (lm) | 23400 |
Electrical Data
| Power (W) | 180 |
|---|---|
| Power Consumption (W) | 180 |
| Power Factor | 0.95 |
| Voltage Range (v) | 220-240 |
| Input Voltage (V) | 220-240 |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| EU Luminaire | L |
| Hg 0% (Mercury Free) | Yes |
| IK Rating (Impact Protection) | IK08 |
| IP Rating (Ingress Protection) | IP65 |
| Lowest Operating Temperature (°C) | -10 |
| Maximum Operating Temperature (°C) | 40 |
| Metal Halide Equivalent | 400 |
Packaging
| Barcode | 5055788239154 |
|---|---|
| Package Weight (g) | 3500 |
| Package Length (mm) | 1275 |
| Package Width (mm) | 215 |
| Package Depth (mm) | 147 |
Safety Guide
ILHBL048
