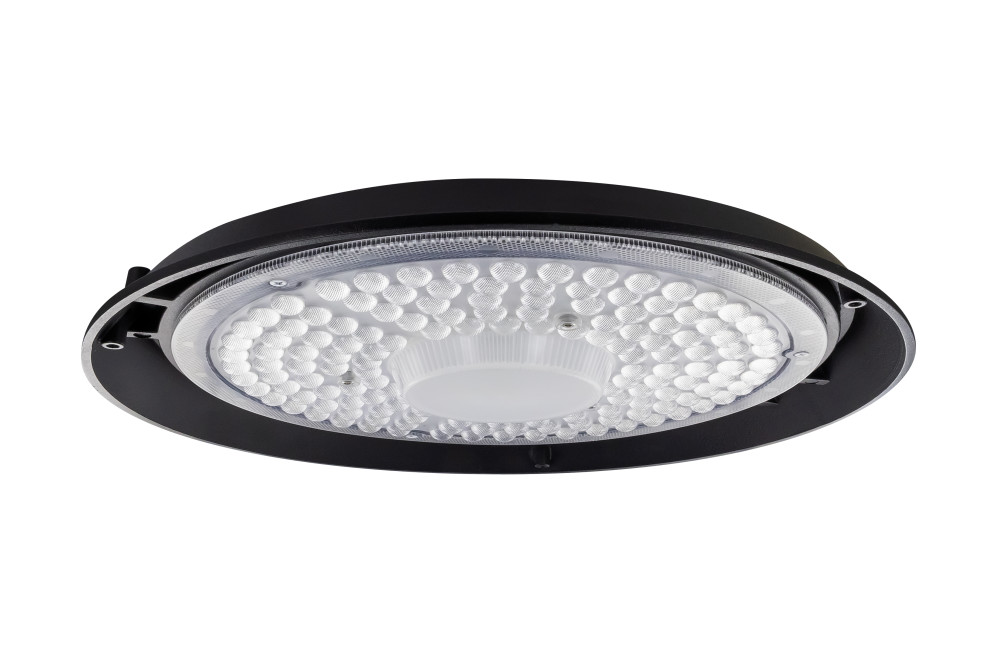

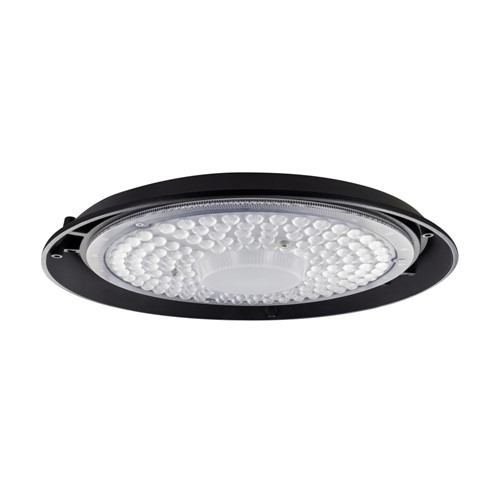

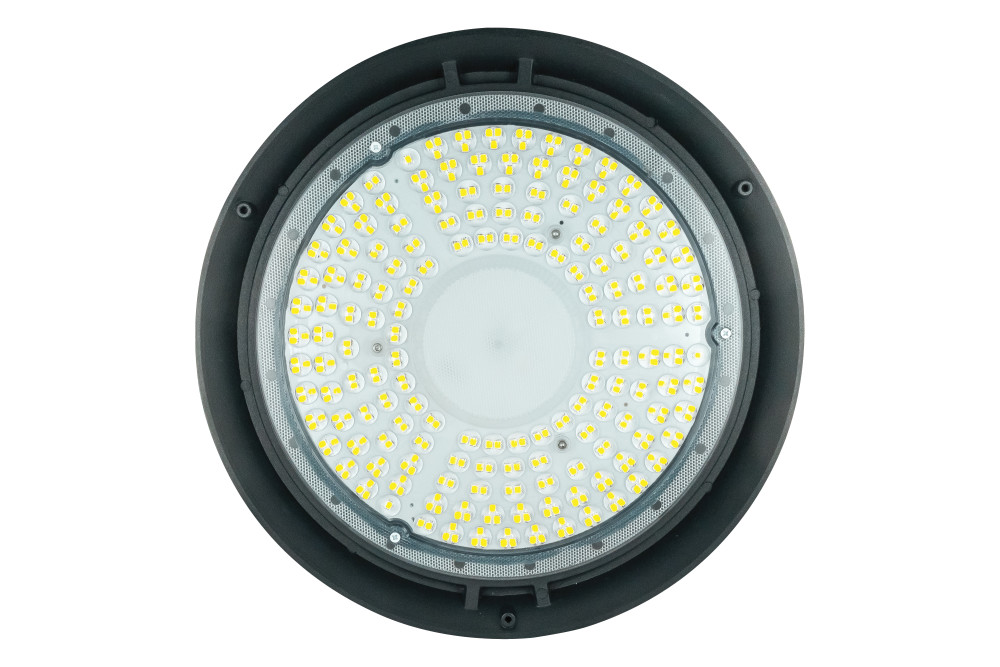

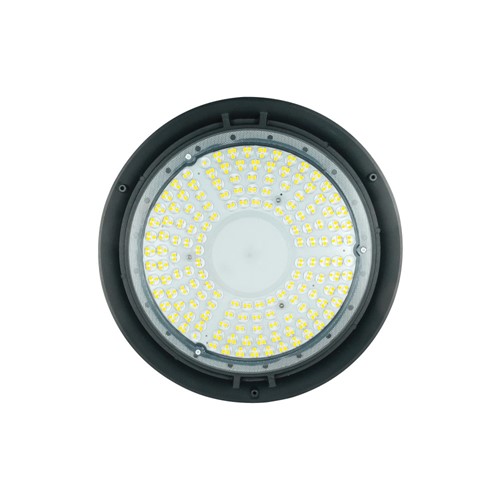

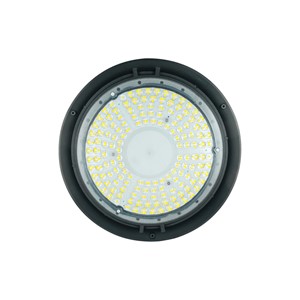

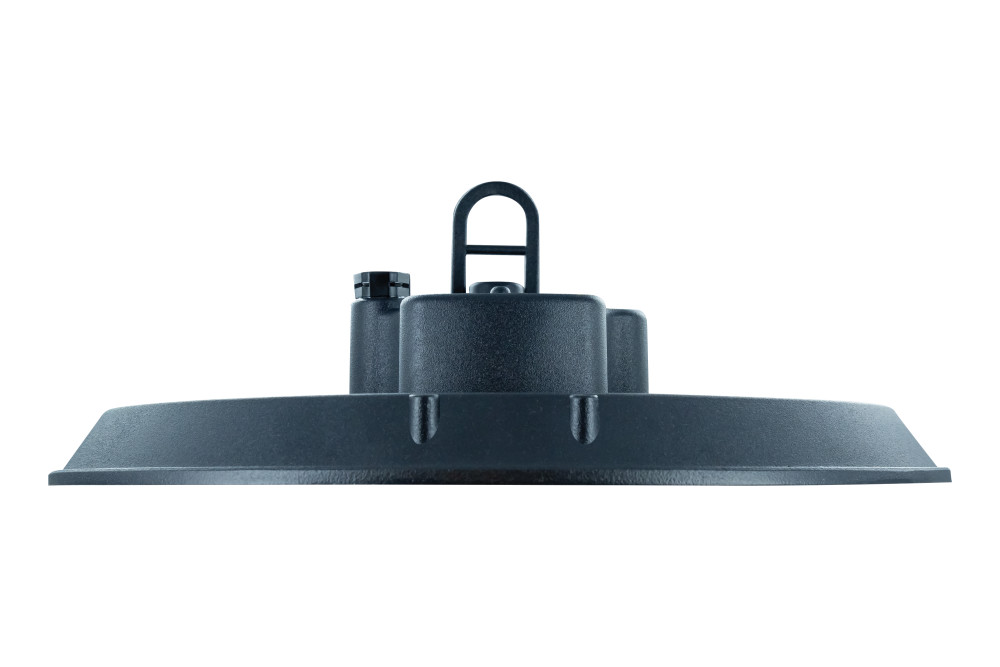

PERFORM COMPACT CIRCULAR HIGH BAY 200W 160LM/W IP65 IK08 32000LM 4000K 90° NON DIMMABLE LED INTEGRAL
Part Number:
ILHBC420
Efficient, cost-effective, tough, easy to install and long lasting high bay ideal for industrial applications.
- Product Feature 1:
- Low Weight
- Product Feature 2:
- 90 degree
- Product Feature 3:
- 160lm/W
- Product Feature 4:
- Cool White
- Product Feature 5:
- 3 Year Warranty
- Availability:
-
516
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Barcode | 5055788293019 |
|---|---|
| Quick Order Code | 696442 |
| Category | Luminaires |
| Range Name | Perform Compact |
| Product Type | Circular High Bay |
| Product Body Finish | Matt Black |
| Market Segment | Commercial indoor, Industrial indoor |
| Finish | Matt Black |
| Features | 160lm/W |
| Warranty (Years) | 3 |
Physical Data
| Emergency Option | No |
|---|---|
| Product Weight (g) | 1400 |
| Diameter (mm) | 320 |
| Optic | Polycarbonate diffuser |
| Material | Aluminium, Polycarbonate |
| Overall diameter (mm) | 320 |
| Construction | Aluminium heat-sink, Die cast aluminium driver case |
| Bulb or Luminaire Shape | Round |

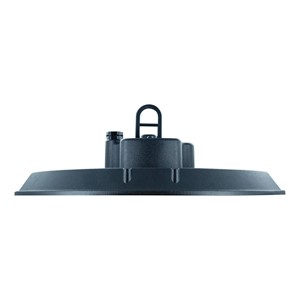

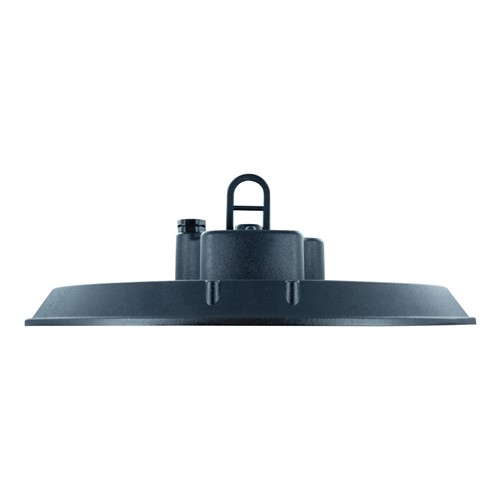

| Luminaire Fixing | Suspended |

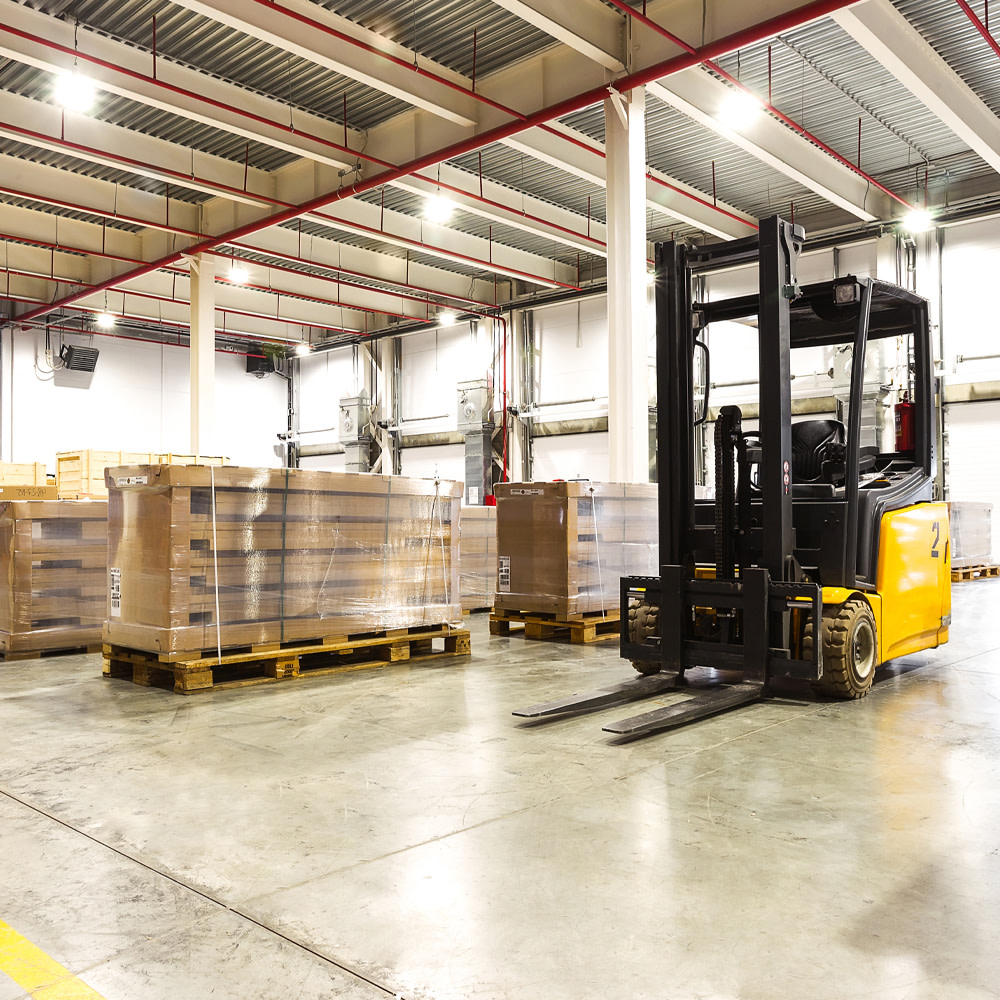

| Placement / Application | Indoor Commercial and Industrial Lighting |
| Typical Mounting Height | 4M+ |
Light Data
| Luminous Flux in Lumens (lm) | 32000 |
|---|---|
| Luminous efficacy (lm/W) | 160 |
| Correlated Colour Temperature (CCT) (K) | 4000 |
| Colour Temperature | 4000 - Cool White |
| Colour Temperature Name | Cool White |
| Beam Angle | 90 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Size (mm) | 3030 |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 30000 |
| Switching Cycles | 20000 |
| Light Source | Non-replaceable |
Electrical Data
| Power (W) | 200 |
|---|---|
| Power Consumption (W) | 200 |
| Power Factor | 0.9 |
| Voltage Range (v) | 100-277 |
| Wattage equivalent (W) | 600 |
| Input Voltage (V) | 220-240 |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| EN | EN-60598, EN61000, EN61547, EN55015, IEC62321 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598, EN61000, EN61547, EN55015, IEC62321 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| New Energy Rating | D |
| EU Luminaire | L |
| Hg 0% (Mercury Free) | Yes |
| IK Rating (Impact Protection) | IK08 |
| IP Rating (Ingress Protection) | IP65 |
| Lowest Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 50 |
Packaging
| Barcode | 5055788293019 |
|---|---|
| Package Weight (g) | 1800 |
| Package Length (mm) | 330 |
| Package Width (mm) | 330 |
| Package Depth (mm) | 100 |
