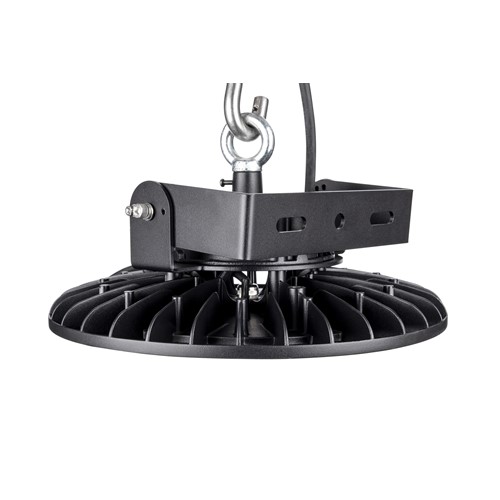

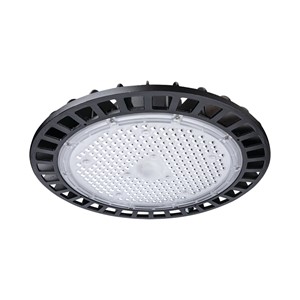

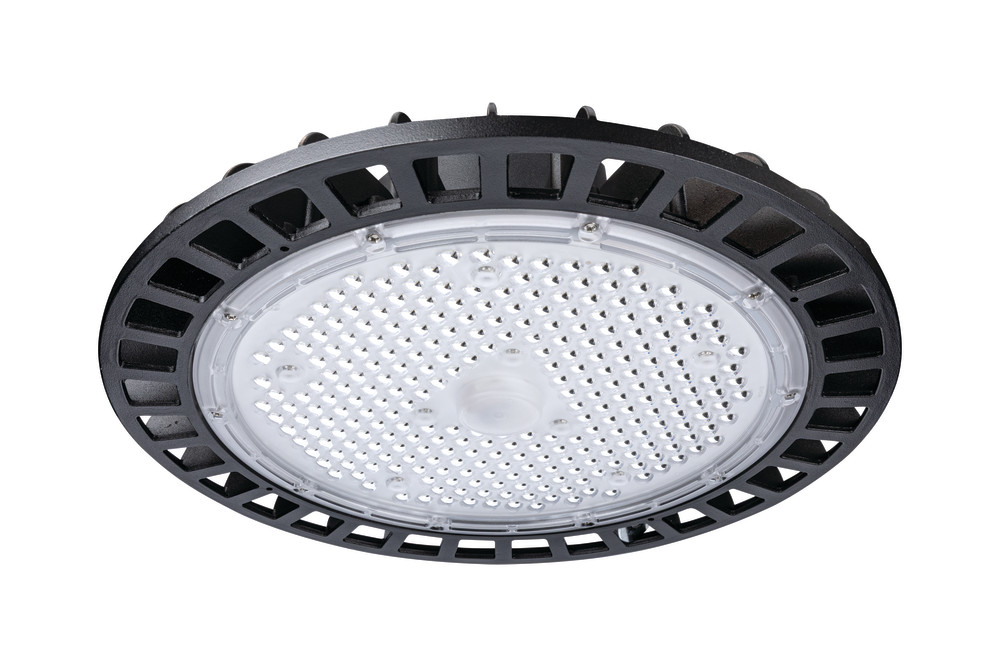

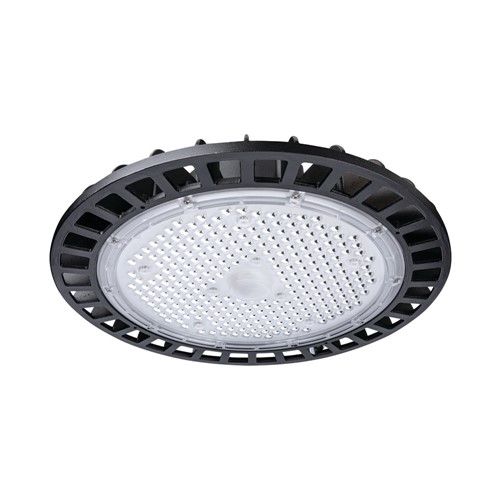

SPECTRUM ASYMMETRIC CIRCULAR LED HIGHBAY 100W/150W/200W 160lm/W IP65 IK08 CRI80 BEAM 40X110° BEAM ANGLE 5700K COMPATIBLE WITH ZHAGA 18 PLUG-N-PLAY MODULES & HIGHBAY EMERGENCY PACK,220-240VAC, 5 YEARS WARRANTY INTEGRAL
Part Number:
ILHBC500
Easily illuminate large industrial spaces and sport complexes with Spectrum Asymmetric Highbays. The round fixture offers a unique rectangular beam that helps control light from spilling into unwanted areas. Sleek design, low glare and high efficacy with plug-and-play modules and an emergency pack that provides 3-hour illumination during power cuts.
- Product Feature 1:
- Unique rectangular asymmetric beam 40°x110° for aisle optics
- Product Feature 2:
- Super-high efficacy - 160lm/W
- Product Feature 3:
- Power switchable 100W/150W/200W
- Product Feature 4:
- 5700K for indoor sports arenas applications
- Product Feature 5:
- Light-on-demand feature with sensors for dimming and energy saving
- Product Feature 6:

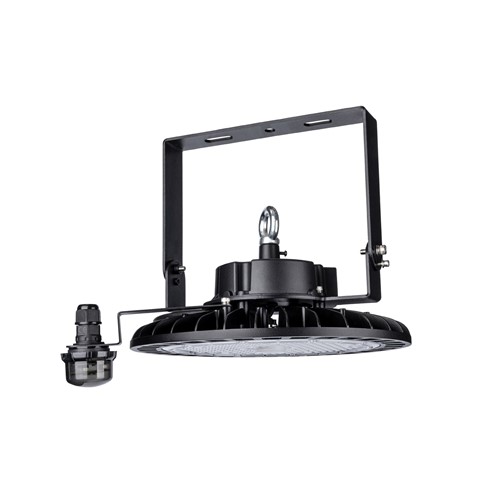

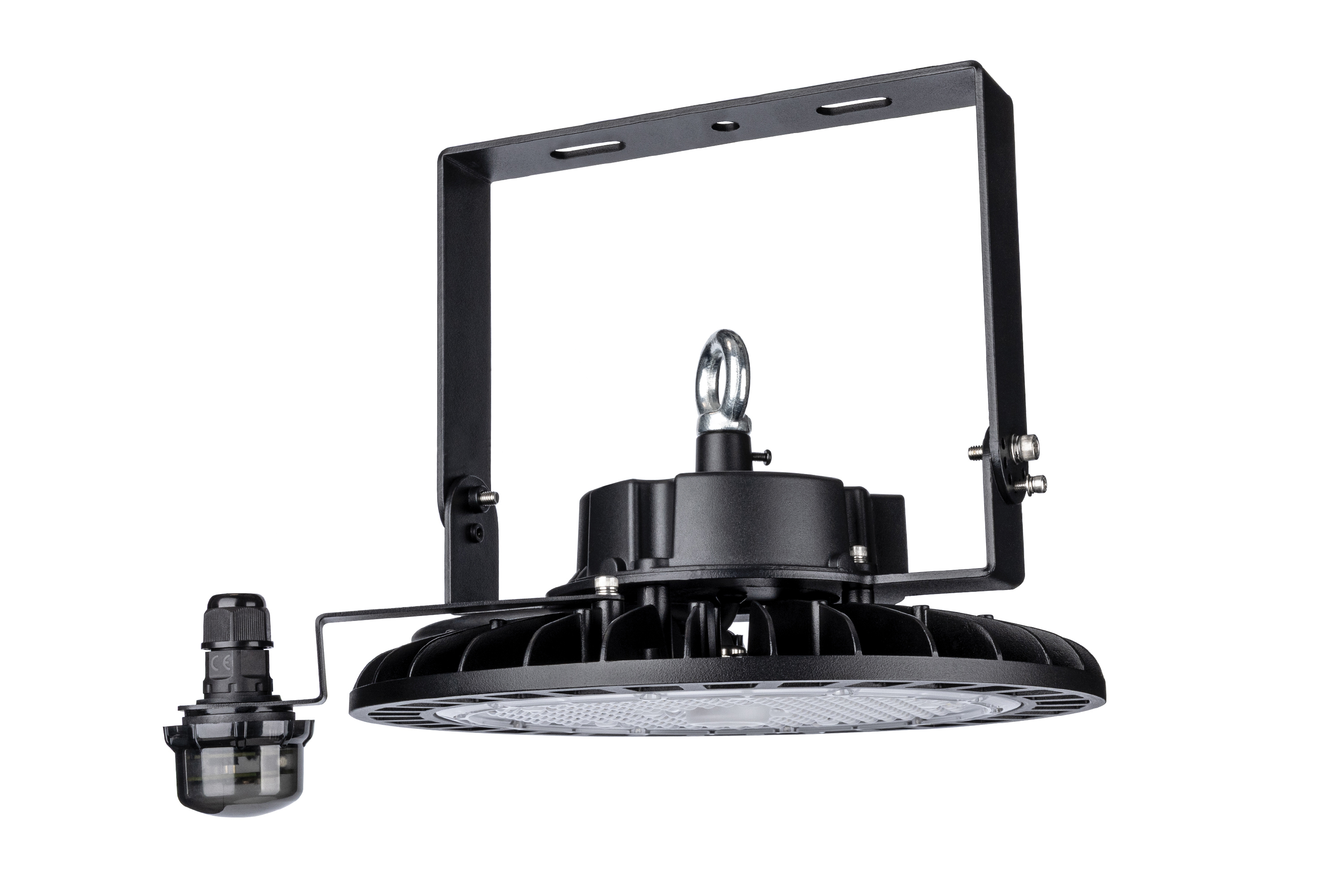

- Bracket and base plate designed for single point suspension
- Product Feature 7:
- Compatible with emergency highbay packs and equipped with Zhaga 18
- Product Feature 8:
- Plug & Play PIR, MW & Casambi modules for dimming and energy savings
- Availability:
-
0
More stock due in on 24/03/2026
Suggested products
Details
| Barcode | 5056884602583 |
|---|---|
| Quick Order Code | 875031 |
| Category | Luminaires |
| Range Name | Spectrum Asymmetric |
| Type | Circular |
| Product Type | Circular High Bay |
| Market Segment | Commercial indoor, Industrial indoor |
| Features | 160lm/W |
| Warranty (Years) | 5 |
Physical Data
| Emergency Option | Optional Conversion Kit |
|---|---|
| Product Depth (mm) | 154 |
| Product Weight (g) | 2680 |
| Diameter (mm) | 290 |
| Optic | Polycarbonate |
| Material | Aluminium, Polycarbonate |
| Construction | Aluminium heat-sink and driver case |
| Bulb or Luminaire Shape | Round |
| Luminaire Fixing | Suspended |
| Mounting Type | Suspended |
| Placement / Application | Indoor, Commercial & Industrial |
| Typical Mounting Height | 4M+ |
Light Data
| Luminous Flux in Lumens (lm) | 34000 |
|---|---|
| Luminous efficacy (lm/W) | 170 |
| Correlated Colour Temperature (CCT) (K) | 5700 |
| Colour Temperature Name | Cool Daylight |
| Beam Angle | 40x110 |
| Colour Rendering Index (CRI) | 70 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Size (mm) | 2835 |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 50000 |
| Switching Cycles | 10000 |
| Light Source | Non-replaceable |
Electrical Data
| Power Consumption (W) | 100 / 150 / 200 (Power Switchable) |
|---|---|
| Power Factor | 0.9 |
| Voltage Range (v) | 220-240 |
| Dimming | Mains dim |
| Driver Included | Yes |
| Electric Current | AC |
| EN | EN-60598, EN61000, EN61547, EN55015, IEC62321 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598, EN61000, EN61547, EN55015, IEC62321 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IK Rating (Impact Protection) | IK09 |
| IP Rating (Ingress Protection) | IP65 |
| Lowest Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 55 |
Packaging
| Barcode | 5056884602583 |
|---|---|
| Single box qty | 1 |
| Package Weight (g) | 3380 |
| Package Length (mm) | 335 |
| Package Width (mm) | 335 |
| Package Depth (mm) | 155 |
| Qty per euro pallet | 1100 |
Safety Guide
ILHBC500_100W_5700K
