ACCENTPLUS SCOOP ADJUSTABLE DOWNLIGHT 125MM CUTOUT 2500LM 22W 4000K 114LM/W CRI90 36 BEAM WHITE 36VDC 600MA - NO DRIVER
Part Number:
ILDL125SC004
The AccentPlus Scoop Adjustable Downlight is a versatile and high-performance lighting solution, ideal for accentuating walls or displays with exceptional colour accuracy. Delivering cool white 4000K illumination with a CRI of 90 this downlight provides true-to-life colour rendering for commercial and architectural applications.

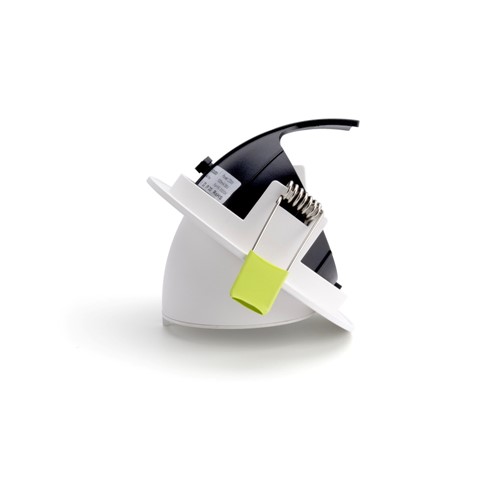

Designed with precision in mind, the fitting features a fully rotatable bezel and a 36° beam angle, complemented by a 38° downward tilt. This innovative design allows the downlight to extend below the ceiling line, enabling precise beam placement and illumination of areas that standard downlights cannot reach.
This model comes without a driver, offering flexibility for pairing with standard DALI, push dim, or 0-10V combination dimmable drivers to suit your project’s requirements. For compatible driver options, refer to the suggested products list.
- Product Feature 1:
- Adjustable Downlight Without Driver (choose from suggested products below)
- Product Feature 2:
- 38° tilt & 355° rotation adjustable
- Product Feature 3:
- High efficiency, energy saving
- Product Feature 4:
- CRI90 real colour
- Availability:
-
100+
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Quick Order Code | 64360 |
|---|---|
| Barcode | 5055788303008 |
| Category | Downlights |
| Range Name | AccentPlus Scoop |
| Product Type | Downlight |
| Product Body Finish | Matt white |
| Market Segment | Commercial indoor, Residential indoor |
| Features | Adjustable |
| Fixed/Tiltable | Tiltable |
| Warranty (Years) | 5 |
Physical Data
| Emergency Option | No |
|---|---|
| Product Depth (mm) | 96 |
| Product Weight (g) | 800 |
| Optic | Clear Refractor |
| Material | Aluminium alloy |
| Overall diameter (mm) | 160 |
| Construction | Aluminium |
| Cut Out Diameter (mm) | 125 |
| Bulb or Luminaire Shape | Round |
| Luminaire Fixing | Recess mounted |
| Placement / Application | Indoor, General Lighting |
| Spot Type | COB |
Light Data
| Luminous Flux in Lumens (lm) | 2500 |
|---|---|
| Luminous efficacy (lm/W) | 114 |
| Correlated Colour Temperature (CCT) (K) | 4000 |
| Colour Temperature | 4000K - Cool White |
| Colour Temperature Name | Cool White |
| Beam Angle | 36 |
| Colour Rendering Index (CRI) | 90 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Type | Chip on board (COB) |
| Lifetime (hours) | 50000 |
| Switching Cycles | 100000 |
| Useful Lumens (lm) | 2530 |
Electrical Data
| Power Consumption (W) | 22 |
|---|---|
| Power Factor | 0.9 |
| Voltage Range (v) | 220-240 |
| Amperage (mA) | 600 |
| Dimming | Dimmable with dimmable drivers and compatible dimmers |
| Driver Included | No |
| Electric Current | AC |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Back/Recessed side) | IP20 |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 45 |
Packaging
| Package Weight (g) | 900 |
|---|---|
| Package Length (mm) | 180 |
| Package Width (mm) | 180 |
| Package Depth (mm) | 116 |
