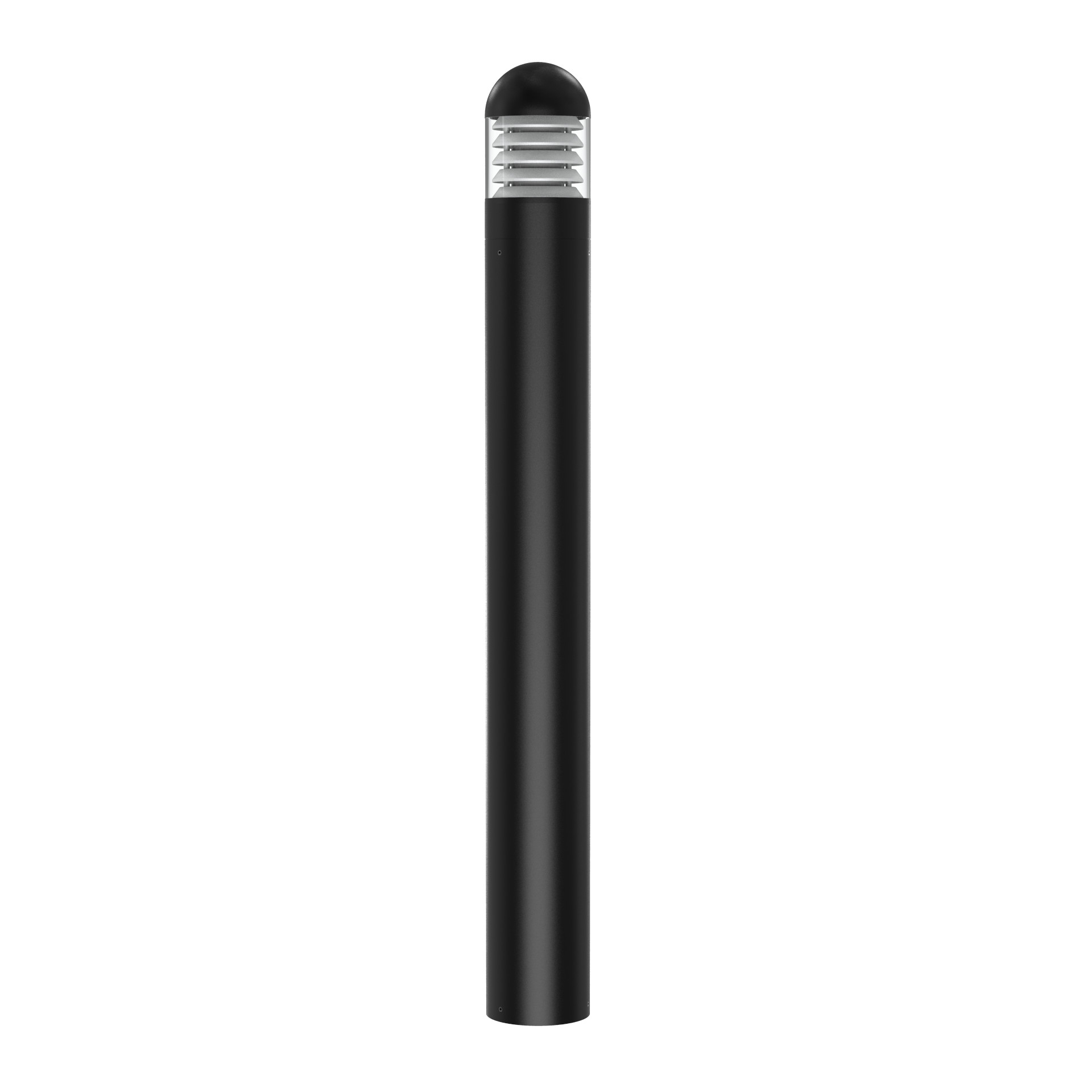

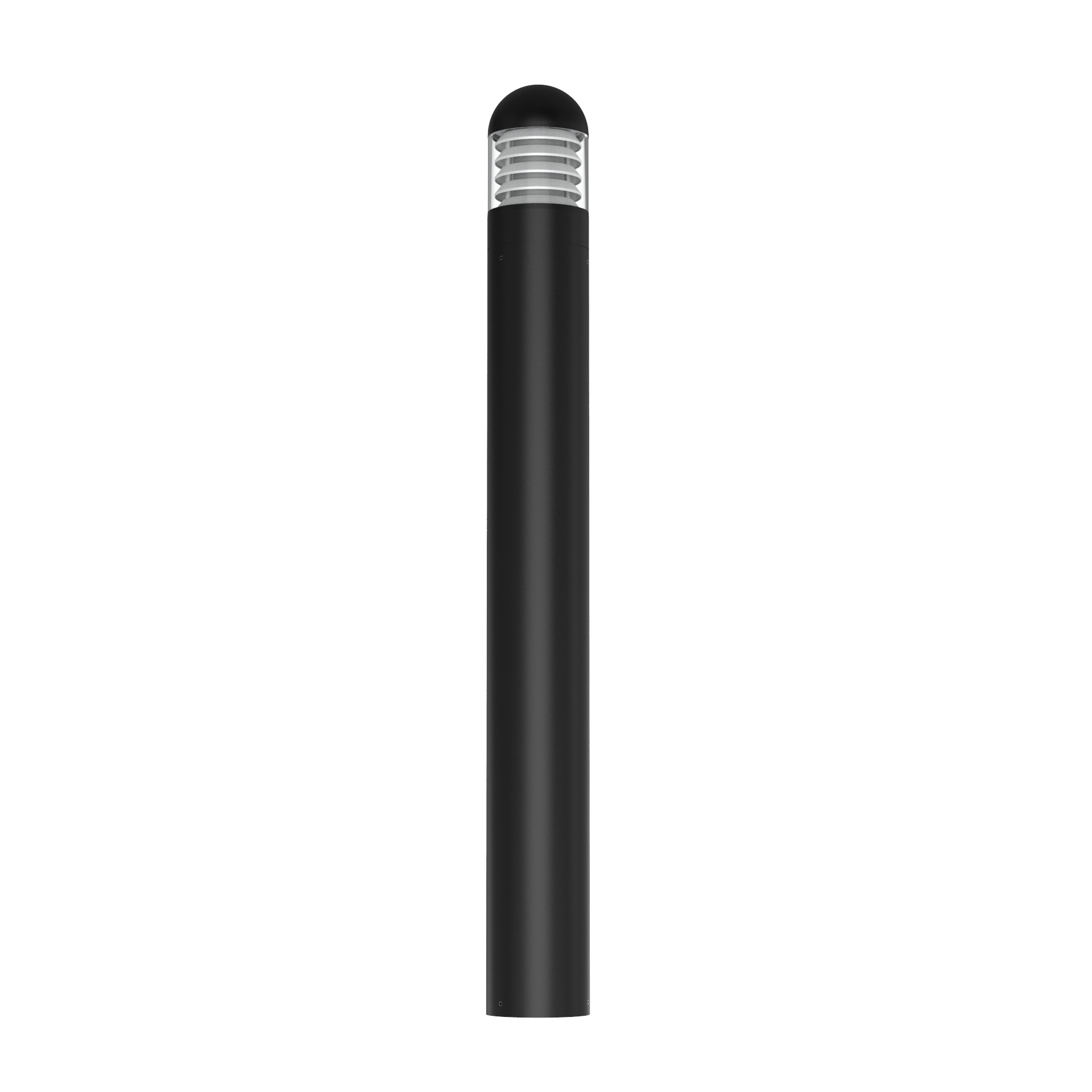

GUARDIAN-4 LUCIA BOLLARD-WALL LUMINAIRE POWER & CCT SELECTABLE 12W/16W/20W 3000K-4000K-5000K 530LM TO 930LM CRI80 IP65 IK10 BLACK FINISH 120MM DIAMETER 5 YEAR WARRANTY
Part Number:
ILBDG004
- Product Feature 1:

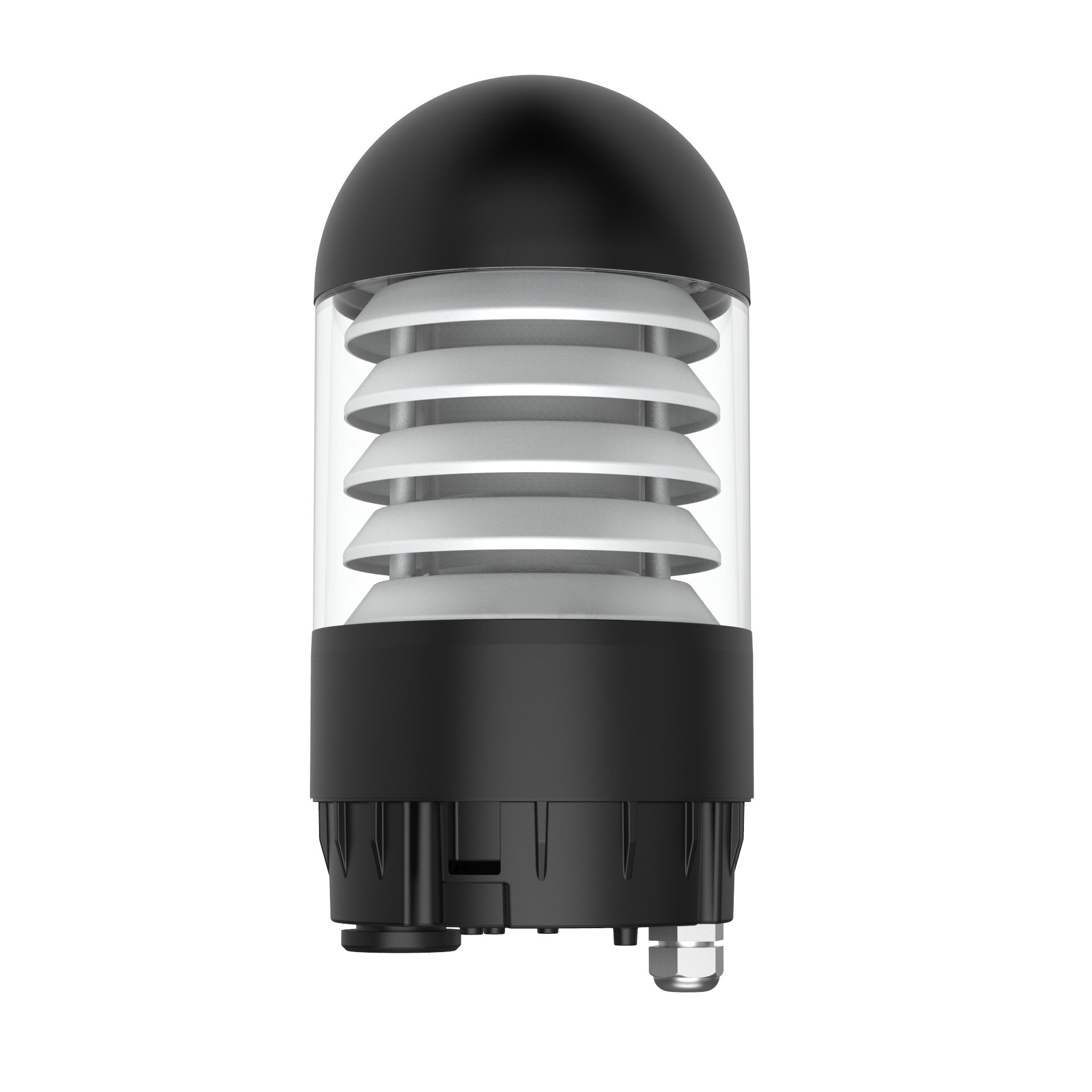

- Oval louvred reflector LED bollard head spreads light softly and evenly along the path
- Product Feature 2:
- Wall and surface mountable with symmetrical 360° illumination
- Product Feature 3:
- Wattage Switchable: 12W (550lm) / 16W (800lm) / 20W (950lm)
- Product Feature 4:
- CCT Switchable: 3000K / 4000K / 5000K [CRI80]
- Product Feature 5:
- For pathways, landscapes, promenades, driveways and entrances
- Availability:
-
102
Details
| Barcode | 5056884604198 |
|---|---|
| Quick Order Code | 258376 |
| Category | Luminaires |
| Range Name | Guardian |
| Product Type | Outdoor |
| Product Body Finish | Black |
| Market Segment | Residential and Commercial |
| Warranty (Years) | 5 |
Physical Data
| Product Length (mm) | 120 |
|---|---|
| Product Width (mm) | 235.7 |
| Product Weight (g) | 1320 |
| Optic | Clear Polycarbonate Shade |
| Material | Die Cast Aluminium, PC |
| Construction | Die Cast Aluminium, PC |
| Luminaire Fixing | Wall mounted or ground |
| Placement / Application | Outdoor, General Lighting |
| Control Gear | Non-replaceable |
Light Data
| Luminous Flux in Lumens (lm) | 530 to 930 |
|---|---|
| Luminous efficacy (lm/W) | 47 |
| Correlated Colour Temperature (CCT) (K) | 3000 / 4000 / 5000 (CCT Switchable) |
| Colour Temperature | 3000/4000/5000 - Warm White / Cool White / Daylight |
| Colour Temperature Name | Warm White, Cool White, Daylight |
| Beam Angle | 360 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Lifetime (hours) | 50000 |
| Switching Cycles | 100000 |
| Light Source | Non-replaceable |
Electrical Data
| Power (W) | 12 / 16 / 20 (Power Switchable) |
|---|---|
| Power Consumption (W) | 12 / 16 / 20 (Power Switchable) |
| Power Factor | 0.9 |
| Voltage Range (v) | 220-240 |
| Amperage (mA) | 285 |
| Input Voltage (V) | 220-240 |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IK Rating (Impact Protection) | IK10 |
| IP Rating (Ingress Protection) | IP65 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 50 |
Packaging
| Barcode | 5056884604198 |
|---|---|
| Single box qty | 1 |
| Package Weight (g) | 1400 |
| Package Length (mm) | 155 |
| Package Width (mm) | 155 |
| Package Depth (mm) | 285 |
| Outer Carton Barcode | 05056884604204 |
| Qty per Outer Carton | 4 |
| Outer Carton Length (mm) | 585 |
| Outer Carton Width (mm) | 325 |
| Outer Carton Depth (mm) | 170 |
Safety Guide
ILBDG004_12W_3000K
