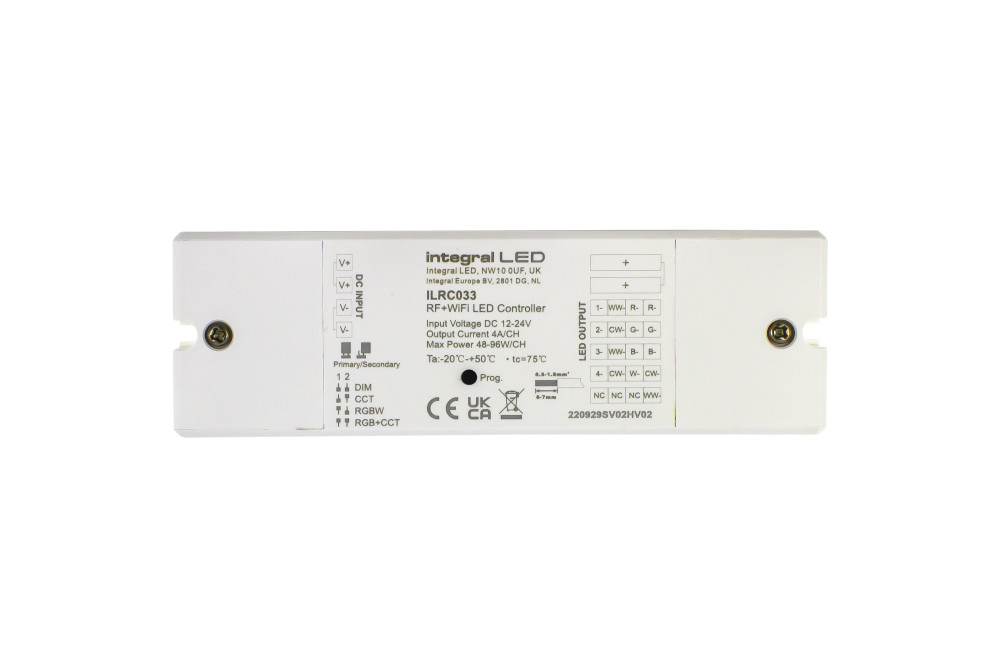

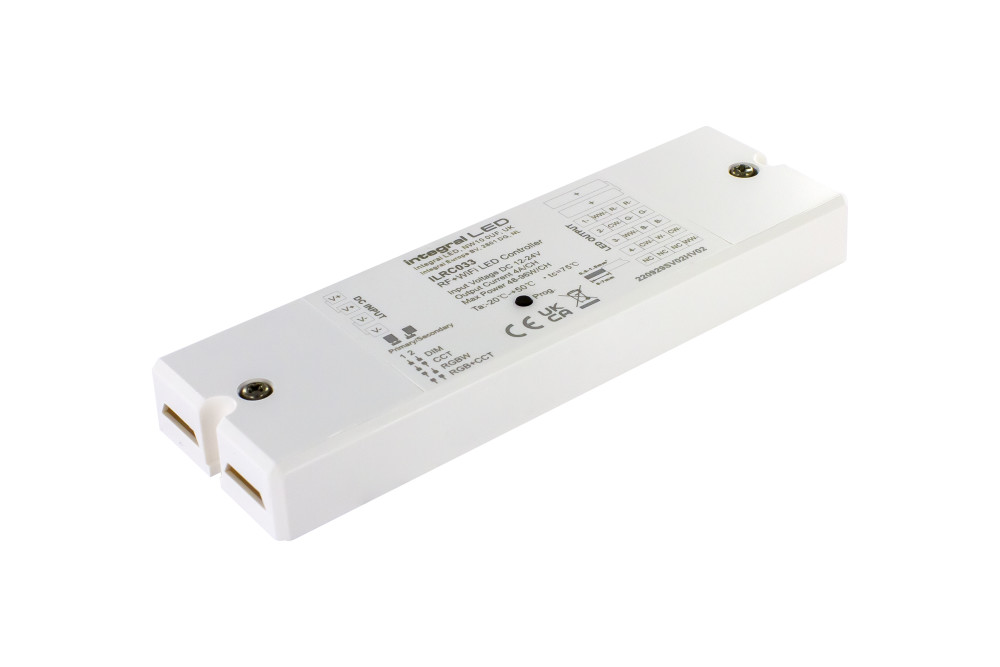

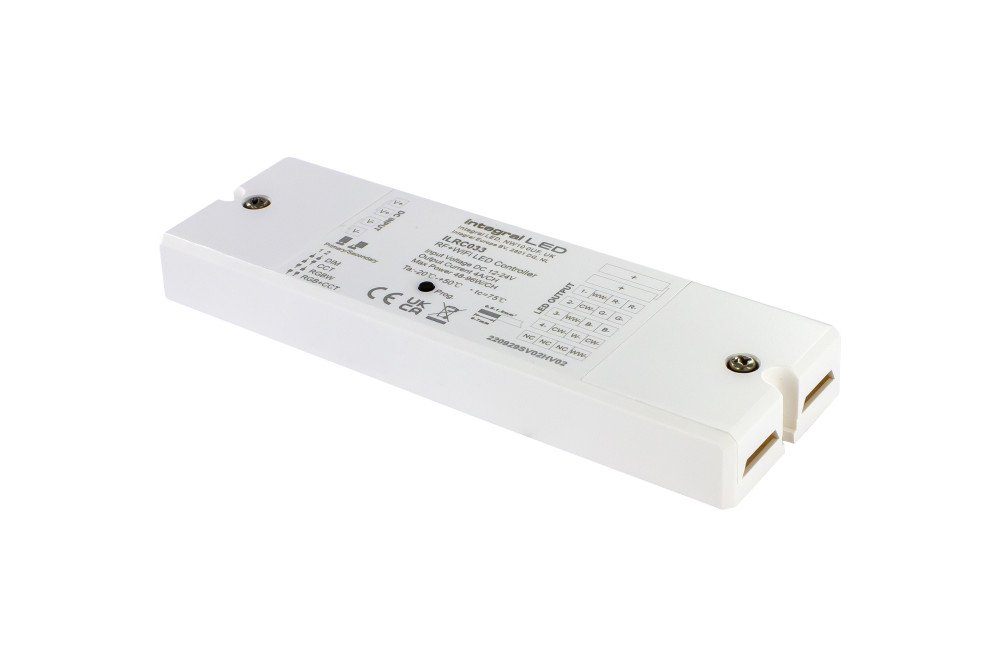

WIFI & RF UNIVERSAL RECEIVER APP CONTROLLED RGB+CCT 12-24V CONSTANT VOLTAGE 240W(12V) AND 480W(24V)
Part Number:
ILRC033
This RF & WiFi receiver is simple and easy to connect and works with all Integral LED strips (except digital). This receiver is compatible with single colour, CCT and RGBW wall plates, it can be controlled via Tuya app and can be linked to Alexa and Google Home.
Depending on the strip you select, you can choose a RF single colour remote (ILRC020 or ILRC032), or a RF colour temperature changing remote (ILRC021 or ILRC022), or a RF RGBW remote
(ILRC015, ILRC016, ILRC017, ILRC018, ILRC019) to work with this receiver.
- Product Feature 1:
- RF and WiFi receiver, 2.4 GHz Wifi technology allows extended wireless device linking
- Product Feature 2:
- Suitable for controlling entire range of strips (except digital) using phone app
- Product Feature 3:
- Input: DC12V-24V
- Product Feature 4:
- Tuya app available on Apple Store and Google Play
- Product Feature 5:
- Works with ILRC015 - ILRC016 - ILRC017 - ILRC018 - ILRC019 - ILRC020 - ILRC021 - ILRC022 - ILRC032
- Product Feature 6:
- Output Voltage: 12-24V
- Product Feature 7:
- Output power: 240W(12V), 480W(24V)
- Availability:
-
100+
More stock due in on 30/04/2025
Suggested products
Details
| Barcode | 5055788274681 |
|---|---|
| Quick Order Code | 550526 |
| Category | Strips |
| Range Name | Strip Controllers |
| Type | Controllers for strips |
| Warranty (Years) | 3 |
Physical Data
| Product Weight (g) | 76 |
|---|---|
| Material | PCB, Plastic Shell |
Light Data
Electrical Data
| Voltage Range (v) | 12-24 |
|---|---|
| Input Voltage (V) | 12-24V |
| Dimming | Dimmable |
| Driver Included | No |
| Electric Current | DC |
| EN | EN-60950-1 |
| LVD Certified | Yes |
Environmental
| EN | EN-60950-1 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 50 |
Packaging
| Barcode | 5055788274681 |
|---|---|
| Single box qty | 1 |
| Package Weight (g) | 90 |
| Package Length (mm) | 150 |
| Package Width (mm) | 53 |
| Package Depth (mm) | 27 |
| Outer Carton Barcode | 5055788274698 |
| Qty per Outer Carton | 100 |
| Outer Carton Length (mm) | 380 |
| Outer Carton Width (mm) | 280 |
| Outer Carton Depth (mm) | 270 |
