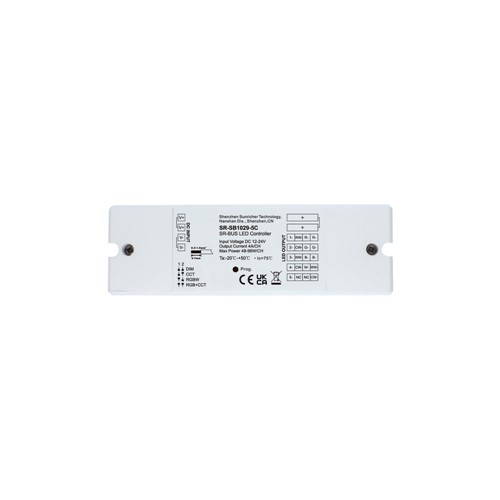

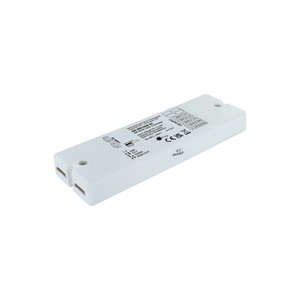

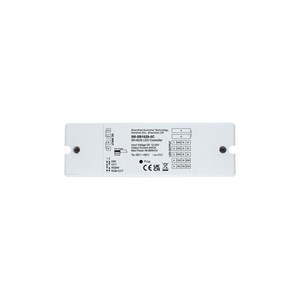

BLE & RF UNIVERSAL RECEIVER APP CONTROLLED 12-24V CONSTANT VOLTAGE 240W(12V) AND 480W(24V)

Part Number:

ILRC029

This Bluetooth and RF receiver will pair your LED strip with the intuitive EasyThings app on smartphone or tablet and also the optional wall-mounted and handheld universal RF remote controls from Integral LED, giving you precise control of any Integral strip (except digital).

Product Feature 1:
Blueooth receiver. Mesh technology allows extended wireless device linking
Product Feature 2:
Suitable for controlling entire range of strips (except digital) using phone app
Product Feature 3:
Input: DC12V-24V
Product Feature 4:
Works with ILRC015 - ILRC016 - EasyThings app available on Google Play and Apple Store
Product Feature 5:
Out Current: 20A (4Ax5CH)
Product Feature 6:
Output Power: 240W (12V) / 480W (24V)
Product Feature 7:
Compatible with Alexa/Google Home
Availability:
80

More stock due in on 14/02/2022

Suggested products

Barcode 5055788256793
Category Strips
Range Name Strip Controllers
Warranty (Years) 5
Product Weight (g) 80
Material PCB, Plastic Shell
Dimming Dimmable
Driver Included No
Electric Current DC
LVD Certified Yes
LVD Certified Yes
CE RoHS Yes
Lowest Operating Temperature (°C) 0
Maximum Operating Temperature (°C) 75
Package Weight (g) 90
Package Length (mm) 147
Package Width (mm) 50
Package Depth (mm) 25

Product Specification Sheet

Installation Guides
