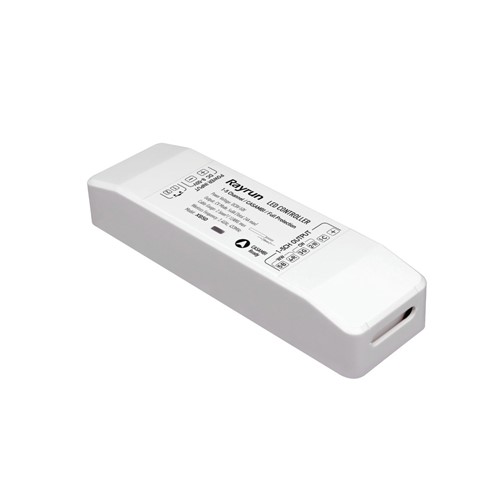

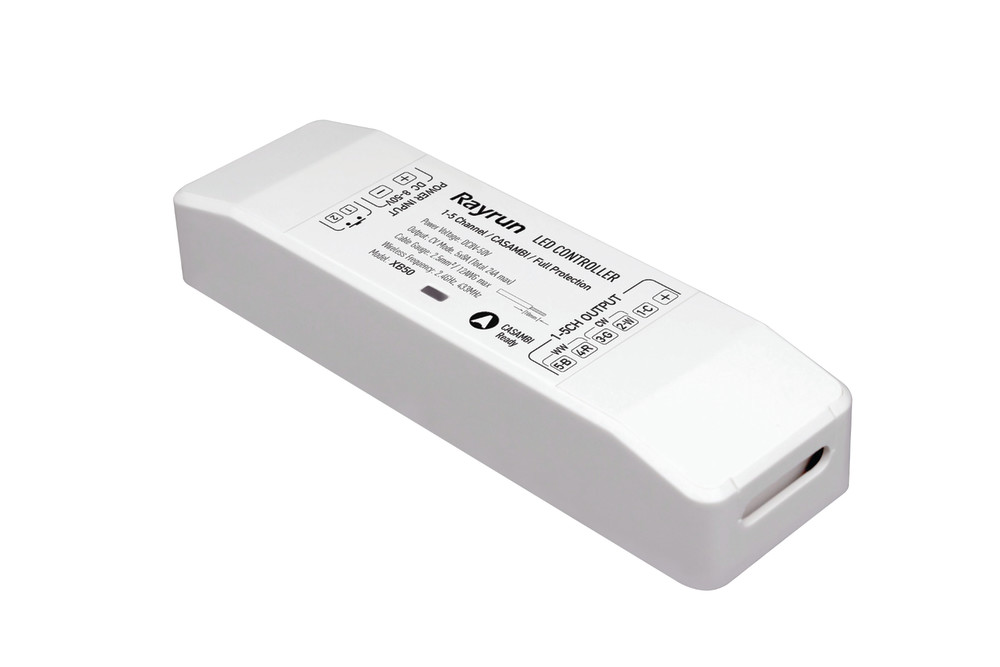

CASAMBI BLE MESH RECEIVER RGB+CCT 8-50VDC IP20 288W(12V) 576W(24V) AND 1152W(48V)
Part Number:
ILCTCAS-XB50
This 5-in-1 constant voltage Casambi-ready controller allows for full accent lighting effects, adjustment of compatible single colour, colour-tunable, RGB, RGBW & RGBCCT LED Strips via the easy to use Casambi app.
The built-in RF antenna and press-key function allow for independent light control without use of Casambi app.
- Product Feature 1:
- RF and Casambi BLE receiver module
- Product Feature 2:
- Suitable for controlling entire range of Integral strips (except RGB Digital) using Casambi app
- Product Feature 3:
- Input: 8-50VDC
- Product Feature 4:
- Output Voltage: 8-50VDC
- Product Feature 5:
- Output Power: 288W(12V), 576W(24V) and 1152W(48V)
- Product Feature 6:
- Compatible with ILCTCAS-RM05-M RF remote
- Product Feature 7:
- Casambi app available on Apple Store and Google Play
- Product Feature 8:
- Built-in Press-key function
- Availability:
-
98
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Quick Order Code | 875380 |
|---|---|
| Barcode | 5055788286509 |
| Category | Strips |
| Range Name | Casambi |
| Type | Controllers for strips |
| Product Type | Controllers for strips |
| Product Body Finish | Matt white |
| Market Segment | Residential Indoor, Commercial indoor |
| Warranty (Years) | 5 |
Physical Data
| Product Length (mm) | 134 |
|---|---|
| Product Depth (mm) | 24 |
| Product Width (mm) | 39 |
| Product Weight (g) | 63 |
| Material | PCB, Plastic Shell |
| Placement / Application | Indoor, LED Lighting |
Light Data
Electrical Data
| Input Voltage (V) | 8-50V |
|---|---|
| Dimming | Dimmable |
| Driver Included | No |
| Electric Current | DC |
| EN | EN-60950-1 |
| LVD Certified | Yes |
Environmental
| EN | EN-60950-1 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 50 |
Packaging
| Package Weight (g) | 83 |
|---|---|
| Package Length (mm) | 140 |
| Package Width (mm) | 38 |
| Package Depth (mm) | 26 |
