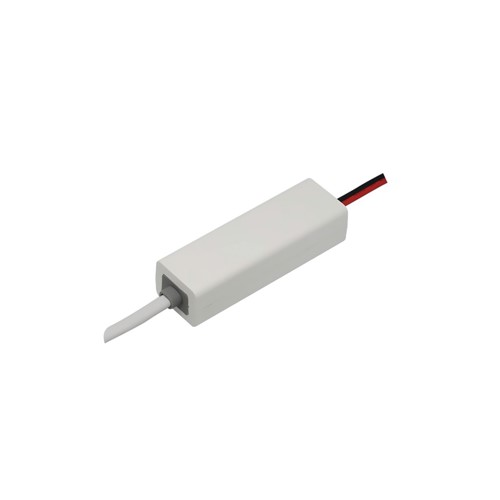

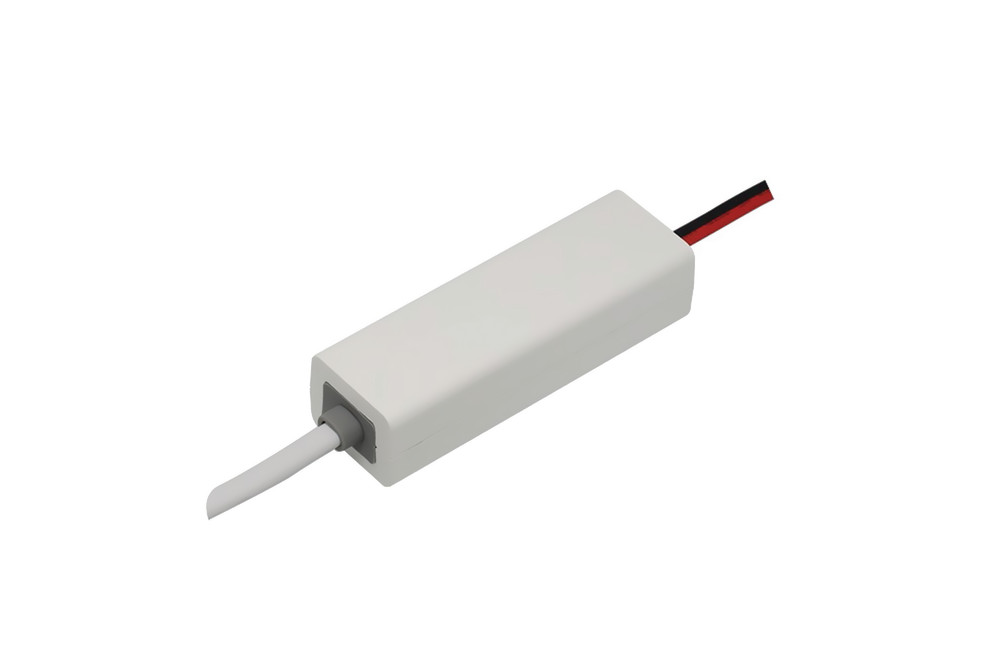

CASAMBI TO DALI SIGNAL CONVERTER IP63 DALI-BUS 16V OUTPUT 90-265V INPUT

Part Number:

ILCTCAS-HCB10

Designed to control standard DALI-interface drivers, this adapter with built-in DALI power supply converts the Casambi signal to compatible single colour or CCT-tunable DALI modules and connects existing lights without the need of replacing them. Simply wire the signal converter output bus into the luminaire DALI bus terminals for instant compatibility and smart link with the Casambi app.

Product Feature 1:
Input Voltage: 100-240VAC
Product Feature 2:
Signal Output: 50mA / 16VDC
Product Feature 3:
Built-in DALI power supply
Availability:
100+

Call us on 0208 451 8700 to check the next availability

Suggested products

Quick Order Code 195243
Barcode 5055788286530
Category Luminaires
Range Name Casambi
Type Signal Converter
Product Type Signal Converter
Product Body Finish Matt white
Market Segment Commercial indoor, Residential indoor
Warranty (Years) 5
Product Length (mm) 81
Product Depth (mm) 20
Product Width (mm) 26
Product Weight (g) 45
Material PCB, Plastic Shell
Placement / Application Indoor, LED Lighting
Frequency Range (Hz) 50/60
Input Voltage (V) 100-240VAC
Electric Current AC
EN EN61347-1, EN61347-2-13, EN55015, EN6100-3-3, EN6100-3-2, EN61547
LVD Certified Yes
EN EN61347-1, EN61347-2-13, EN55015, EN6100-3-3, EN6100-3-2, EN61547
LVD Certified Yes
CE RoHS Yes
Hg 0% (Mercury Free) Yes
IP Rating (Ingress Protection) IP20
Lowest Operating Temperature (°C) -20
Maximum Operating Temperature (°C) 50
Package Weight (g) 54
Package Length (mm) 140
Package Width (mm) 38
Package Depth (mm) 16
