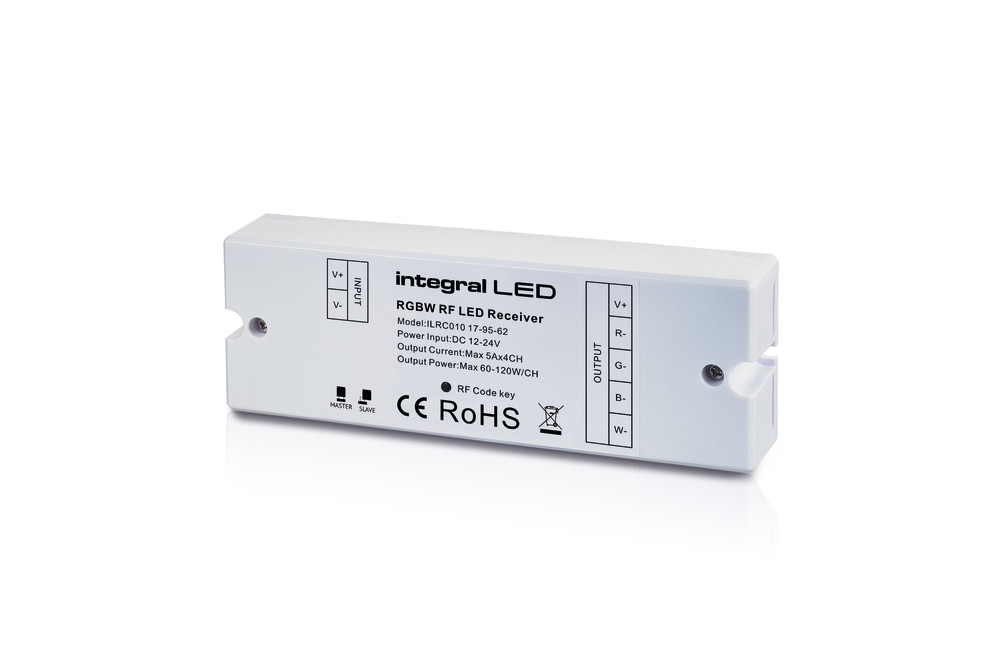

RF RECEIVER AND REMOTE TOUCH AND BUTTON RGBW 12-24V CONSTANT VOLTAGE 240W(12V) AND 480W(24V) INTEGRAL
Part Number:
ILRC010

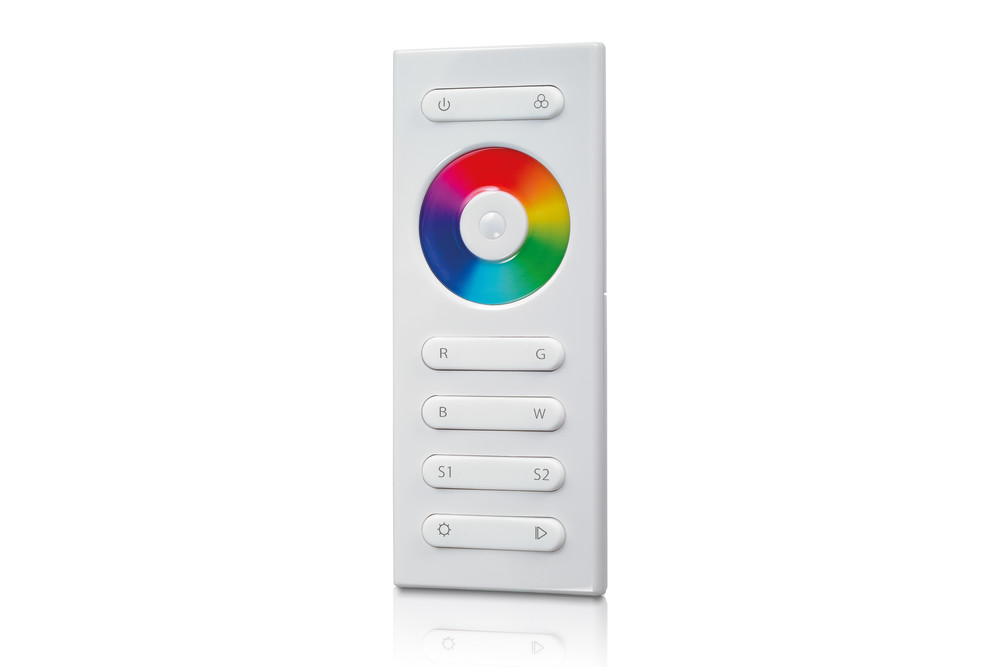

This RGBW colour RF (Radio Frequency) receiver and touch/button remote control can be used with Integral RGBW colour changing strips. With the RGBW colour changing remote control, you can easily change the strip colour by choosing the colour area on the central touch circle or pressing the mode button for 10 colour modes, control the brightness and change the speed when choosing the dynamic light mode. You can also control the RGB chip and White chip individually by pressing the R, G, B and White buttons to create your colour preference.
An easy-to-follow installation and operating guide can be downloaded from our website. 3 x AAA batteries (not included) are required for remote.
- Product Feature 1:
- Suitable for controlling RGBW colour changing strip
- Product Feature 2:
- Max 30M Remote Distance
- Product Feature 3:
- DC12-24V Power Input
- Product Feature 4:
- 5A x 4 channels Max 20A Current Load
- Product Feature 5:
- 240W (12V) / 480W (24V) Power Output
- Availability:
-
26
More stock due in on 15/01/2025
Suggested products
Details
| Quick Order Code | 179562 |
|---|---|
| Barcode | 5055788229568 |
| Category | Strips |
| Range Name | RGBW |
| Product Type | Controllers for strips |
Physical Data
| Material | PCB, Plastic Shell |
|---|---|
| Handheld or Wall Mount | Handheld |
| Zones | 1 |
Light Data
Electrical Data
| Voltage Range (v) | 45627 |
|---|---|
| Dimming | Dimmable |
| Driver Included | No |
| Electric Current | DC |
| EN | EN-60950-1 |
| LVD Certified | Yes |
Environmental
| EN | EN-60950-1 |
|---|---|
| LVD Certified | Yes |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | 0 |
| Maximum Operating Temperature (°C) | 40 |
Packaging
| Package Weight (g) | 185 |
|---|---|
| Package Length (mm) | 150 |
| Package Width (mm) | 50 |
| Package Depth (mm) | 40 |
