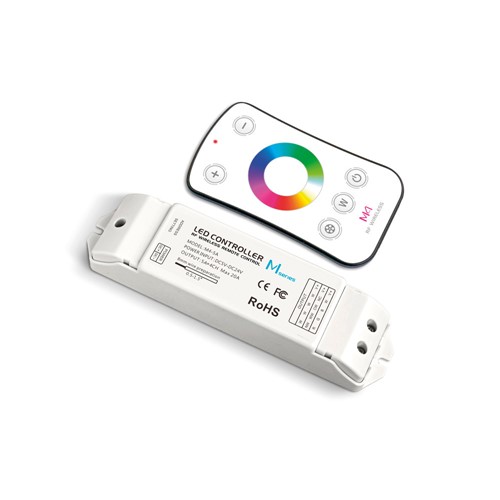

RF RECEIVER AND REMOTE TOUCH RGBW 5-24V CONSTANT VOLTAGE 100W(5V) AND 240W(12V) AND 480W(24V) INTEGRAL
Part Number:
ILRC007
- Product Feature 1:
- Suitable for controlling RGBW colour changing strip
- Product Feature 2:
- Max 50M Remote Distance
- Product Feature 3:
- DC5-24V Power Input
- Product Feature 4:
- 5A x 4 channels Max 20A Current Load
- Product Feature 5:
- Max 100W (5V) /240W (12V) / 480W (24V) Power Output
- Availability:
-
0
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Barcode | 5055788216896 |
|---|---|
| Quick Order Code | 975658 |
| Category | Strips |
| Range Name | RGBW |
| Product Type | Controllers for strips |
| Warranty (Years) | 5 |
Physical Data
| Product Weight (g) | 167 |
|---|---|
| Material | PCB, Plastic Shell |
| Handheld or Wall Mount | Handheld |
| Zones | 1 |
Light Data
Electrical Data
| Voltage Range (v) | 45413 |
|---|---|
| Driver Included | No |
| Electric Current | DC |
| EN | EN-60950-1 |
| LVD Certified | Yes |
Environmental
| EN | EN-60950-1 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Lowest Operating Temperature (°C) | -30 |
| Maximum Operating Temperature (°C) | 55 |
Packaging
| Barcode | 5055788216896 |
|---|---|
| Single box qty | 1 |
| Package Weight (g) | 225 |
| Package Length (mm) | 227 |
| Package Width (mm) | 155 |
| Package Depth (mm) | 30 |
| Outer Carton Barcode | 5055788216902 |
| Qty per Outer Carton | 50 |
| Outer Carton Length (mm) | 440 |
| Outer Carton Width (mm) | 320 |
| Outer Carton Depth (mm) | 210 |
