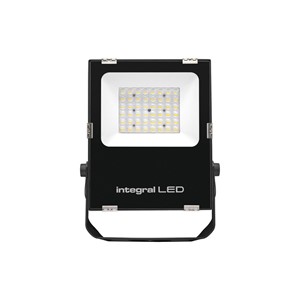

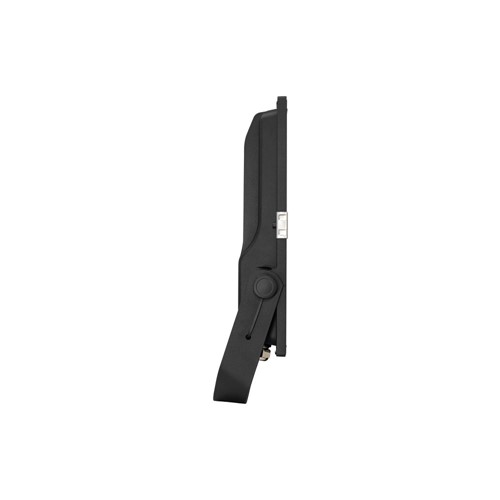

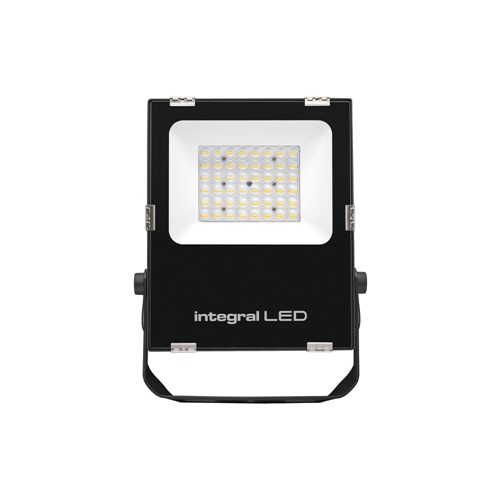

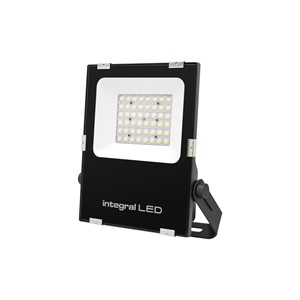

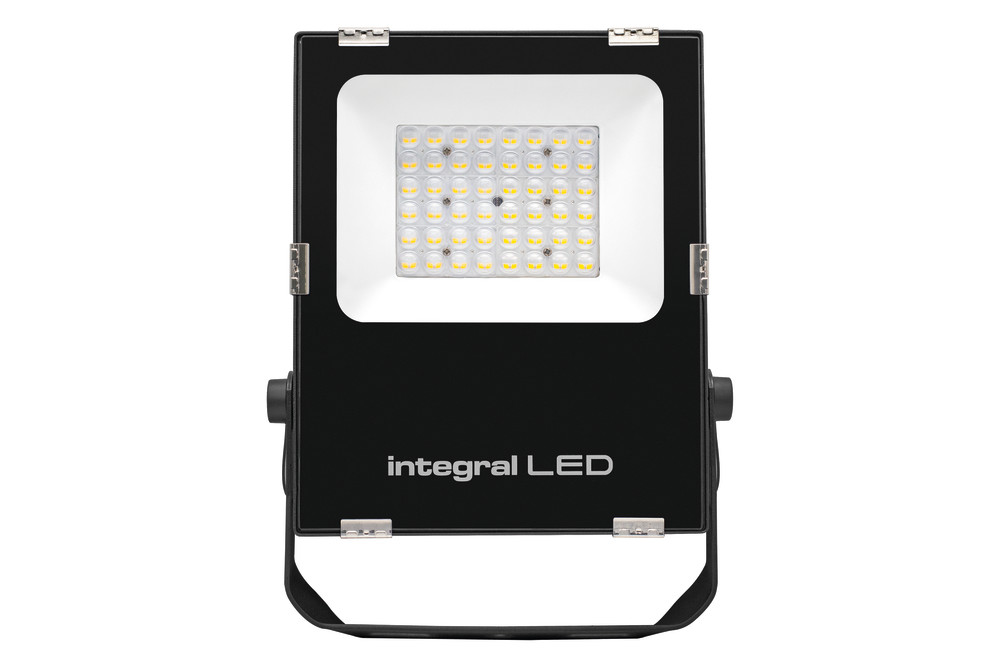

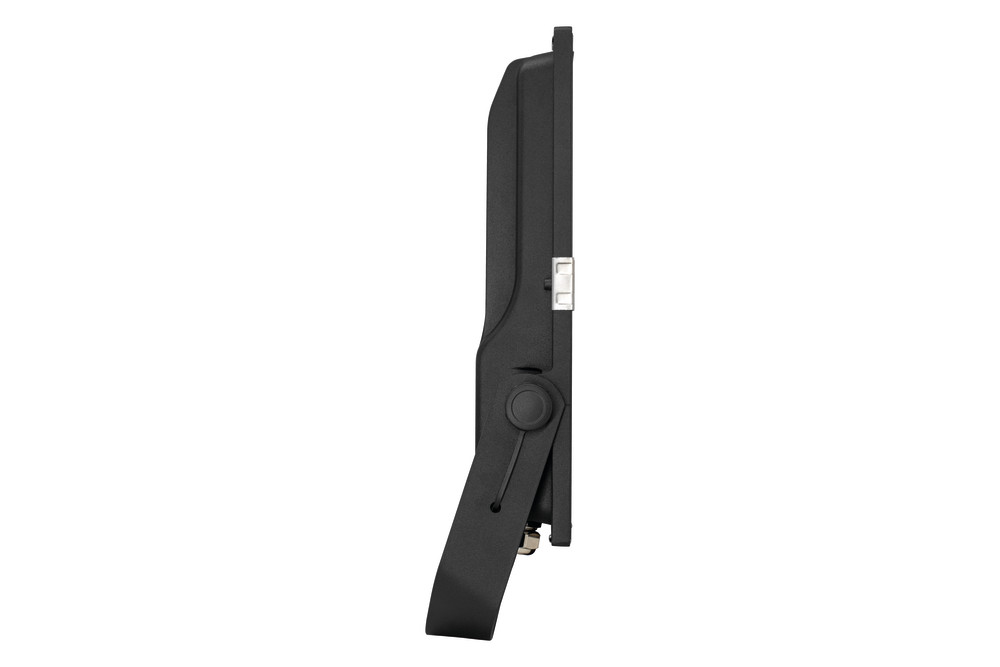

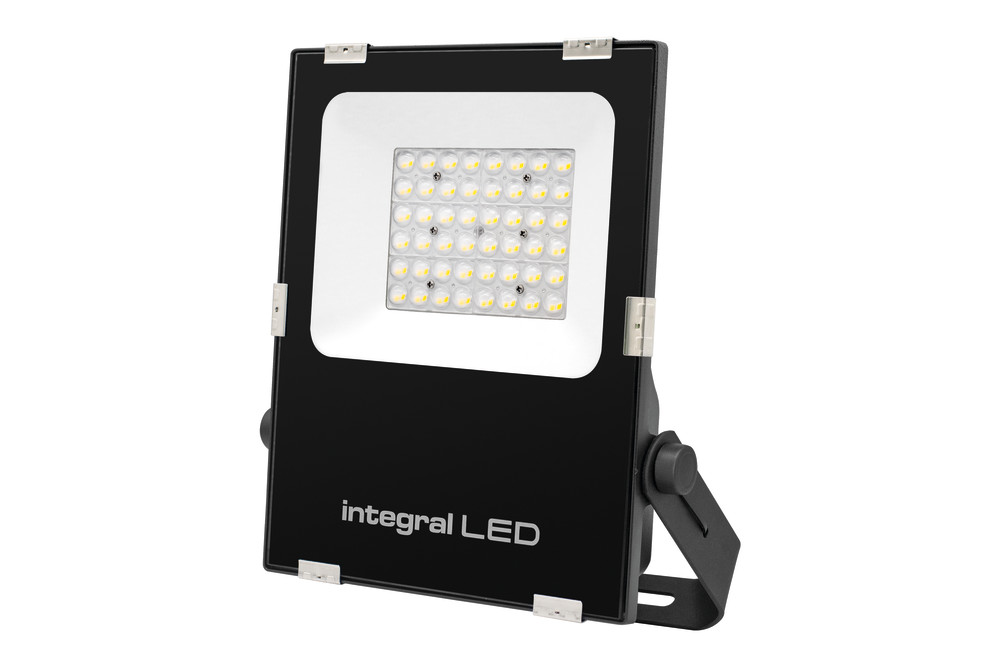

100W PRECISION PLUS 90°x60° ASYMMETRIC FLOODLIGHT 12000LM 4000K NON DIM IP66 IK08 5 YR WARRANTY
Part Number:
ILFLD311
THIS ITEM IS NOW UPGRADED OR DISCONTINUED. CONTACT US TO FIND A REPLACEMENT PRODUCT.
The new high-performance and reliable Precision-Plus Floodlight range is robust, super bright and efficient with brightness levels from 13,000 to 26,000 lumens with up to 130lm/W efficacy.
A discreet and sturdy aluminium die-cast housing with good heat dissipation, a toughened glass cover and an IP66 and IK08 rating, makes the floodlights perfect for outdoor industrial, commercial and facade lighting with 60° and asymmetric optics.
- Product Feature 1:
- 60x90 Asymmetrical Optic
- Product Feature 2:
- 130lm/W
- Product Feature 3:
- 1m pre-wired
- Product Feature 4:
- IP66
- Product Feature 5:
- IK08
- Availability:
-
0
Call us on 0208 451 8700 to check the next availability
Details
| Barcode | 5055788257608 |
|---|---|
| Quick Order Code | 564584 |
| Category | Luminaires |
| Range Name | Precision Plus |
| Product Body Finish | Black |
| Market Segment | Commercial & Industrial Outdoor |
| Warranty (Years) | 5 |
Physical Data
| Product Length (mm) | 355 |
|---|---|
| Product Depth (mm) | 55 |
| Product Width (mm) | 245 |
| Product Weight (g) | 3100 |
| Material | Aluminium, Tempered Glass |
| Construction | Aluminium die-cast heat-sink, Tempered Glass protective front cover, Integrated driver |
| Luminaire Fixing | Wall Mounted |
| Placement / Application | Indoor and outdoor, General lighting |
Light Data
| Beam Type | Asymmetrical |
|---|---|
| Energy Efficiency Label (Image) | ILFLD311_EU_label |
| Luminous Flux in Lumens (lm) | 12000 |
| Correlated Colour Temperature (CCT) (K) | 4000 |
| Colour Temperature Name | Cool White |
| Beam Angle | 60x90 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 50000 |
| Sensor / Overide | No |
| Switching Cycles | 25000 |
Electrical Data
| Power (W) | 100 |
|---|---|
| Power Consumption (W) | 100 |
| Power Factor | 0.9 |
| Voltage Range (v) | 220-240 |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| New Energy Rating | F |
| EU Luminaire | L |
| Hg 0% (Mercury Free) | Yes |
| IK Rating (Impact Protection) | IK08 |
| IP Rating (Ingress Protection) | IP65 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 40 |
Packaging
| Barcode | 5055788257608 |
|---|---|
| Single box qty | 1 |
| Package Weight (g) | 3600 |
| Package Length (mm) | 405 |
| Package Width (mm) | 305 |
| Package Depth (mm) | 75 |
| Outer Carton Barcode | 5055788257608 |
| Qty per Outer Carton | 3 |
| Outer Carton Length (mm) | 450 |
| Outer Carton Width (mm) | 365 |
| Outer Carton Depth (mm) | 440 |
Safety Guide
ILFLD311
