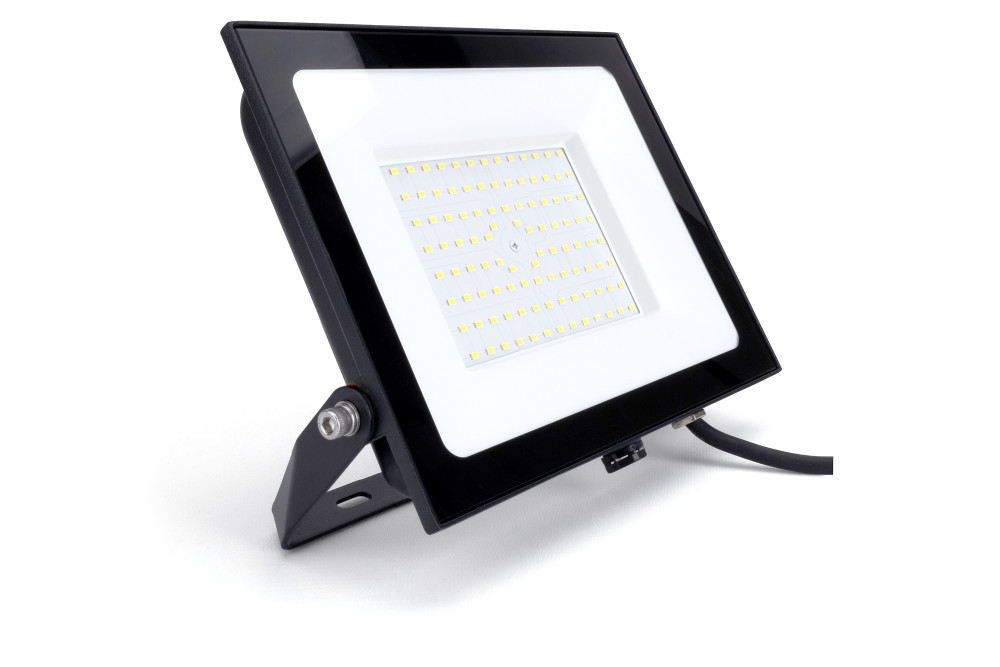

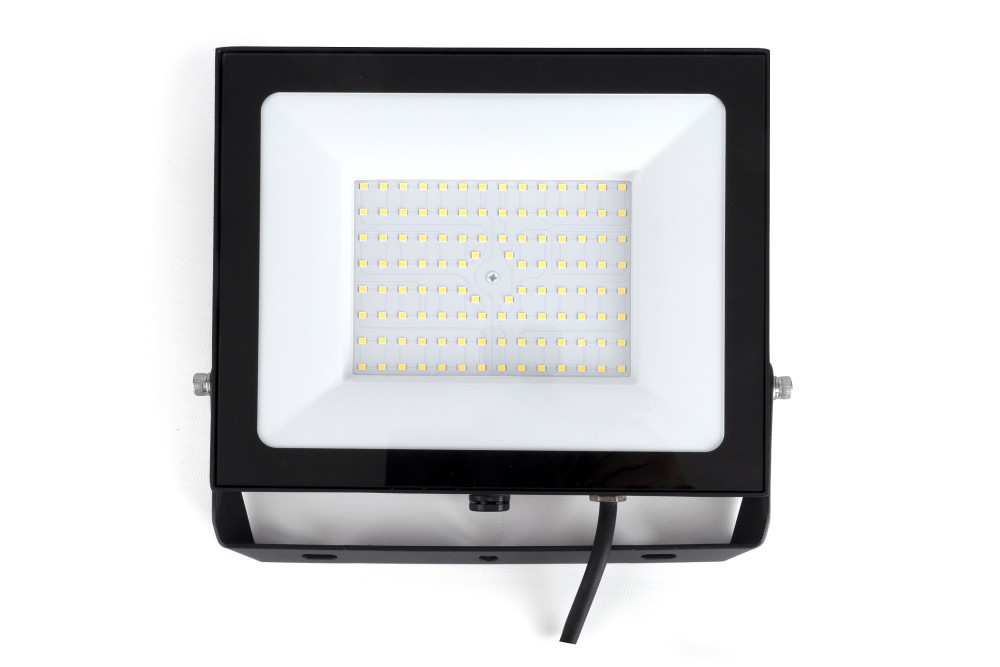

COMPACT SLIM FLOODLIGHT 100W 10000LM 4000K 120 BEAM 100LM/W IP65 IK08 INTEGRAL LED BLACK
Part Number:
ILFLE023
The Integral LED Compact Slim Floodlight is designed for industrial, commercial, and large-scale residential applications.
With an IP65 weatherproof rating and IK05 impact protection, its durable black aluminium construction and polycarbonate lens ensure long-lasting performance.
Producing a powerful 10,000 lumens from only 100W input (100lm/W efficacy) and 4000K cool white colour temperature, it provides bright, energy-efficient lighting over a 120° beam angle.
Combining robust features with an affordable price point, the Compact Slim Floodlight delivers exceptional value for money.
- Product Feature 1:
- 10000lm
- Product Feature 2:
- IP65
- Product Feature 3:
- Cool White
- Product Feature 4:
- 100lm/W
- Availability:
-
100+
More stock due in on 09/06/2025
Suggested products
Details
| Barcode | 5055788293392 |
|---|---|
| Quick Order Code | 418529 |
| Category | Luminaires |
| Range Name | Compact Slim |
| Product Type | Floodlights |
| Product Body Finish | Black |
| Market Segment | Residential and Commercial |
| Finish | Black |
| Warranty (Years) | 3 |
Physical Data
| Emergency Option | No |
|---|---|
| Product Length (mm) | 254 |
| Product Depth (mm) | 33 |
| Product Width (mm) | 217 |
| Product Weight (g) | 970 |
| Optic | Clear Refractor |
| Material | Aluminium, Polycarbonate, Glass |
| Construction | Die Cast Aluminium |
| Bulb or Luminaire Shape | Rectangle |
| Luminaire Fixing | Wall Mounted |
| Mounting Type | Pre Wired 1M flex |
| Placement / Application | Indoor, Outdoor, General Lighting |
Light Data
| Beam Type | Symmetrical |
|---|---|
| Luminous Flux in Lumens (lm) | 10000 |
| Luminous efficacy (lm/W) | 100 |
| Correlated Colour Temperature (CCT) (K) | 4000 |
| Colour Temperature Name | Cool White |
| Beam Angle | 120 |
| Colour Rendering Index (CRI) | 70 |
| Frequency Range (Hz) | 50 |
| Instant on (Less than 1 second) | Yes |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 25000 |
| Sensor / Overide | No |
| Switching Cycles | 50000 |
| Useful Lumens (lm) | 10000 |
Electrical Data
| Power Consumption (W) | 100 |
|---|---|
| Power Factor | 0.9 |
| Voltage Range (v) | 220-240 |
| Amperage (mA) | 500 |
| Input Voltage (V) | 220-240 |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| EU Luminaire | L |
| Hg 0% (Mercury Free) | Yes |
| IK Rating (Impact Protection) | IK05 |
| IP Rating (Ingress Protection) | IP65 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 40 |
Packaging
| Barcode | 5055788293392 |
|---|---|
| Package Weight (g) | 350 |
| Package Length (mm) | 259 |
| Package Width (mm) | 38 |
| Package Depth (mm) | 222 |
Safety Guide
ILFLE023
